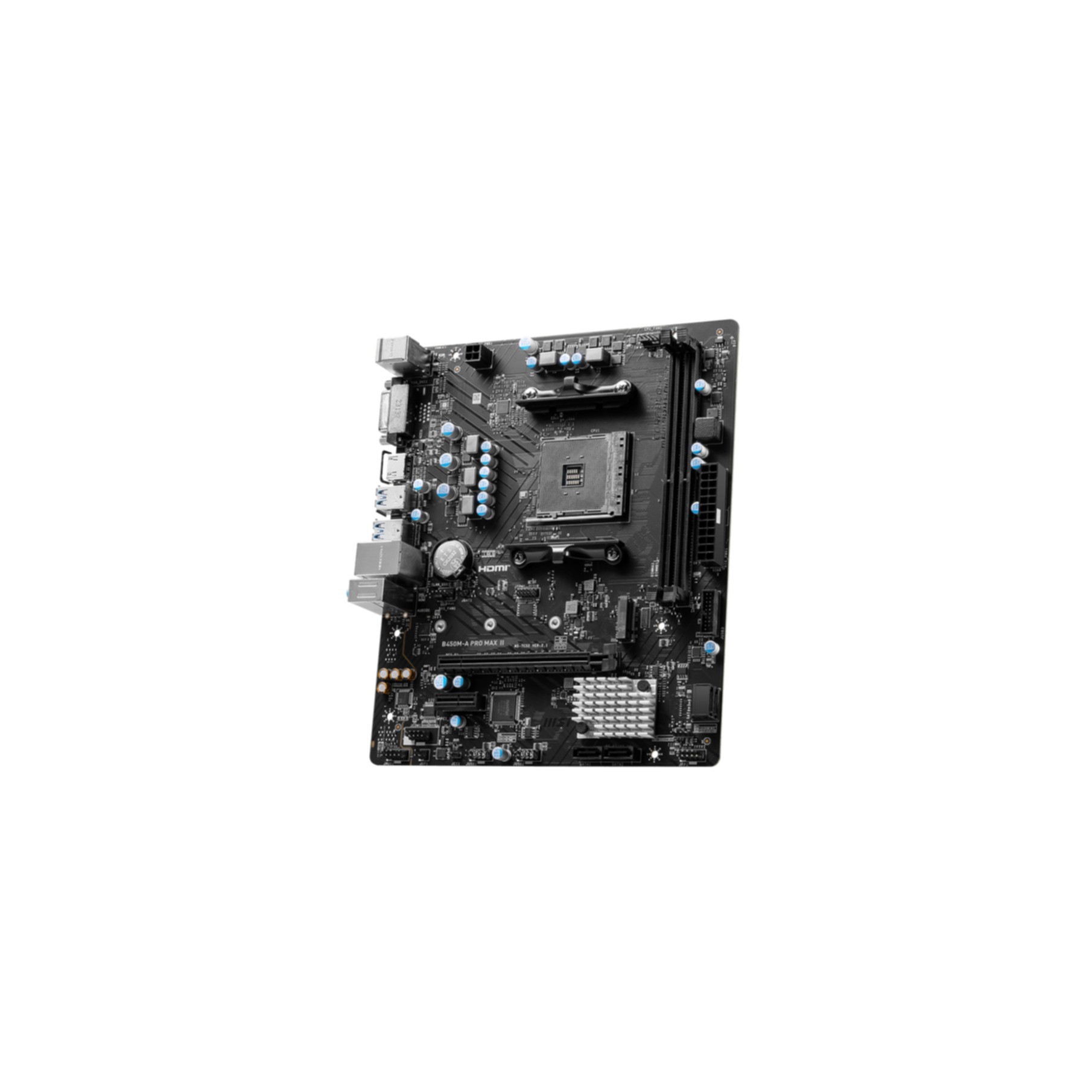

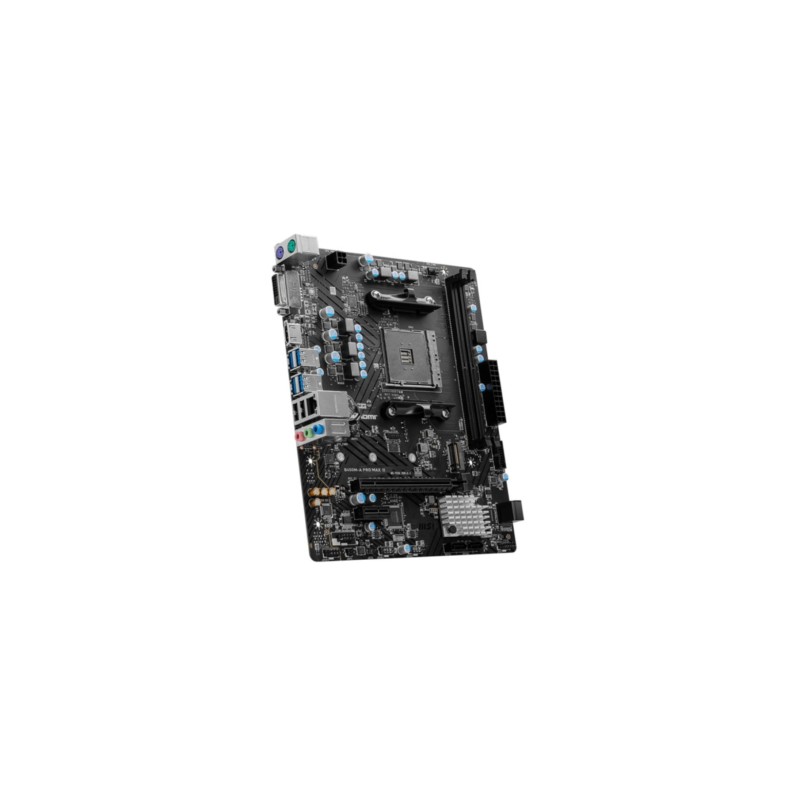

MSI B450M-A PRO MAX II - Micro-ATX AM4 Motherboard, AMD B450, DDR4 up to 64GB, 2x DIMM, HDMI, 2.5Gb LAN, Black
MSI B450M-A PRO MAX II micro-ATX AM4 motherboard — AMD B450, DDR4 up to 64GB (2x DIMM), single M.2, 4x SATA3, HDMI, Realtek 2.5Gb LAN, ALC897 audio.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Motherboards - Socket | AM4 |
|---|---|
| Motherboards - Form Factor | Micro-ATX |
| Motherboards - Memory Type | DDR4 |
| Motherboards - Memory Slots | 2 |
| Motherboards - Max Memory Capacity | 64 GB |
| Motherboards - PCIe Version (primary GPU) | PCIe 3.0 |
| Motherboards - M.2 Slots | 1 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C | None |
| unterstützte Prozessormodelle | AMD Ryzen™ 5 |
| Sockel | Sockel AM4 |
| Chipsatz | AMD B450 |
| BIOS | 256 Mbit |
| Formfaktor | micro ATX |
| geeignet für freien Multiplikator | ja |
| Speicher max. | 64 GB |
| Memory slots | 2 |
| Speicher je Speicherplatz | 16 GB |
| Storage type | DDR4-SDRAM |
| RAM Takt | 2667, 2800, 2933, 3000, 3066, 3200, 3466, 3600, 3733, 3866, 4000, 4133 MHz |
| Speicher Kanäle | Zweikanalig |
| Speichertyp | non-ECC;un-buffered |
| Controller in CPU | ja |
| LAN (RJ45) | 2.5 Gigabit Ethernet |
| PS/2 (Tastatur/Maus) | 2 |
| USB 3.1 | 0 |
| USB 3.0 | 4 |
| USB 2.0 | 2 |
| VGA | 0 |
| DVI | 1 |
| HDMI | 1 |
| Mikrofon | 1 |
| Line-Out 3,5 mm Klinke | 2 |
| PCIe 3.0 | 1x PCIe x16 |
| PCIe 2.0 | 2x PCIe x1 |
| Mainbord Strom | 24pin |
| CPU Strom | 4pin |
| SATA 3 | 4 |
| M.2 | 1 |
| M.2 Länge max. | 80mm |
| M.2 Konnektor | M |
| USB-Header USB 2.0 | 4 |
| USB-Header USB 3.0 | 2 |
| USB-Header USB C | 0 |
| Lüfter 4-polig PWM | 1 |
| Sound-Chip | Realtek ALC897 |
| LAN | Realtek 8111H |
| Multi-GPU Modus | Nicht unterstützt |
| RAID SATA | 0;1;10 |
| Farbe | schwarz |
| Gewicht (g) | 790 |
| Breite (cm) | 23.60 |
| Tiefe (cm) | 20 |
| Internal graphic | yes |
| verfügbare Slots | 3 |
