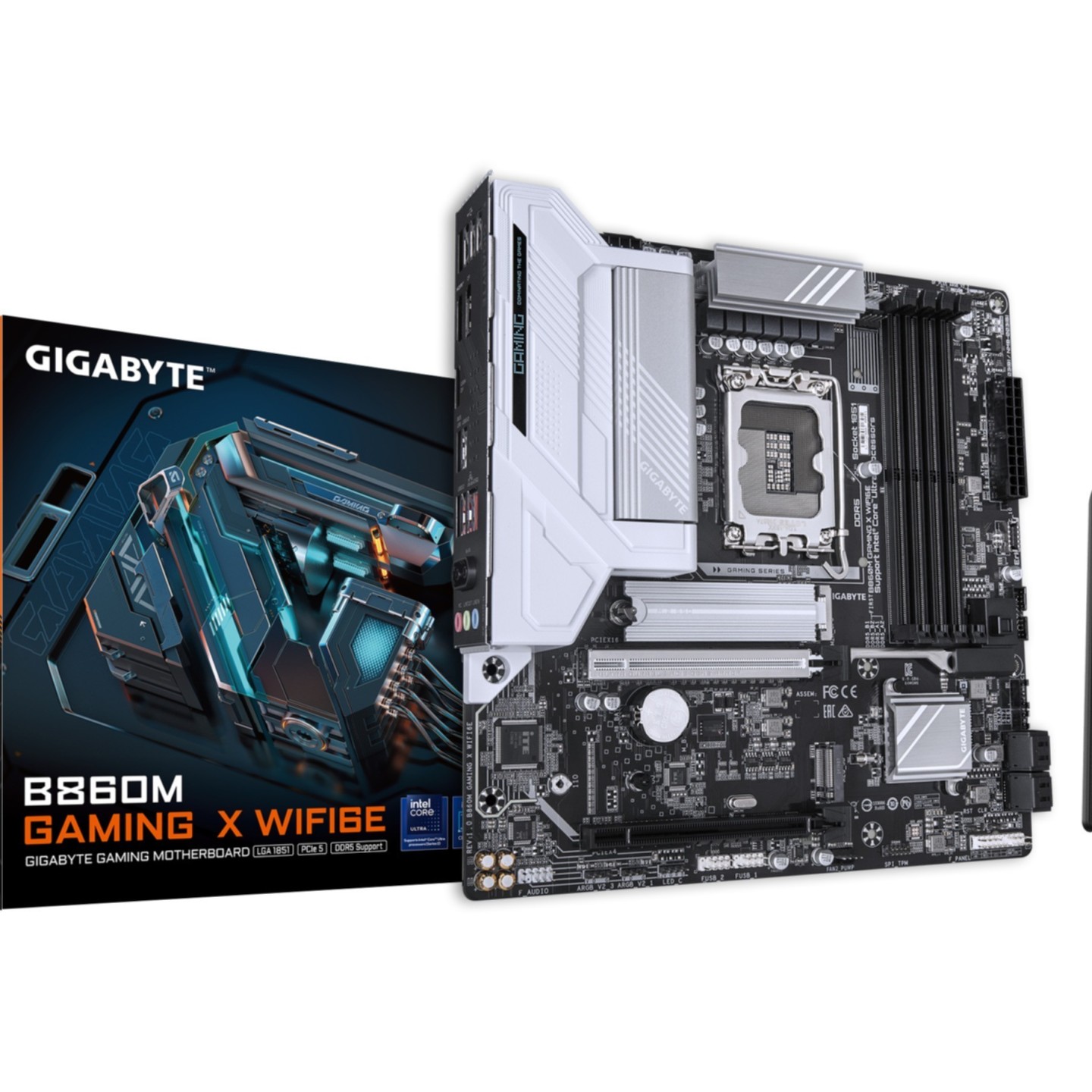

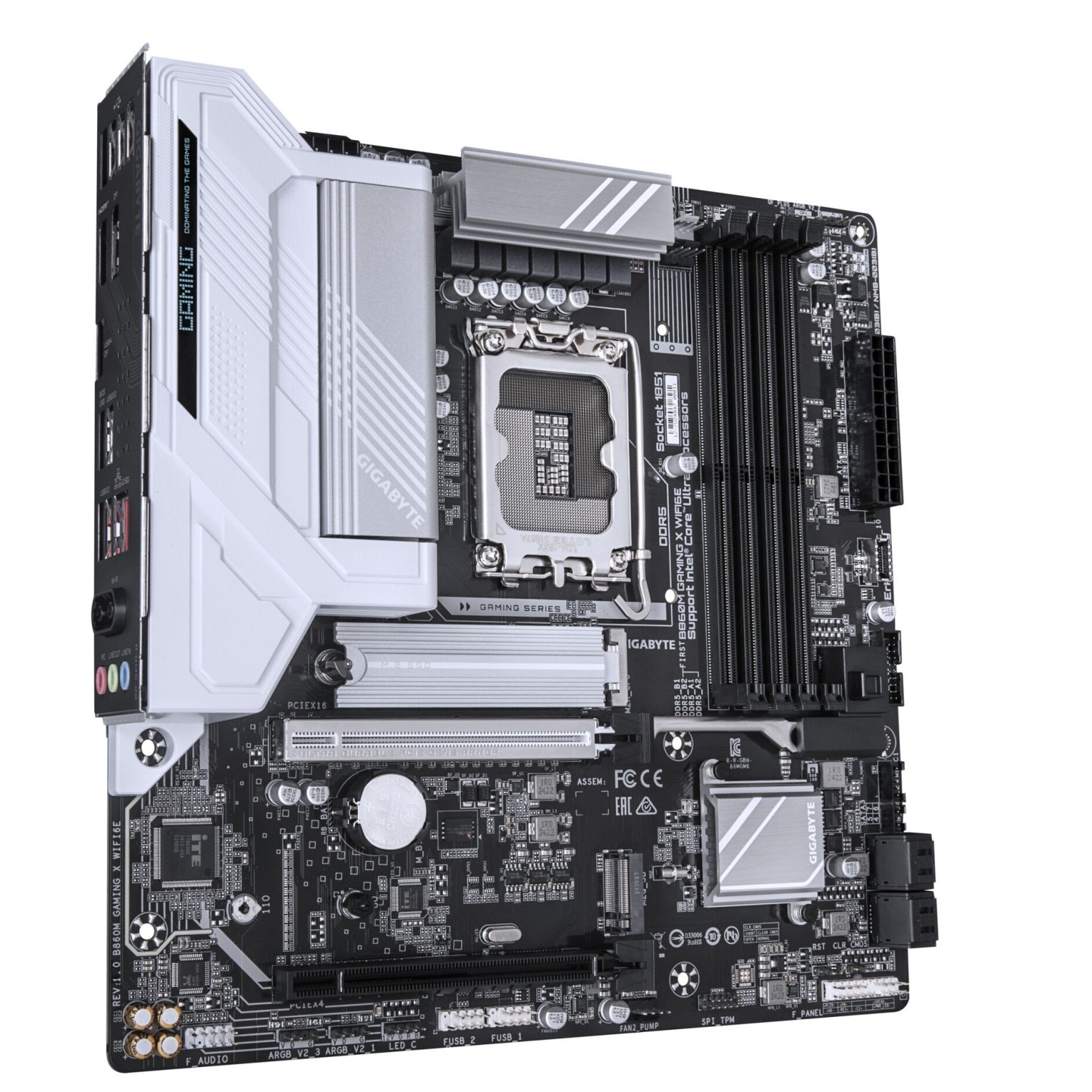

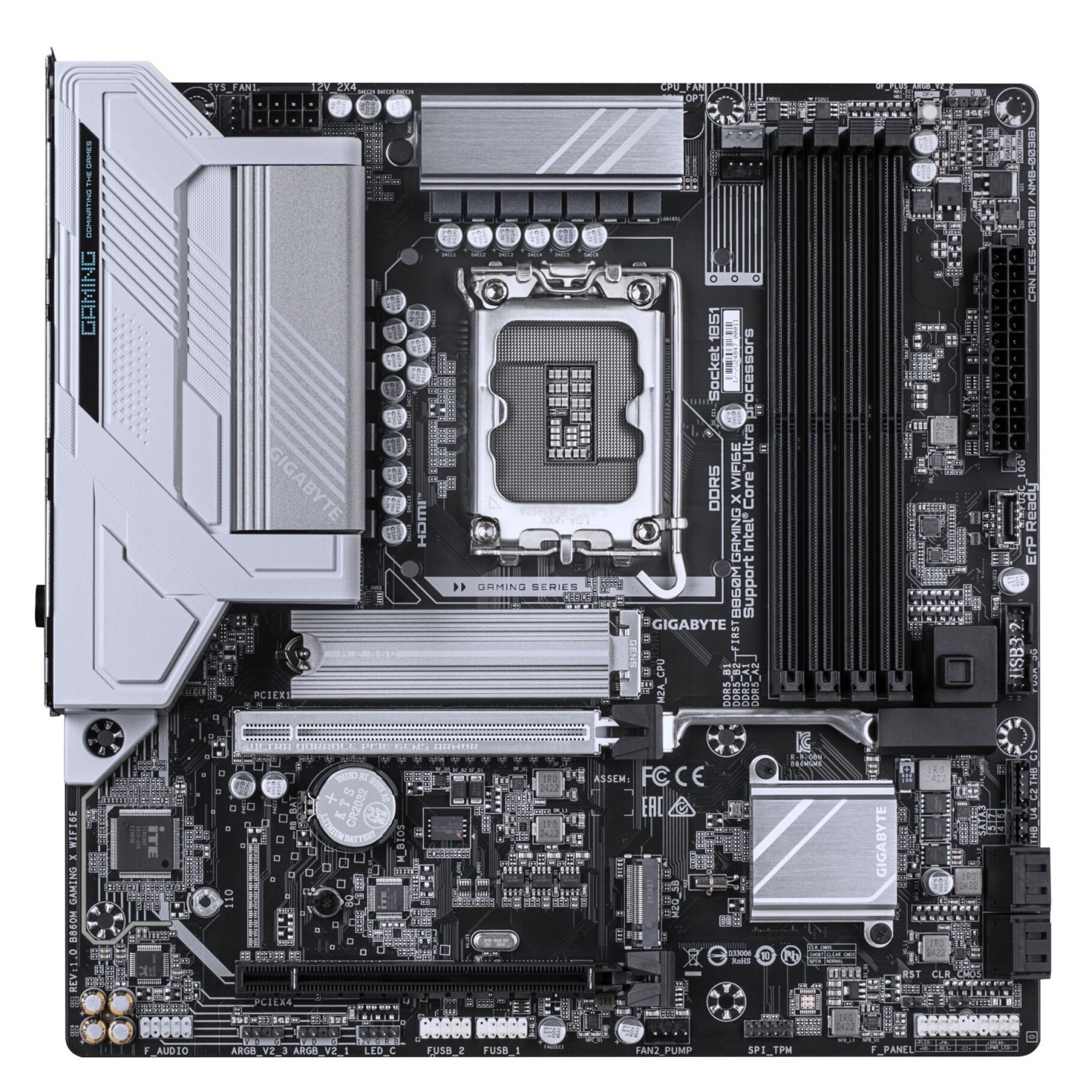

GIGABYTE B860M GAMING X WIFI6E LGA1851 DDR5 mATX MB WiFi6E USB4 PCIe5 (Boxed)
LGA1851 microATX Intel B860 DDR5 motherboard (4xDIMM/256GB/XMP). Wi-Fi 6E AX211, BT5.3, USB4, PCIe5.0 x16/M.2, 2.5GbE RTL8125, 4xSATA RAID, ALC897 7.1 audio.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | LGA 1851 |
|---|---|
| Motherboards - Chipset | Intel B860 |
| Motherboards - Form Factor | Micro-ATX |
| Motherboards - Memory Type | DDR5 |
| Motherboards - Memory Profile Support | XMP |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 256 GB |
| Motherboards - Main Slot PCIe Version | PCIe 5.0 |
| Motherboards - Color | Black |
| Motherboards - M.2 Slots | 2 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C Support | Rear Type-C |
| Motherboards - RGB Headers | 3-pin 5V ARGB 4-pin 12V RGB |
| Motherboards - Wireless Connectivity | Bluetooth WiFi |
Elevate your PC build with the GIGABYTE B860M GAMING X WIFI6E, a feature-packed microATX motherboard designed for Intel Core Ultra Series 2 processors on LGA1851 socket. It supports up to 256GB DDR5 RAM across 4 DIMM slots with speeds up to 9200MHz (O.C.) and XMP profiles for effortless overclocking. Advanced 8+1+2 phase VRM with UD Solid Pin connectors and VRM Thermal Armor ensure rock-solid power delivery and cooling for high-performance gaming and content creation.

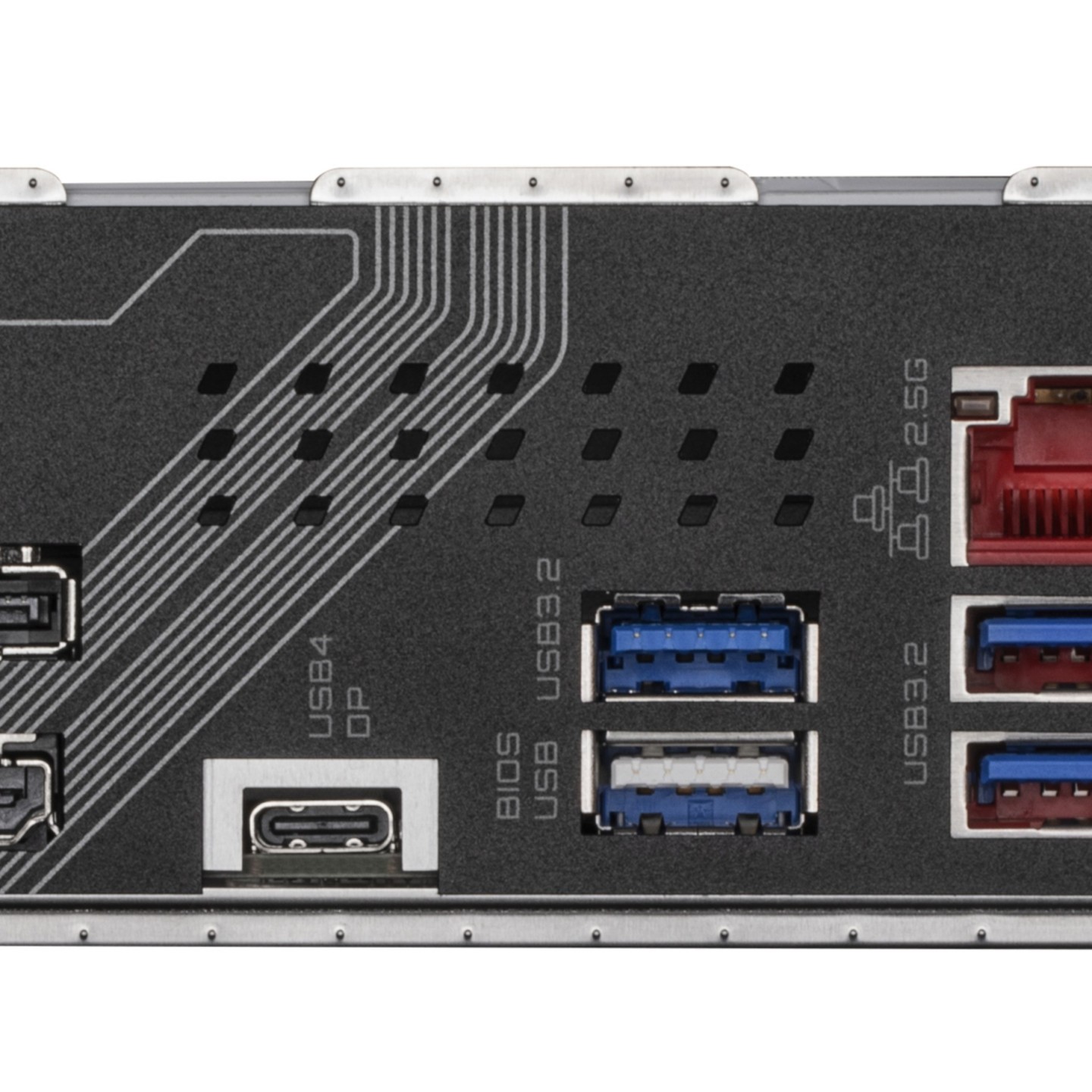

Connectivity is top-tier with Wi-Fi 6E (Intel AX211) and Bluetooth 5.3 for ultra-fast wireless, 2.5GbE LAN (Realtek RTL8125), and a full suite of ports: USB4 Type-C (DP-Alt, 3840x2160@144Hz), HDMI 2.1, DisplayPort 2.1, plus multiple USB 3.2 and 2.0. Storage options include 2x M.2 slots (1x PCIe 5.0 x4 2280, 1x PCIe 4.0 x4 25110), 4x SATA III with RAID 0/1/5/10 support. Realtek ALC897 delivers immersive 7.1-channel HD audio.
- ✅ PCIe 5.0 x16 GPU slot + PCIe 4.0 x16 slot
- ✅ M.2 Thermal Guard for SSD cooling
- ✅ 3x ARGB + 1x RGB headers for lighting
- ✅ Q-Flash Plus for easy BIOS updates
- ✅ Supports triple-display output
| Processor socket | LGA 1851 (Socket V1) |
| Motherboard chipset | Intel B860 |
| Motherboard form factor | micro ATX |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Maximum internal memory | 256 GB |
| Supported memory clock speeds | 5600, 6400, 9200 MHz (O.C.) |
| Number of M.2 (M) slots | 2 |
| Number of SATA III connectors | 4 |
| RAID levels | 0, 1, 5, 10 |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| LAN controller | Realtek RTL8125 |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| USB4 Gen 2x2 ports quantity | 1 |
| RGB LED pin header | Yes |
| Number of RGB LED pin headers | 4 |
| Package weight | 1.43 kg |
| Warranty period | 3 year(s) |
