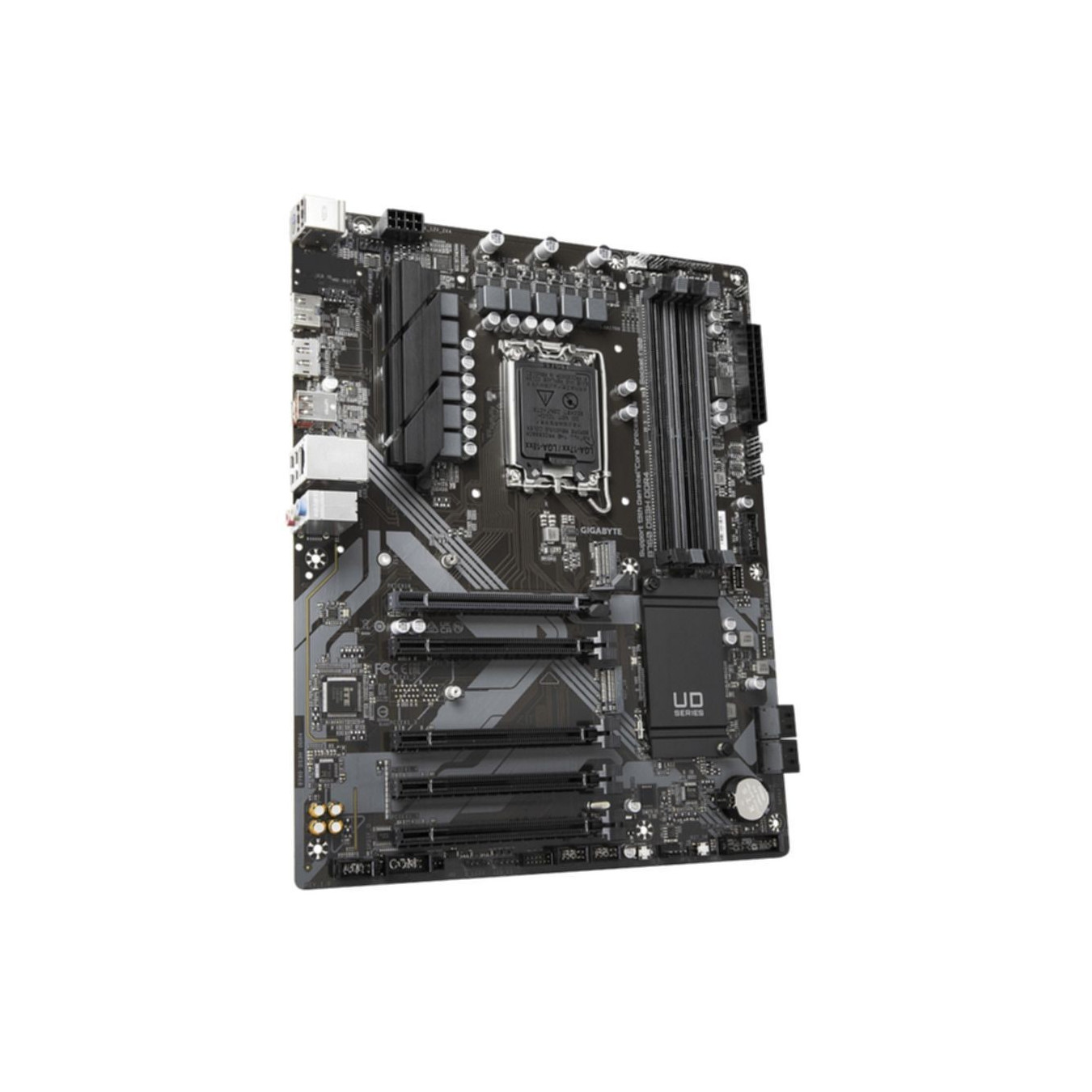

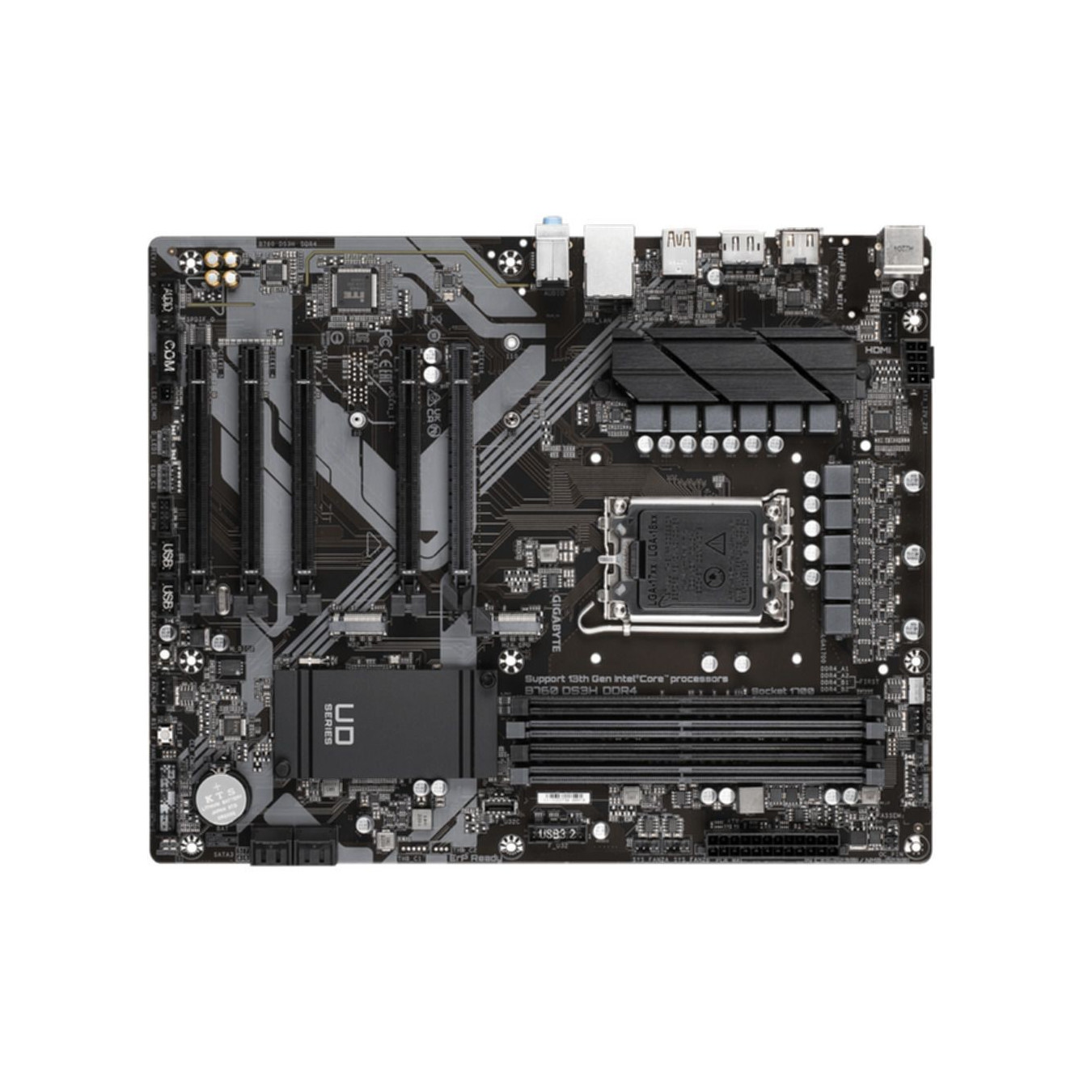

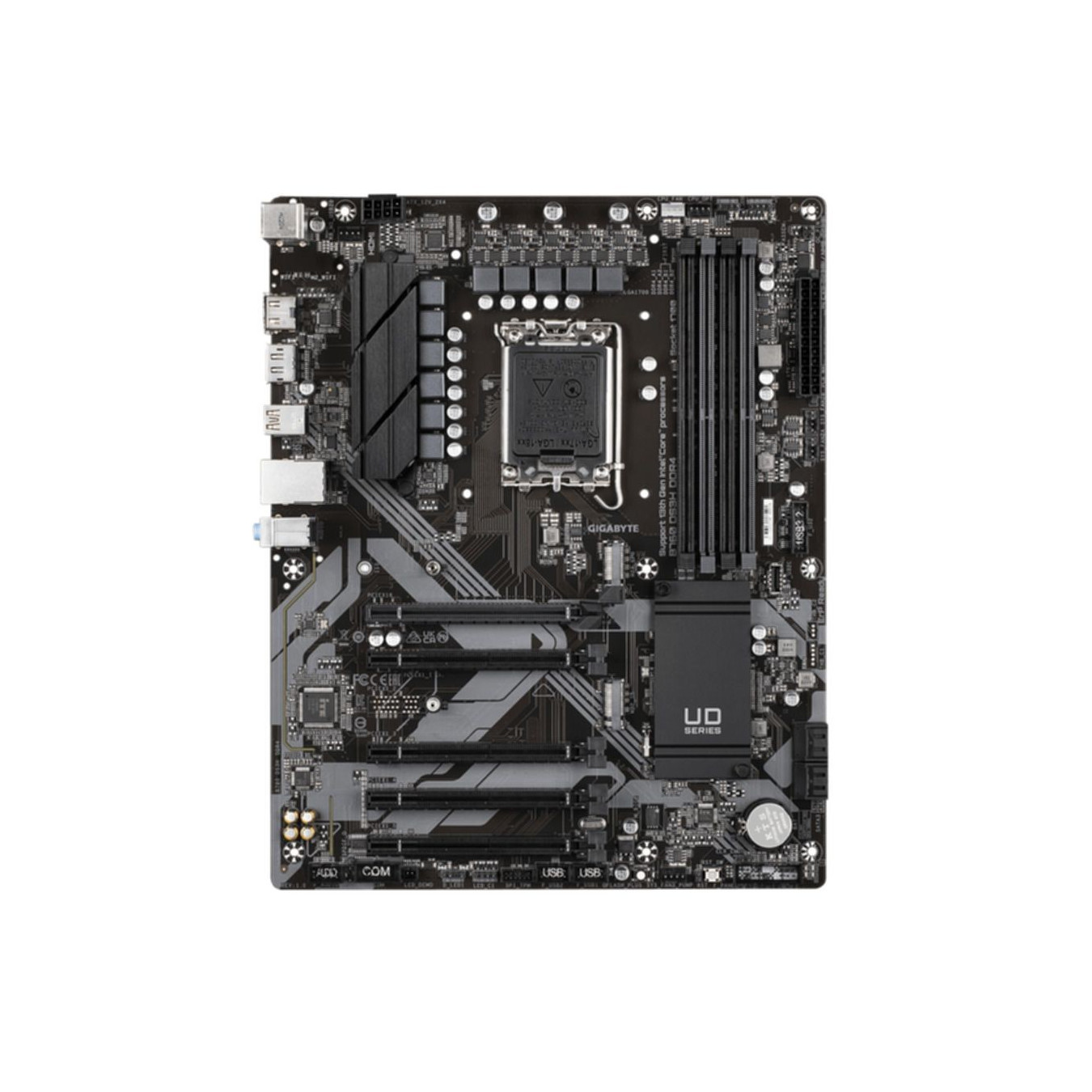

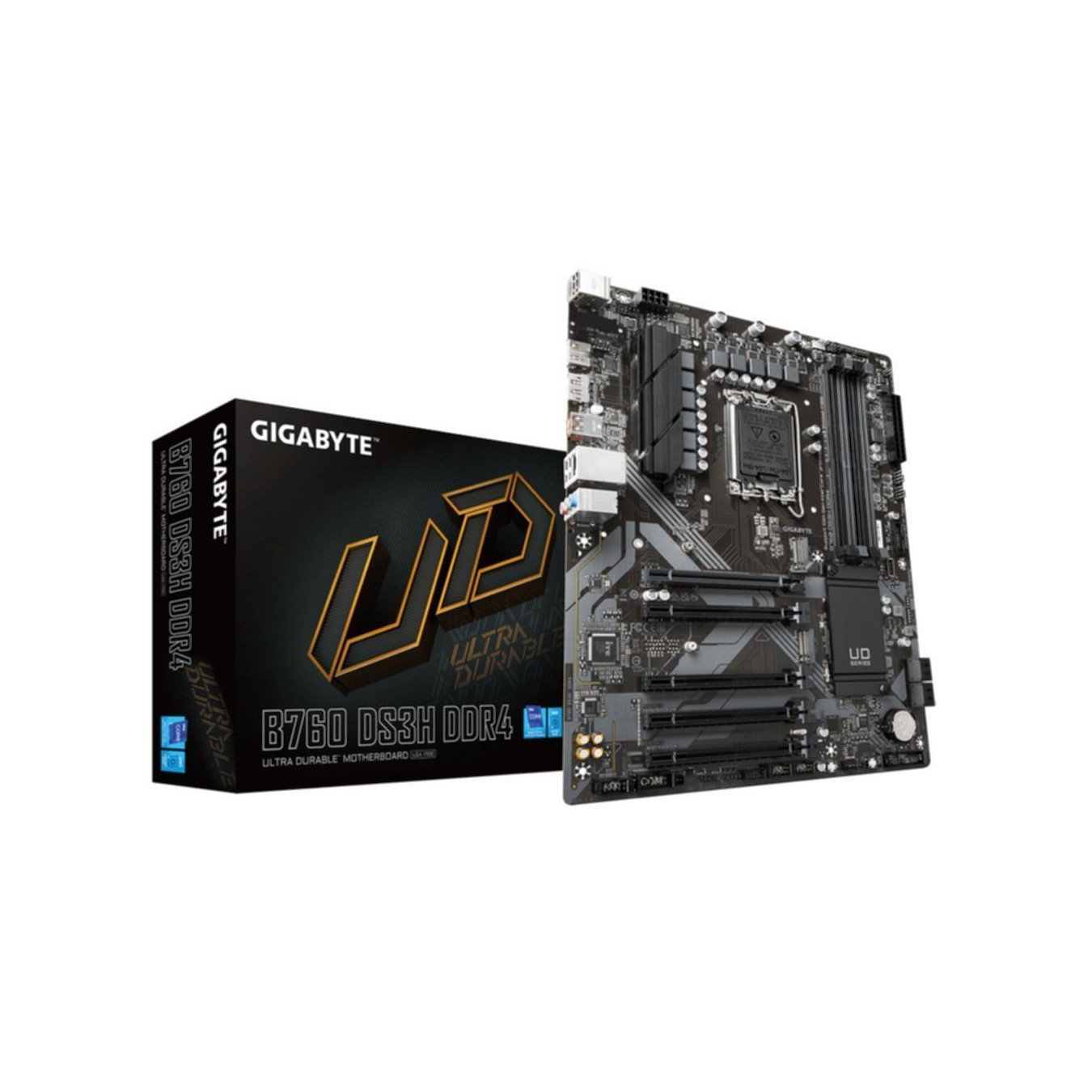

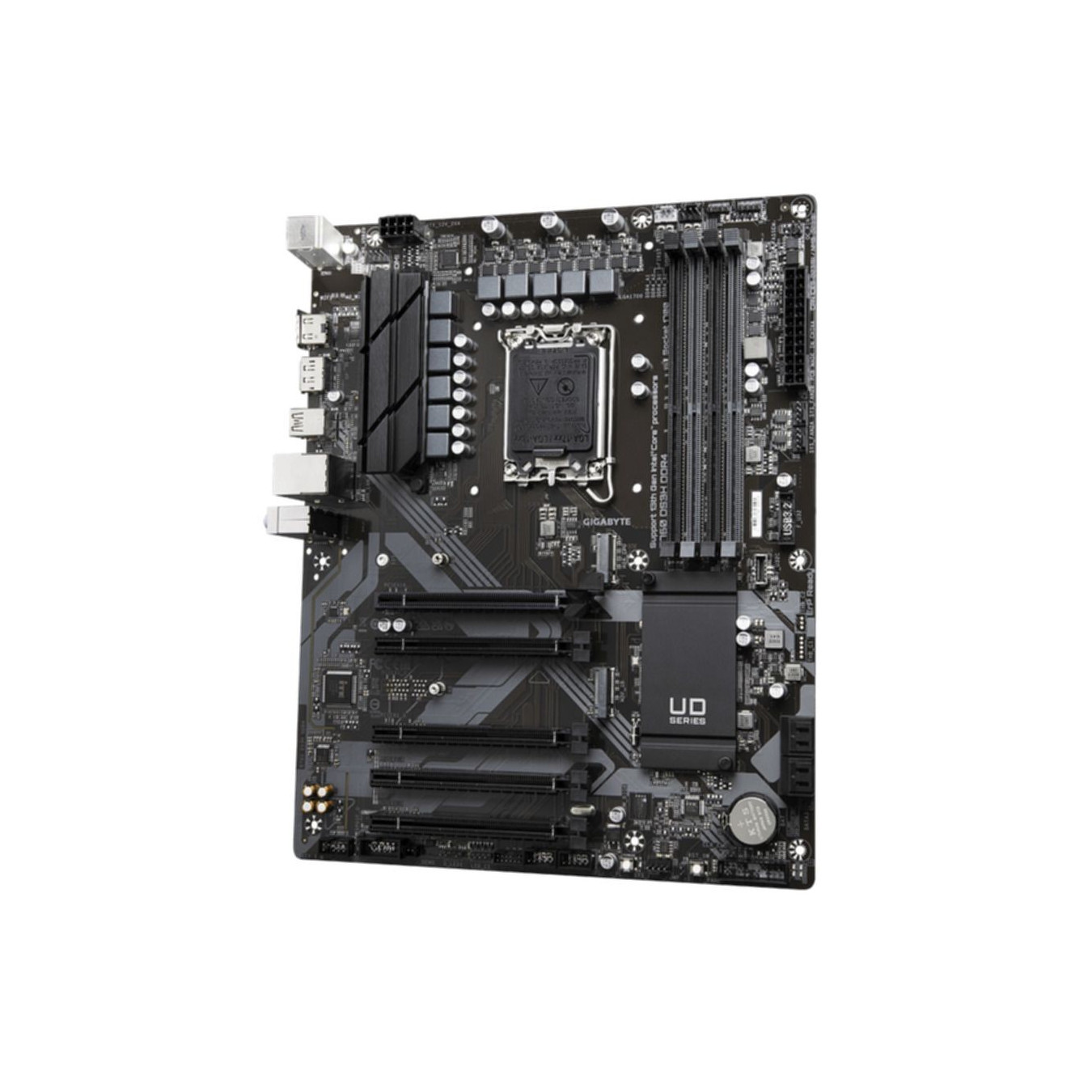

Gigabyte B760 DS3H DDR4 LGA1700 ATX Motherboard (Boxed)
LGA1700 ATX motherboard with Intel B760 chipset supporting 12th-14th gen Intel processors. Features DDR4 memory up to 5333MHz (4 DIMM slots, 128GB max), 2x M.2 PCIe 4.0, 4x SATA III, USB-C, Gigabit LAN, and 7.1 audio.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | LGA 1700 |
|---|---|
| Motherboards - Chipset | Intel B760 |
| Motherboards - Form Factor | ATX |
| Motherboards - Memory Type | DDR4 |
| Motherboards - Memory Profile Support | XMP |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 128 GB |
| Motherboards - Main Slot PCIe Version | PCIe 4.0 |
| Motherboards - Color | Black |
| Motherboards - M.2 Slots | 2 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C Support | Rear Type-C |
| Motherboards - RGB Headers | 3-pin 5V ARGB 4-pin 12V RGB |
| Motherboards - Wireless Connectivity | None |
The Gigabyte B760 DS3H DDR4 is a feature-rich ATX motherboard designed for mainstream computing and gaming builds. Built on the Intel B760 chipset, it provides robust support for 12th, 13th, and 14th generation Intel Core processors via the LGA1700 socket. The board combines performance and reliability with a hybrid 8+2+1 phases digital VRM solution, ensuring stable power delivery for demanding workloads.
Memory and storage capabilities are comprehensive: the motherboard supports up to 128GB of DDR4 RAM across 4 DIMM slots with XMP profiles reaching 5333MHz, while dual M.2 slots with PCIe 4.0 support enable high-speed NVMe SSD connectivity. Connectivity options include 4x SATA III ports for traditional drives, 5x PCIe x16 expansion slots, 1x USB 3.2 Gen 2 Type-C rear port, and Gigabit Ethernet. Audio is handled by a 7.1-channel Realtek HD Audio system with front panel connectors for headphones and microphone input.
Additional features include RGB LED headers (2x 5V ARGB and 2x 12V RGB) for system lighting customization, comprehensive PC health monitoring (fan, temperature, voltage, water cooling), and support for RAID configurations (0, 1, 5, 10). The board ships with a 128MB AMI UEFI BIOS and includes a CR2032 battery for CMOS backup.
- Intel B760 chipset with LGA1700 socket for 12th-14th gen Intel processors
- Up to 128GB DDR4 memory support with XMP profiles up to 5333MHz
- 2x M.2 PCIe 4.0 slots for high-speed NVMe SSDs
- 4x SATA III and 5x PCIe x16 expansion slots
- USB 3.2 Gen 2 Type-C, Gigabit Ethernet, and 7.1 audio
- Hybrid 8+2+1 phases digital VRM for stable power delivery
| Processor Socket | LGA1700 |
| Chipset | Intel B760 Express |
| Form Factor | ATX |
| Supported Processors | Intel Core 14th/13th/12th Gen, Pentium Gold, Celeron |
| Memory Type | DDR4 SDRAM |
| Memory Slots | 4x DIMM |
| Maximum Memory | 128 GB |
| Memory Channels | Dual-channel |
| Supported Memory Speeds | 2133, 2400, 2666, 2933, 3000, 3200, 3300, 3333, 3400, 3466, 3600, 3666, 3733, 3800, 3866, 4000, 4133, 4266, 4300, 4400, 4500, 4600, 4700, 4800, 4933, 5000, 5133, 5333 MHz |
| Memory Profile Support | XMP |
| ECC Support | ECC & Non-ECC |
| M.2 Slots | 2x M.2 (PCIe 4.0 x4) |
| SATA Ports | 4x SATA III (6Gb/s) |
| PCIe Slots | 5x PCIe x16 |
| PCIe Version | PCIe 4.0 |
| RAID Support | RAID 0, 1, 5, 10 |
| USB 2.0 Headers | 2x |
| USB 3.2 Gen 1 Headers | 2x |

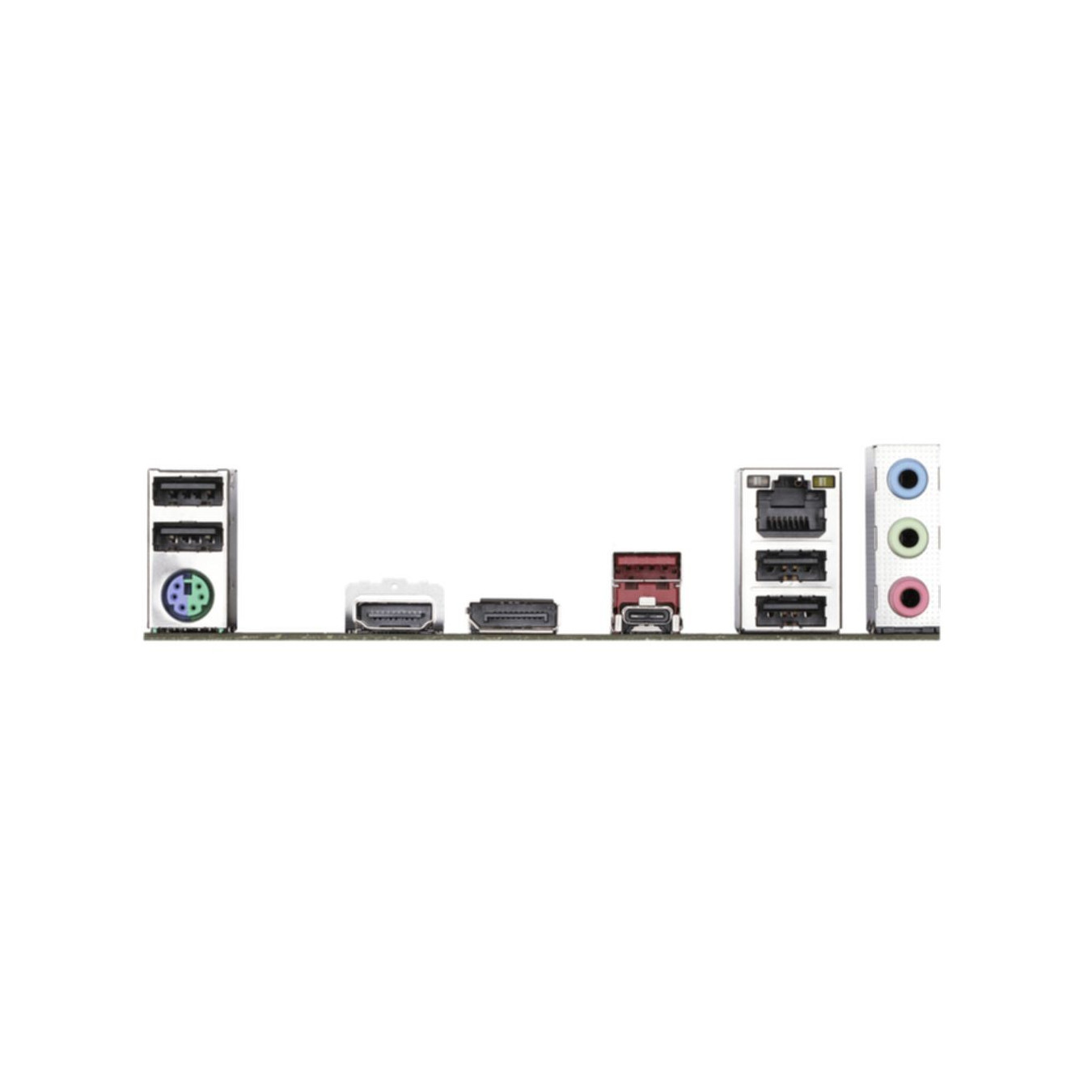

| USB 3.2 Gen 2 Type-A Ports | 1x |
| USB 3.2 Gen 2 Type-C Ports | 1x (Rear) |
| Ethernet | 1x Gigabit Ethernet (RJ-45) |
| Audio | 7.1 channels, Realtek HD Audio |
| Audio Outputs | 3x Headphone outputs |
| Microphone Input | Yes |
| HDMI Ports | 1x HDMI 2.0 |
| DisplayPort | 1x DisplayPort 1.2 |
| PS/2 Ports | 1x |
| RGB LED Headers | 2x 5V ARGB (3-pin), 2x 12V RGB (4-pin) |
| CPU Fan Headers | 1x CPU fan, 1x CPU fan/water cooling pump |
| System Fan Headers | 3x |
| Power Connectors | 1x 24-pin ATX, 1x 8-pin EPS 12V |
| BIOS | AMI UEFI, 128 MB |
| ACPI Version | 5.0 |
| DMI Version | 2.7 |
| SMBIOS Version | 2.7 |
| Clear CMOS Jumper | Yes |
| CMOS Battery | CR2032 (Included) |
| PC Health Monitoring | Fan, Temperature, Voltage, Water cooling |
| Supported Operating Systems | Windows 10 x64, Windows 11 x64 |
| Motherboard Dimensions | 305 mm (W) x 244 mm (D) x 35 mm (H) |
| Warranty | 3 years |
| Country of Origin | China |
