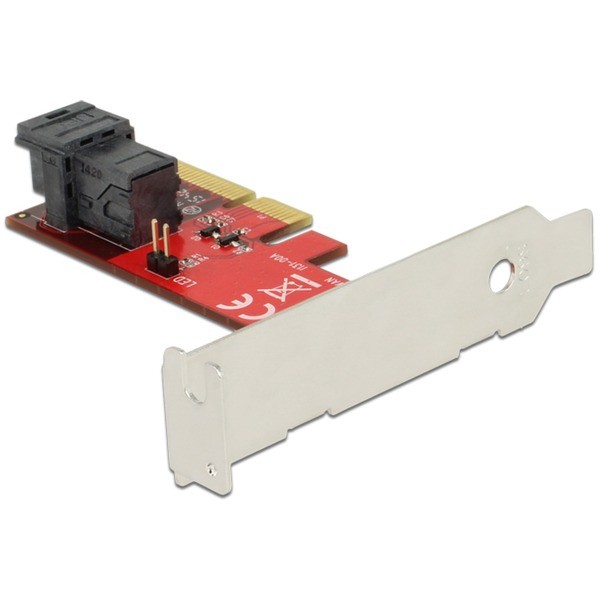

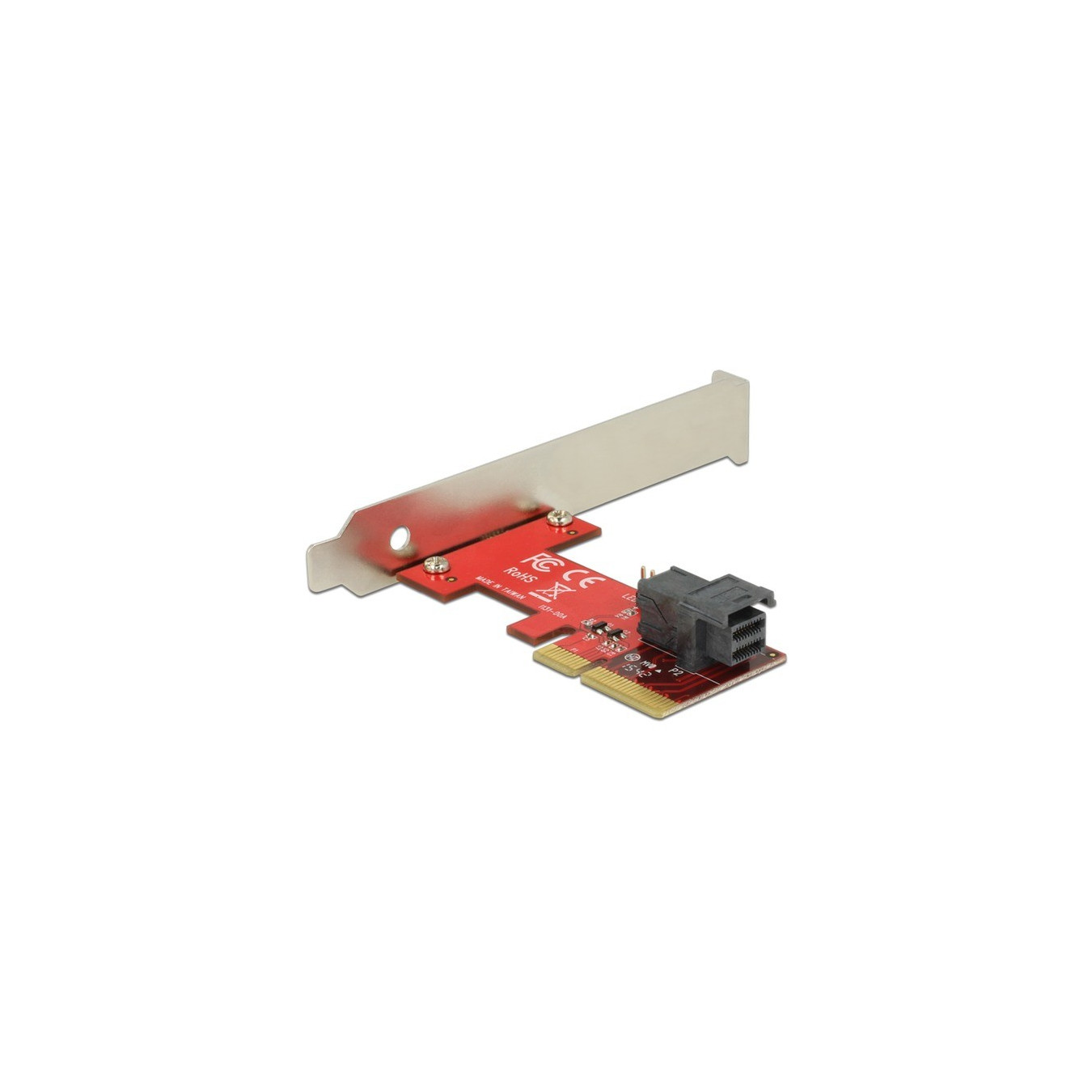

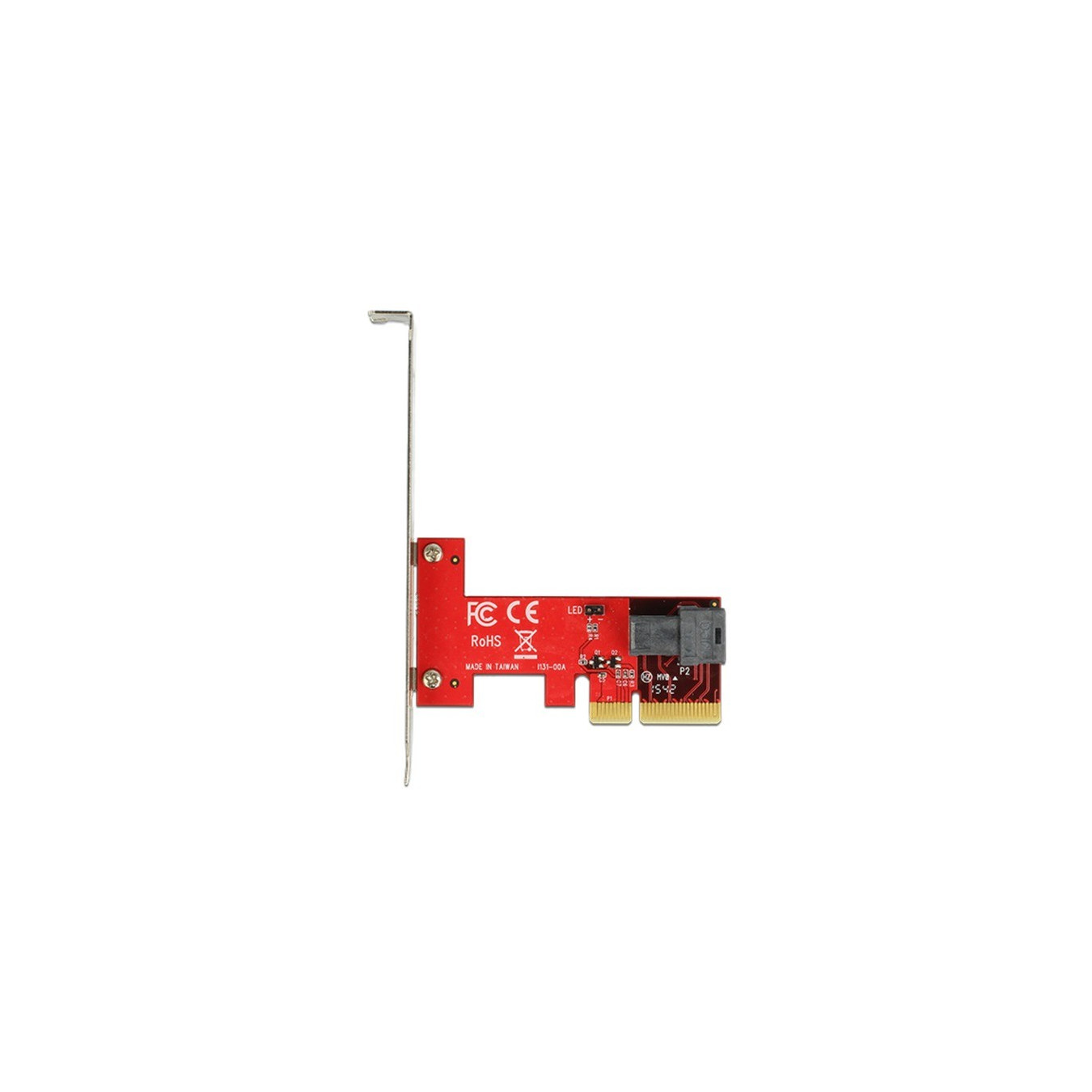

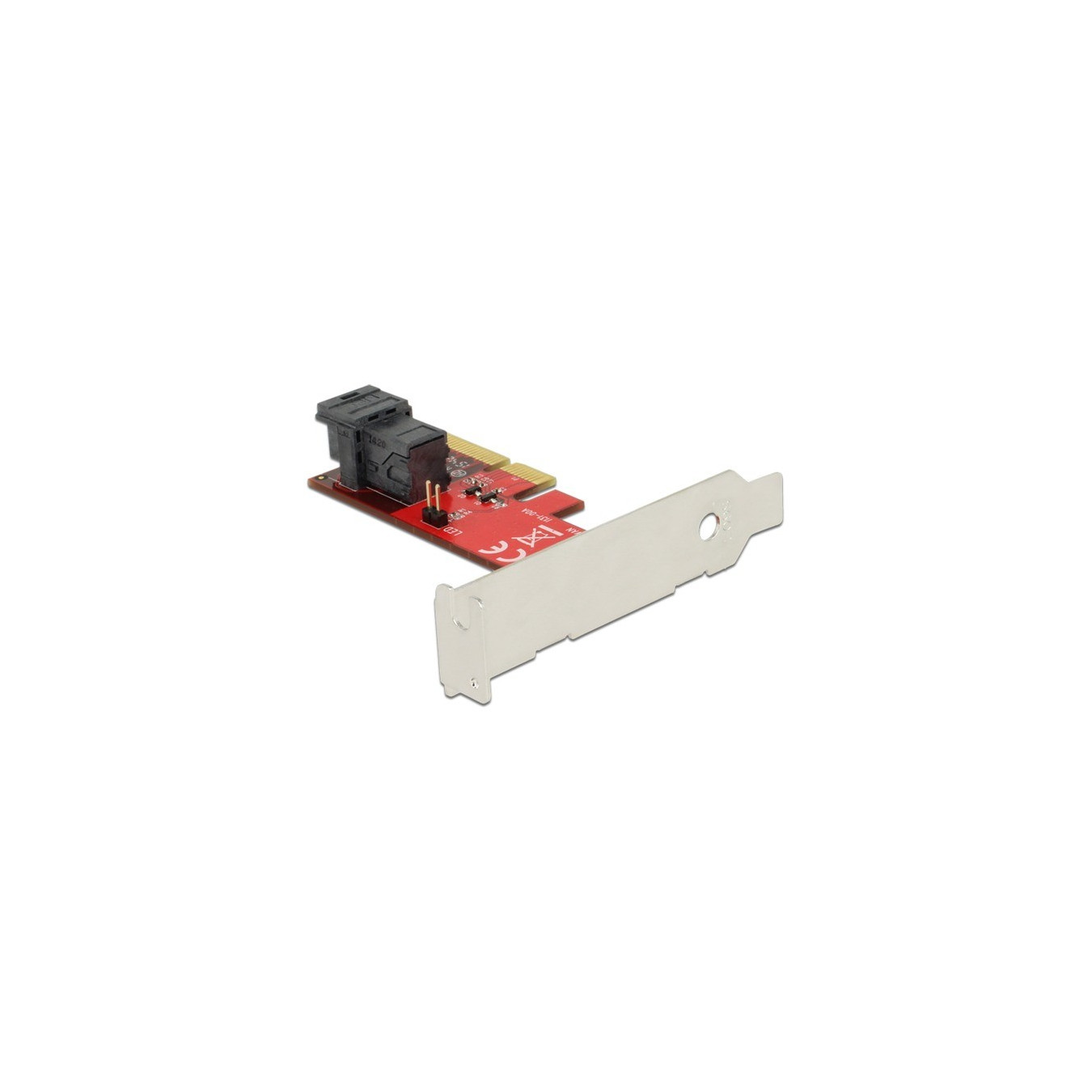

PCIe x4 Card to 1x SFF-8643 NVMe, Controller
This PCI Express card from Delock expands the PC with an SFF-8643 port. This port can be used, for example: B. an SSD with a U.2 connection can be connected using an optional cable...
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
This PCI Express card from Delock expands the PC with an SFF-8643 port. This port can be used, for example: B. an SSD with a U.2 connection can be connected using an optional cable.
| Typ | Controller |
| EAN | 4043619895359 |
| Manufacturer no. | 89535 |
| Controller Art | M.2 |
| slot | PCIe x4 Version 4.0 |
| Protocol | PCIe x4 |
| Data throughput | 32 GBit/s |
| Connections - internal | 1x SFF-8643 |
| directly usable devices | 4 |
| Operating System - Supported | Linux, Windows 7, Windows 8, Windows 10 |
| Low Profile | optional |
| Feature | 1 x 2 pin LED header connector, supports NVM Express (NVMe) |

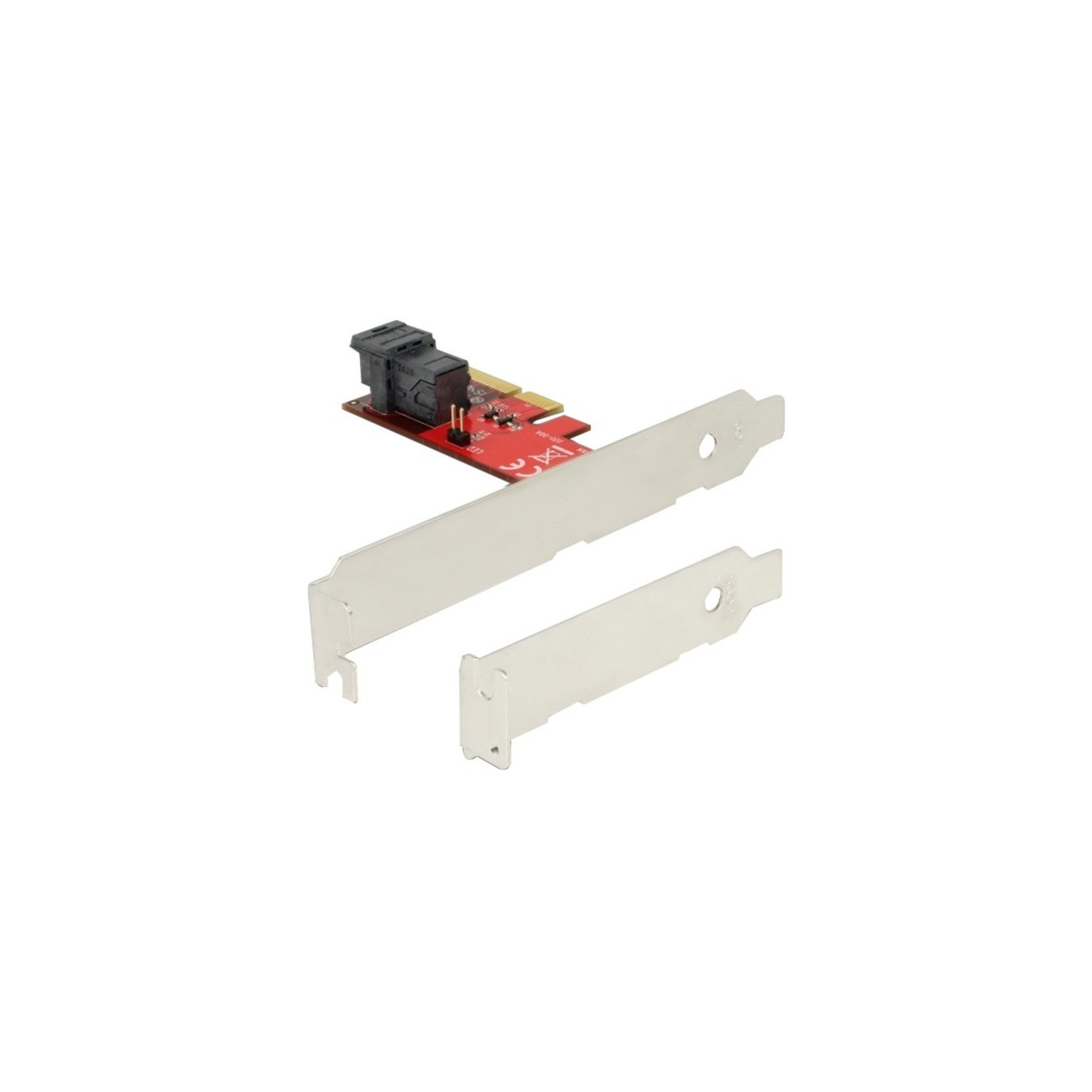

| Accessories - available | Low profile bezel, instruction manual |
