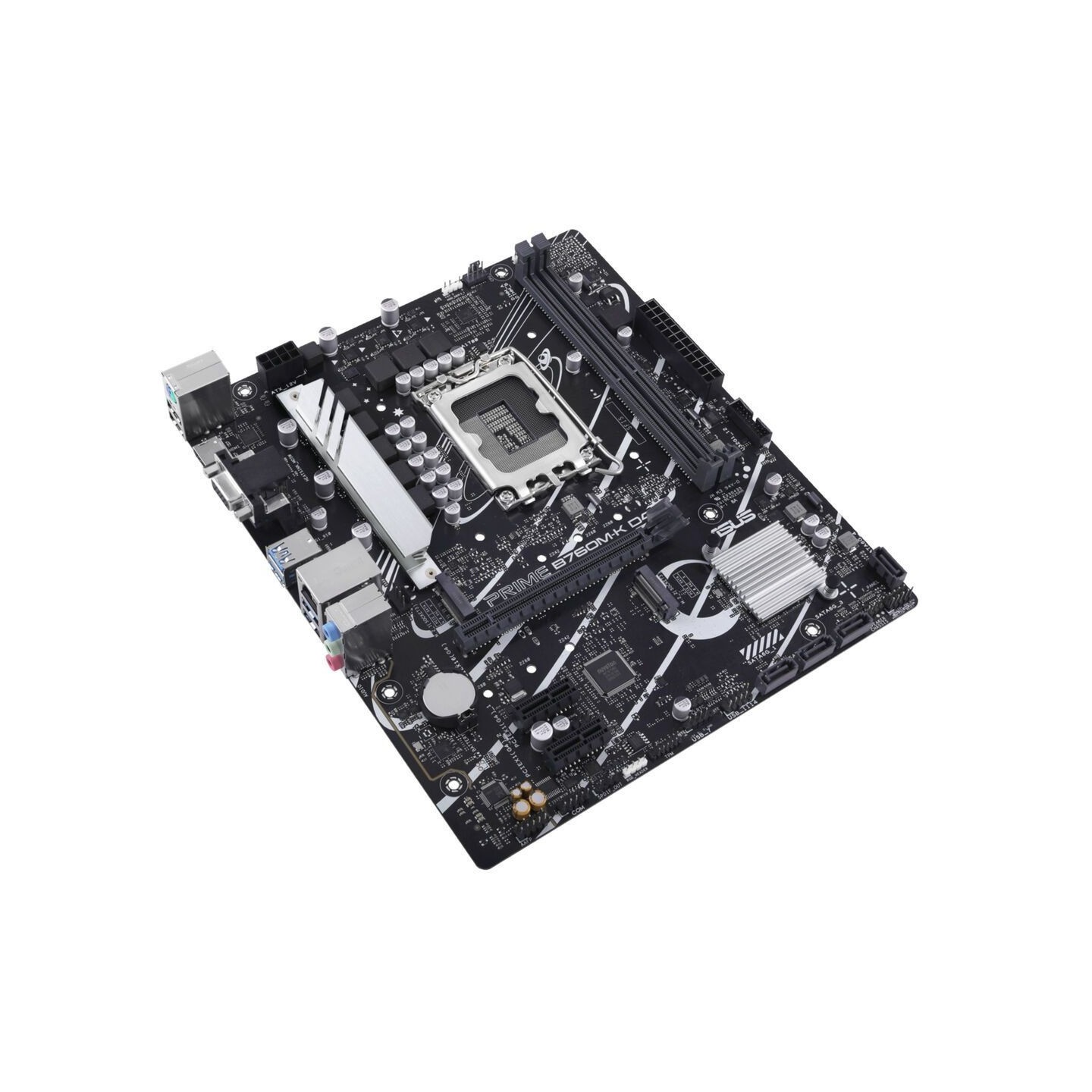

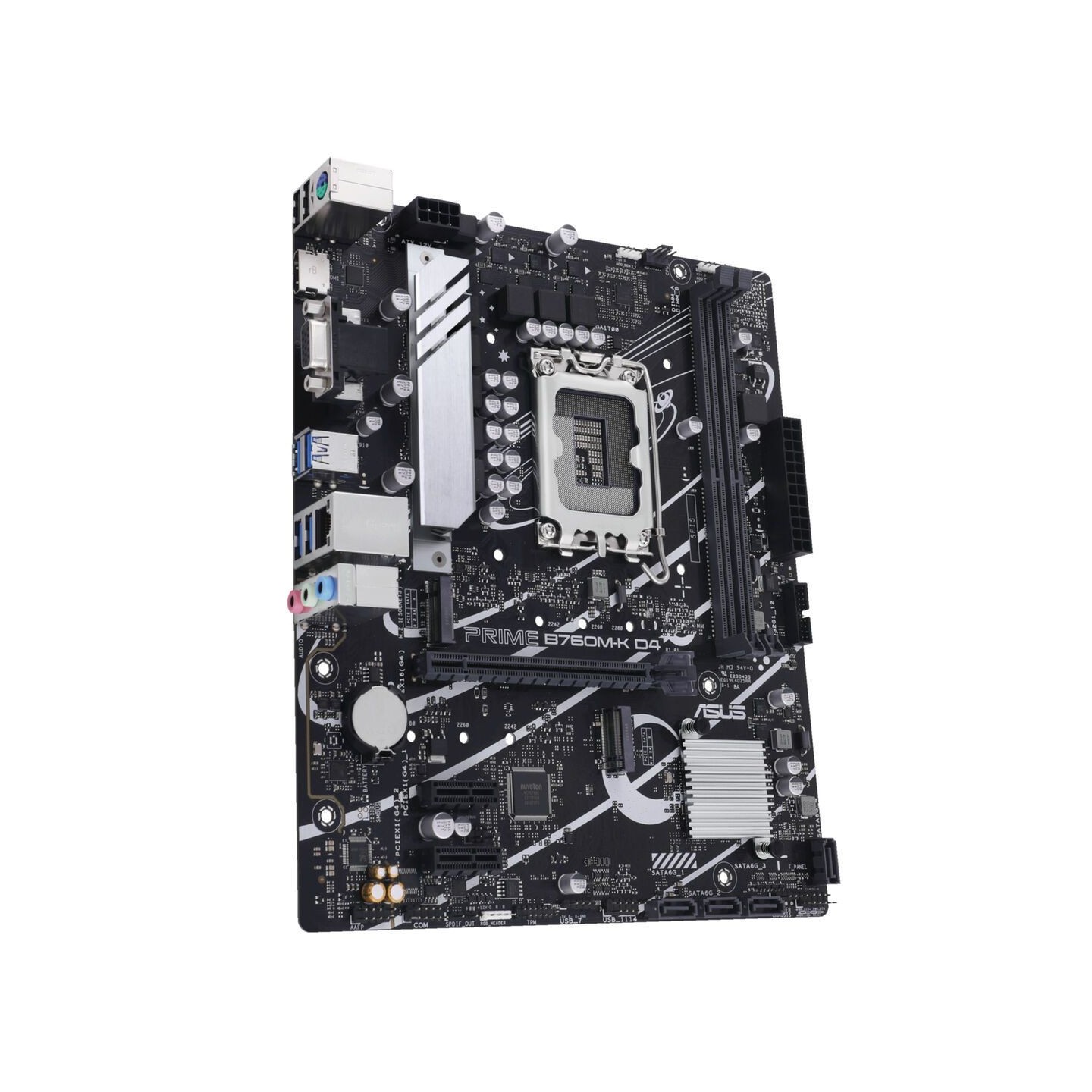

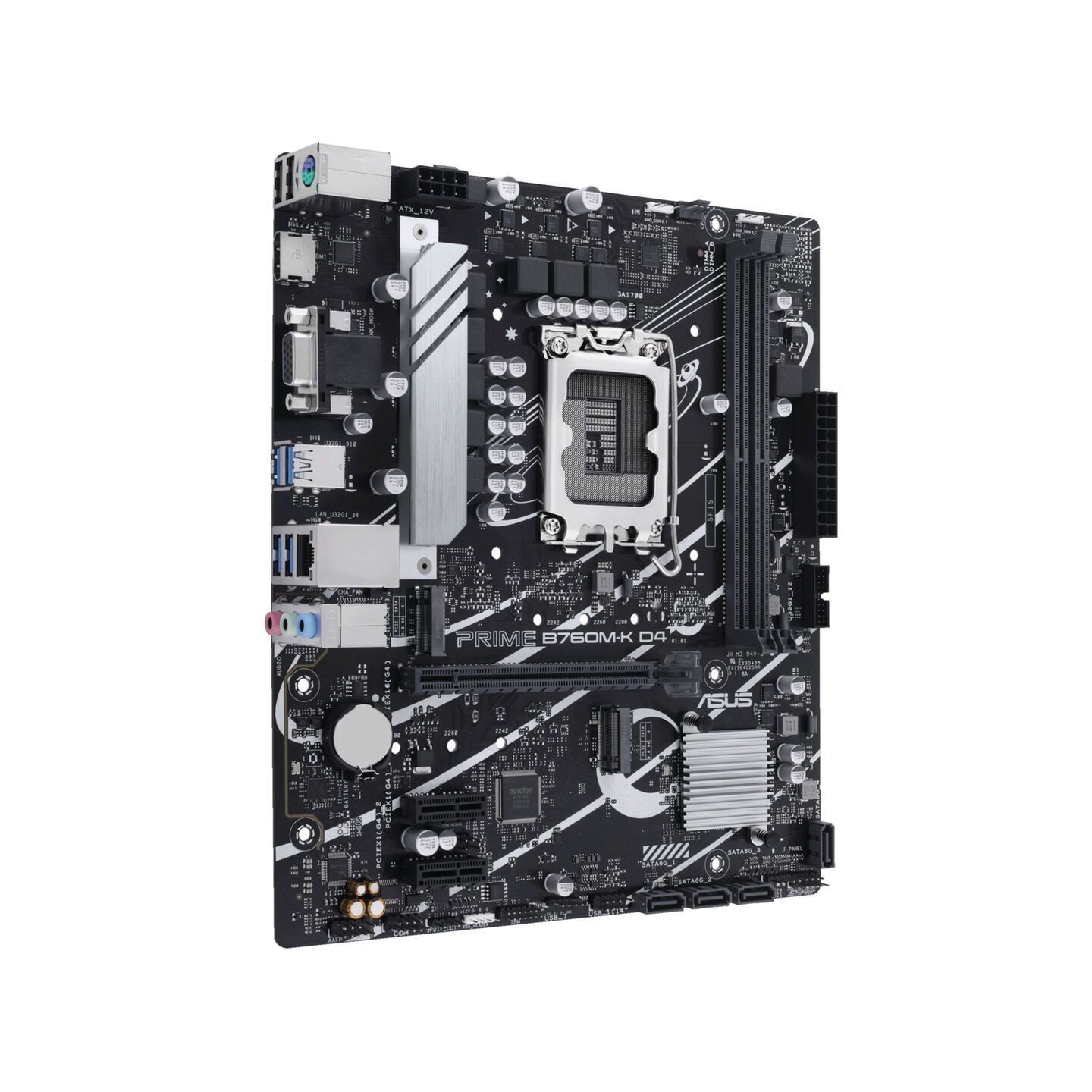

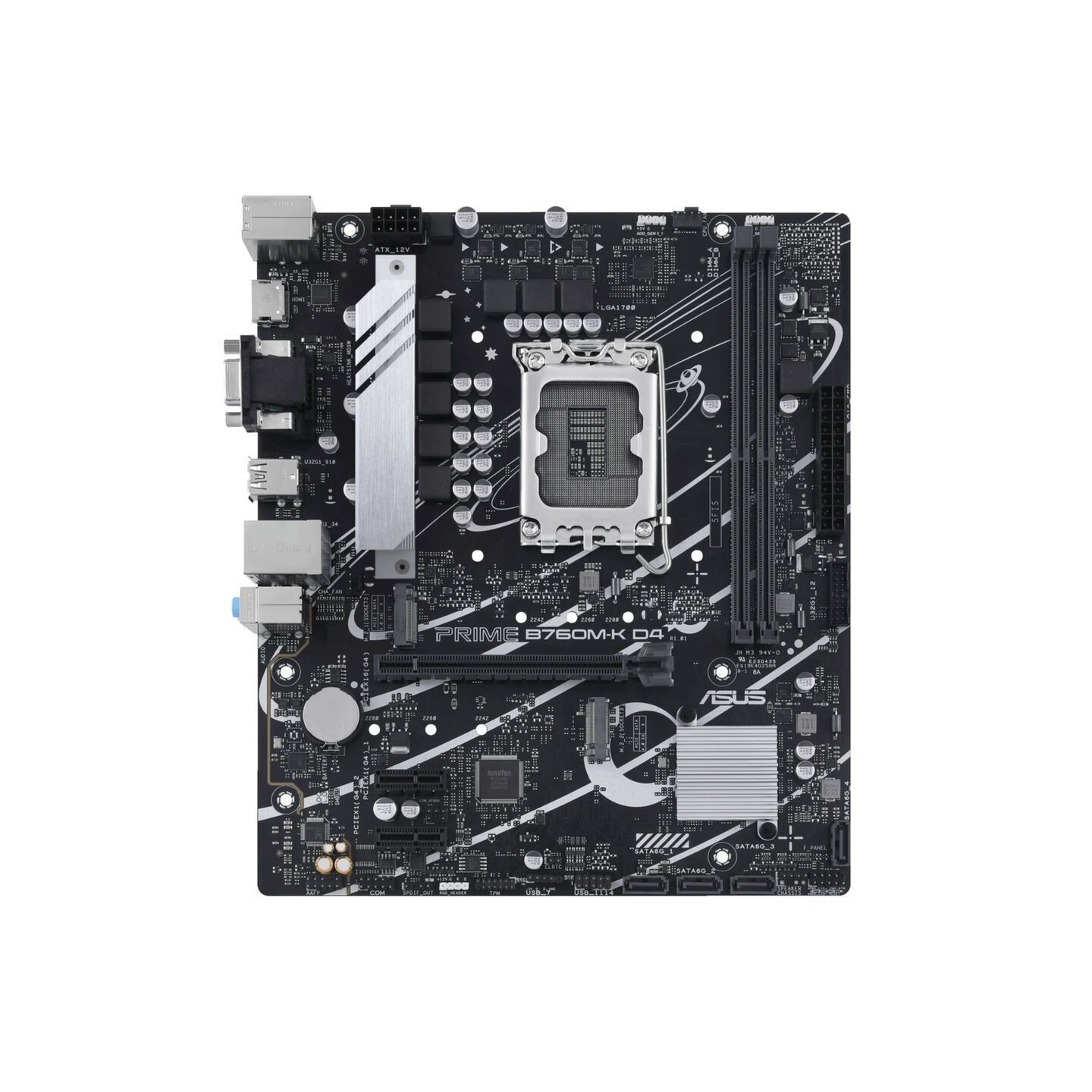

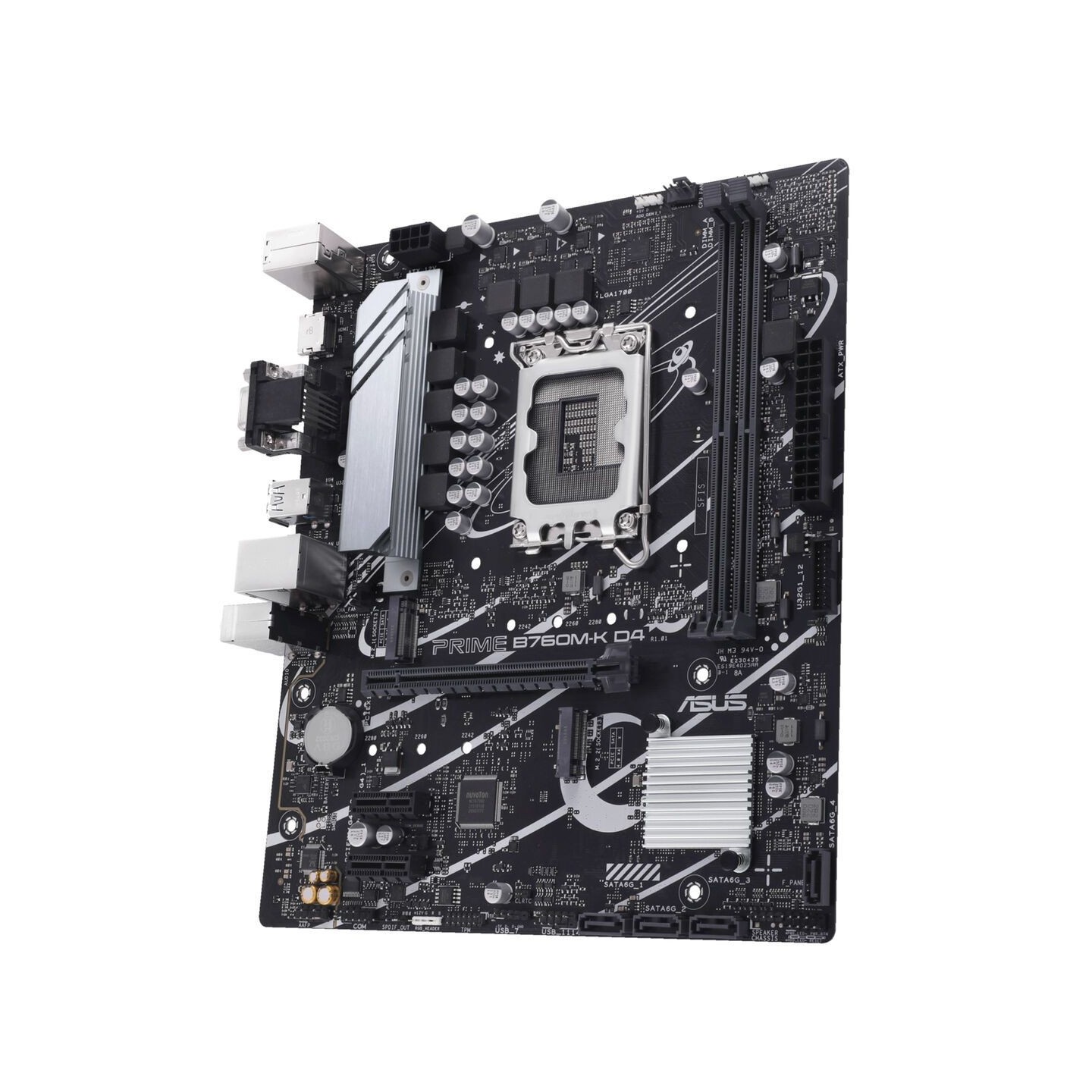

ASUS PRIME B760M-K D4 LGA1700 Micro-ATX Motherboard (Boxed)
Intel B760 micro-ATX motherboard with LGA1700 socket, DDR4 support up to 64GB, dual PCIe 4.0 M.2 slots, 2.5Gb Ethernet, and Aura Sync RGB lighting for 12th-14th gen Intel processors.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | LGA 1700 |
|---|---|
| Motherboards - Chipset | Intel B760 |
| Motherboards - Form Factor | Micro-ATX |
| Motherboards - Memory Type | DDR4 |
| Motherboards - Memory Profile Support | None |
| Motherboards - Memory Slots | 2 |
| Motherboards - Max Memory Capacity | 64 GB |
| Motherboards - Main Slot PCIe Version | PCIe 4.0 |
| Motherboards - Color | Black |
| Motherboards - M.2 Slots | 2 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C Support | None |
| Motherboards - RGB Headers | 3-pin 5V ARGB 4-pin 12V RGB |
| Motherboards - Wireless Connectivity | None |
The ASUS PRIME B760M-K D4 is a micro-ATX motherboard engineered for Intel's latest processors, featuring the Intel B760 chipset and LGA1700 socket compatibility with 12th, 13th, and 14th generation Intel Core processors. This budget-friendly option delivers solid performance and stability with comprehensive connectivity options including PCIe 4.0 support, dual M.2 slots for high-speed NVMe storage, and 2.5Gb Realtek Ethernet for modern networking demands.
Built with practical features for both everyday computing and gaming, the motherboard includes 4x SATA III ports for traditional storage drives, DDR4 memory support up to 64GB across 2 DIMM slots with speeds reaching DDR4-5333MHz, and multiple display outputs (VGA and HDMI). The board incorporates comprehensive cooling solutions with VRM heatsinks, PCH heatsink, hybrid fan headers, and ASUS Fan Xpert technology to maintain optimal temperatures during intensive workloads. Aura Sync RGB lighting support allows customization with addressable Gen 2 headers and RGB headers for LED strips.
- Intel B760 chipset with LGA1700 socket for 12th-14th gen Intel processors
- DDR4 memory support up to 64GB (2 DIMM slots) with speeds to DDR4-5333MHz
- Dual PCIe 4.0 M.2 slots for NVMe SSDs and 4x SATA III for HDD/SSD storage
- 2.5Gb Realtek Ethernet and USB 3.2 Gen 1 connectivity
- VGA and HDMI video outputs with 7.1 audio channels
- Aura Sync RGB lighting with addressable headers
- Comprehensive cooling with VRM, PCH heatsinks, and hybrid fan headers
| Processor Socket | LGA1700 |
| Chipset | Intel B760 |
| Form Factor | Micro-ATX |
| Memory Type | DDR4-SDRAM |
| Memory Slots | 2 DIMM |
| Maximum Memory | 64 GB |
| Memory Speed Support | DDR4-2133 to DDR4-5333 MHz |
| M.2 Slots | 2 (PCIe 4.0) |
| SATA III Ports | 4 |
| PCIe Slots | 1x PCIe 4.0 x16, 2x PCIe 4.0 x1 |
| USB 3.2 Gen 1 Ports | 4x Type-A |
| USB 2.0 Ports | 2 |
| Ethernet | 1x Realtek 2.5Gb Ethernet |
| Audio | 7.1 channels |

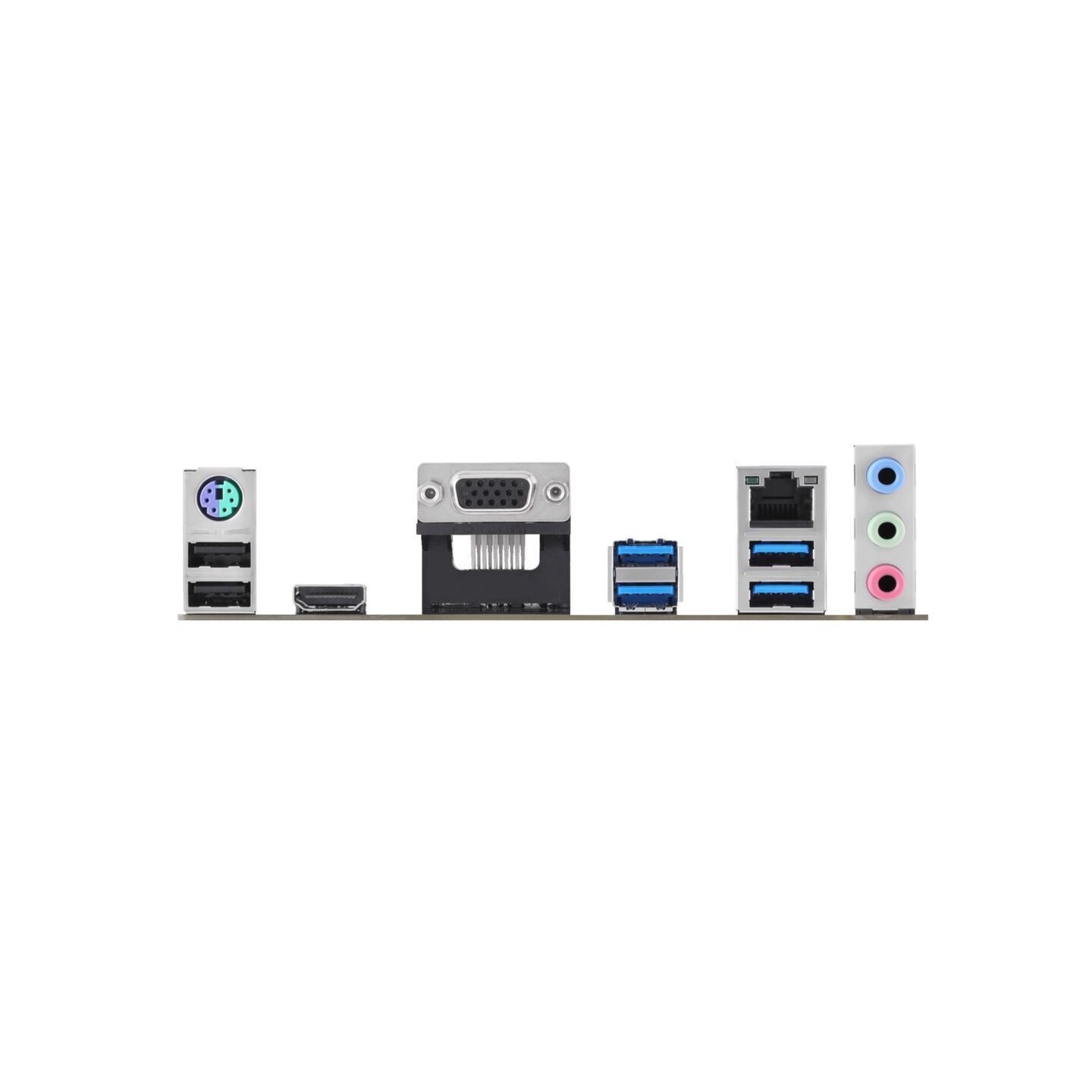

| Video Outputs | 1x VGA, 1x HDMI |
| RGB Headers | Addressable Gen 2 header, Aura RGB header |
| Power Connectors | 24-pin ATX, 8-pin EPS |
| BIOS | UEFI AMI, 128 Mbit |
| Supported Processors | Intel Core i3/i5/i7/i9, Pentium Gold, Celeron (12th-14th Gen) |
| Cooling Features | VRM heatsink, PCH heatsink, hybrid fan headers, Fan Xpert |
| RAID Support | RAID 0, 1, 5, 10 |
| Motherboard Dimensions | 244 x 211 x 36 mm |
| Motherboard Weight | 528 g |
| Color | Black |
| Wireless Connectivity | None |
