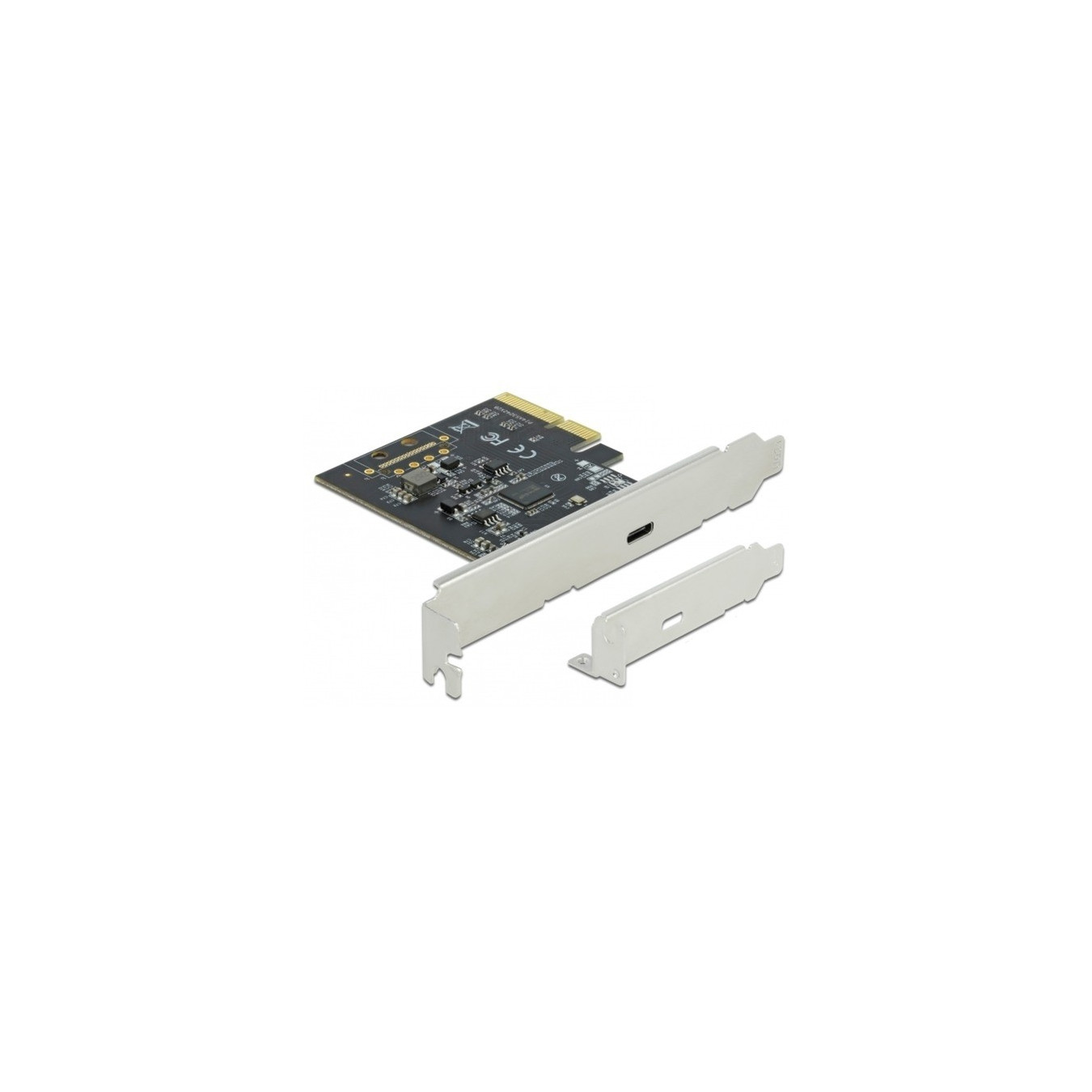

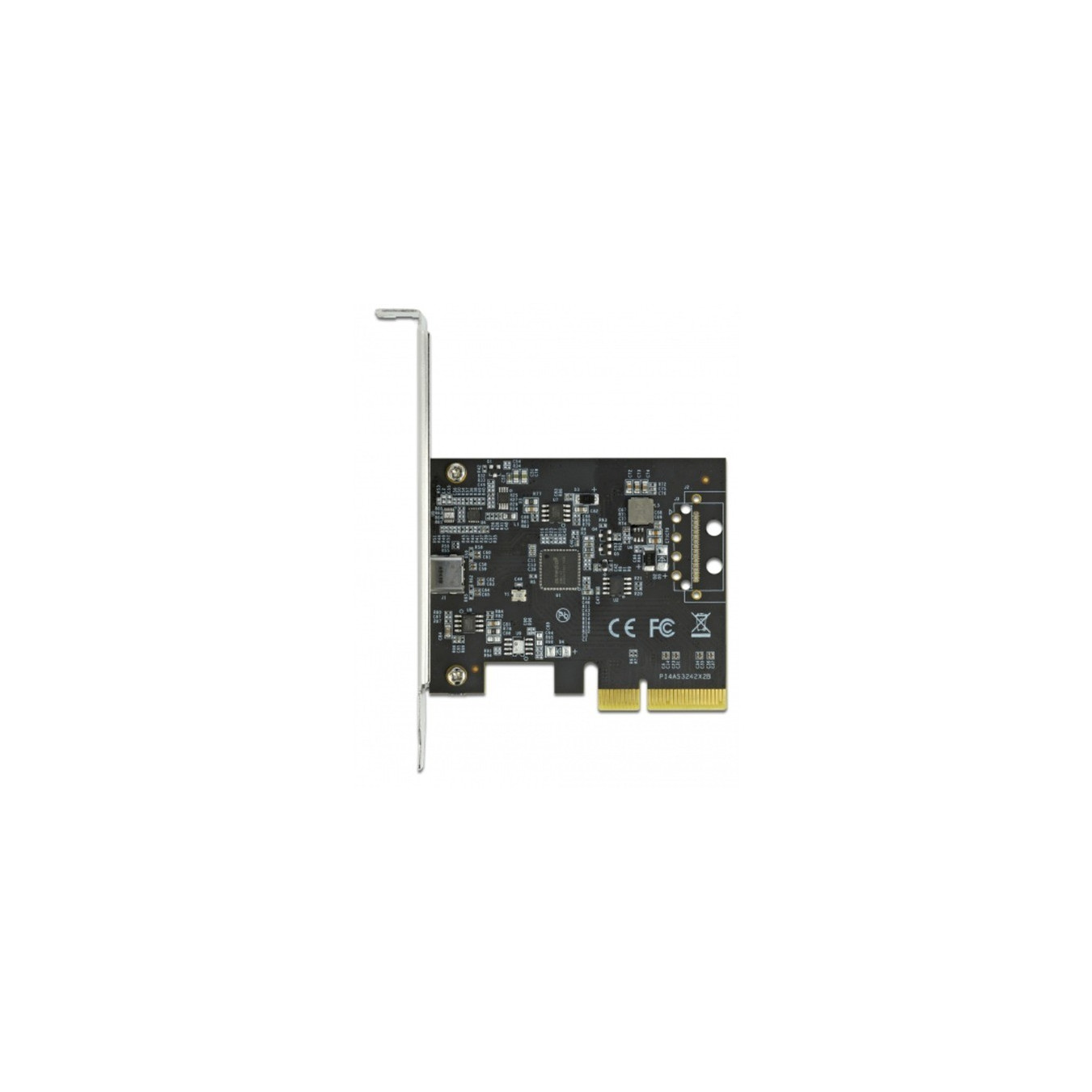

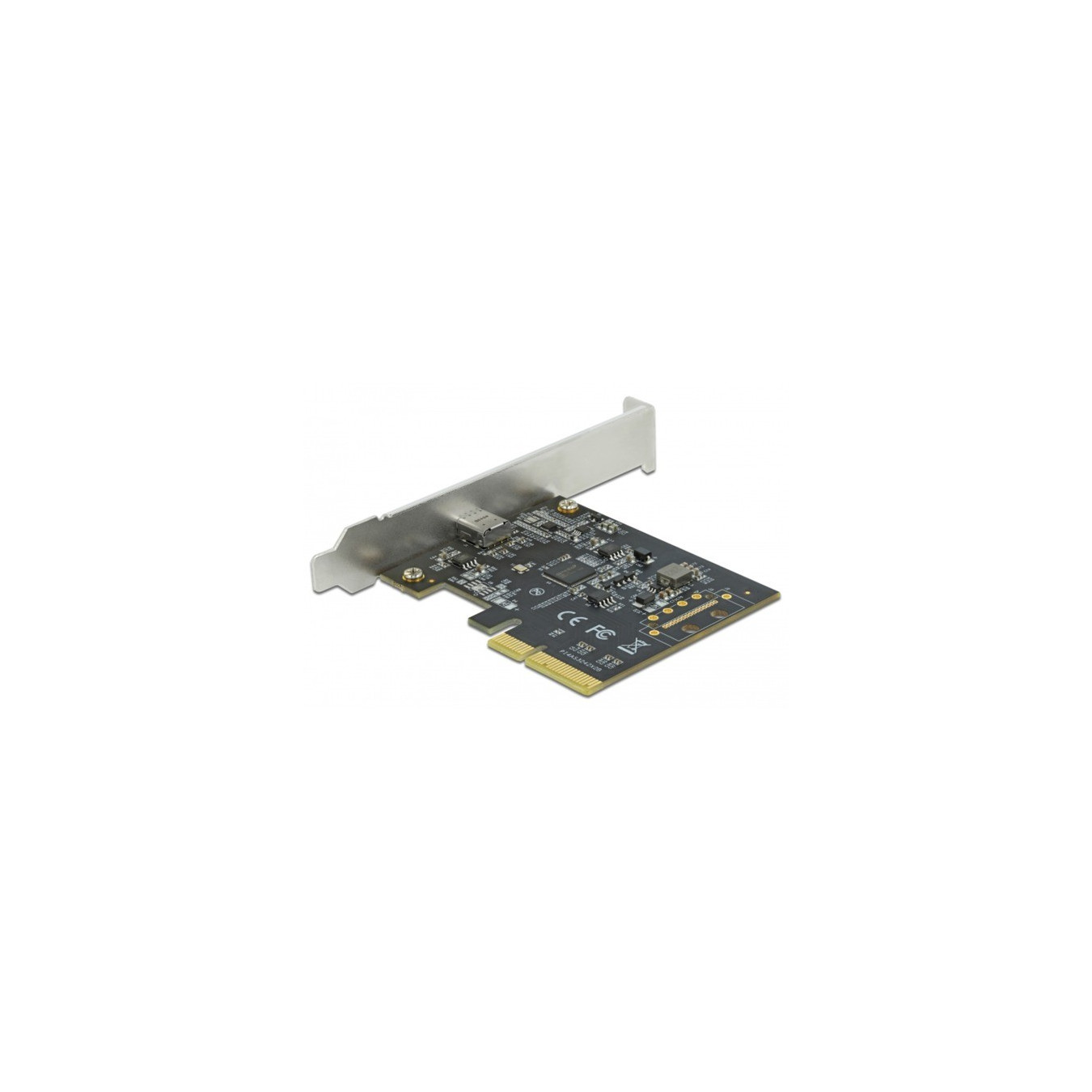

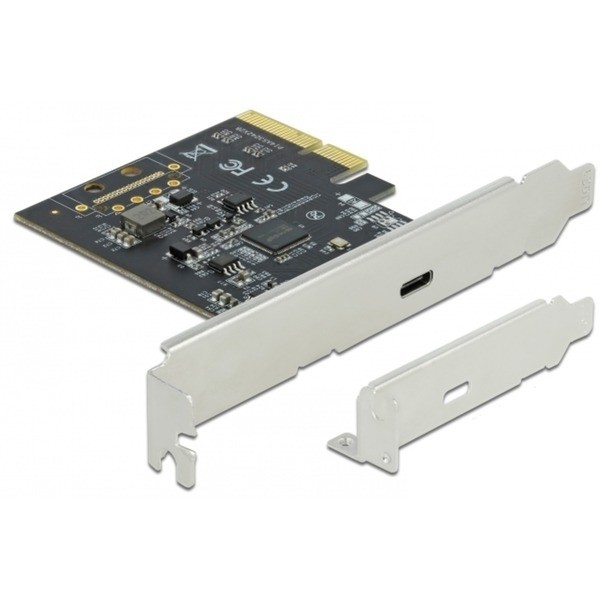

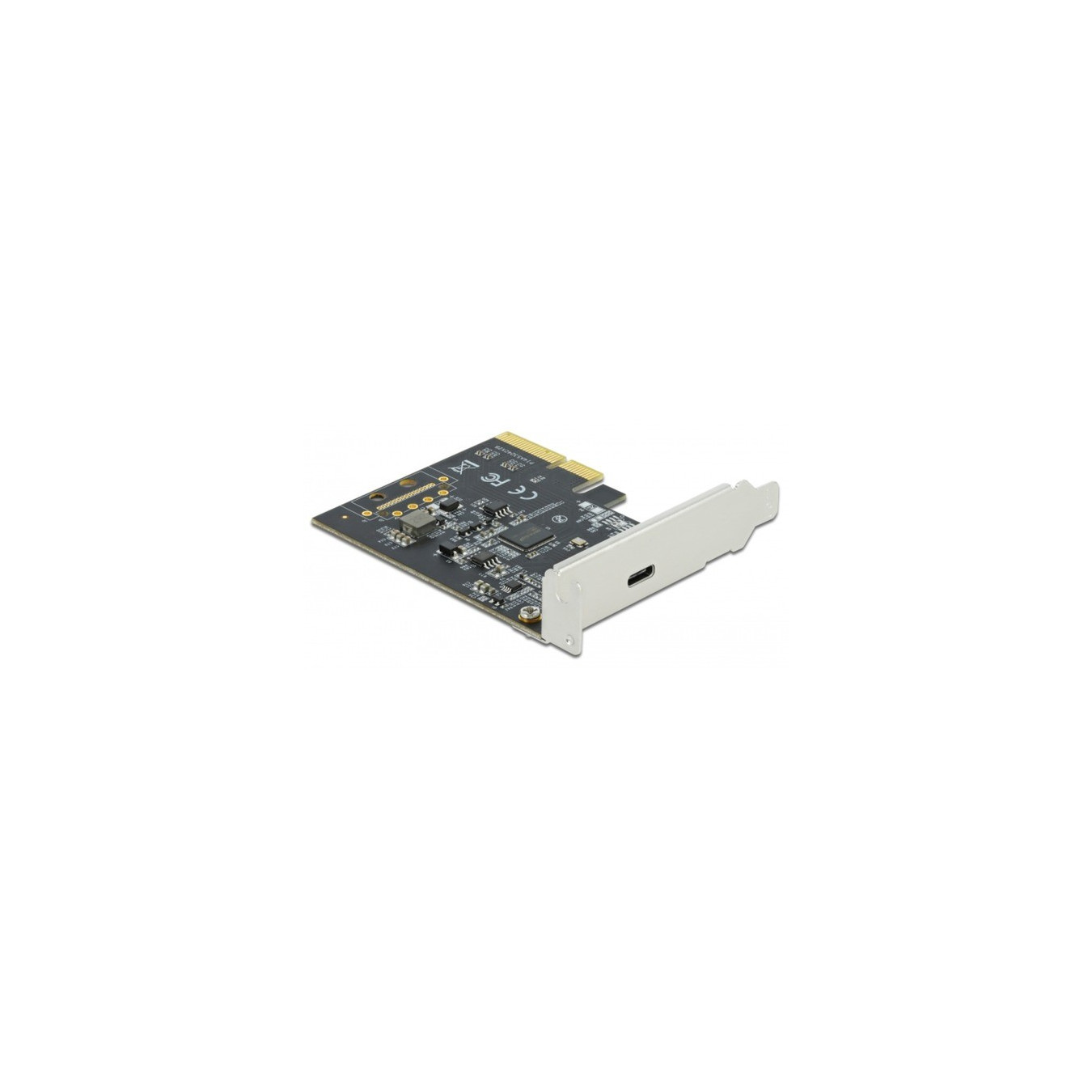

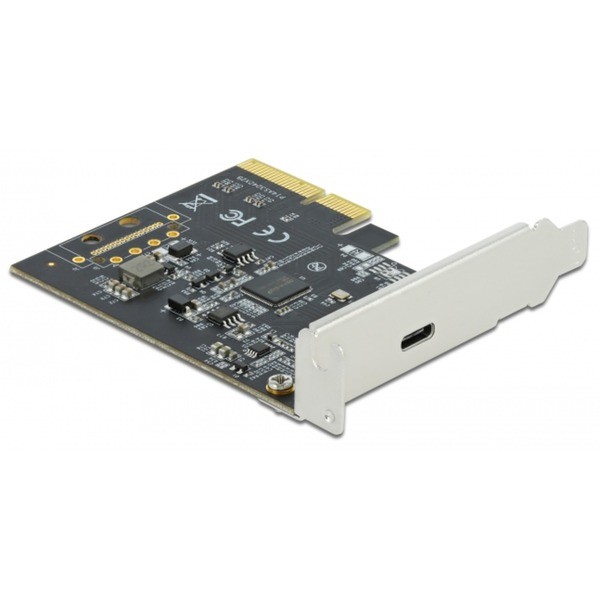

PCIe x4 to 1x extern SuperSpeed USB 3.2 Gen 2x2, USB-Controller
The Delock PCI Express card expands the PC with an external USB-X 3.2 Gen 2x2 port. Various USB devices can be connected to the card, such as: B. docking stations, card readers, ex...
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
The Delock PCI Express card expands the PC with an external USB-X 3.2 Gen 2x2 port. Various USB devices can be connected to the card, such as: B. docking stations, card readers, external housings, etc., can be connected. The card enables a data transfer rate of 20 Gbit/s on the USB-C port
| Typ | USB-Controller |
| EAN | 4043619890361 |
| Manufacturer no. | 89036 |
| Controller Art | USB 3.2 (20 Gbit/s) |
| slot | PCIe x4 Version 3.0 |
| Chip | Asmedia ASM3242 |
| Protocol | USB 3.2 Gen 2x2 (20 Gbit/s) |
| Data throughput | 20 GBit/s |
| Connections - external | 1x USB C |
| directly usable devices | 1 |
| Operating System - Supported | Linux, Windows 8, Windows 10 |
| Feature | SuperSpeed USB 20 Gbit/s, SuperSpeed USB 10 Gbit/s, SuperSpeed USB 5 Gbit/s, Hi-Speed 480 Mbit/s, Full-Speed 12 Mbit/s, Low-Speed 1.5 Mbit/s, backwards compatible with USB 3.0, USB 2.0, USB 1.1, Electrical power per port: max. 12 watts (5 V / 2.4 A), Bootable, Supports UASP, Supports eXtensible Host Controller Interface (xHCI) Specification 1.1, Supports Multiple INs |
