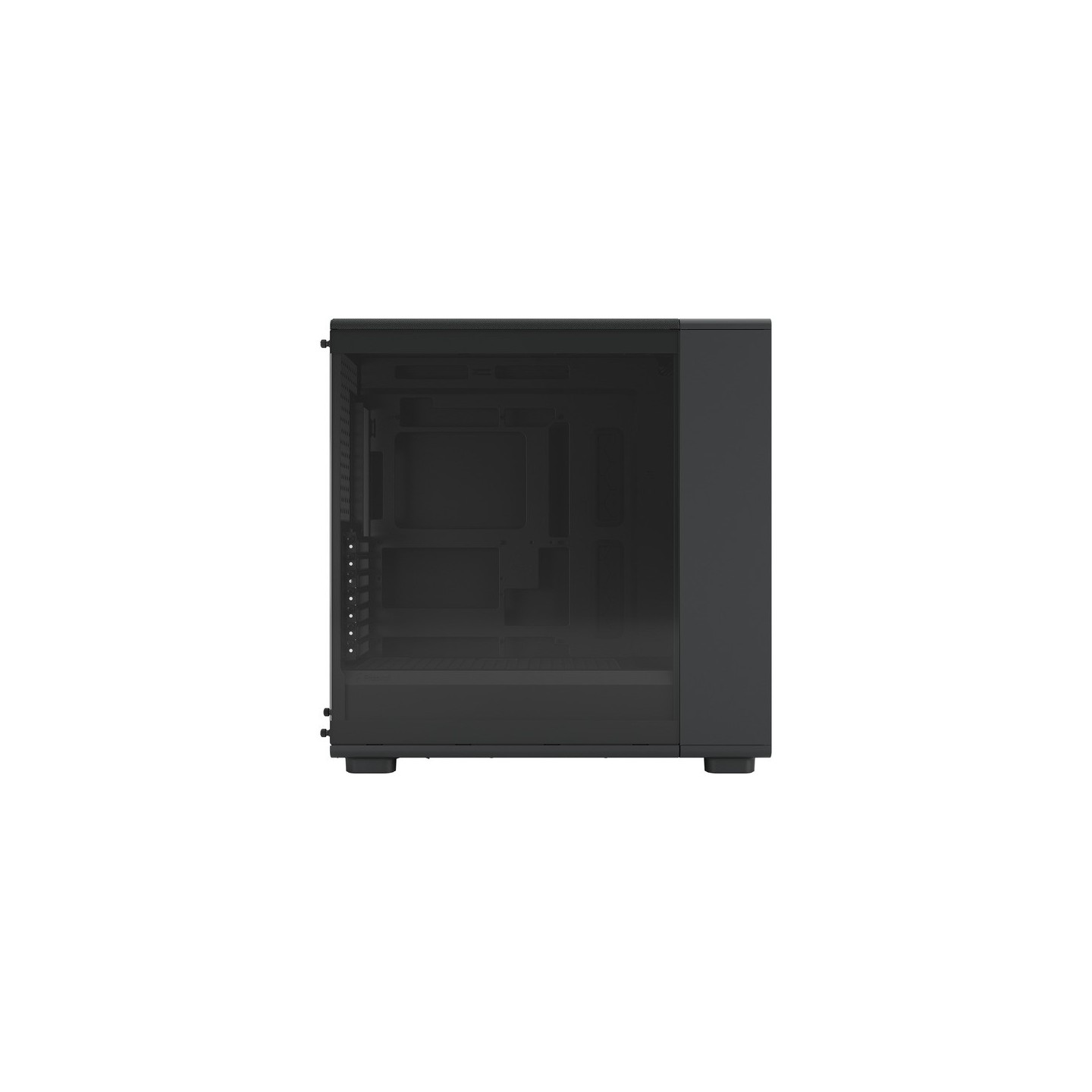

Fractal Design Epoch XL Black Tempered Glass RGB Light Tint - ATX Mid-Tower PC Case (Boxed)
Fractal Design Epoch XL mid-tower case with tempered glass side panel, mesh front, and three included Momentum 14 RGB fans. Supports ATX/mATX/ITX and E-ATX motherboards, GPUs up to 425mm, and radiators up to 360mm.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PC Cases - Motherboard Support | ATX EATX Micro ATX Mini ITX |
|---|---|
| PC Cases - Radiator Support | 120 mm 240 mm 280 mm 360 mm |
| PC Cases - Included Fans | 3 |
| PC Cases - Front I/O | Audio Combo Jack USB A USB C USB C Gen2 |
| PC Cases - GPU Orientation | Horizontal |
| PC Cases - Form Factor | Mid Tower |
| PC Cases - Max GPU Length | 401–450 mm |
| PC Cases - Color | Black |
| PC Cases - CPU Cooler Clearance | 170+ mm |

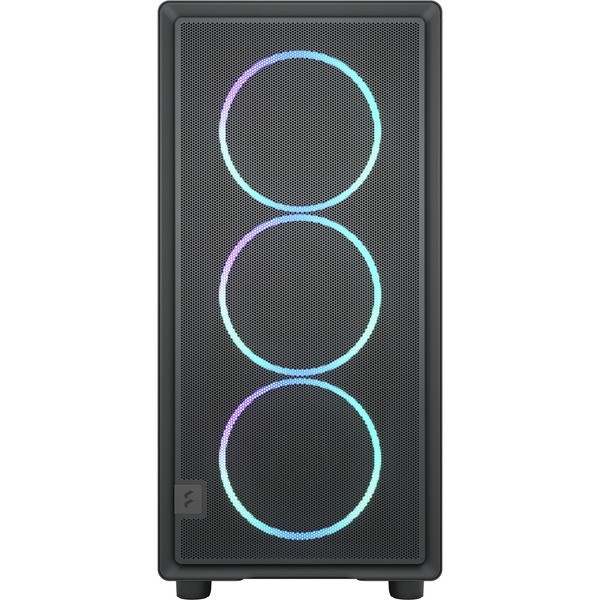

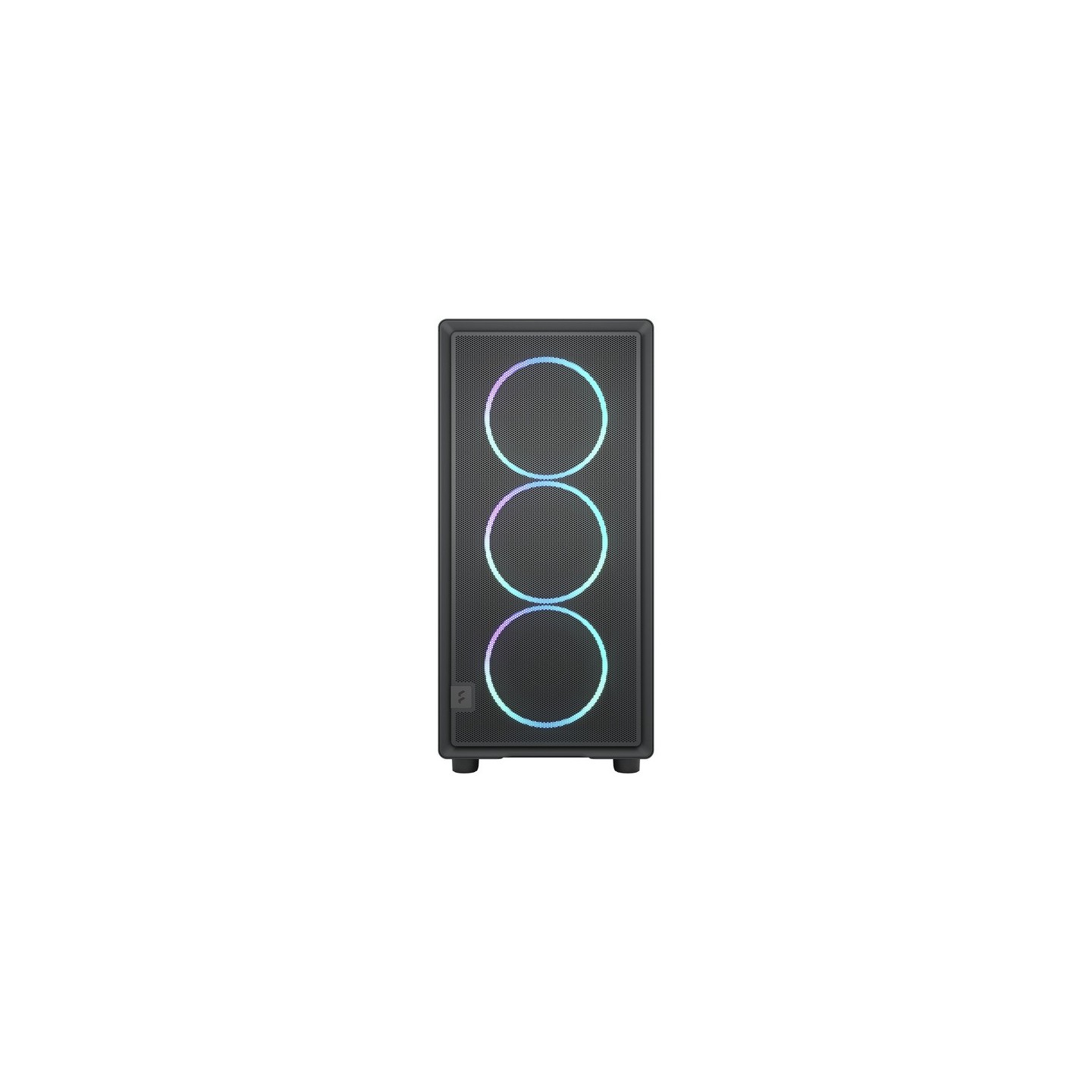

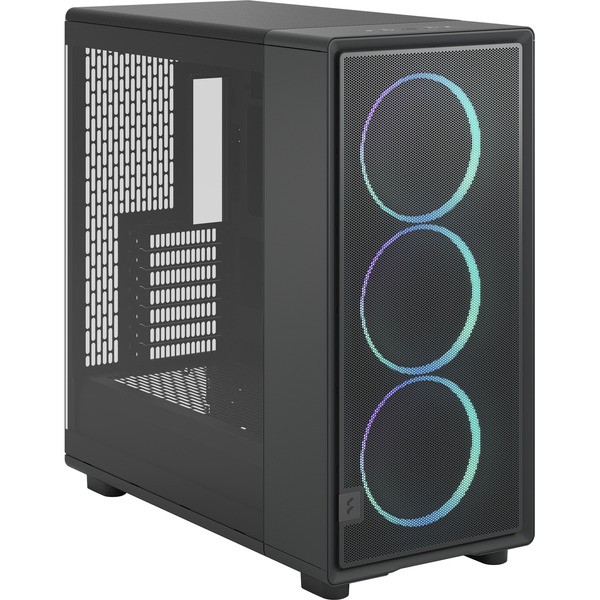

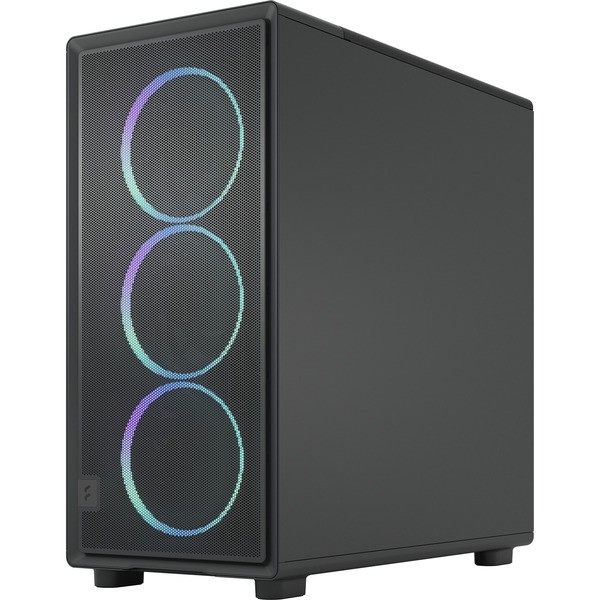

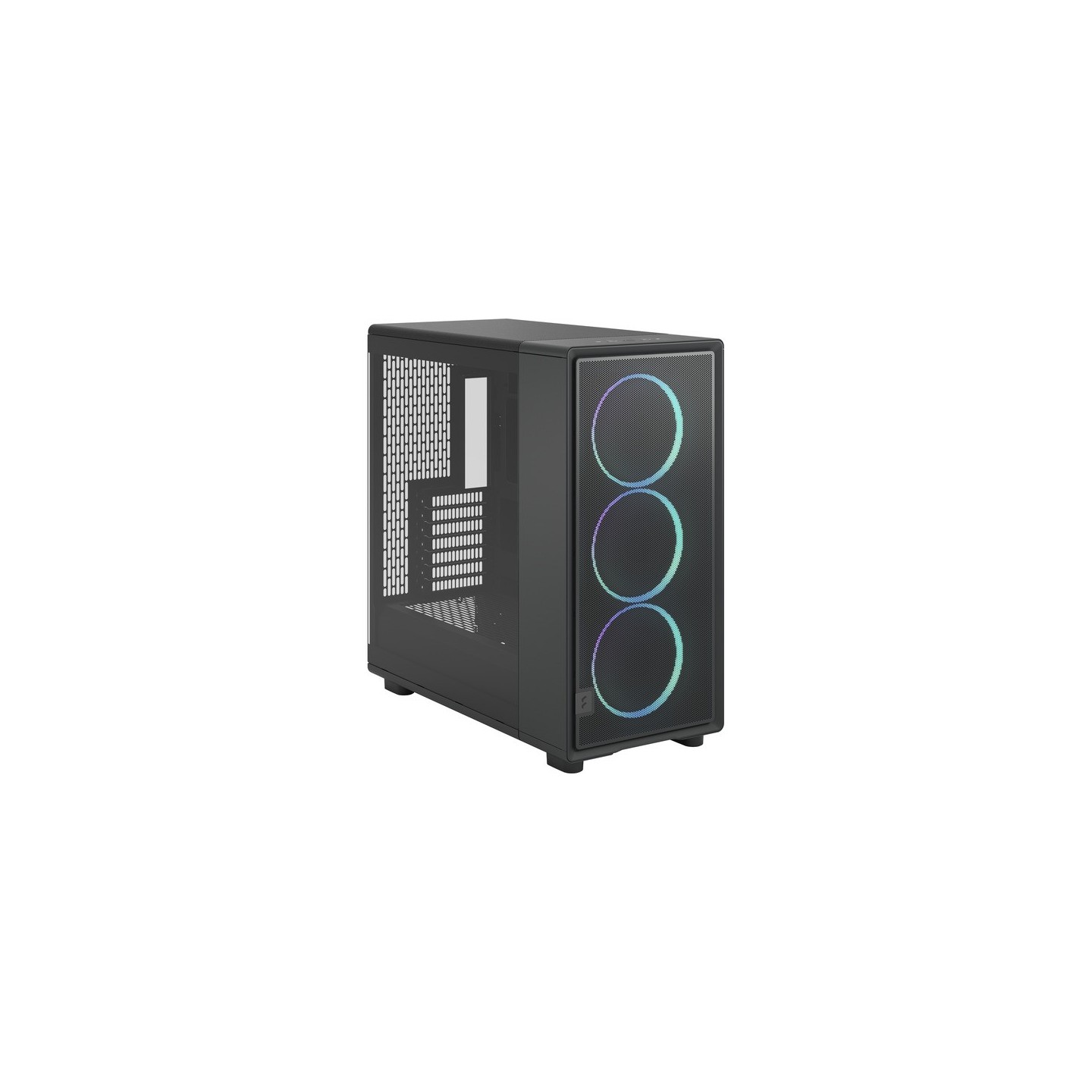

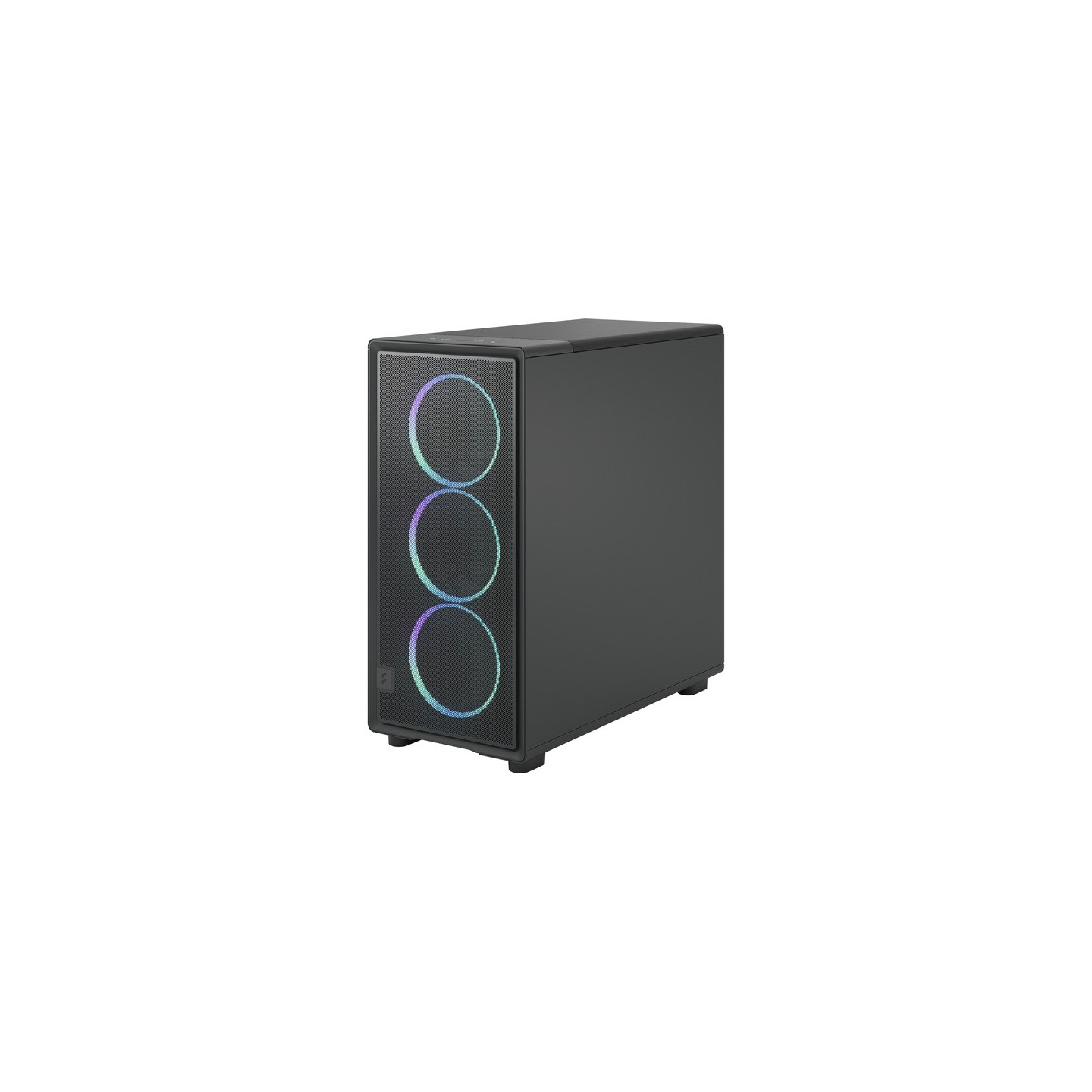

The Fractal Design Epoch XL brings the clean, modern design of the Epoch series into a spacious mid-tower format with generous interior space. Featuring a ventilated mesh front panel and three powerful Momentum 14 RGB fans with LCP blades, the case ensures reliable cooling for high-performance builds. The case supports graphics cards up to 425mm in length (with front fans) or 395mm (with front radiator), making it compatible with virtually all modern GPUs. Advanced cooling options include support for radiators up to 360mm on both the front and top panels, allowing for ambitious custom water-cooling configurations.

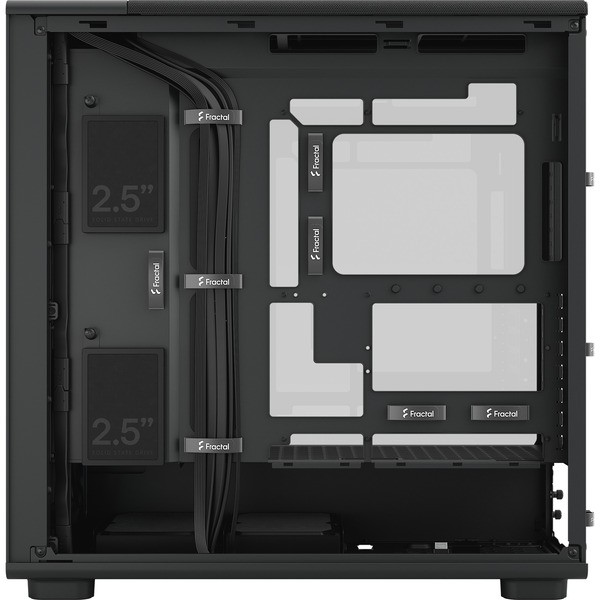

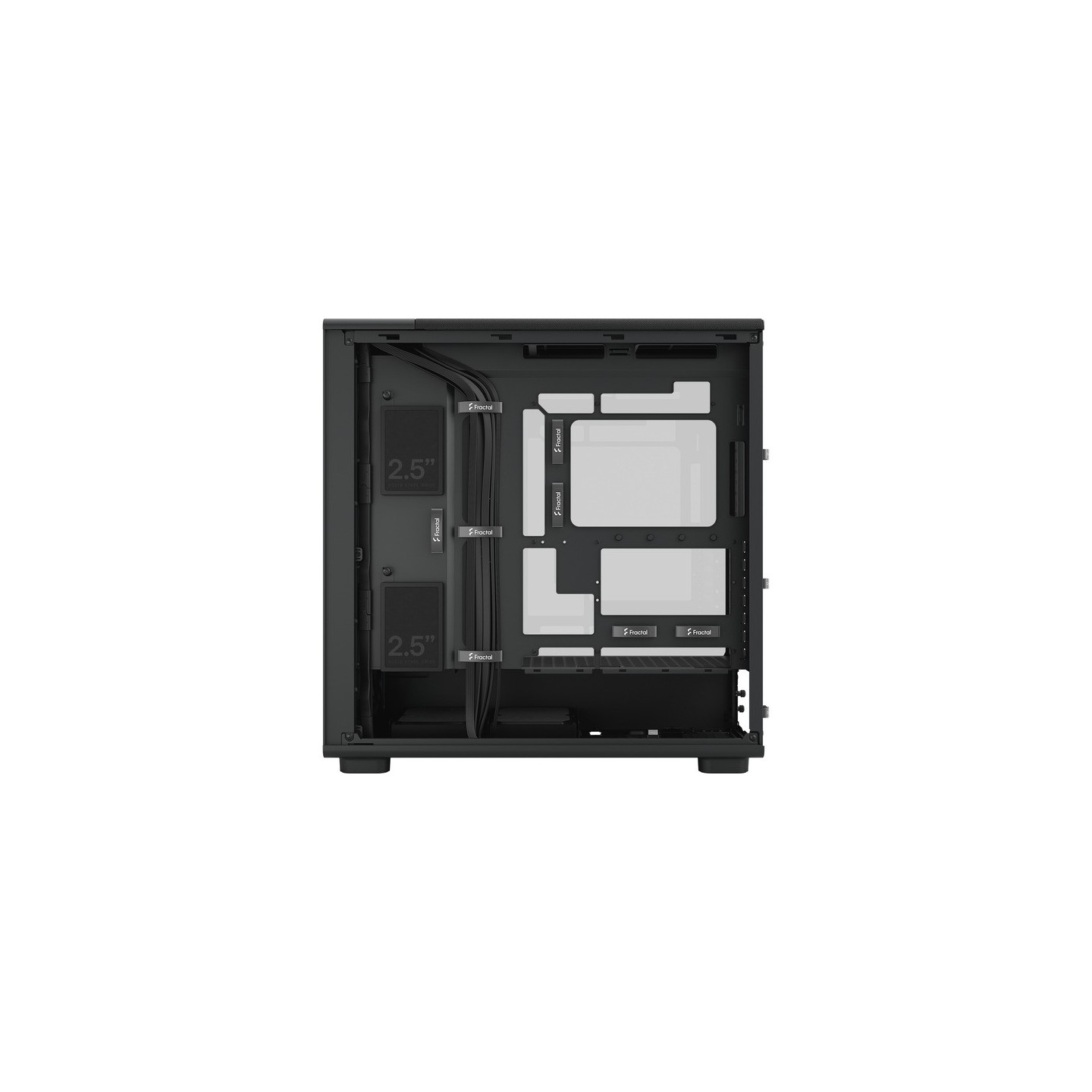

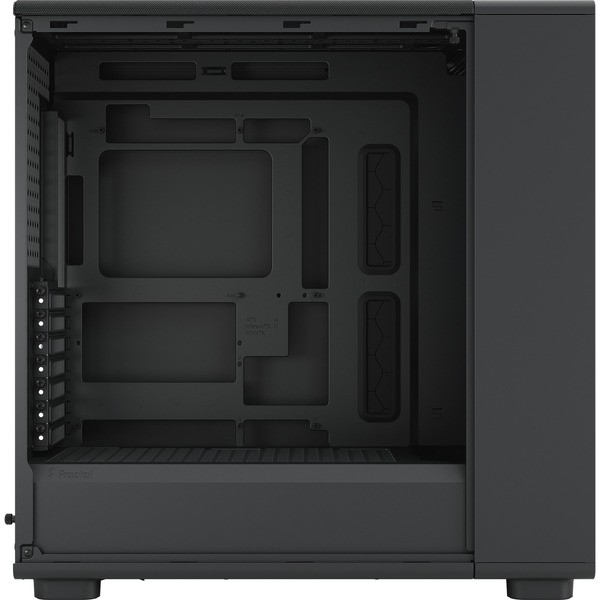

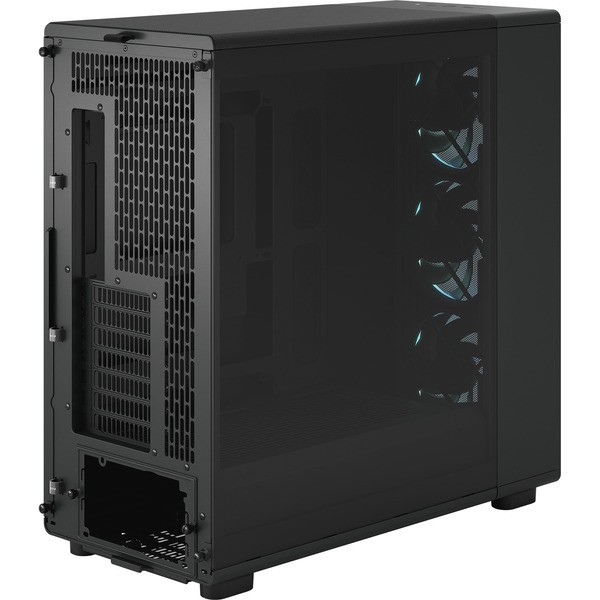

The exterior showcases an elegant, minimalist aesthetic with a laser-engraved aluminum logo, textile flap, and finely structured mesh panels. The tempered glass side panel provides a clear view of your components, while the well-thought-out interior layout features integrated cable guides and 37mm of cable routing space for clean, attractive builds. Tool-free access is provided via a slide-to-remove top panel and pull-to-remove front panel, making component installation and maintenance straightforward. The case supports ATX, mATX, Mini-ITX, and E-ATX motherboards (up to 275mm with front connectors), with seven expansion slots and comprehensive front I/O including USB-C 20Gbps connectivity.
- Supports GPUs up to 425mm with front fans or 395mm with front radiator
- Three included Momentum 14 RGB fans with FDB bearings and LCP blades
- Radiator support: up to 360mm front and top, 120mm rear
- Motherboard compatibility: E-ATX (275mm), ATX, mATX, Mini-ITX
- Front I/O: 1x USB-C 20Gbps, 2x USB-A 5Gbps, Audio/Mic combo jack
- CPU cooler clearance: 176mm maximum height

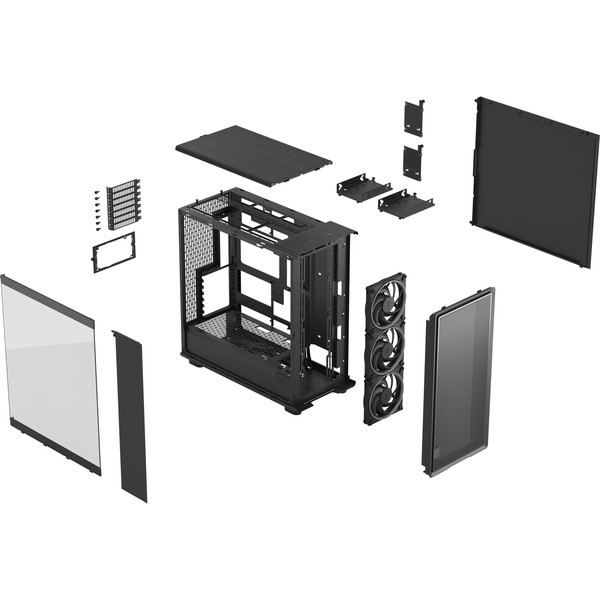

- Tool-free access with removable top and front panels

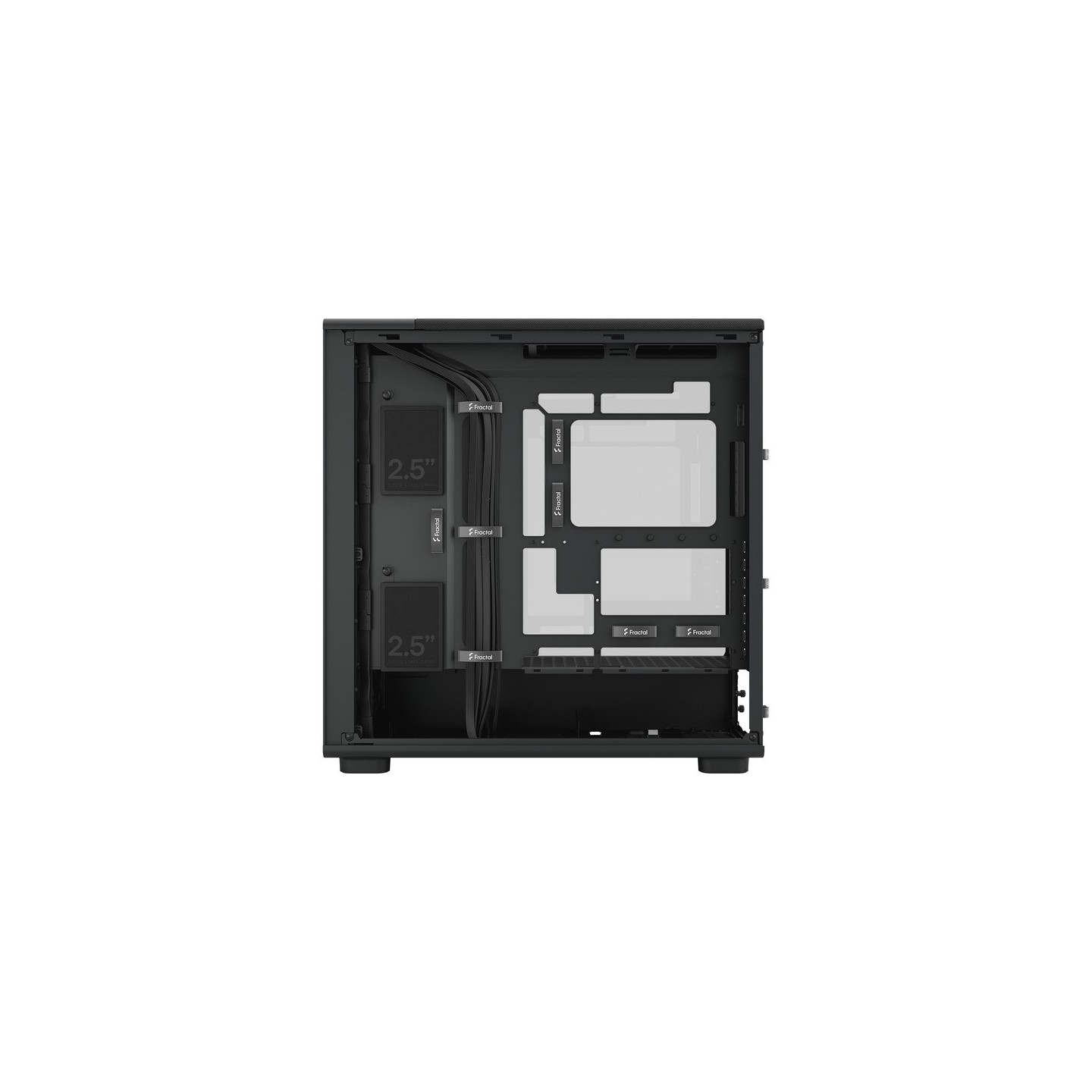

- 37mm cable routing space with integrated cable guides
| Type | Mid-Tower ATX Case |
| Color | Black |
| EAN | 7340172710400 |
| Manufacturer Part Number | FD-C-EPO1X-04 |
| Manufactured in | Taiwan |
| Design | Mid-Tower |
| Motherboard Form Factor Support | E-ATX (up to 275mm with front connectors), ATX, mATX, Mini-ITX |
| Material | Steel, Tempered Glass (3mm), Aluminum accents |

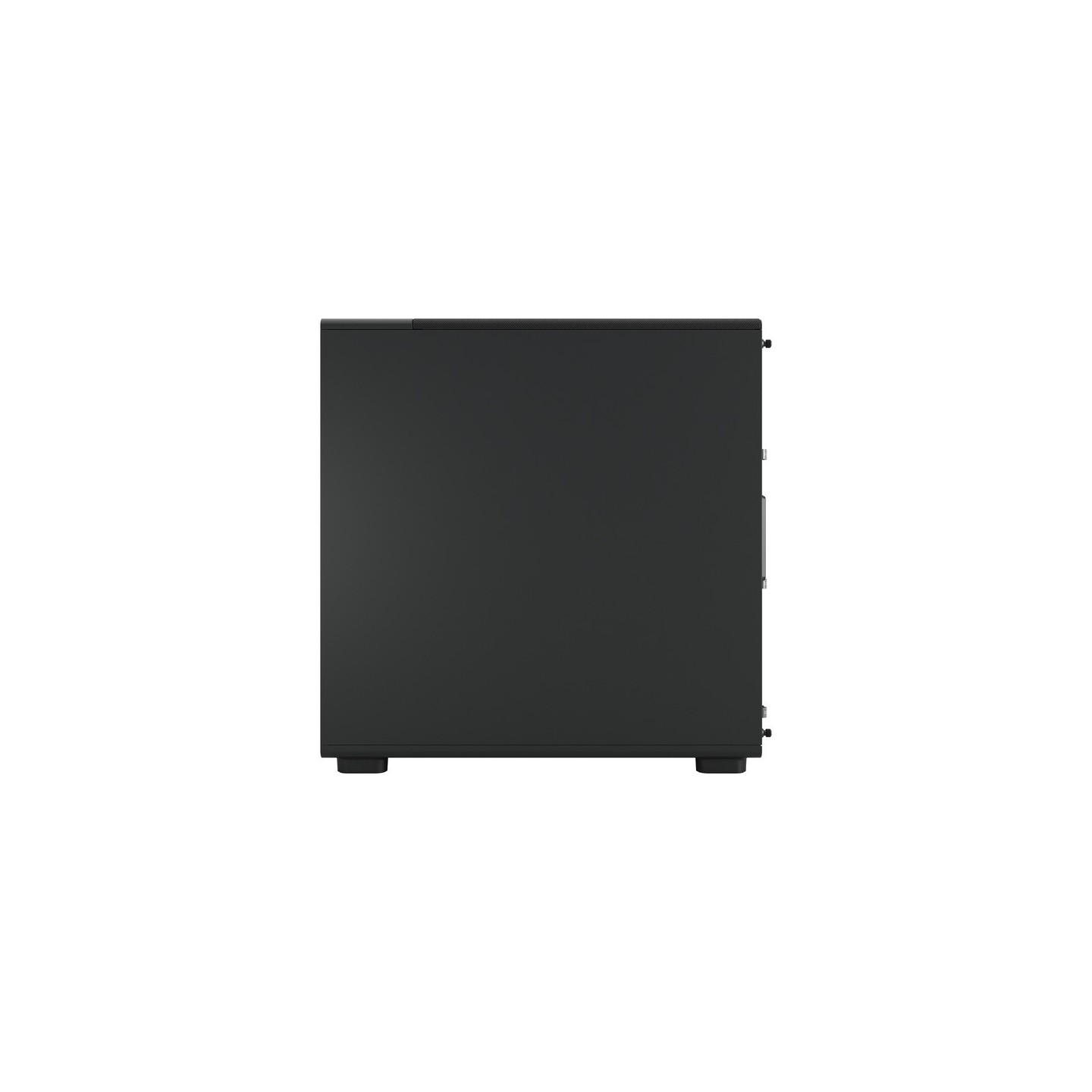

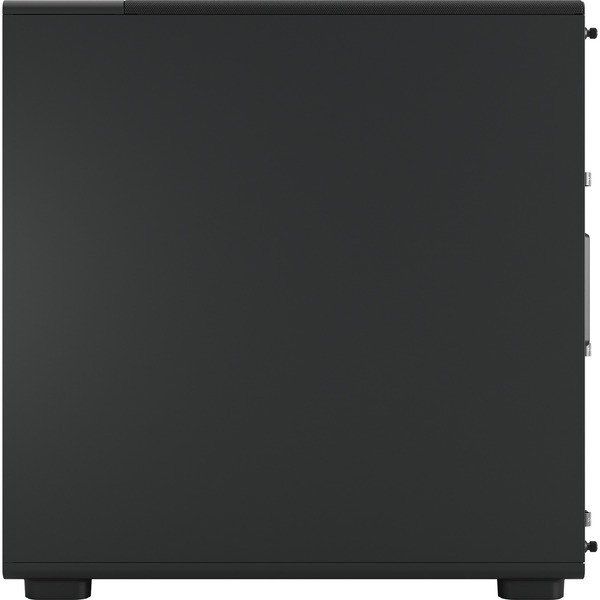

| Side Panel | Tempered Glass (left), Steel (right) |
| Front Panel | Mesh |
| Max GPU Length | 425mm (with front fans) / 395mm (with front radiator) |
| Max CPU Cooler Height | 176mm |
| Drive Bays - 3.5 inch | 2 internal |
| Drive Bays - 2.5 inch | 2 internal |
| Expansion Slots | 7 full-size |
| Front I/O Ports | 1x USB Type-C 20Gbps, 2x USB Type-A 5Gbps, 1x Audio/Mic Combo Jack |
| Included Fans | 3x 120mm Momentum 14 RGB fans (with LCP blades and FDB bearings) |
| Front Fan Support | 3x 120mm or 3x 140mm fans |
| Top Fan Support | 3x 120mm, 2x 140mm, or 2x 180mm fans |
| Rear Fan Support | 1x 120mm fan |
| Front Radiator Support | Up to 360mm |
| Top Radiator Support | Up to 360mm |
| Rear Radiator Support | 120mm only |
| Cable Routing Space | 37mm |
| Cable Management Features | Cable grommets, fixed hook-and-loop straps, integrated cable guides |
| Dust Filters | PSU filter included |
| Tool-Free Access | Top mesh panel (slide-to-remove), Front panel (pull-to-remove), PSU filter |
| RGB Lighting | Yes, 3x Momentum 14 RGB fans included |
| Water Cooling Support | Yes, supports radiators up to 360mm front and top |
| Rear Motherboard Connector Support | Yes, supports Project Zero / BTF / Stealth layouts (ATX/mATX) |
| Case Dimensions (L x W x H) | 503 x 240 x 509mm |
| Case Dimensions without feet/protrusions | 490 x 240 x 490mm |
| Package Dimensions (L x W x H) | 602 x 353 x 606mm |
| Net Weight | 9.64kg |
| Gross Weight (with packaging) | 11.50kg |
| Volume | Approximately 62 liters |
