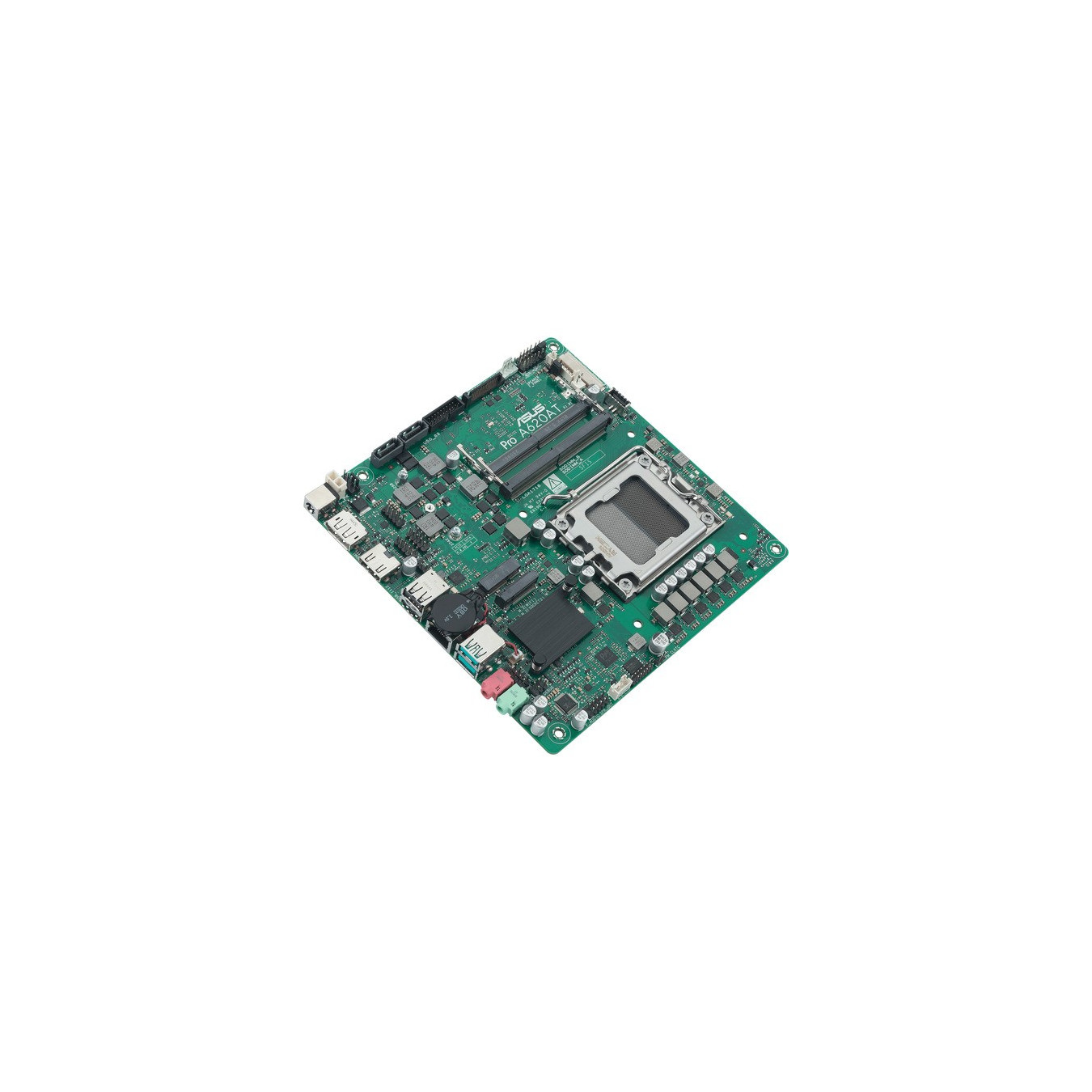

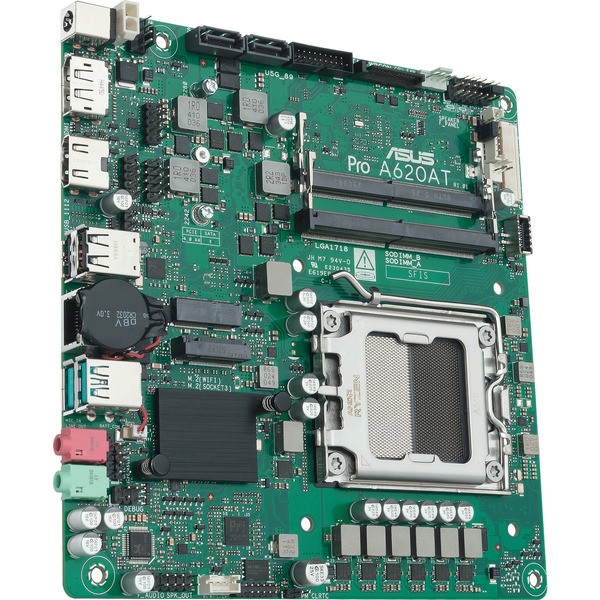

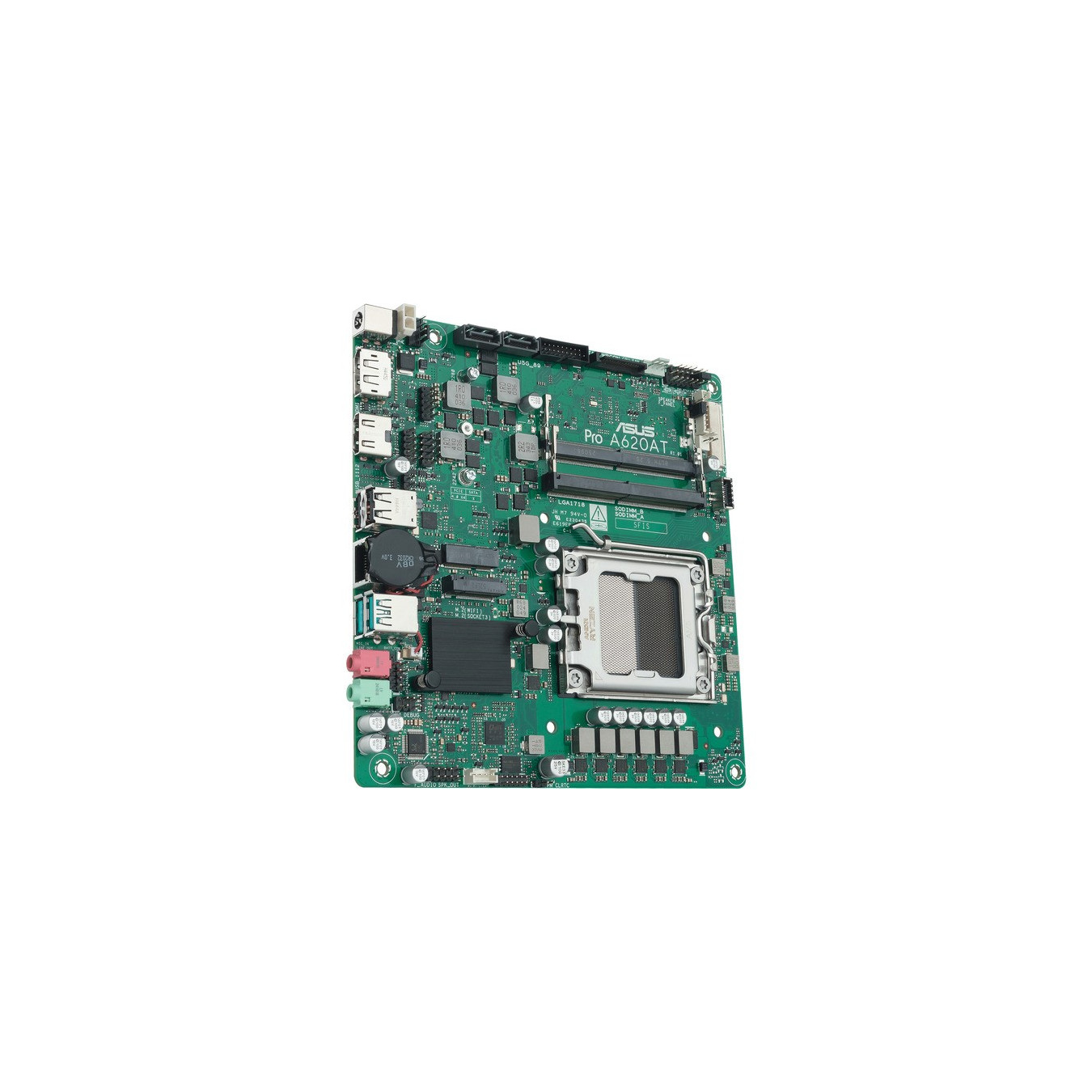

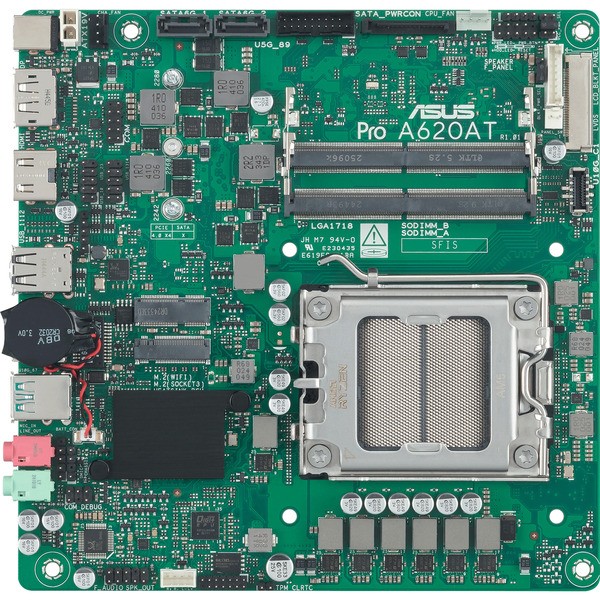

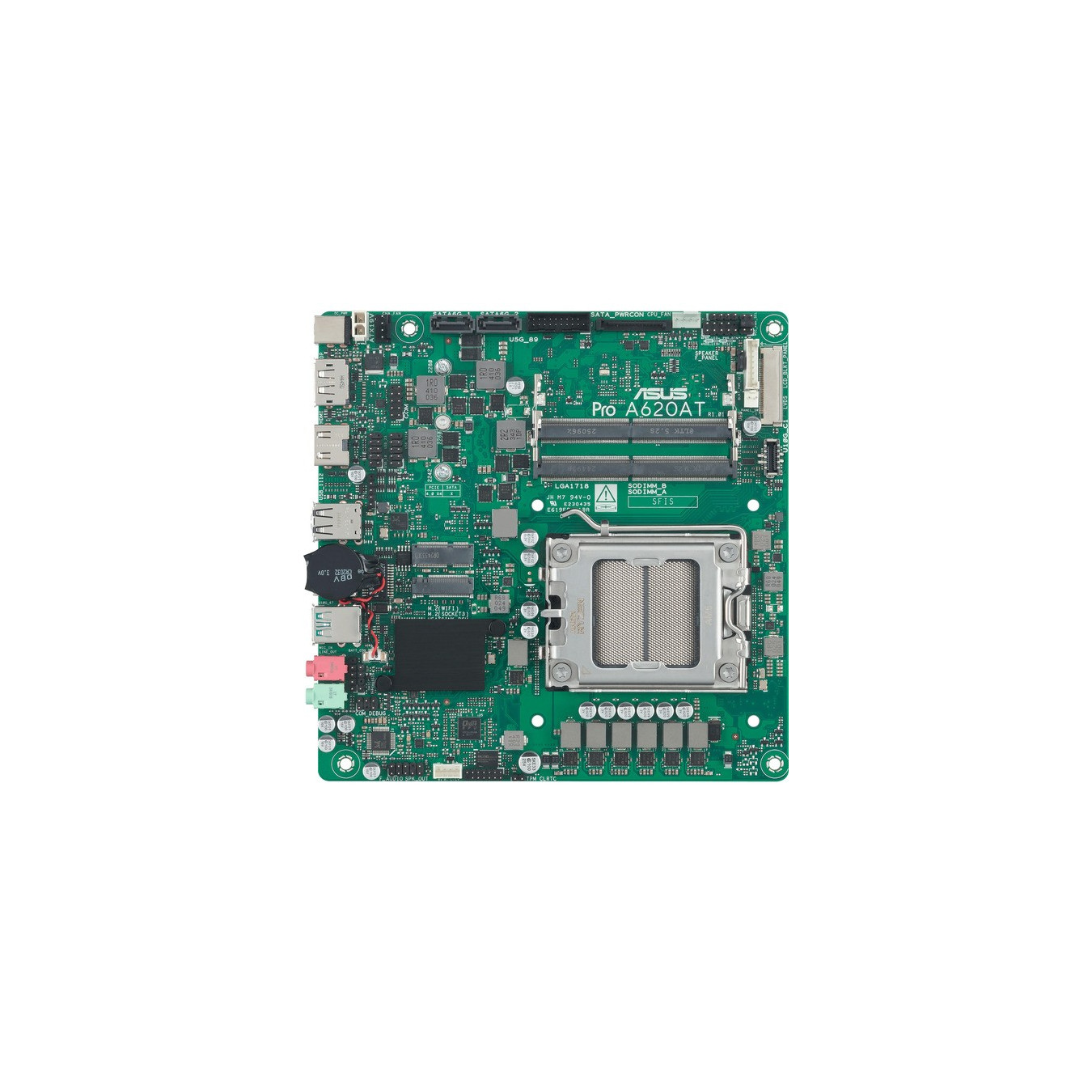

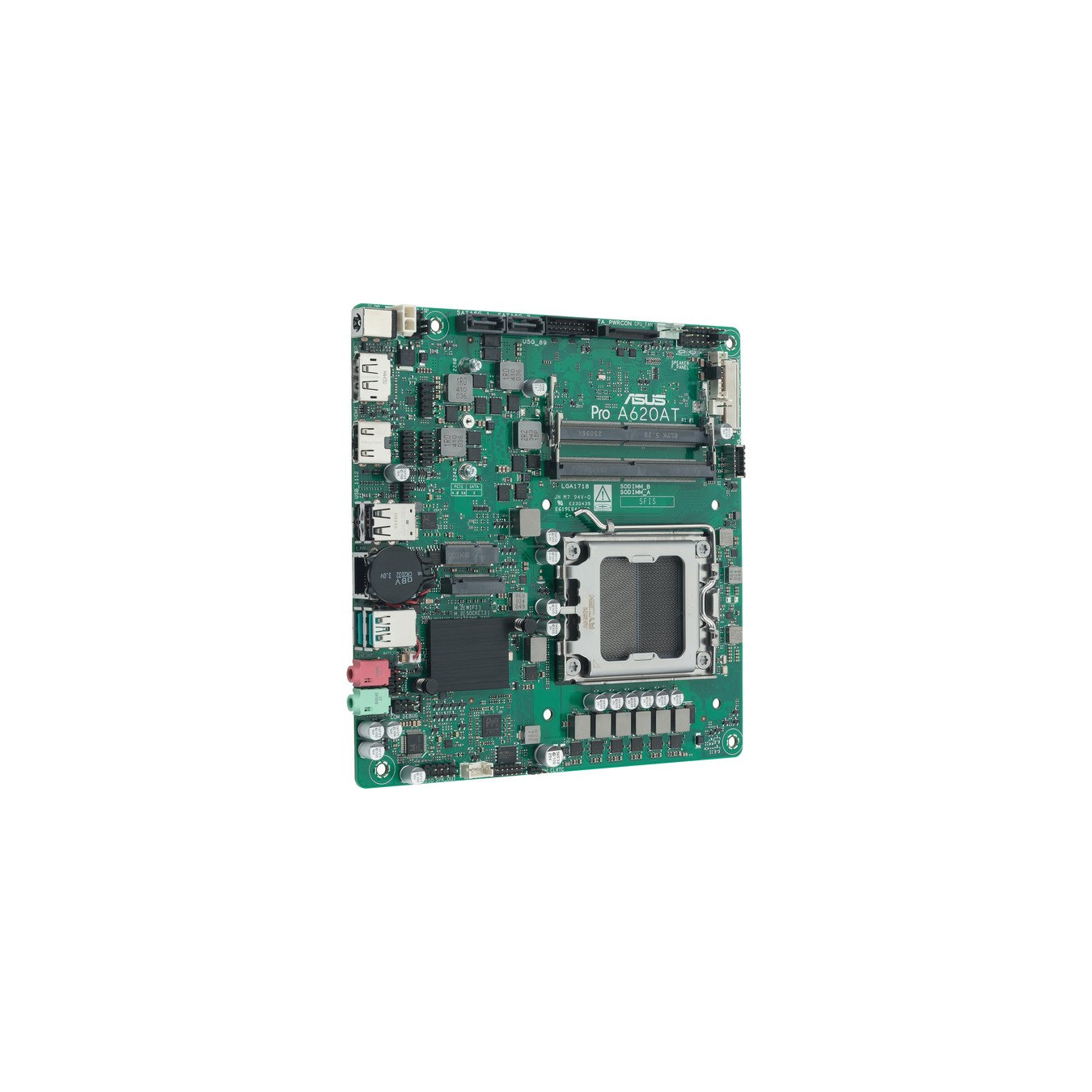

PRO A620AT-CSM, Mainboard
The mainboard PRO A620AT-CSM is based on the AMD A620 chipset and supports AMD processors for socket AM5. It has two DDR5 SO-DIMM slots in dual-channel operation for up to 128 GB o...
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

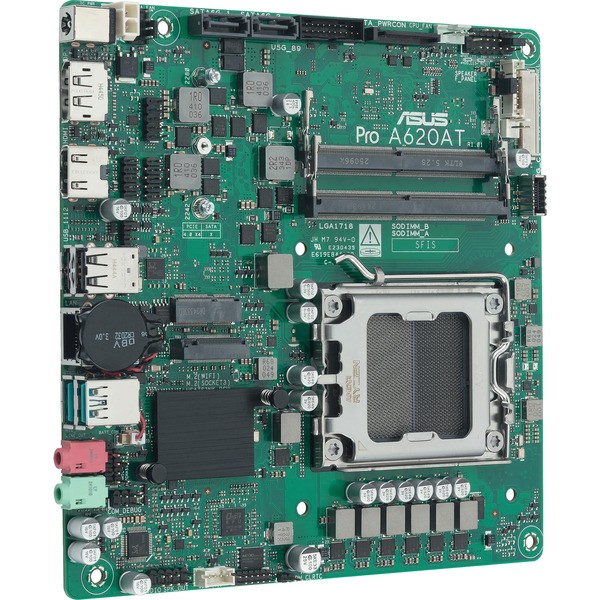

The mainboard PRO A620AT-CSM is based on the AMD A620 chipset and supports AMD processors for socket AM5. It has two DDR5 SO-DIMM slots in dual-channel operation for up to 128 GB of RAM. The PRO A620AT-CSM also has 8-channel sound, a Gigabit LAN interface, two SATA3 ports, an M.2 port and a range of USB interfaces. This board has various features for use in business environments.
| Typ | Mainboard |
| EAN | 4711636116053 |
| Manufacturer no. | 90MB1L5M-M0EAYC |
| base | AM5 |
| Max. supported CPUs | 1 |
| Operating system support | Windows 11 ready |
| Processor - Supported Models | Ryzen 5 7xxx (Raphael), Ryzen 5 7xxxX (Raphael), Ryzen 5 7xxxF (Raphael), Ryzen 5 7xxxX3D (Raphael), Ryzen 5 8xxxF (Phoenix), Ryzen 5 8xxxG (Phoenix), Ryzen 5 9xxx (Granite Ridge), Ryzen 5 9xxxX (Granite Ridge), Ryzen 7 7xxx (Raphael), Ryzen 7 7xxxX (Raphael), Ryzen 7 7xxxX3D (Raphael), Ryzen 7 8xxxG (Phoenix), Ryzen 7 8xxxF (Phoenix), Ryzen 7 9xxxX (Granite Ridge), Ryzen 7 9xxxX3D (Granite Ridge), Ryzen 9 7xxx (Raphael), Ryzen 9 7xxxX (Raphael), Ryzen 9 7xxxX3D (Raphael), Ryzen 9 9xxxX (Granite Ridge), Ryzen 9 9xxxX3D (Granite Ridge) |
| Chipset | AMD A620 |
| Form factor | Thin Mini-ITX |
| use | PC |
| Power supply | extern |
| Memory - maximum | 128 GB |

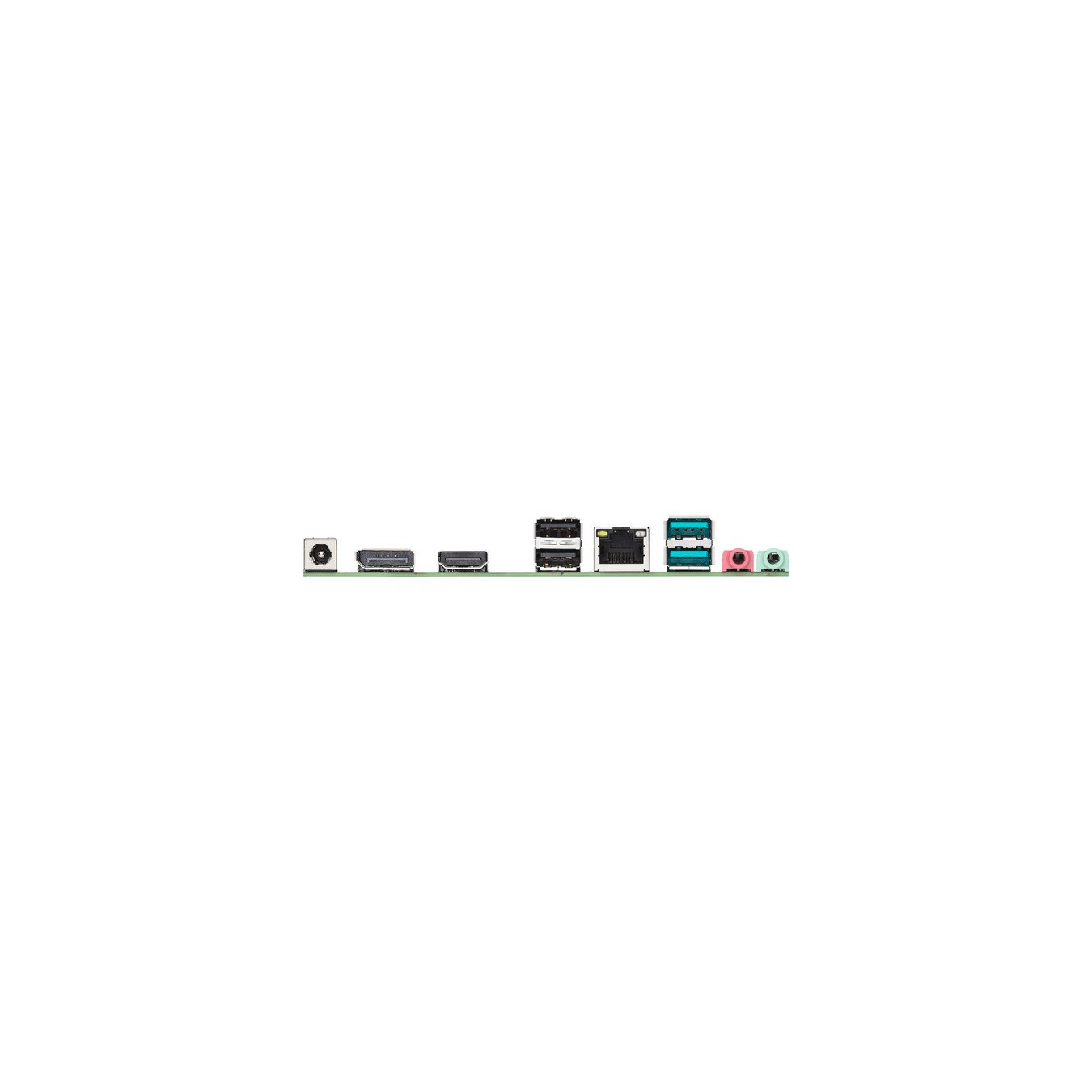

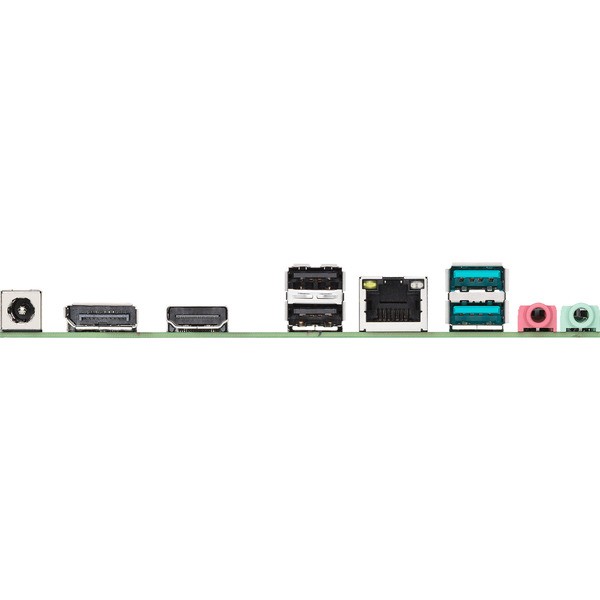

| Ports (external) - USB-A 3.2 Gen 1 (5 Gbit/s) | 2 |
| Connectors (internal) - SATA | 2 |
| Ports (optional) - USB 3.2 Gen 1 (5Gbps) | 2 |
| Onboard Graphics | The graphics connections on the mainboard can only be used when using a CPU with an integrated graphics chip. |
| LAN | RTL8111EPV-CG Ethernet |
| Features | 1 x LVDS connector |

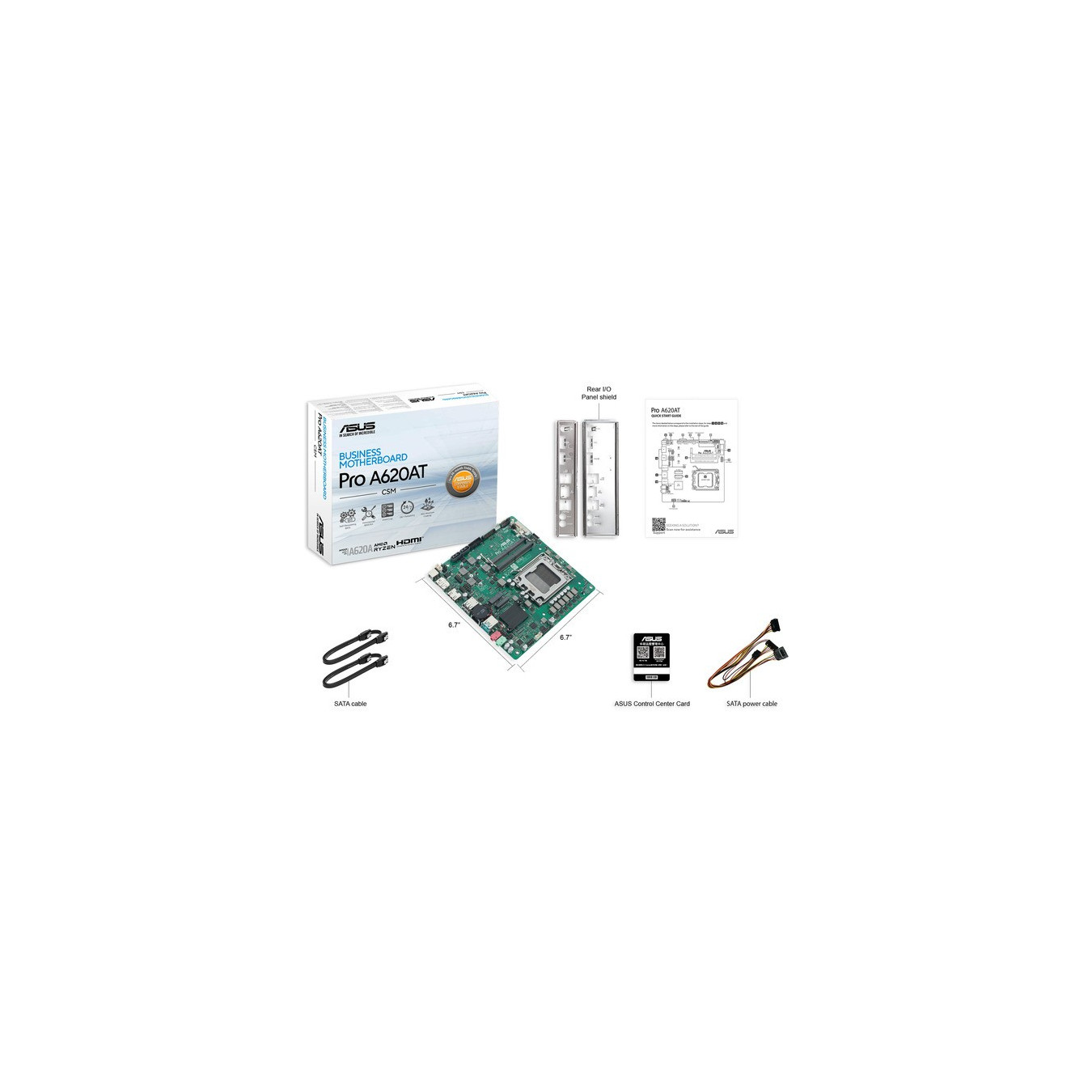

| Accessories - available | 2 x SATA 6Gb/s cable, 1 x SATA power cable, 2 x I/O panels, 1 x quick guide |
| Dimensions | Width: 170mm x Height: 170mm |
