Cat6 modular coupling
This Cat6 modular coupling from Digitus is shielded and offers excellent performance and connection quality for networks. The Cat6 modular coupling is suitable for connecting two p...
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

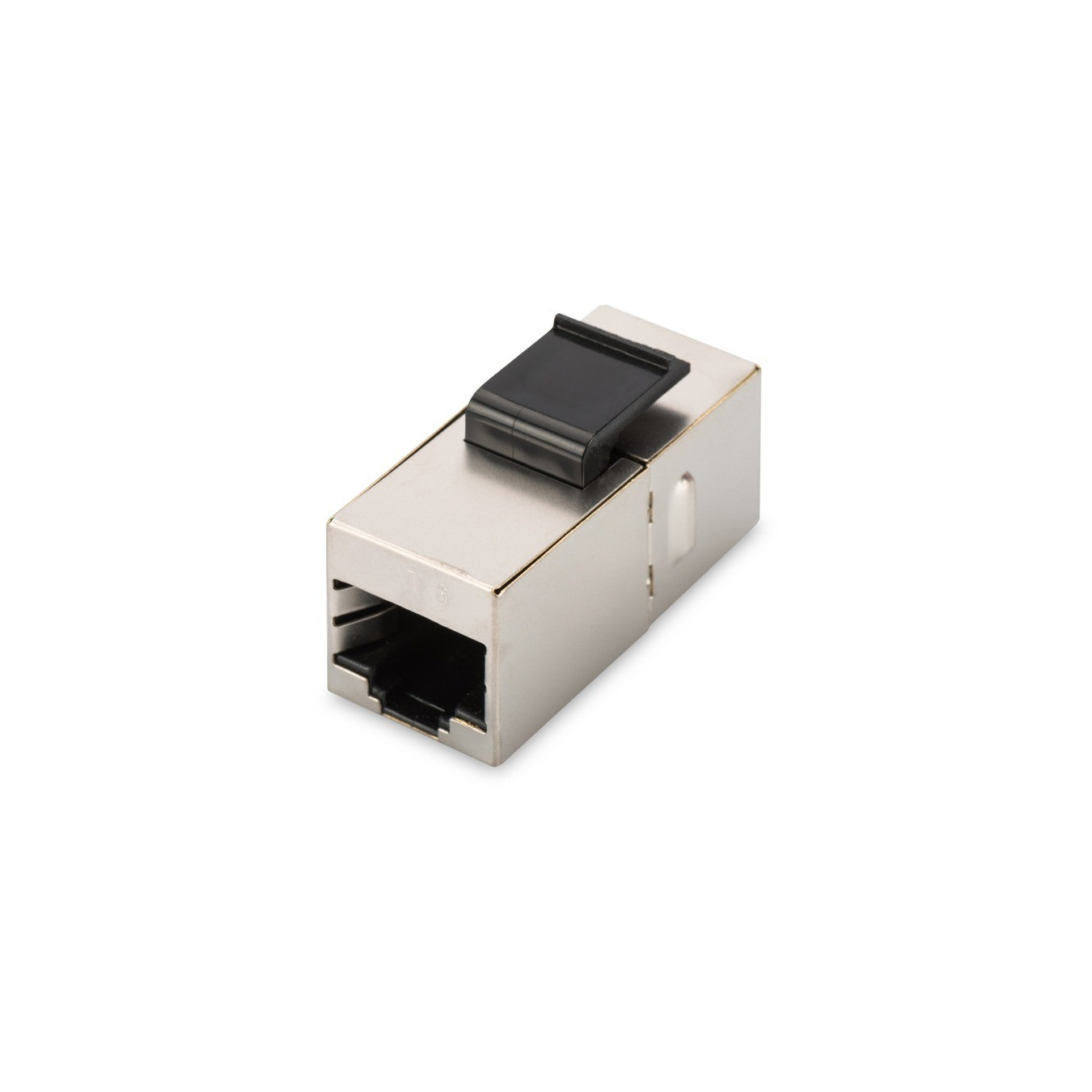

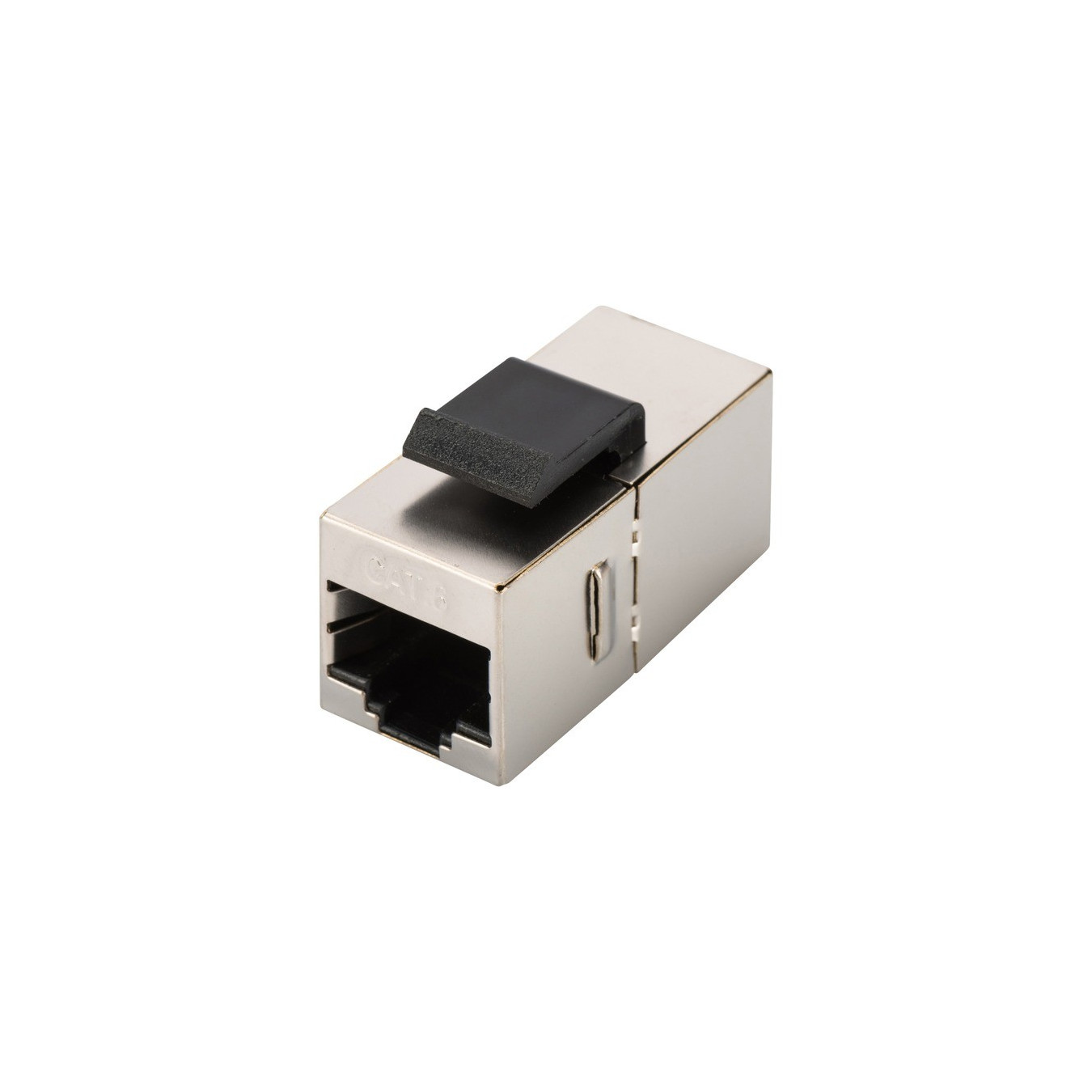

This Cat6 modular coupling from Digitus is shielded and offers excellent performance and connection quality for networks. The Cat6 modular coupling is suitable for connecting two patch cables together. Equipped with two RJ45 sockets with a 1:1 assignment, they are suitable for patch panel mounting.
| Typ | coupling |
| EAN | 4016032266846 |
| Manufacturer no. | DN-93613-1 |
| Application example | for connecting 2 patch cables together |
| Area | network |
| Connection - from | 1x RJ-45 (socket) |
| Category - Plugs | Cat.6 |
| Characteristics | extern |
| Feature | Complies with the channel requirements according to ISO/IEC 11801 for Class EA up to 500 MHz |
| More information | Occupancy: 1:1; Housing: sheet brass, bright nickel-plated; PCB: FR4, 1.2mm thickness; Contact material: phosphor bronze; Coating contacts: nickel, gold plated 0.6µ; Mating cycles: = 750; Operating temperature: -10°C to +50°C |
| Weight | 10 Gramm |
