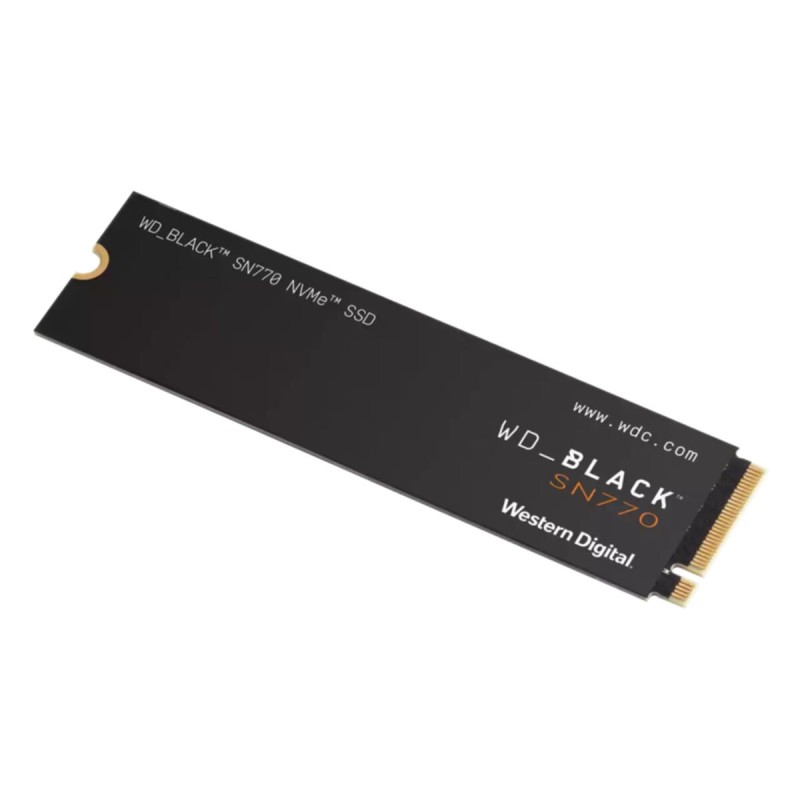

WD Black SN770 - WDS200T3X0E - 2TB NVMe M.2 2280 PCIe 4.0 x4 (5150/4850 MB/s)
2TB WD Black SN770 NVMe SSD, M.2 2280, PCIe 4.0 x4 — up to 5150 MB/s read and 4850 MB/s write. High-performance storage for PC and laptop upgrades.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Storage (SSD & HDD) - Type | SSD |
|---|---|
| Storage (SSD & HDD) - Capacity | 2TB |
| Storage (SSD & HDD) - Interface | NVMe PCIe Gen4 x4 |
| Storage (SSD & HDD) - Form Factor | M.2 2280 |
| Storage (SSD & HDD) - PCIe Version (SSD) | Gen4 |
| Storage (SSD & HDD) - PCIe Lanes (SSD) | x4 |
| Storage (SSD & HDD) - DRAM Cache (SSD) | None (DRAM-less) |
| Storage (SSD & HDD) - NAND Type (SSD) | 3D TLC |
Western Digital Black SN770. SSD capacity: 2 TB. SSD form factor: M.2. Read speed: 5150 MB/s. Write speed: 4850 MB/s. Component for: PC/Laptop
| SSD capacity | 2 TB |
| SSD form factor | M.2 |
| Interface | PCI Express 4.0 |
| Feature | NVMe |
| Component for | PC/Laptop |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Read speed | 5150 MB/s |
| Write speed | 4850 MB/s |
| Random read (4KB) | 650000 IOPS |
| Random write (4KB) | 800000 IOPS |
| Windows operating systems supported | Windows 10. Windows 8.1. Windows 11 |
| Width | 22 mm |
| Depth | 80 mm |
| Height | 2.38 mm |
| Weight | 5.5 g |
| Operating temperature (T-T) | 0 - 85 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Harmonized System (HS) code | 84717070 |
