19' LWL HD (High Density) Patchpanel 1 HE
The patch panel 66924 from Delock can be installed in a 19" equipment cabinet. Up to four HD cassettes or fiber optic adapter panels and two splice cassettes can be accommodated. T...
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

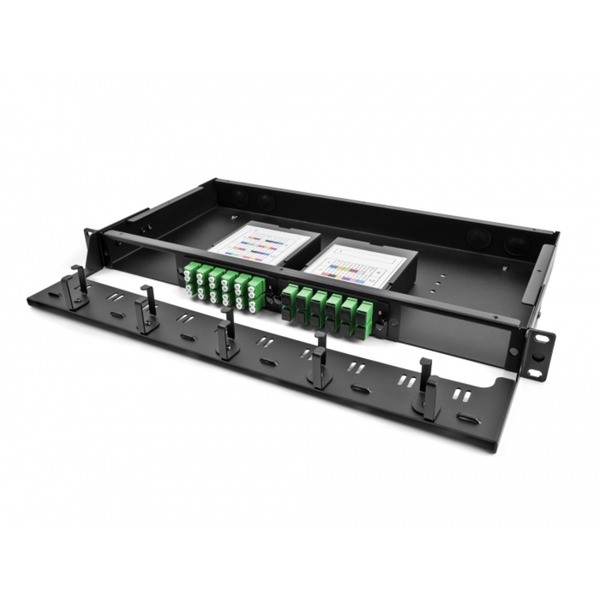

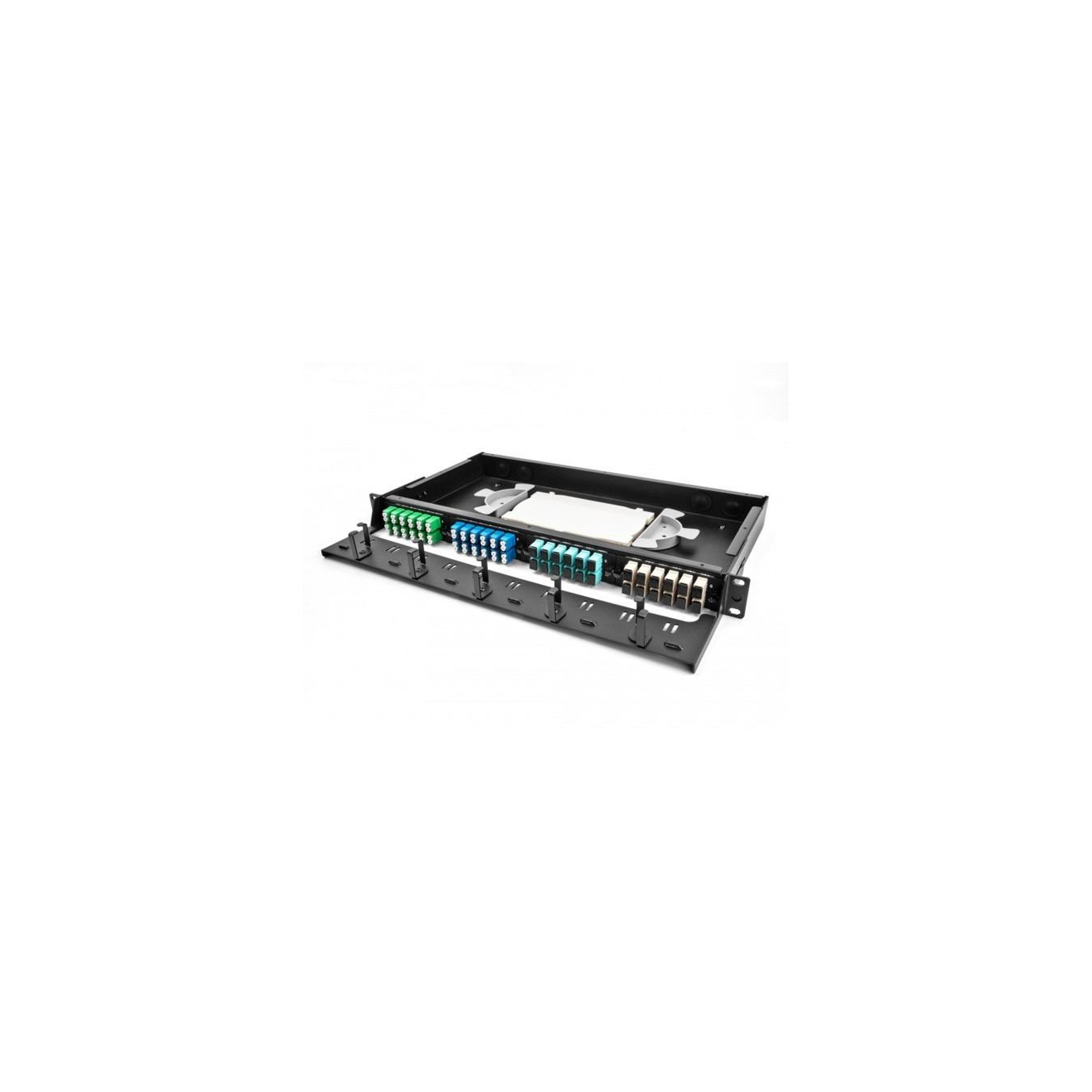

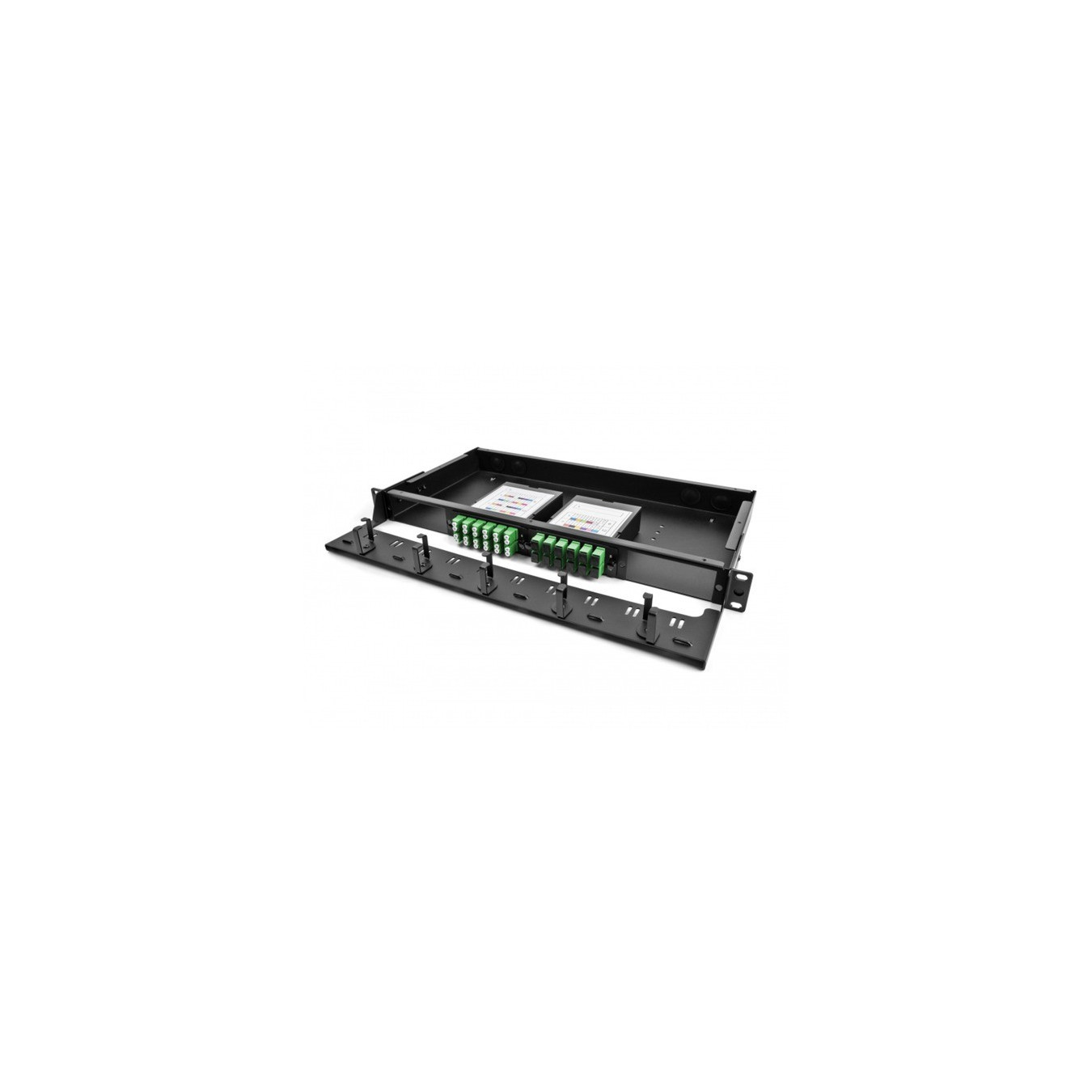

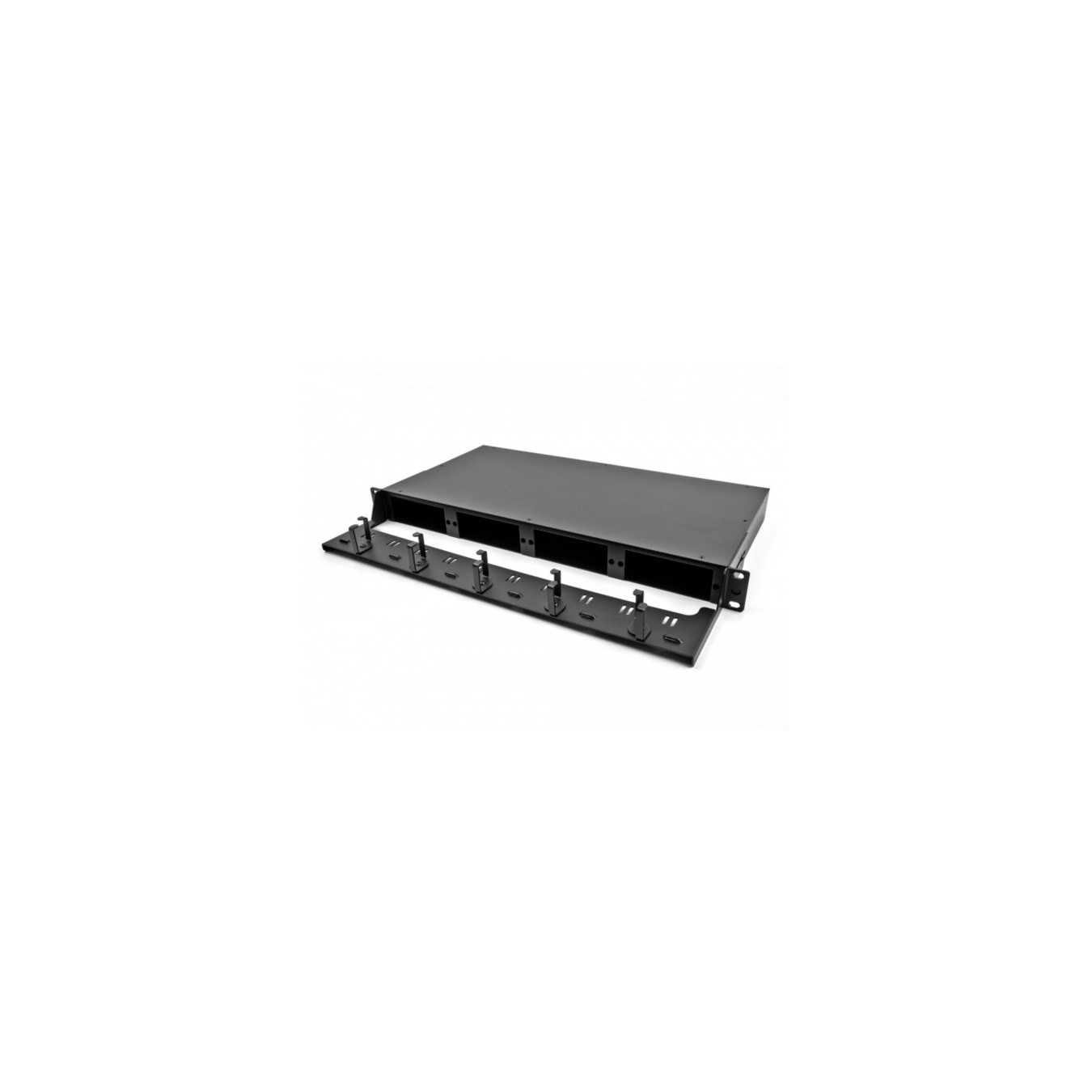

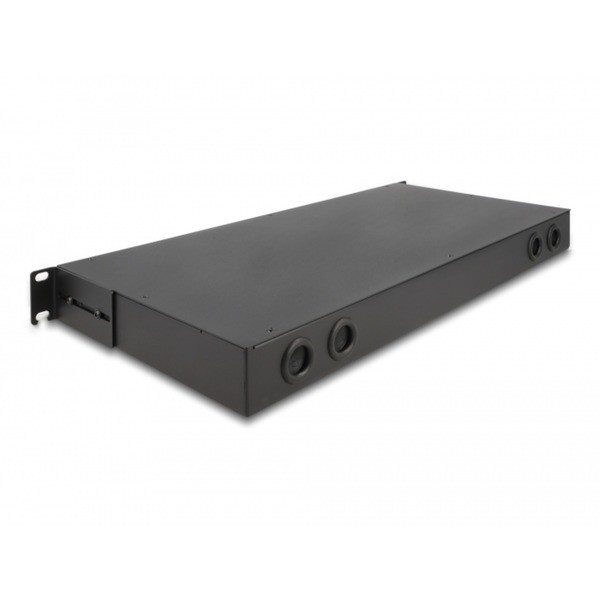

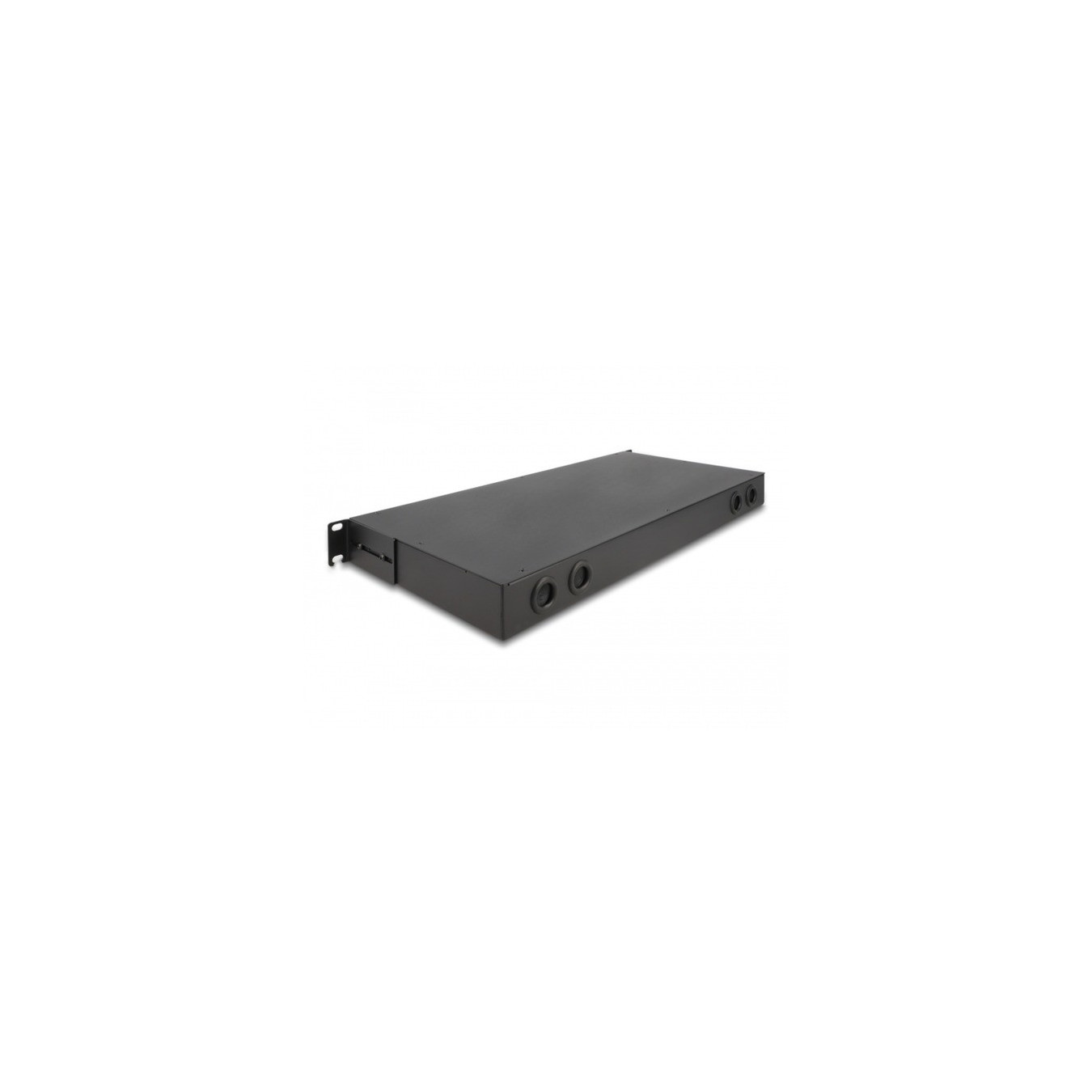

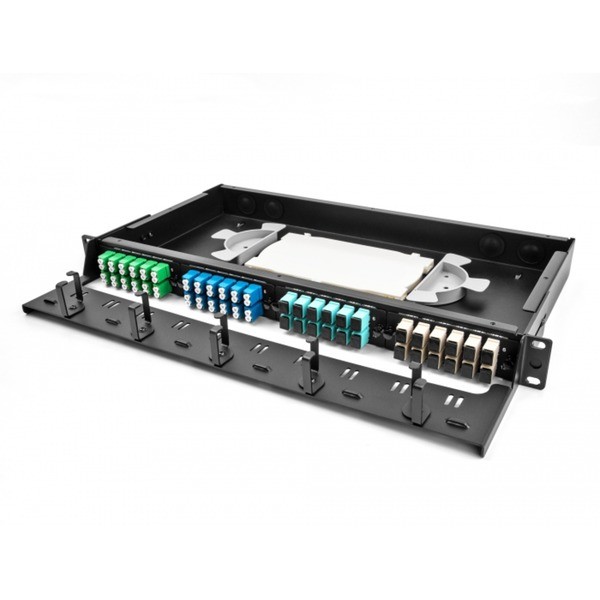

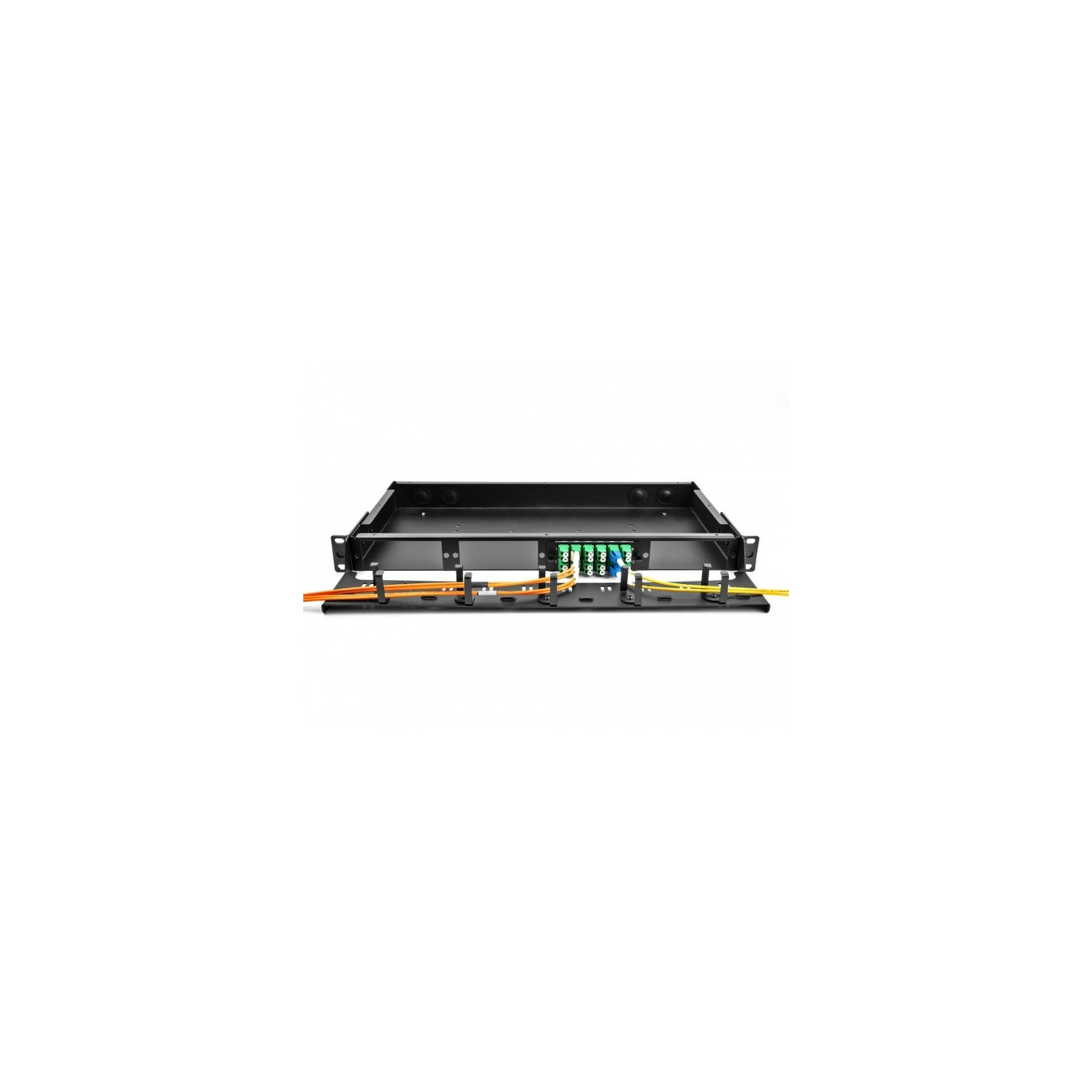

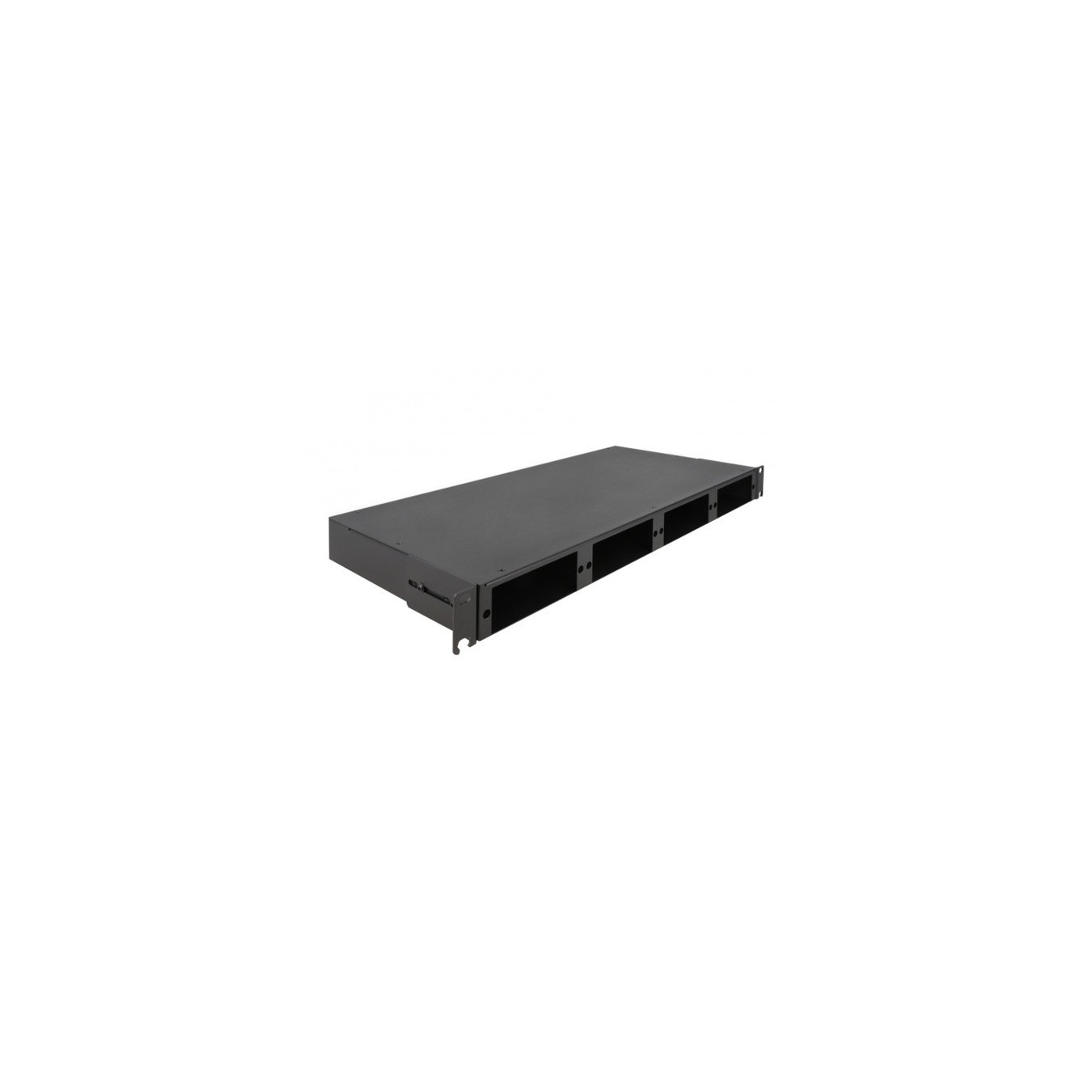

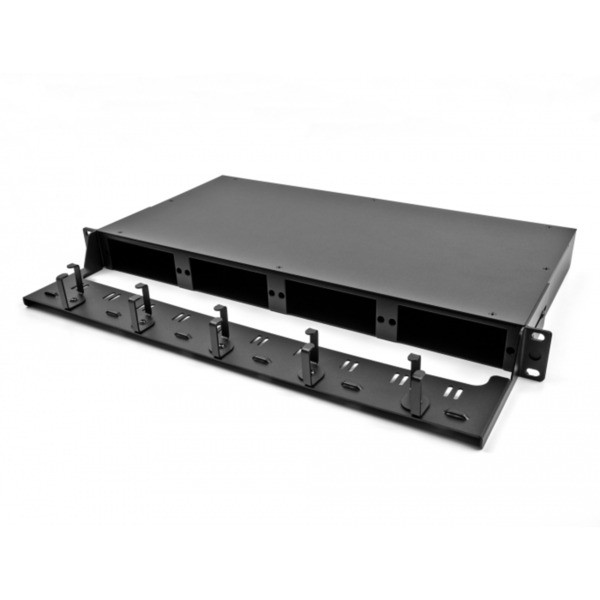

The patch panel 66924 from Delock can be installed in a 19" equipment cabinet. Up to four HD cassettes or fiber optic adapter panels and two splice cassettes can be accommodated. The adapter panels can be added, moved or changed individually. A wide selection of suitable adapter panels with pre-assembled fiber optic couplings is available as an accessory. The fiber optic cables can easily be routed through four cable feeds in the rear part of the patch panel. To ensure easy cable access To enable this, the top cover can be removed. A suitable routing panel is available as an accessory; it can be easily mounted on the patch panel and allows for clean cable routing. With the help of the routing panel, damage to cables, e.g. caused by twisting and bending, can be avoided.
| Typ | Patchpanel |
| Color | schwarz |
| EAN | 4043619669240 |
| Manufacturer no. | 66924 |
| Manufactured in | China |
| Purpose of use | For HD cassettes or fiber optic adapter panels |
| Feature | 4 rear cable entries, removable cover |
| More information | For mounting in 19" cabinets, 1 U, up to 144 fibers |

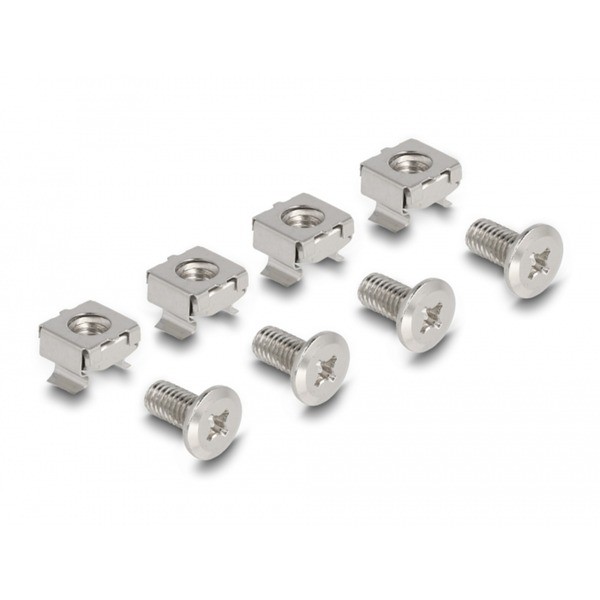

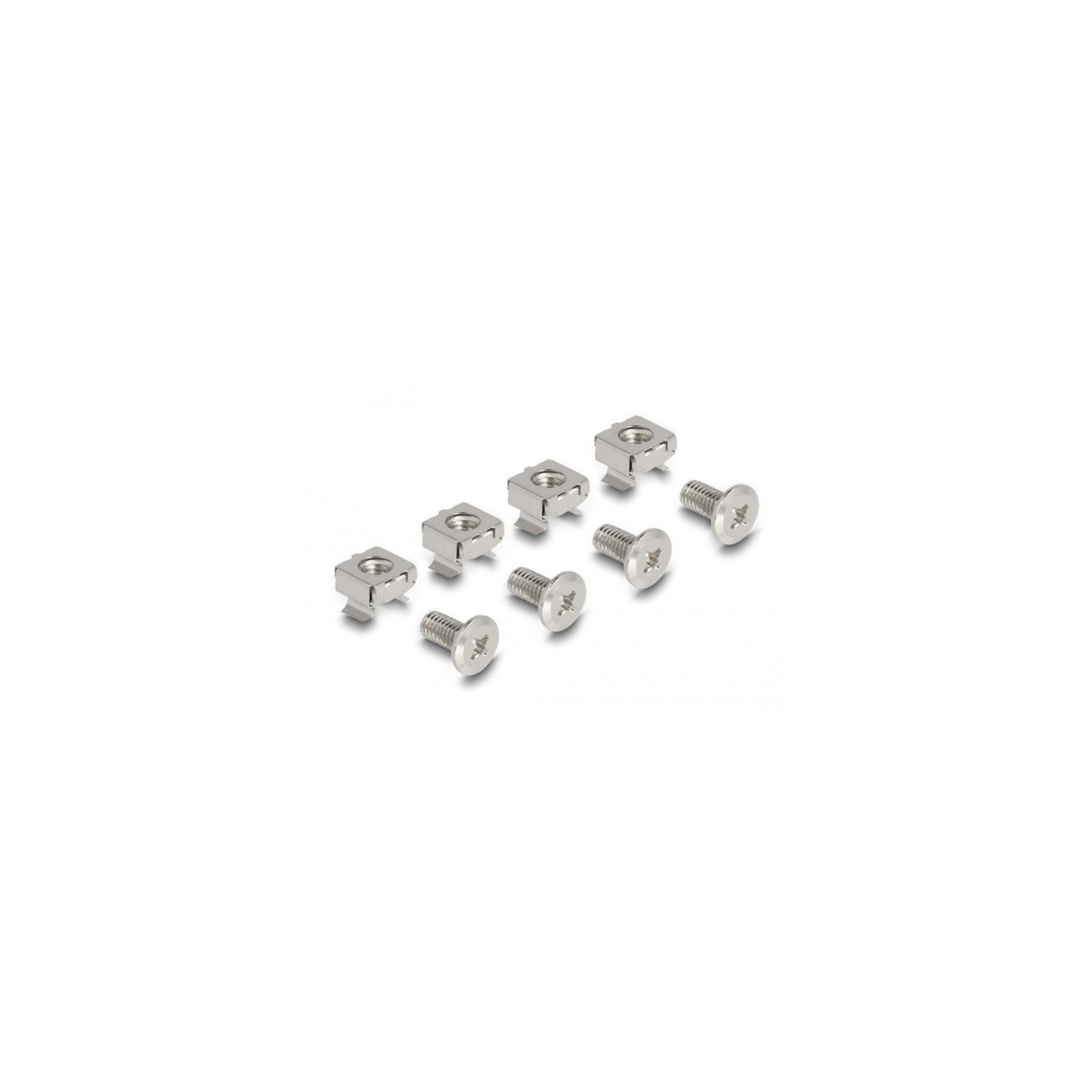

| Accessories - available | 4x screws, 4x cage nuts |
| Dimensions | Width: 483mm x Height: 44mm x Depth/Length: 220mm |
