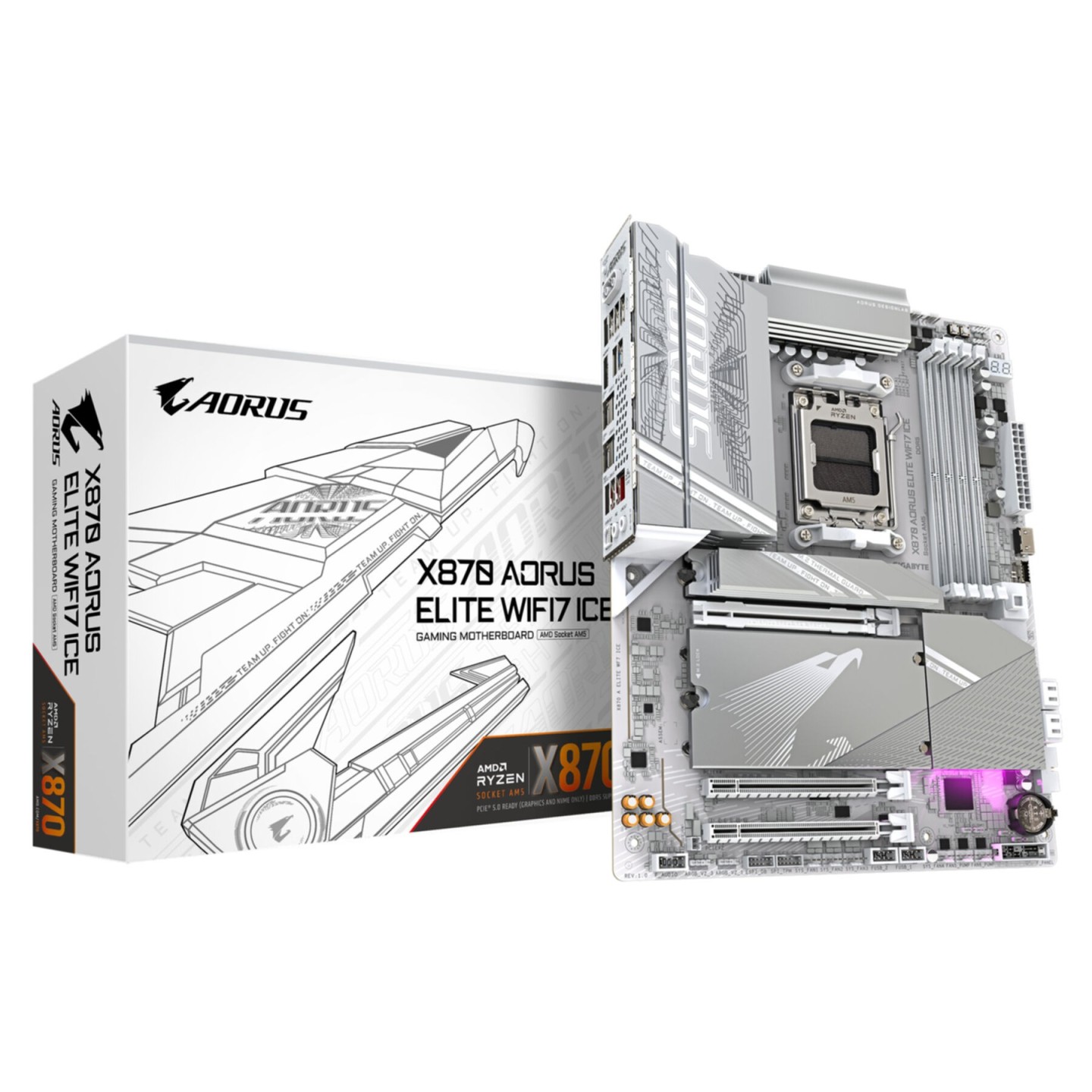

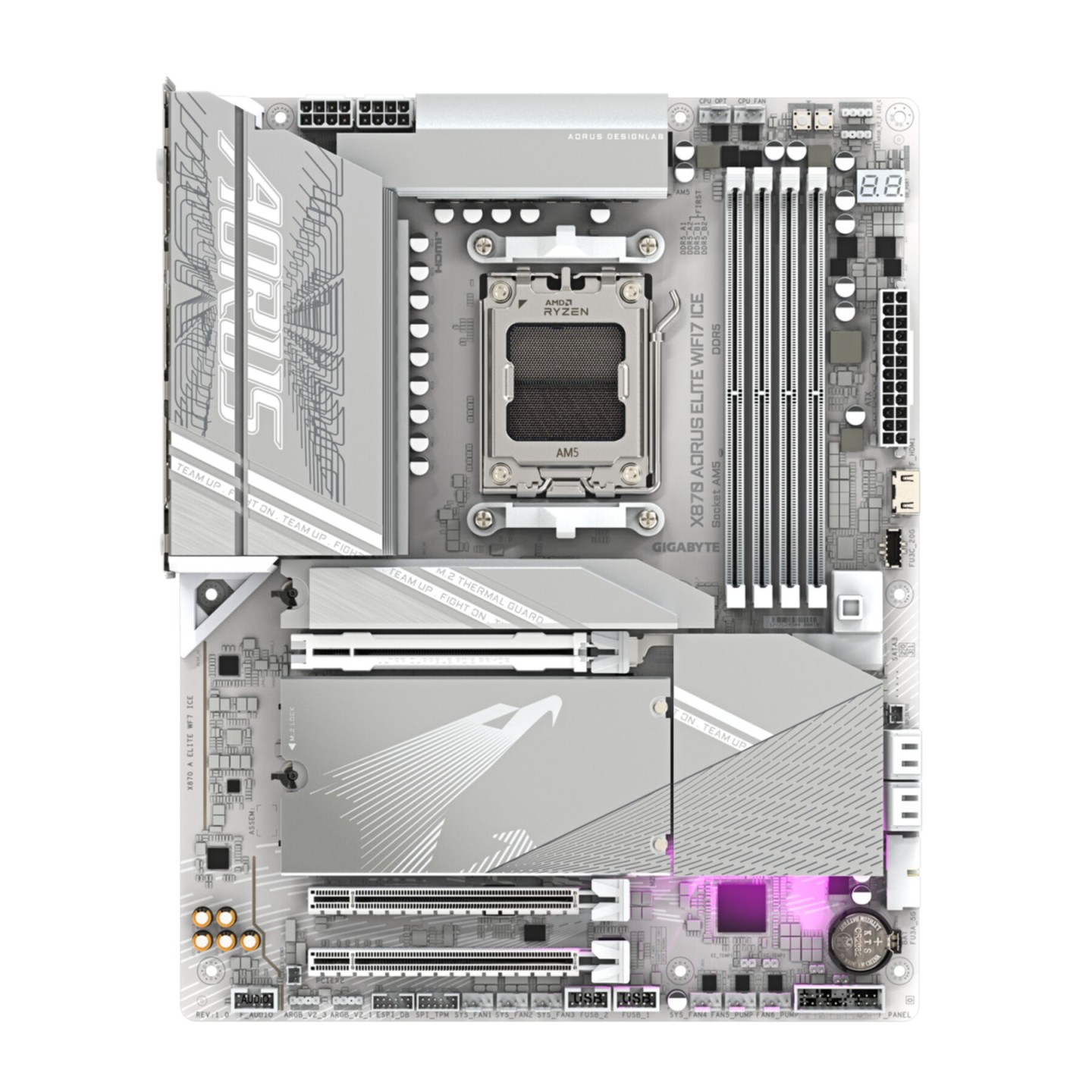

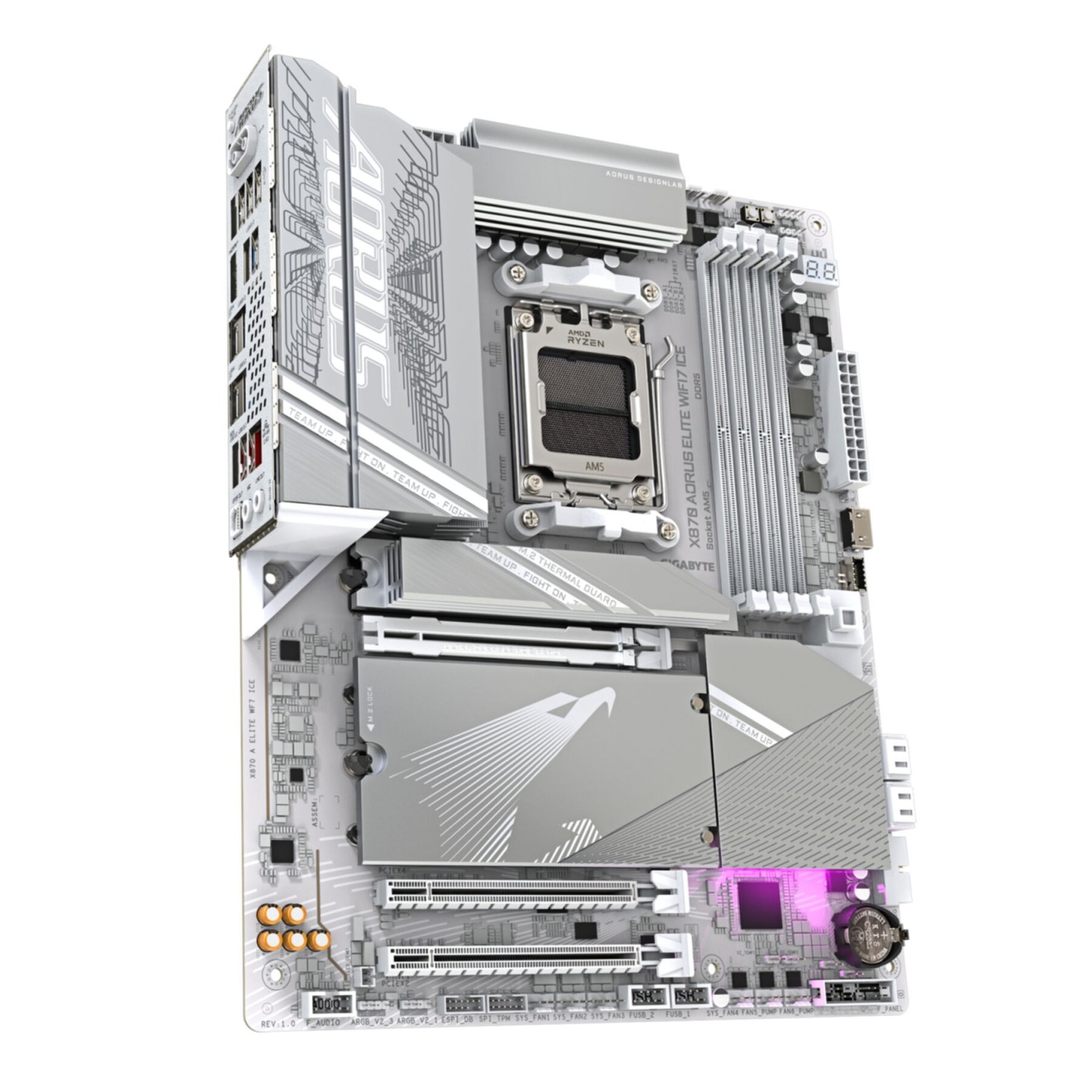

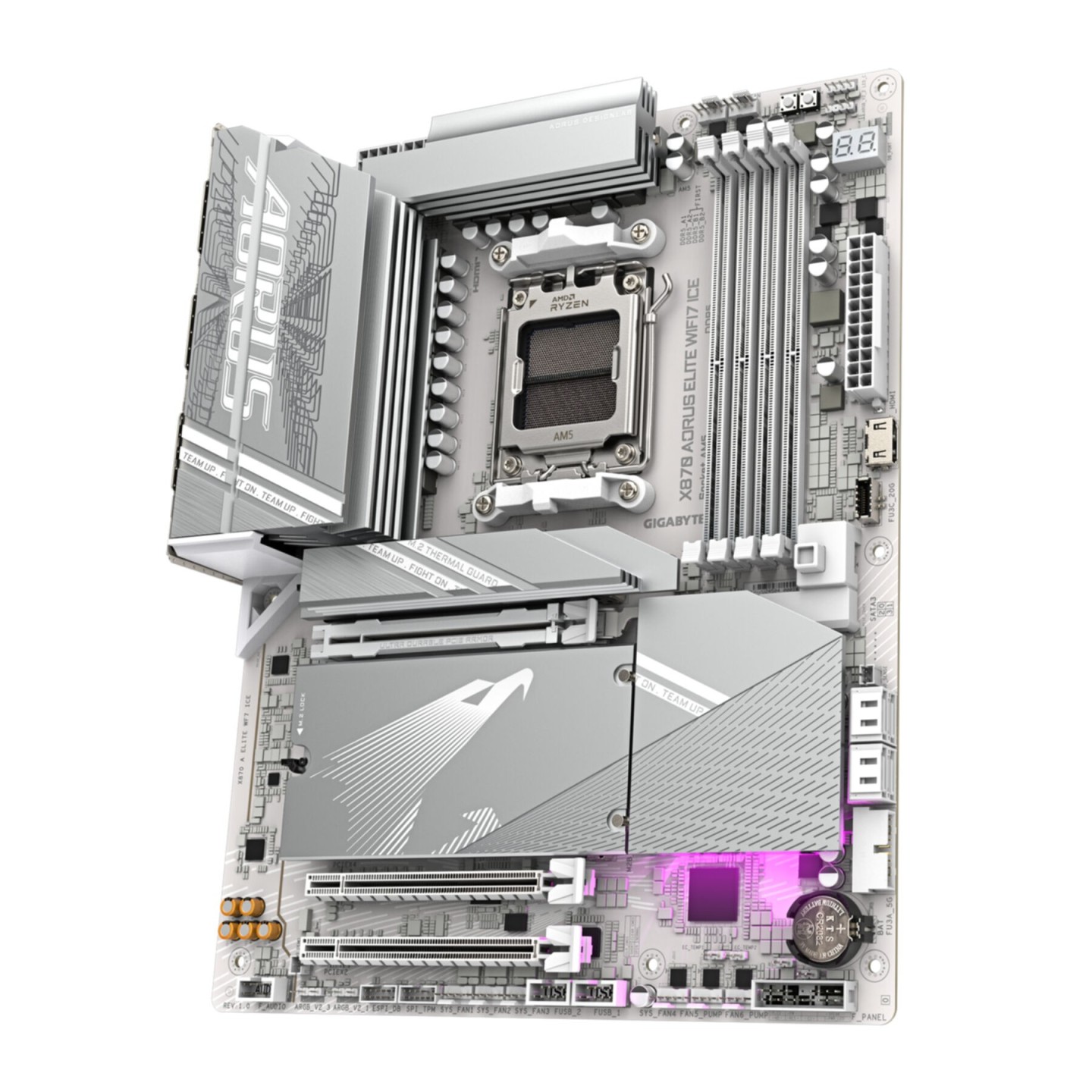

Gigabyte X870 AORUS ELITE WIFI7 ICE - AM5 ATX Motherboard, X870, DDR5, 4x M.2, Wi-Fi 7, 2.5Gb LAN, White
AM5 ATX motherboard with AMD X870 chipset. Supports DDR5 to 256GB (4 DIMM slots), 4x M.2 (3x PCIe 5.0), dual USB4, Wi-Fi 7, Bluetooth 5.4, 2.5GbE LAN. White ICE finish with advanced VRM cooling.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | AMD AM5 |
|---|---|
| Motherboards - Chipset | AMD X870 |
| Motherboards - Form Factor | ATX |
| Motherboards - Memory Type | DDR5 |
| Motherboards - Memory Profile Support | EXPO |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 256 GB |
| Motherboards - Main Slot PCIe Version | PCIe 5.0 |
| Motherboards - Color | White |
| Motherboards - M.2 Slots | 4 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C Support | Rear Type-C |
| Motherboards - RGB Headers | 3-pin 5V ARGB |
| Motherboards - Wireless Connectivity | Bluetooth WiFi |
Elevate your PC build with the Gigabyte X870 AORUS ELITE WIFI7 ICE, a premium white ATX motherboard designed for AMD Ryzen 7000/8000/9000 series processors on Socket AM5. Featuring the latest AMD X870 chipset, it delivers cutting-edge performance with PCIe 5.0 support for GPUs and SSDs, dual-channel DDR5 memory up to 256GB at speeds exceeding 8000MHz (OC), and robust 16+2+2 VRM with Digital Twin design for extreme overclocking.
This board excels in connectivity and storage: four M.2 slots (three PCIe 5.0 x4 with Thermal Guard), four SATA III ports, dual USB4 Type-C ports with DP-Alt, Wi-Fi 7 (MediaTek MT7925), Bluetooth 5.4, and 2.5GbE LAN (Realtek). Premium cooling includes VRM Thermal Armor Advanced, M.2 Thermal Guard L, and Smart Fan 6 with 8 fan headers supporting up to 24W each. Realtek ALC1220 audio with 7.1 channels ensures immersive sound.

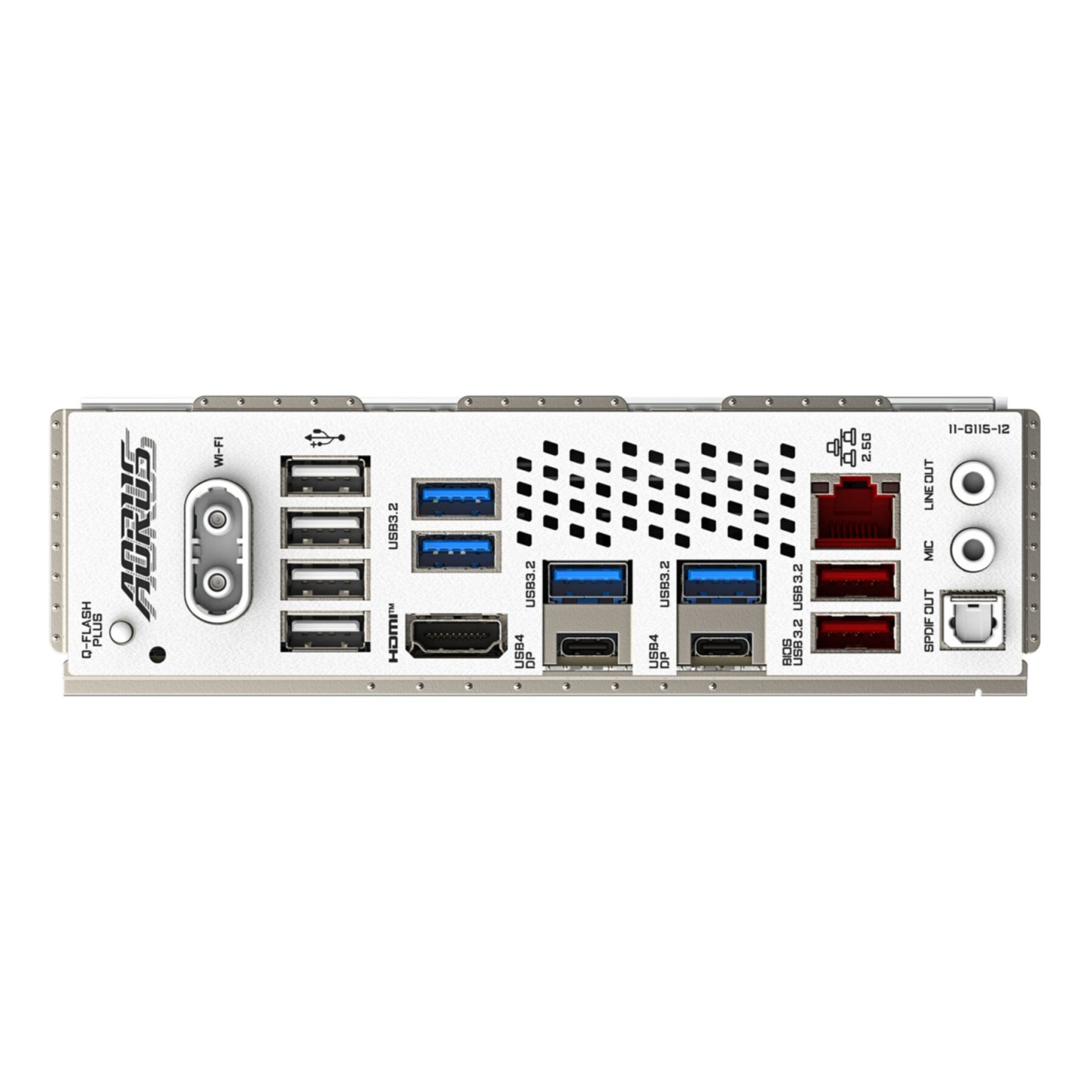

- Key Features: PCIe 5.0 x16 UD Slot X, HDMI 2.1, DP 1.4, 12 rear USB ports, RGB headers, Q-Flash Plus, POST code display
- Ideal for: Gaming, content creation, high-end workstations
- Included: Antennas, screws, Norton OEM security software
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Motherboard chipset | AMD X870 |
| Motherboard form factor | ATX |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Maximum internal memory | 256 GB |
| Supported memory clock speed (max) | 8200 MHz |
| Number of M.2 (M) slots | 4 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 highest PCI Express generation | 5.0 |
| 3rd M.2 highest PCI Express generation | 5.0 |
| 4th M.2 highest PCI Express generation | 4.0 |
| Number of SATA III connectors | 4 |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| USB4 Gen 3x2 ports quantity | 2 |
| Audio chip | Realtek ALC1220 |
| Product colour | White |
| VRM Phases | 16+2+2 Digital Twin DrMOS 60A |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Package weight | 2.74 kg |
| Warranty period | 3 year(s) |
