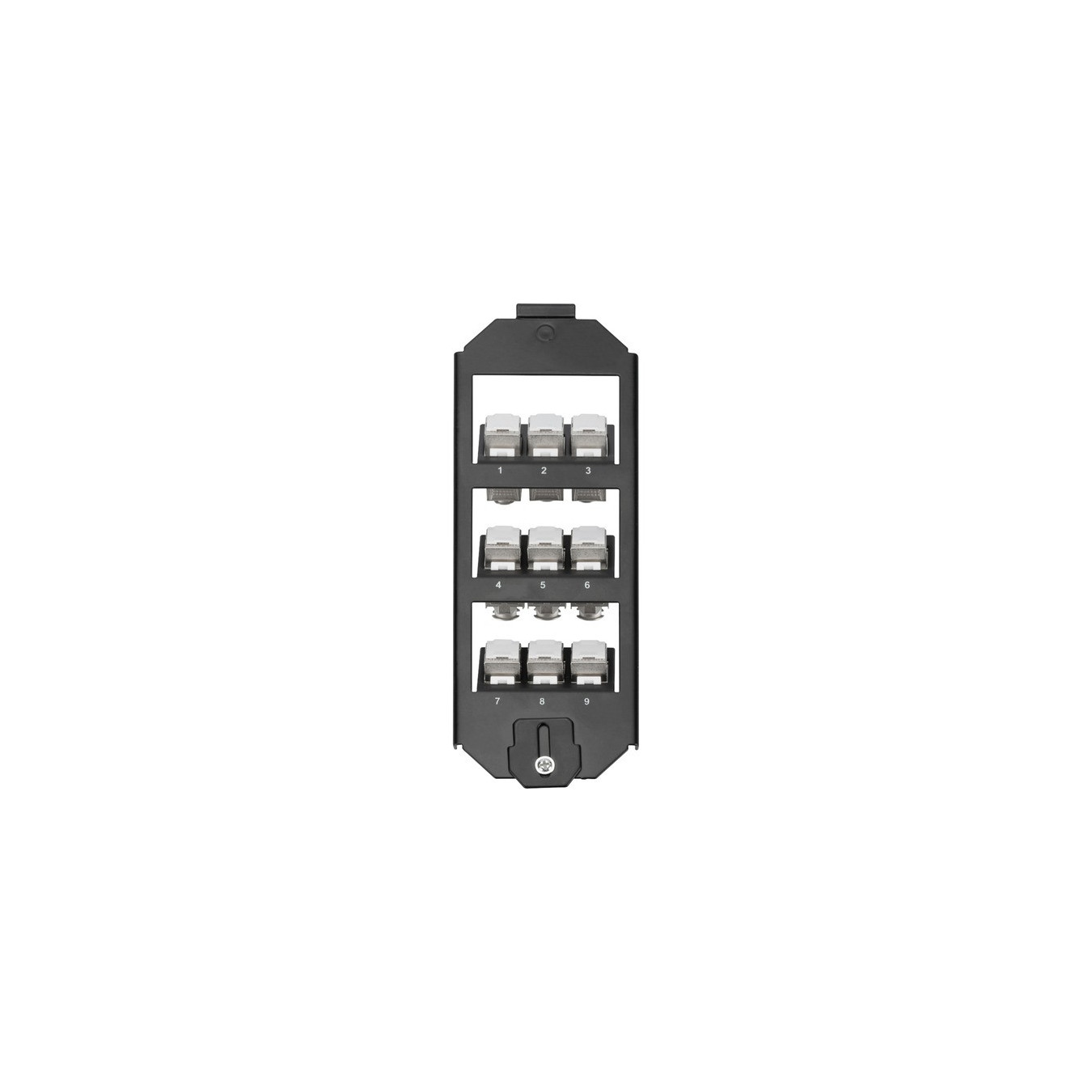

Floor tank holder for Keystone modules, 3-fold, installation frame
The DIGITUS floor tank holders are suitable for holding DIGITUS Keystone modules. They are available in the 2-fold version for 6x Keystone modules or here in the 3-fold version for...
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
The DIGITUS floor tank holders are suitable for holding DIGITUS Keystone modules. They are available in the 2-fold version for 6x Keystone modules or here in the 3-fold version for 9x Keystone modules.
| Typ | Installation frame |
| Color | schwarz |
| EAN | 4016032302780 |
| Manufacturer no. | AN-25179 |
| Manufactured in | China |
| Purpose of use | Installation in Ackermann floor tank (OBO Bettermann underfloor systems) |
| Area of application | suitable for continuous operation |
| Material | Die-cast metal housing |
| Operating temperature | from -20°C to 70°C |
| Feature | Keystone holder 45° outlet, insertion direction of the module 45° vertically inclined |
| More information | Suitable for GES 2, GES 4, GES 4/10, GESR 4, GES 6, GES 6/10, GESR 8/10 |
| Notice | ISO/IEC Normen 11801 3rd 3rd, EN 50173-1, EIA/TIA 568-C |
