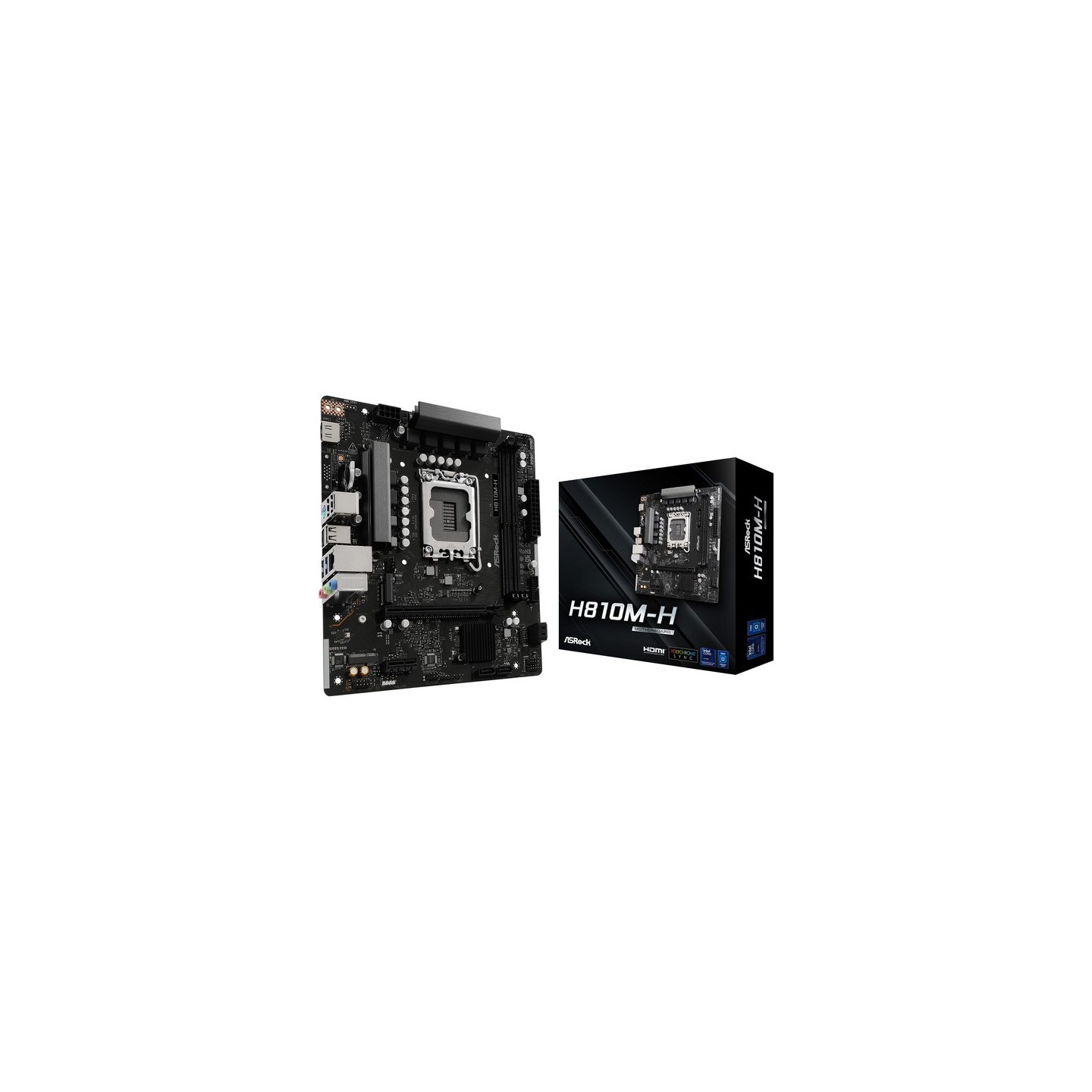

ASRock H810M-H Intel H810 LGA 1851 Micro-ATX DDR5 Motherboard - 90-MXBS4-A0UAYZ (Boxed)
ASRock H810M-H is a Micro-ATX motherboard with Intel H810 chipset for LGA 1851 Core Ultra processors. Features 2x DDR5 slots (up to 128GB), PCIe 4.0 x16, 1x M.2 Gen4, 4x SATA3, Realtek ALC897 audio, Gigabit LAN.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | LGA 1851 |
|---|---|
| Motherboards - Chipset | Intel H810 |
| Motherboards - Form Factor | Micro-ATX |
| Motherboards - Memory Type | DDR5 |
| Motherboards - Memory Slots | 2 |
| Motherboards - Max Memory Capacity | 128 GB |
| Motherboards - Main Slot PCIe Version | PCIe 4.0 |
| Motherboards - M.2 Slots | 1 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C Support | Front Panel Type-C header |
| Motherboards - RGB Headers | None |
| Motherboards - Wireless Connectivity | None |

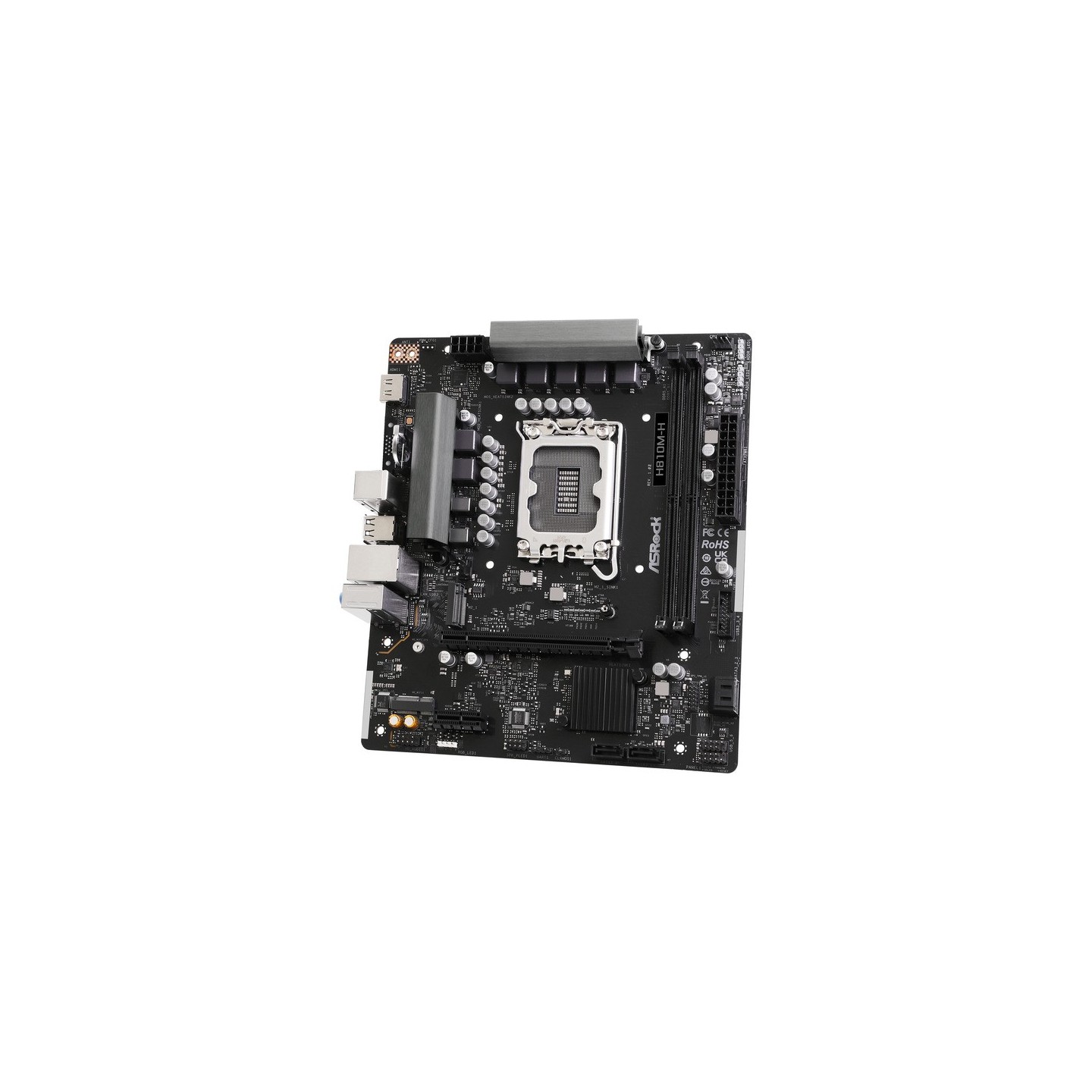

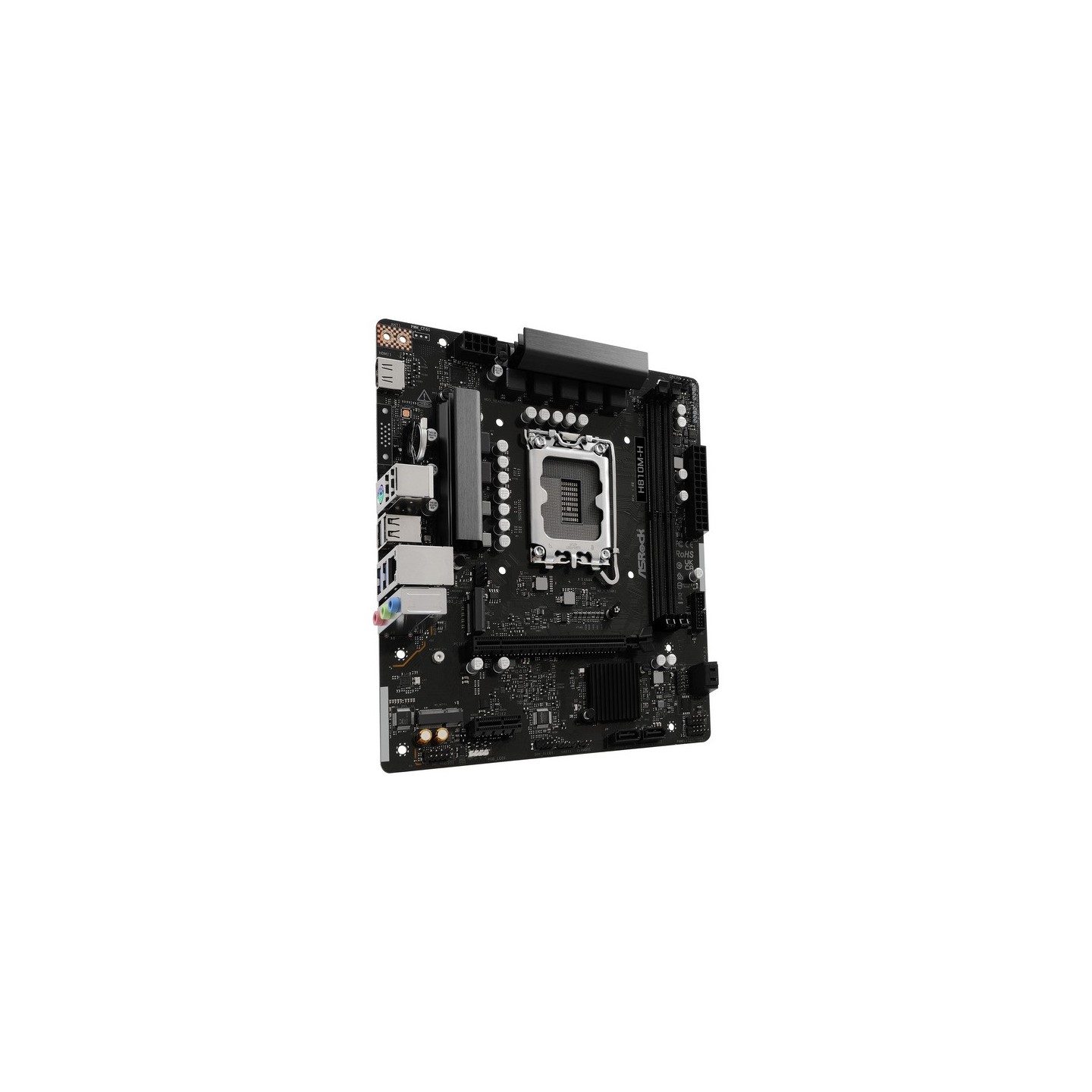

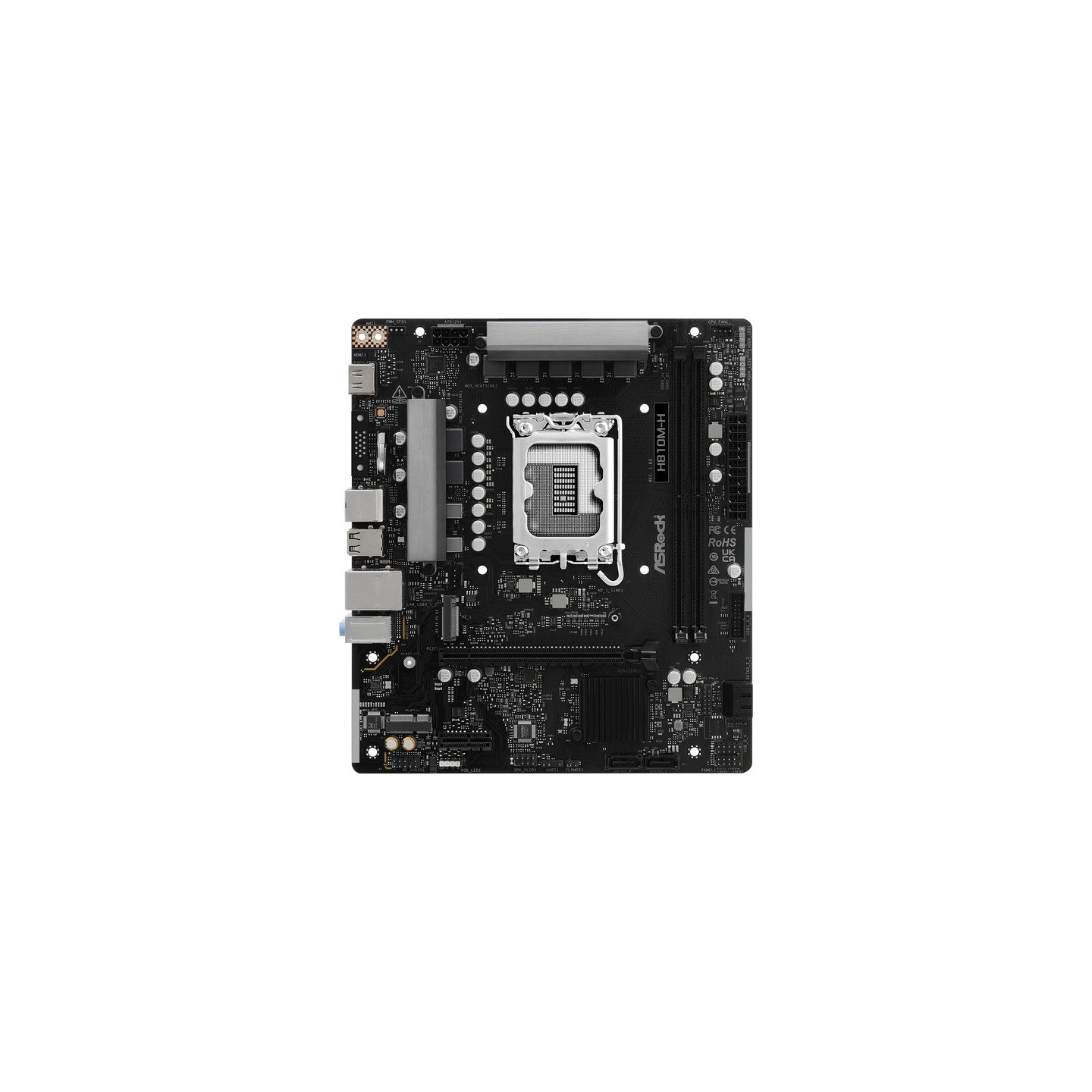

The ASRock H810M-H is a compact Micro-ATX motherboard designed for Intel Core Ultra Series 2 processors (LGA 1851 socket). Built on the Intel H810 chipset, it offers essential features for reliable performance in everyday computing and light productivity tasks. With dual-channel DDR5 support up to 128GB across two DIMM slots, it ensures future-proof memory capabilities.

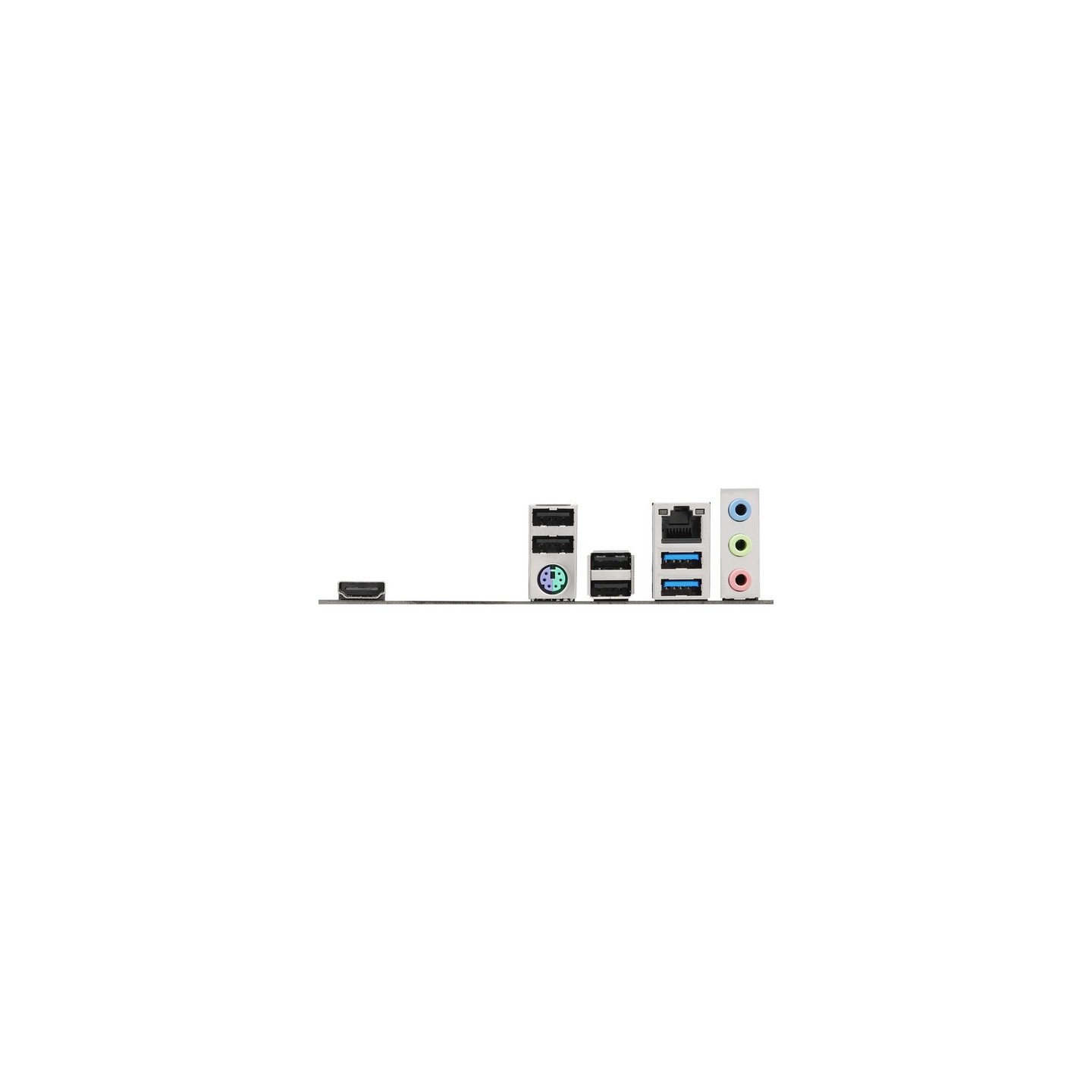

Key expansion includes a PCIe 4.0 x16 slot for graphics cards, a PCIe 4.0 x1 slot, one Hyper M.2 slot (PCIe Gen4x4) for high-speed NVMe SSDs, and four SATA3 ports for traditional storage. Connectivity features 2x USB 3.2 Gen1 rear, front USB-C header, Realtek ALC897 7.1-channel audio, and Realtek RTL8111H Gigabit Ethernet. Graphics outputs include HDMI, DisplayPort, and D-Sub.
- Supports Intel Core Ultra 200 series (Arrow Lake) CPUs
- 2x DDR5 DIMM slots, max 128GB
- 1x PCIe 4.0 x16 + 1x PCIe 4.0 x1
- 1x M.2 PCIe Gen4x4 + 4x SATA3
- Gigabit LAN, 7.1 HD Audio
- µATX form factor with ATX 24-pin + 8-pin power
| Type | Mainboard |
| EAN | 4711581490833 |
| Manufacturer no. | 90-MXBS4-A0UAYZ |
| CPU Socket | LGA 1851 |
| Max. supported CPUs | 1 |
| Processor - Supported Models | Core Ultra 3 2xx (Arrow Lake), Core Ultra 5 2xx (Arrow Lake), Core Ultra 5 2xxF (Arrow Lake), Core Ultra 5 2xxK (Arrow Lake), Core Ultra 5 2xxKF (Arrow Lake), Core Ultra 5 2xxT (Arrow Lake), Core Ultra 7 2xx (Arrow Lake), Core Ultra 7 2xxF (Arrow Lake), Core Ultra 7 2xxK (Arrow Lake), Core Ultra 7 2xxKF (Arrow Lake), Core Ultra 7 2xxT (Arrow Lake), Core Ultra 9 2xx (Arrow Lake), Core Ultra 9 2xxK (Arrow Lake), Core Ultra 9 2xxKF (Arrow Lake), Core Ultra 9 2xxT (Arrow Lake) |
| Chipset | Intel® H810 |
| Slots - PCIe x16 | 1x (of which: 1x PCIe x16) |
| BIOS | 256 (128+128) Mb Flash ROM, UEFI AMI BIOS |
| Form factor | µATX |
| use | PC |
| Power supply | ATX12V (24-Pin + 8-Pin) |
| Memory - maximum | 128 GB |
| Memory Slots | 2 x DDR5 DIMMs |
| Ports (external) - USB-A 3.2 Gen 1 (5 Gbit/s) | 2 |
| Connectors (internal) - SATA | 4 |
| Ports (optional) - USB 3.2 Gen 1 (5Gbps) | 2 |
| SATA Controller | Intel® H810 |
| directly usable RAID levels | 0, 1, 10, 5 |
| USB-Controller | Intel® H810 |
| Sound | Realtek ALC897 |
| LAN | Realtek RTL8111H GbE LAN |
| M.2 Slots | 1 (PCIe Gen4x4) |
| More information | In order to support the latest processor cores, a BIOS update may be required. |

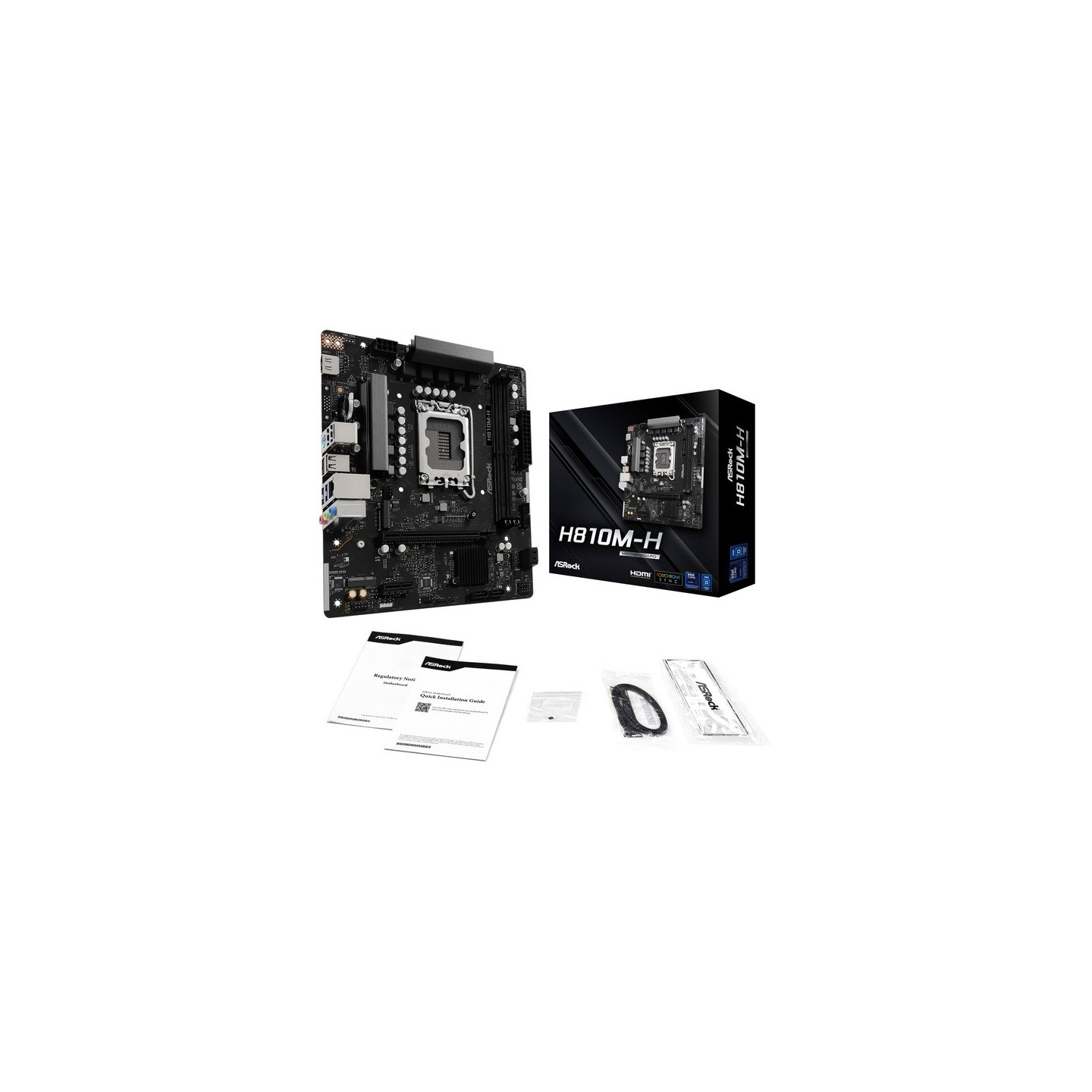

| Accessories - available | 2 x SATA 6Gb/s Kabel, 1 x I/O Shield, 1x M.2 Schrauben |
| Warnings and safety information | Warnings: Attention: Product contains a button cell or coin battery. |
