Mini PCIe I O full size 4 x serial RS-232, interface extension
The Mini PCIe I/O full size 4 x serial RS-232 card from Delock expands your system with four additional RS-232 interfaces. This allows various serial devices such as printers, cash...
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

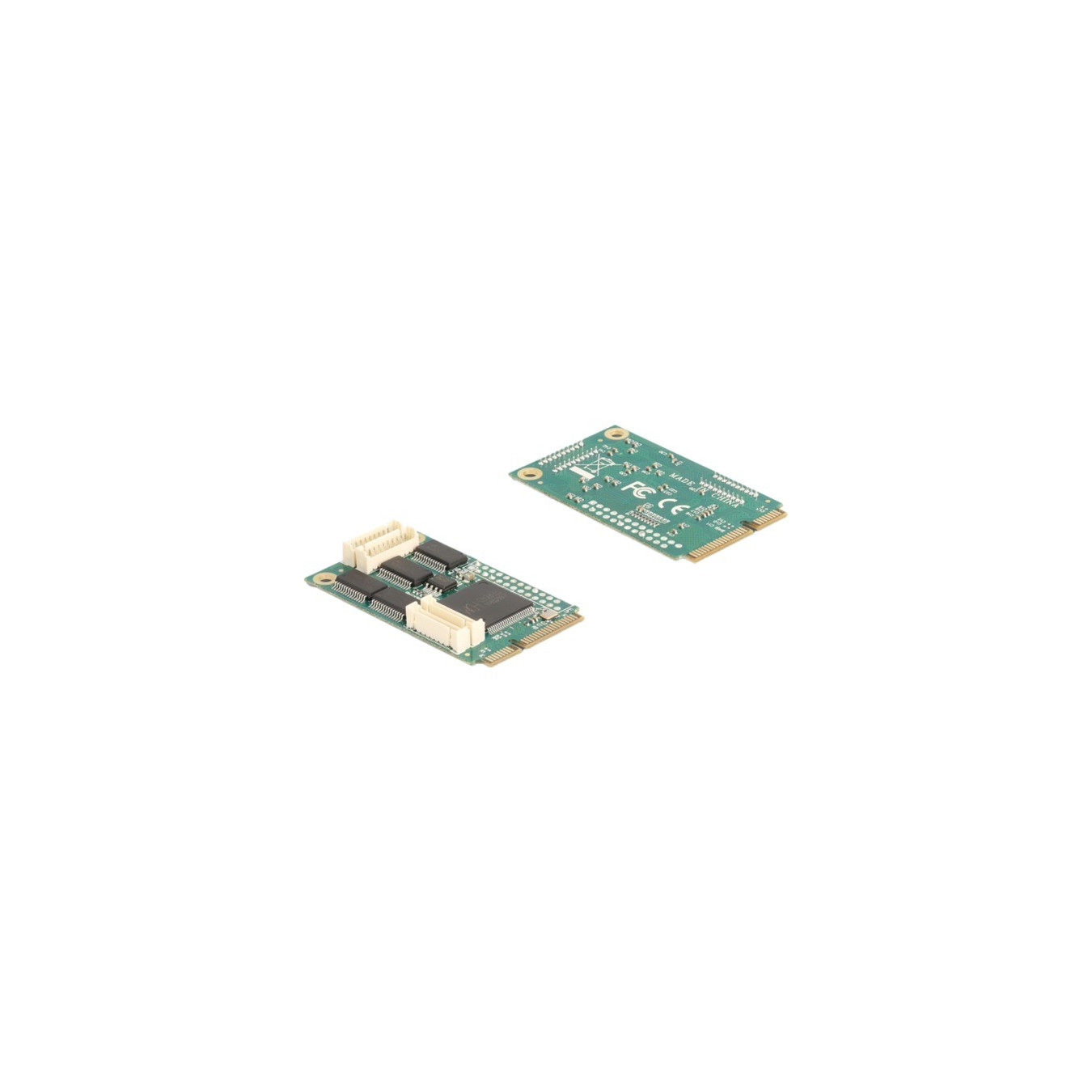

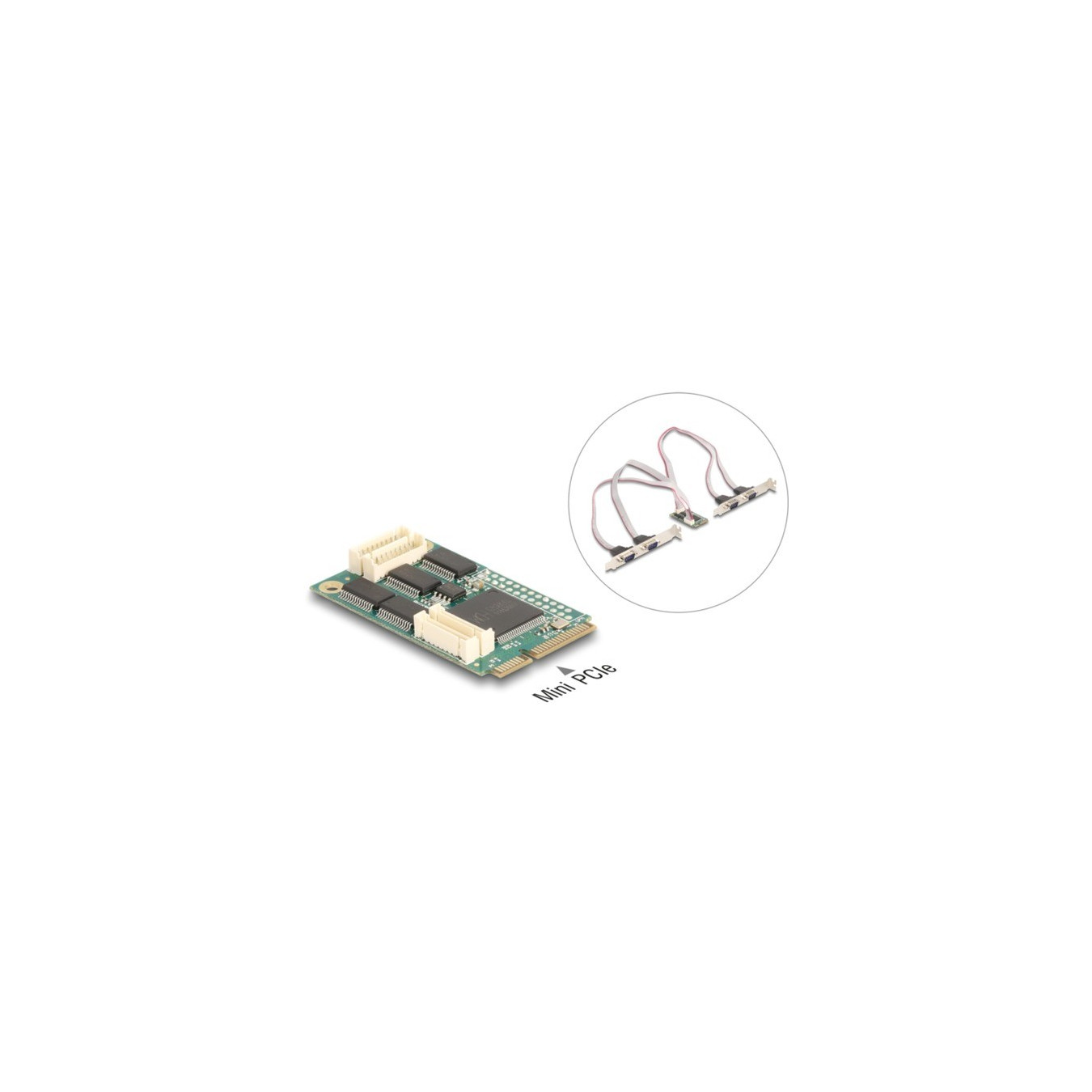

The Mini PCIe I/O full size 4 x serial RS-232 card from Delock expands your system with four additional RS-232 interfaces. This allows various serial devices such as printers, cash register systems and modems to be connected to the computer.
| Typ | Interface extension |
| EAN | 4043619952786 |
| Manufacturer no. | 95278 |
| slot | Mini-PCIe |
| Chip | WCH382L |
| Operating System - Supported | Windows 10, Windows 11, Windows Server 2022 |
| Feature | Data transfer rate up to 460.8 Kbps | FIFO: 4 x 256 bytes | Data bits: 5, 6, 7, 8 | Stop bits: 1, 2 | Parity bit: even, odd, none, marked, empty | Flow control: none, hardware RTS/CTS, software | XON/XOFF | Signals: DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI | Cable length including connections: approx. 25 cm |

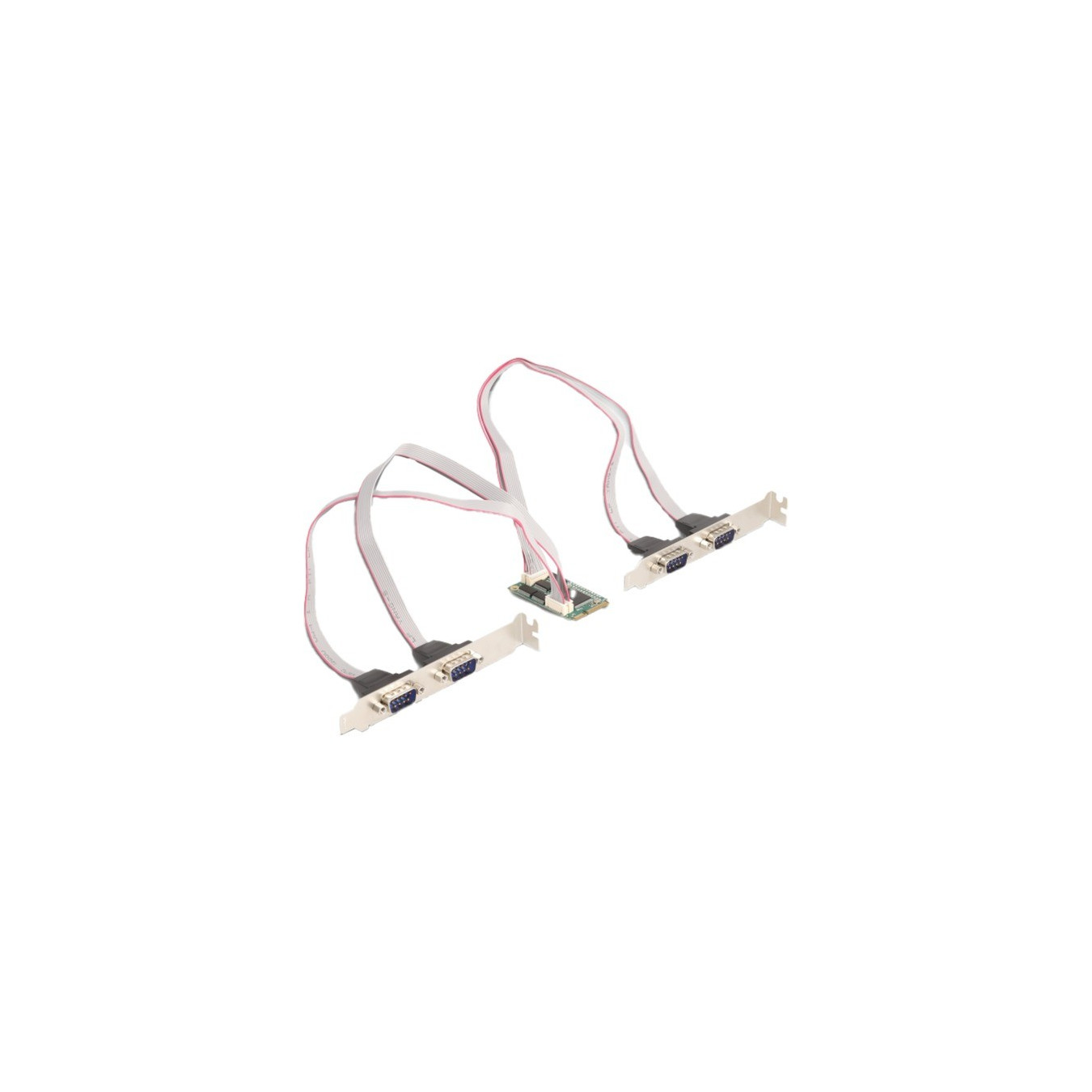

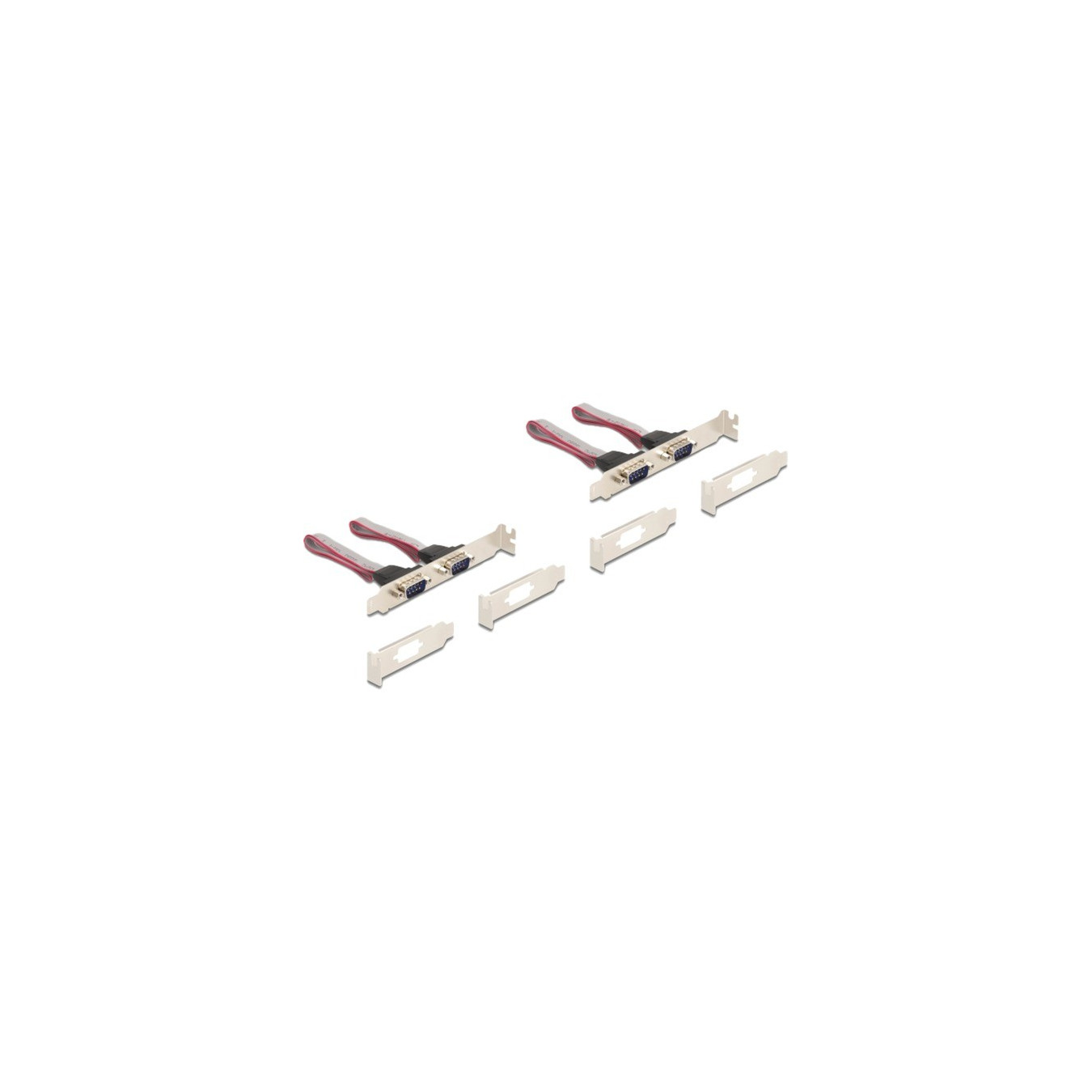

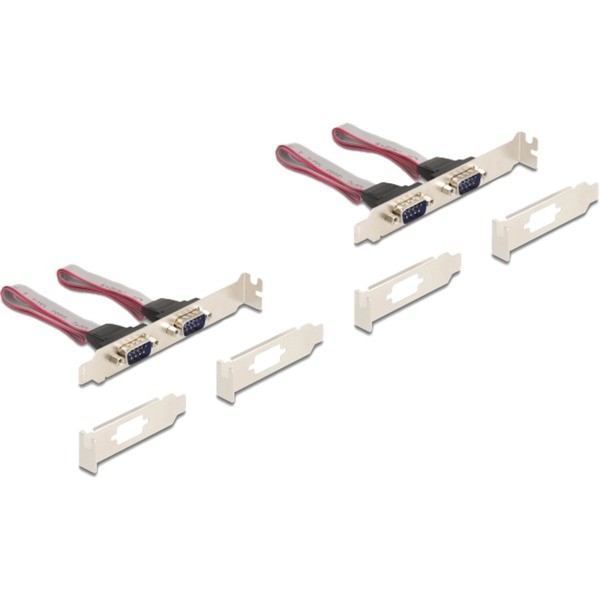

| Accessories - available | 4 serial connection cables, 2 x standard cover, 4 x low profile cover, operating instructions |
| Dimensions | Width: 51mm x Height: 30mm x Depth/Length: 10mm |
