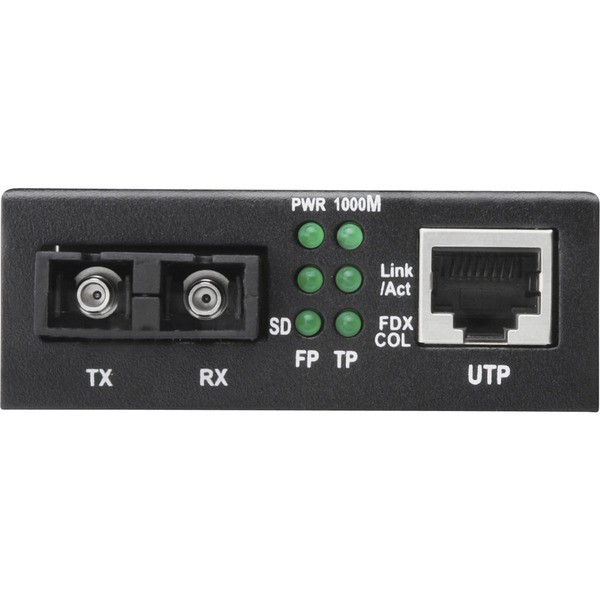

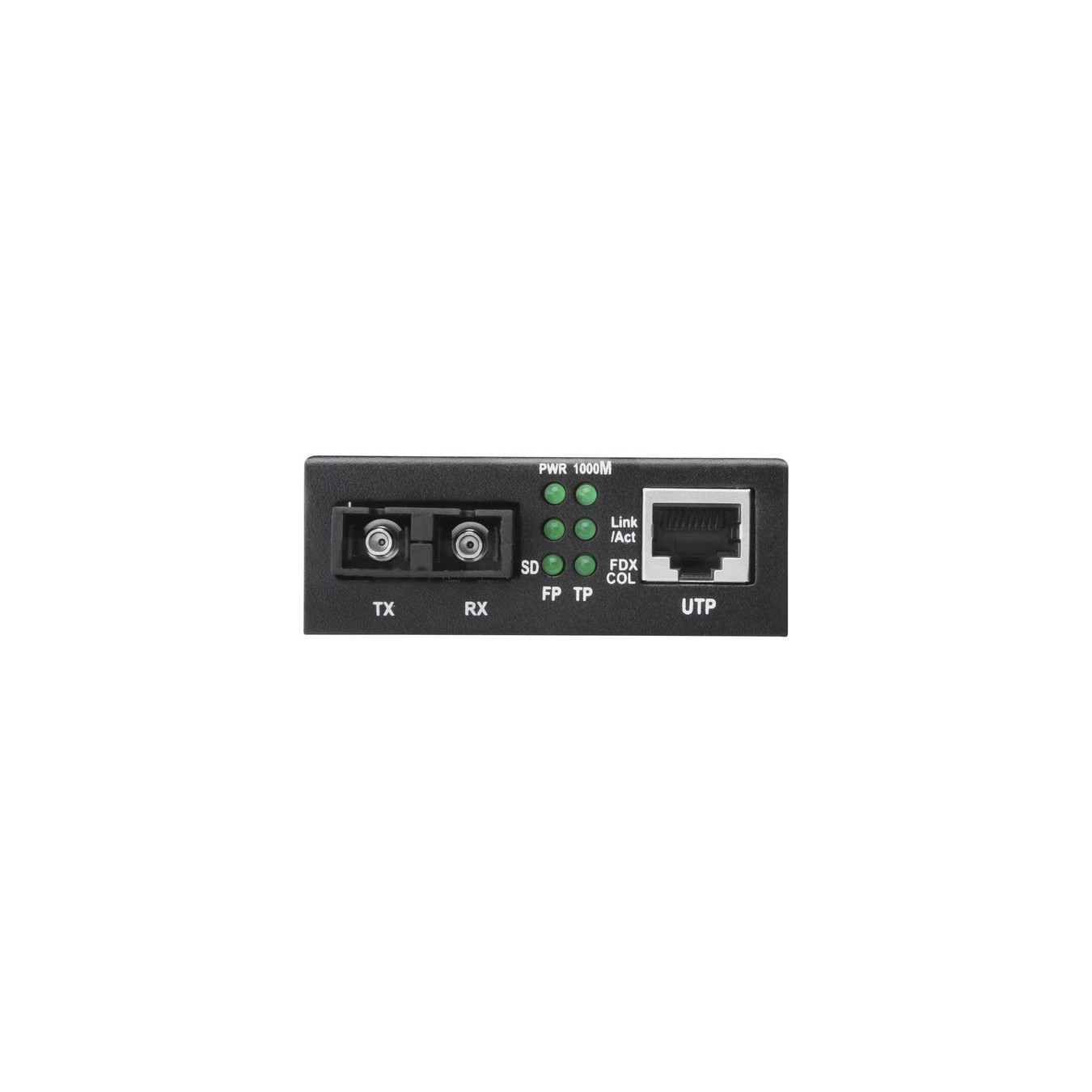

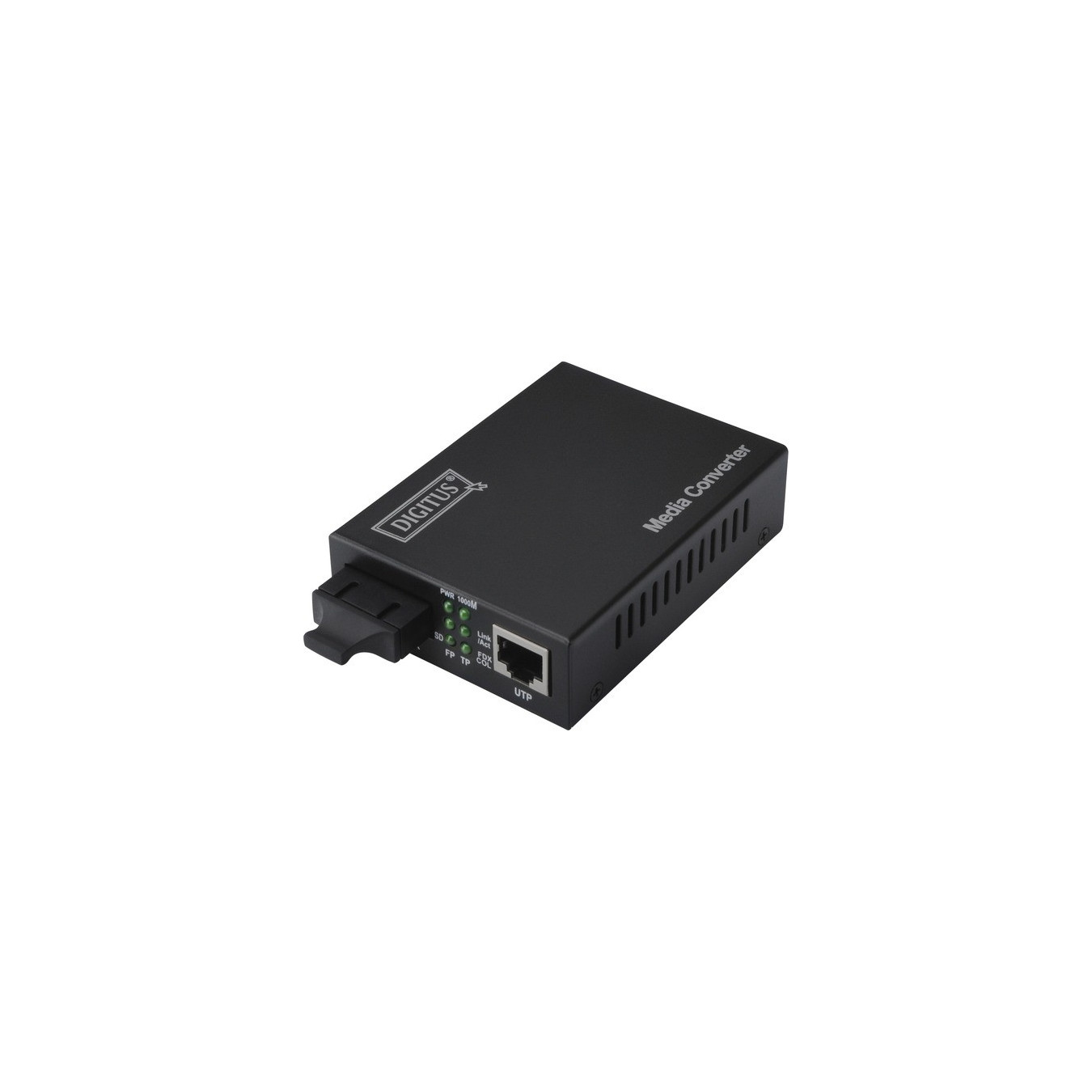

Gigabit media converter RJ-45 to SC duplex
The Digitus Gigabit RJ-45 to SC Duplex media converter converts wire-based 1000Base-TX network signals into 1000Base-LX fiber optic signals. It offers a maximum range of up to 10 k...
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
The Digitus Gigabit RJ-45 to SC Duplex media converter converts wire-based 1000Base-TX network signals into 1000Base-LX fiber optic signals. It offers a maximum range of up to 10 km. The wavelength for both sending and receiving is 1310 nm. As a standalone device with an external power supply, the Gigabit media converter RJ-45 to SC duplex does not need to be installed in a rack. Automatic cable detection, auto-detection of full and half duplex as well as diagnostic LEDs for status and activity monitoring are also available. The Gigabit media converter RJ-45 to SC duplex is suitable for 9/125 µm single-mode fiber optic cables.
| Typ | Converter |
| Color | schwarz |
| EAN | 4016032293132 |
| Manufacturer no. | DN-82121-1 |
| Application example | Media converter |
| Area | network |
| Connection - from | 1x RJ-45 (socket) |
| More information | Standalone converter with external power supply, high quality and maximum reliability, 10/100/1000Base-TX to 1000Base-LX, connections: 1x RJ45, 1x SC-Duplex, range up to 10 km, wavelength: 1310 nm, automatic cable detection (Auto-MDI/MDI-X function), auto-detection of full and half duplex, diagnostic LEDs for status and activity monitoring, suitable for 9/125 µm single-mode fiber optic cable, transmission power: minimum -12 dBm, maximum -6 dBm, reception sensitivity: minimum -21 dBm, 2 MB data buffer, input voltage: 5 volts DC, supported standards: IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3z Gigabit |
| Accessories - available | Instructions, power supply |
| Dimensions | Width: 70mm x Height: 26mm x Depth/Length: 95mm |
