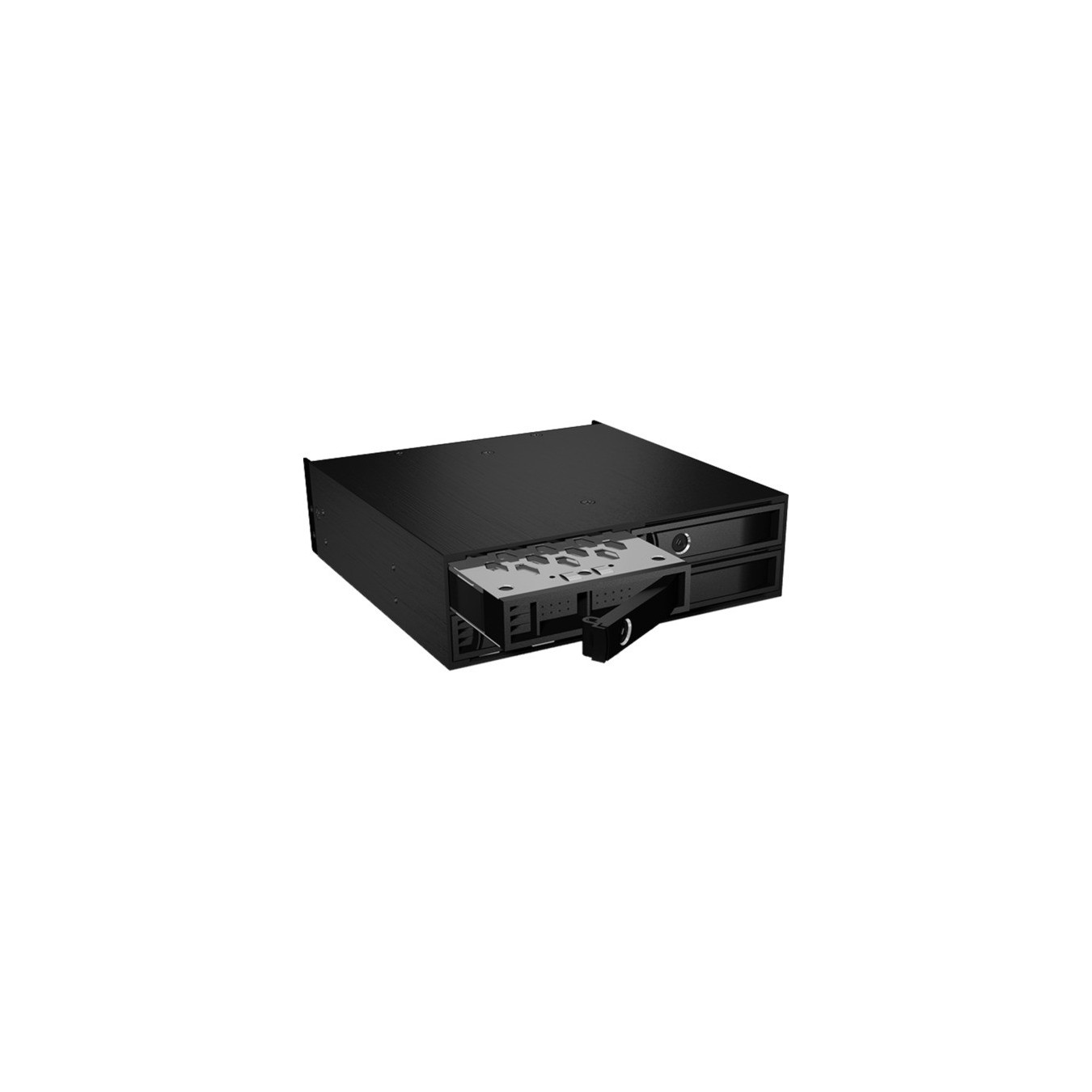

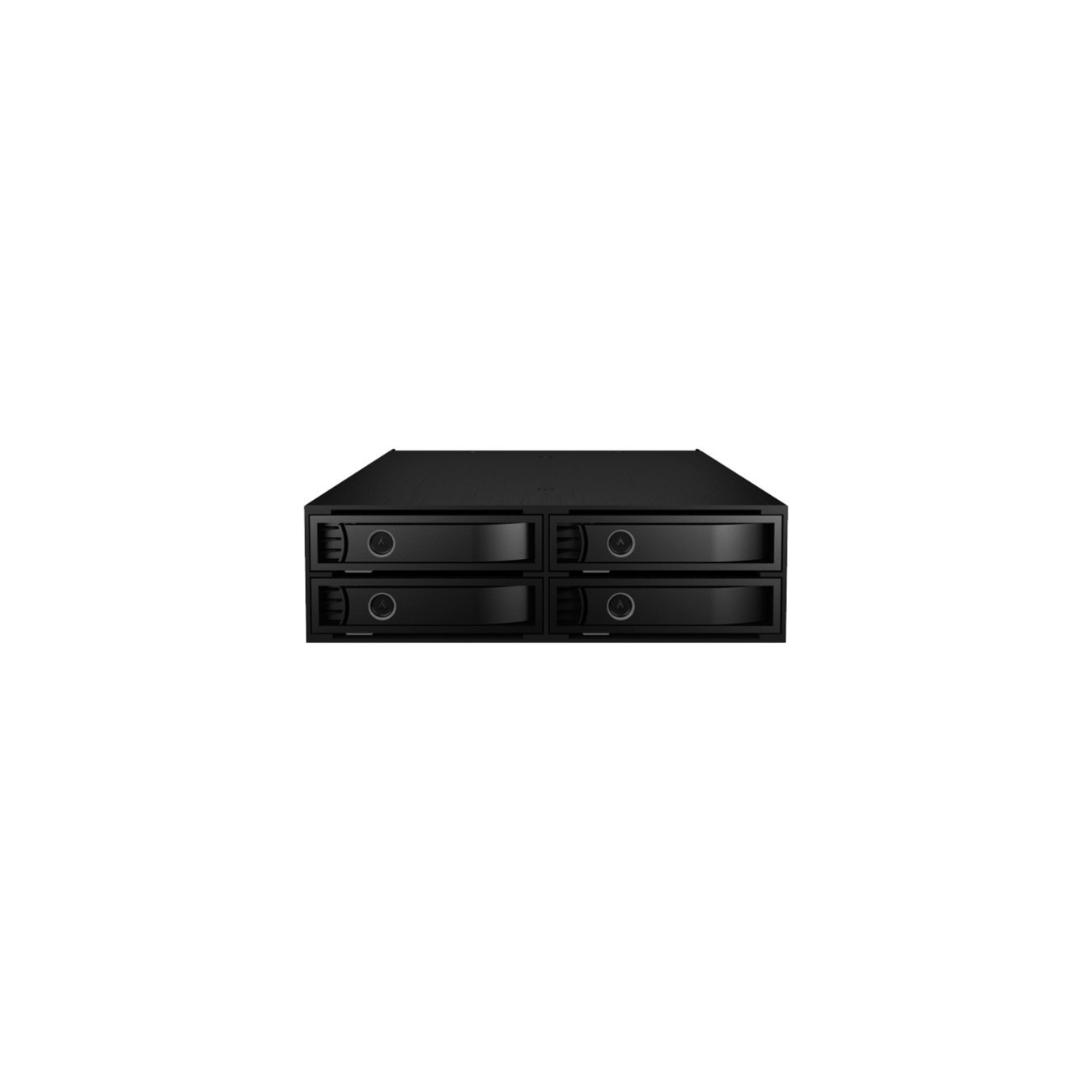

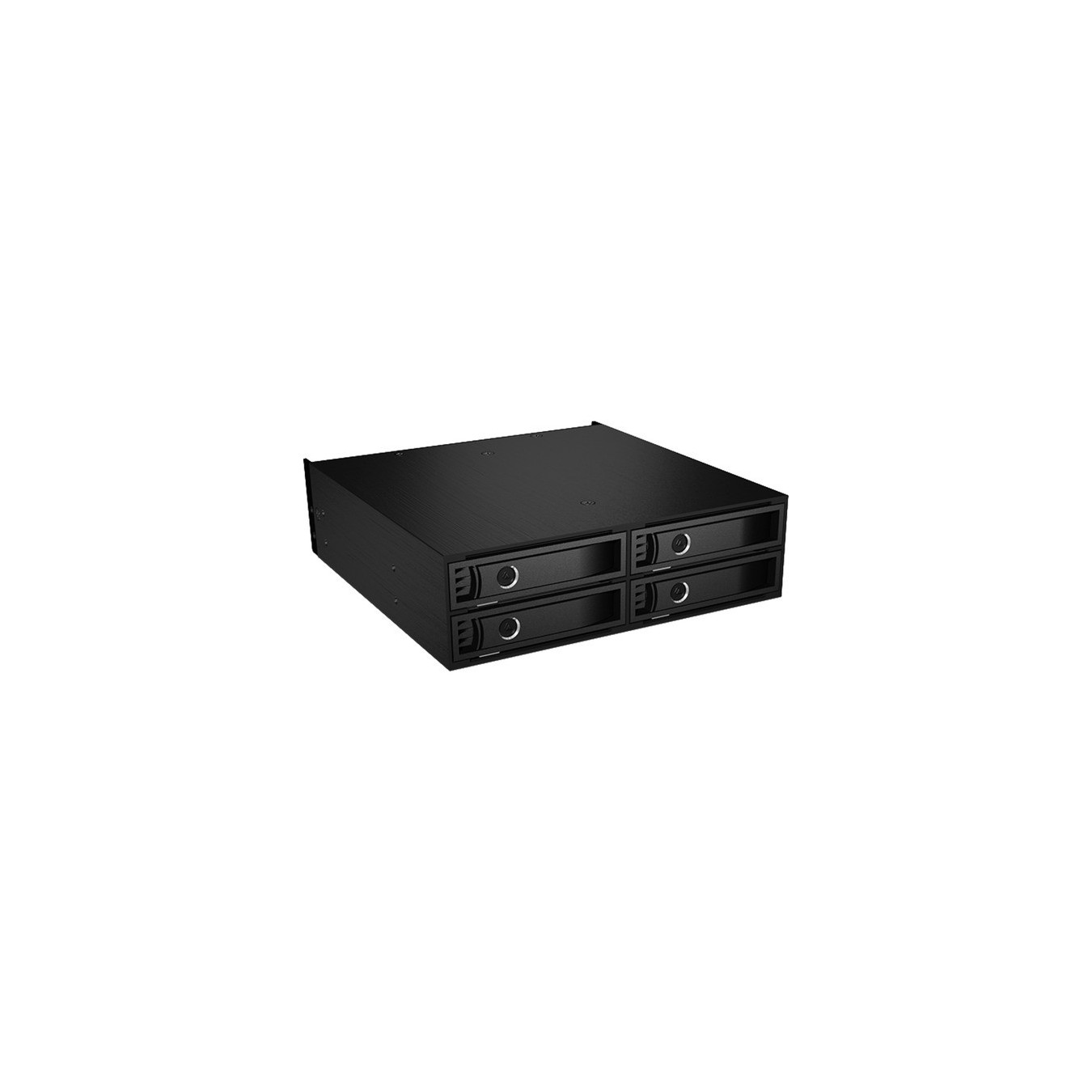

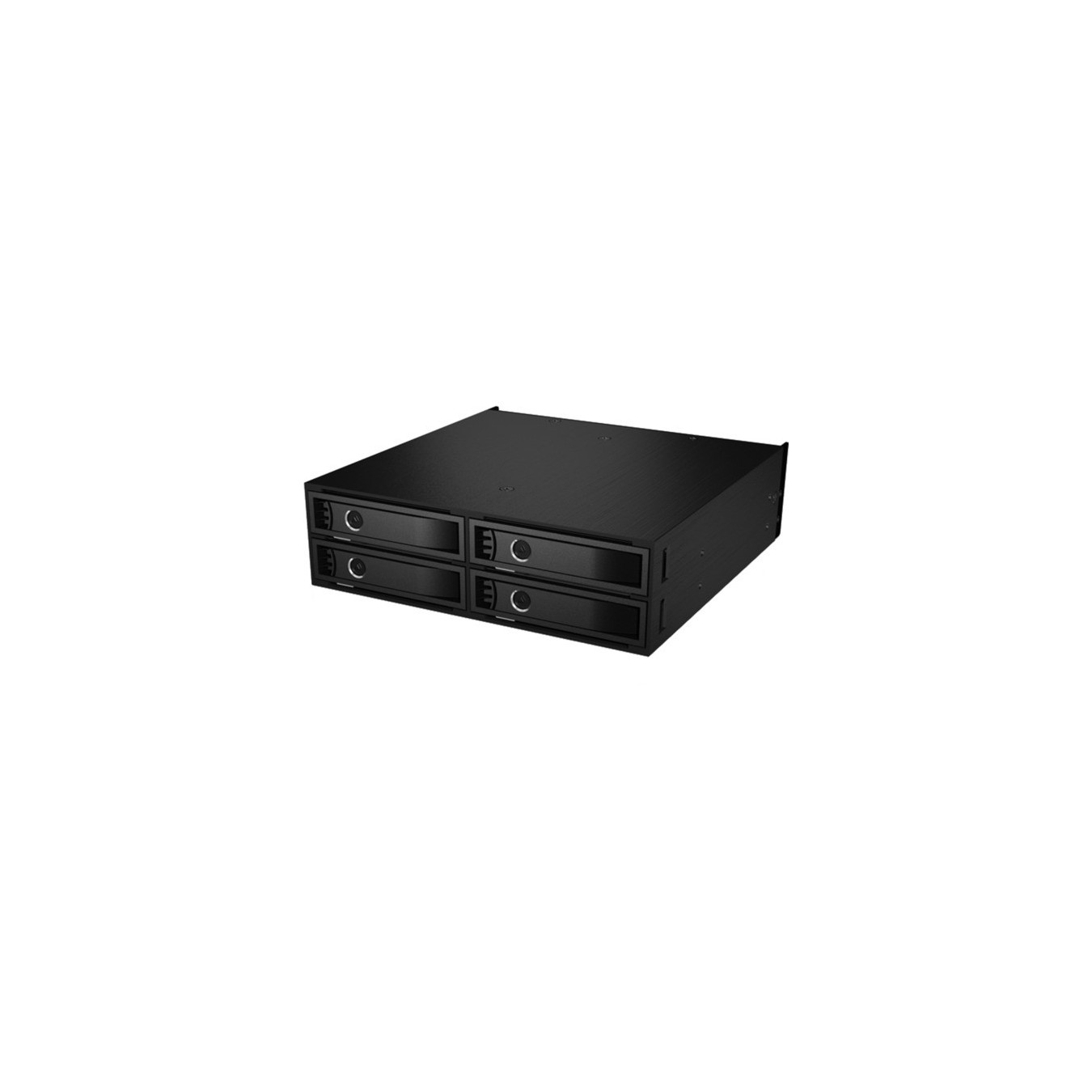

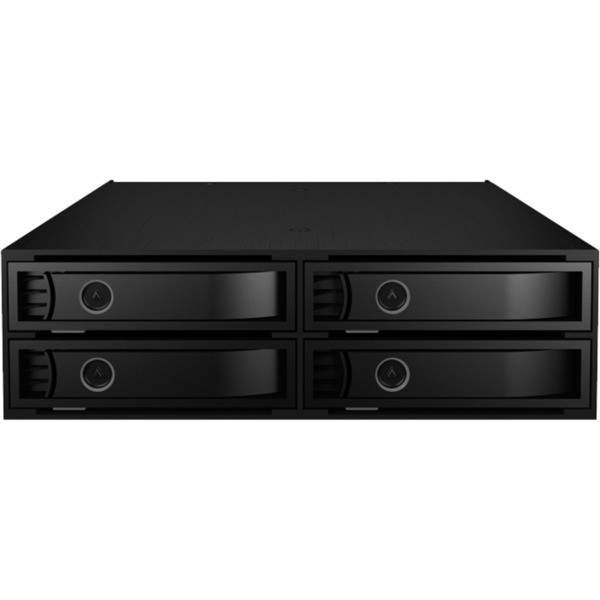

IB-2242U2K, installation frame
The ICY BOX IB-2242U2K mounting frame (backplane) offers space for 4x 2.5" U.2 or SATA/SAS SSDs. The system works reliably and quietly and cools the SSDs using two 40x40 mm fans, w...
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
The ICY BOX IB-2242U2K mounting frame (backplane) offers space for 4x 2.5" U.2 or SATA/SAS SSDs. The system works reliably and quietly and cools the SSDs using two 40x40 mm fans, which can be adjusted in two stages. The high-quality workmanship completes the package.
| Typ | Installation frame |
| Color | schwarz |
| EAN | 4250078171355 |
| Manufacturer no. | 60799 |
| Purpose | Installation in a 5.25" bay |
| use | Drive frame |
| Suitable for | 4x 2.5" U.2 or SATA/SAS SSDs |
| Material | Full aluminum and metal backplane |
| Installable drives | 4x U.2 |
| Required installation shafts | 1x 5.25 inch external |
| Connections - external | 4x SFF-8643 |

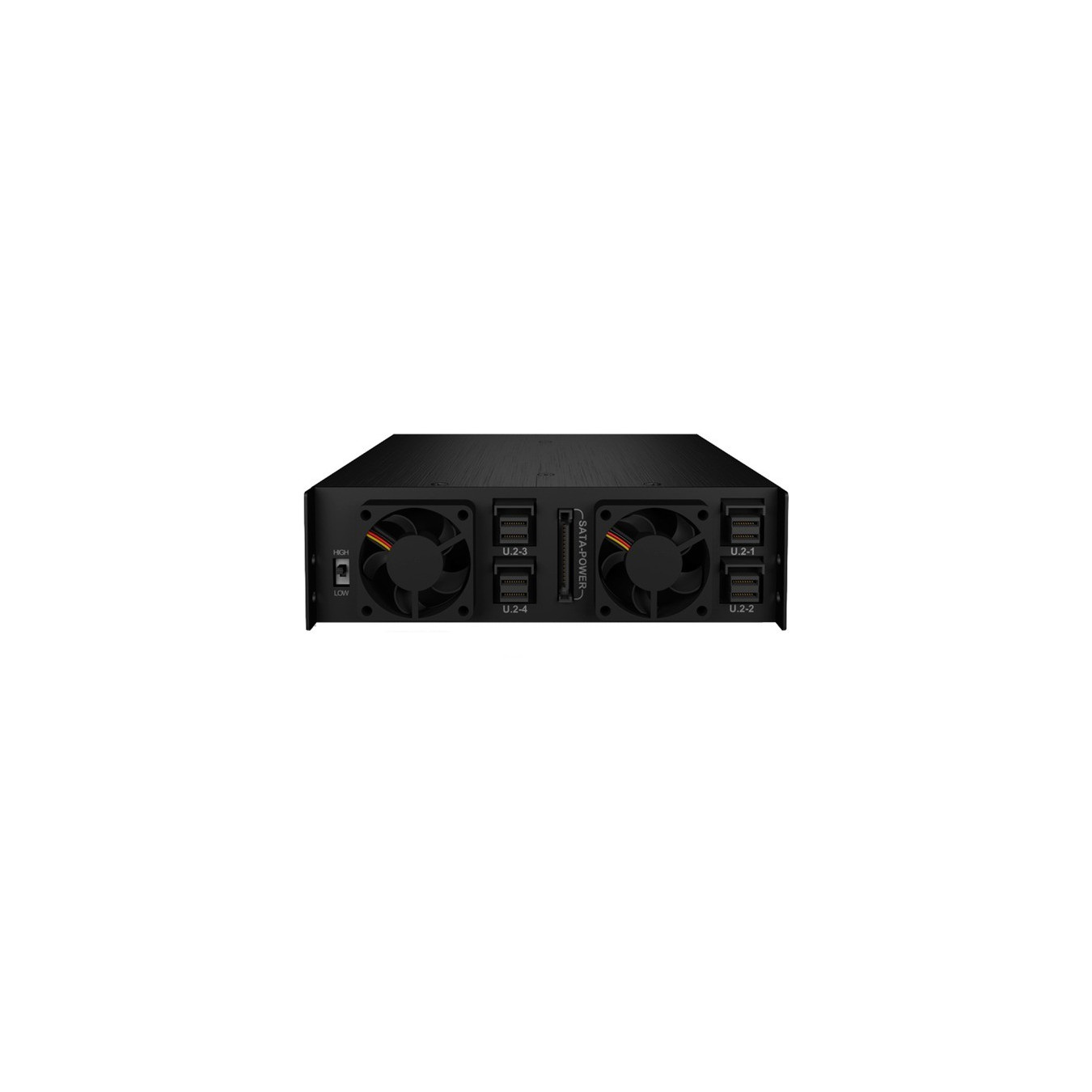

| More information | Supports U.2 (SFF-8639) SSD, up to 32 Gbit/s, transmission standard: PCIe 3.0 x4, individually lockable to protect the SSDs, 2x 40x40x10 mm fans (fan setting: 2 levels), LED display for operation and access |
| Notice | System requirements: 4x free U.2 port (SFF-8643) on the host computer, 4x U.2 cable (SFF-8643 to SFF-8643). Other U.2 ports on the motherboard with PCIe 3.0 x4 support, e.g. Slimline SAS (SFF-8654), Oculink (SFF-8611), can be used with the appropriate cables or adapters. If a PCIe expansion card with 4x Mini SAS HD (SFF-8643) connectors is used, the motherboard must support PCIe x4x4x4x4 mode. The host on the motherboard must support the HotPlug function to support the HotSwap function of the U.2 SSD. |
