A520M-E, Mainboard
The SAPPHIRE A520M-E is based on the AMD A520 chipset and supports AMD processors for Socket AM4. It has two DDR4 slots for up to 64 GB of memory. The SAPPHIRE A520M-E's additional...
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

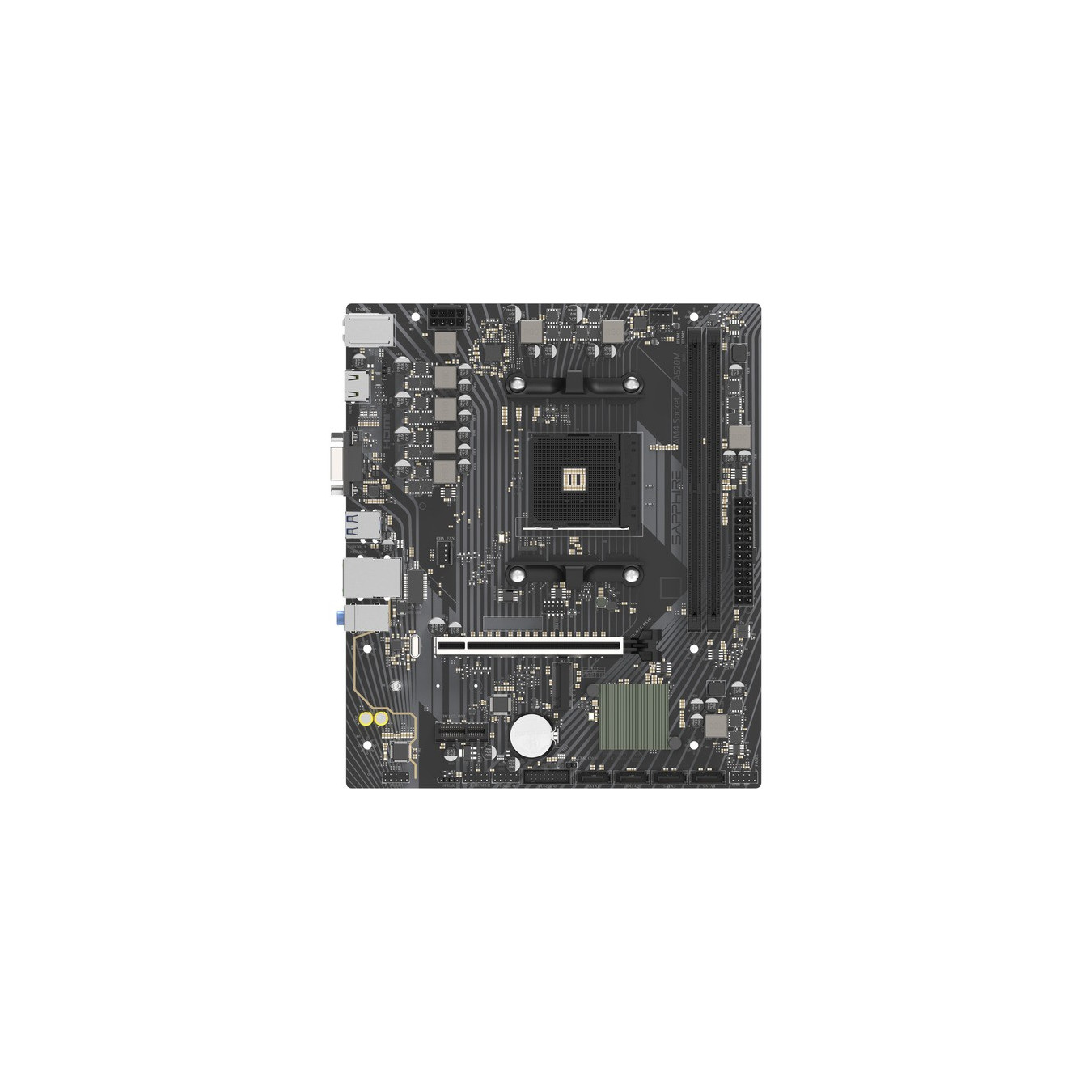

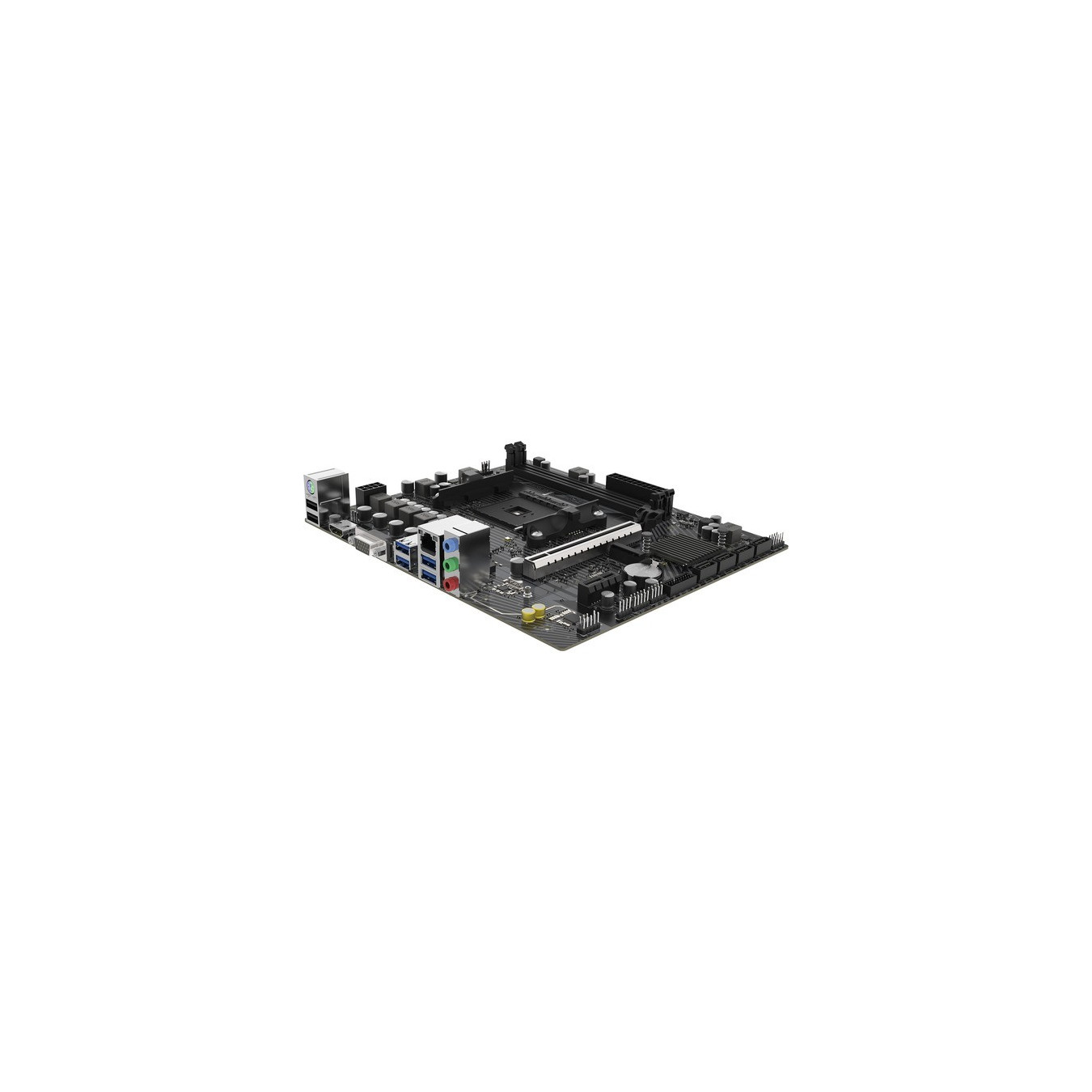

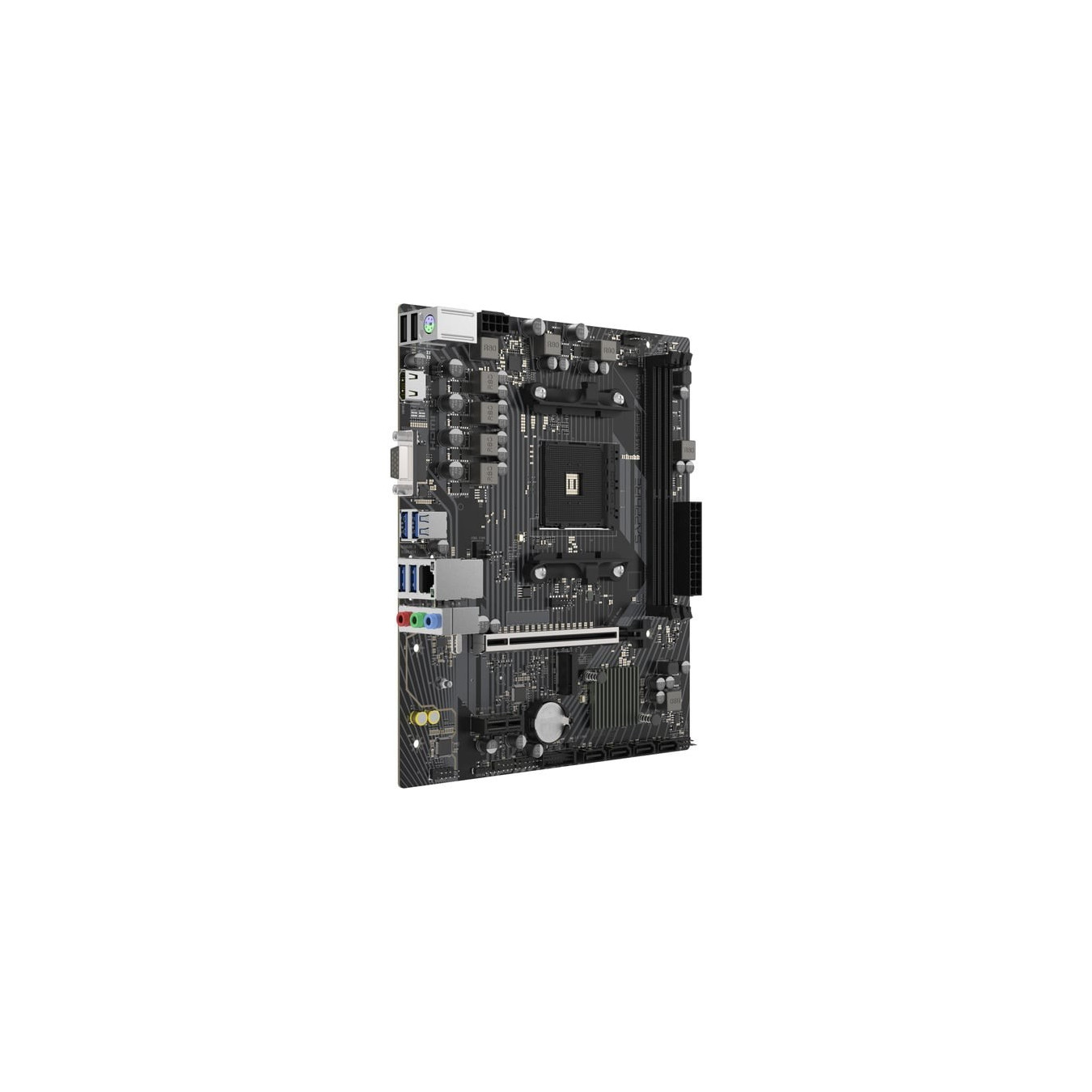

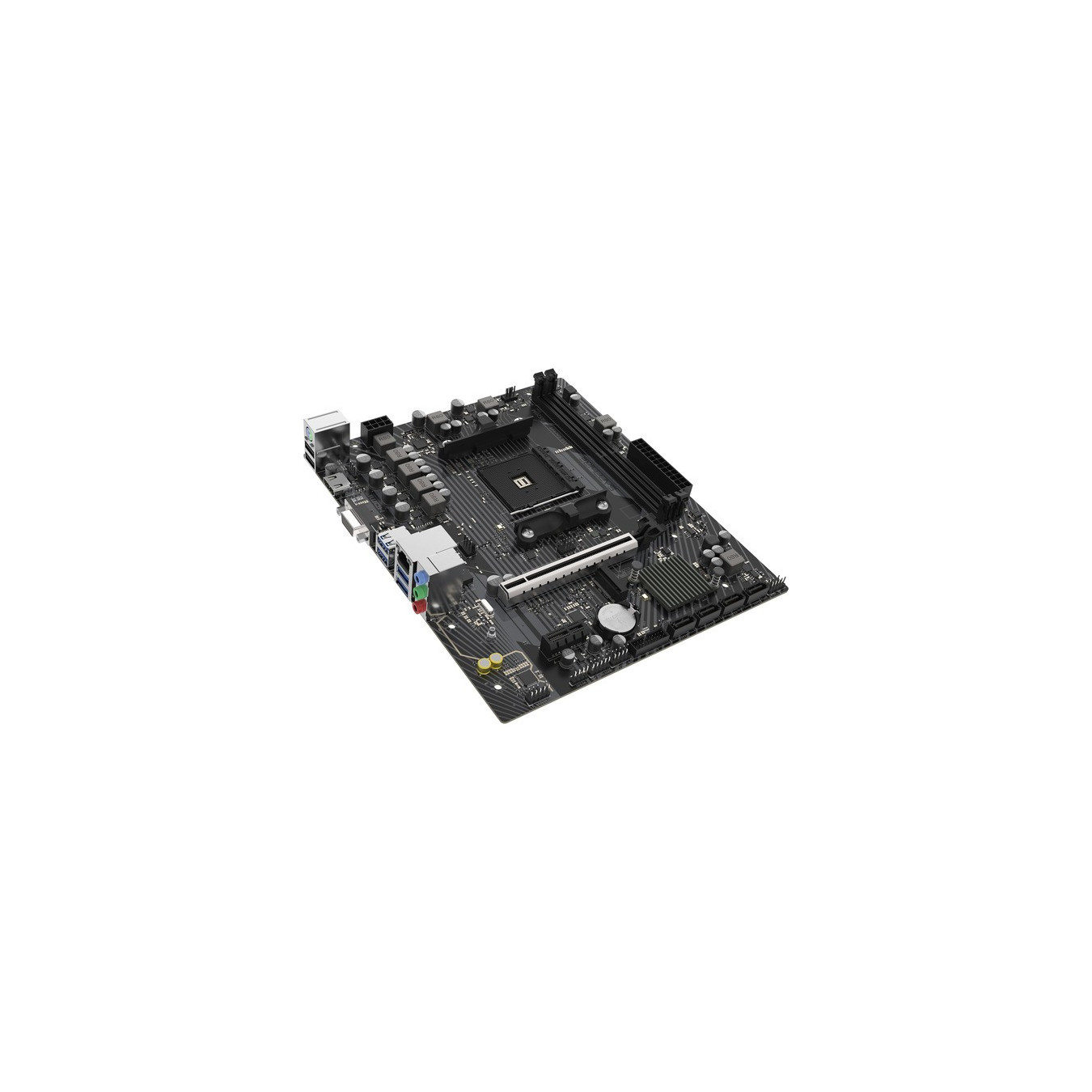

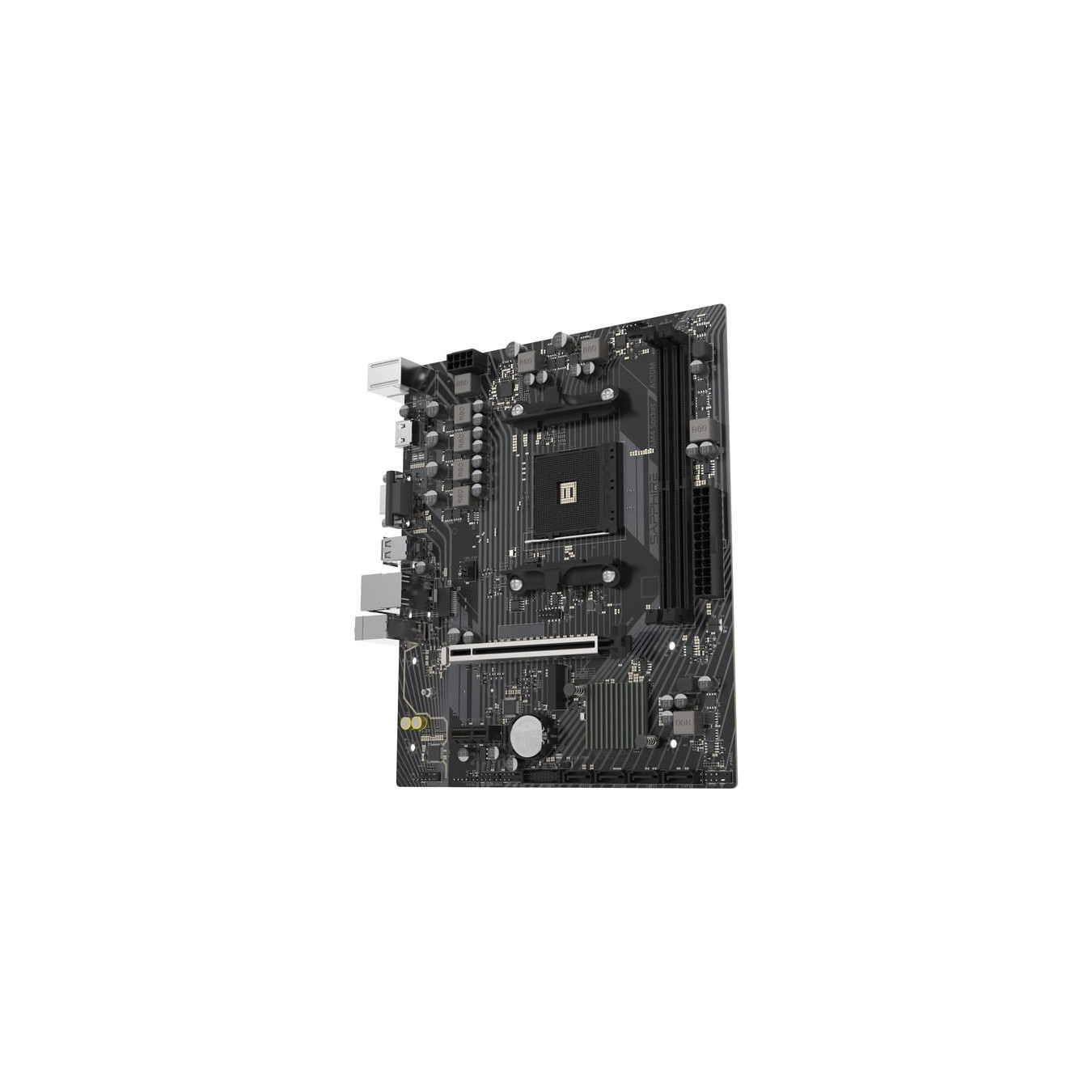

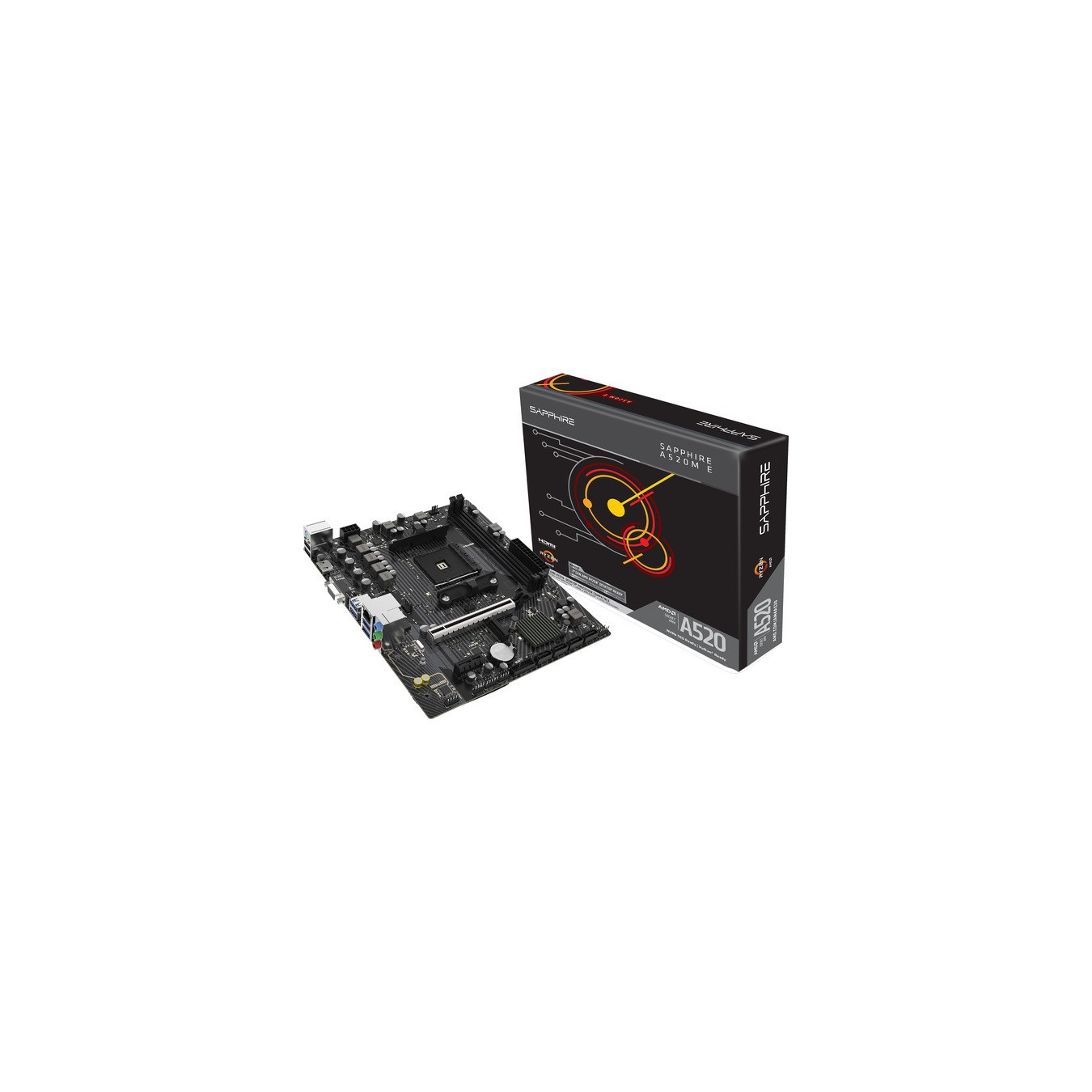

The SAPPHIRE A520M-E is based on the AMD A520 chipset and supports AMD processors for Socket AM4. It has two DDR4 slots for up to 64 GB of memory. The SAPPHIRE A520M-E's additional features include a PCIe 3.0 x16 slot and a PCIe 3.0 x1 slot. The SAPPHIRE A520M-E also has 8-channel sound, a Gigabit LAN interface, four SATA3 ports, an M.2 port and a number of USB interfaces.
| Typ | Mainboard |
| EAN | 4895106296886 |
| Manufacturer no. | 52119-04-40G |
| base | AM4 |
| Max. supported CPUs | 1 |
| Operating system support | Windows 10 ready |
| Processor - Supported Models | [Ryzen 3 3xxx (Matisse), Ryzen 3 3xxxX (Matisse), Ryzen 3 4xxx (Vermeer), Ryzen 3 PRO 4xxxG (Renoir), Ryzen 5 3xxx (Matisse), Ryzen 5 3xxxX (Matisse), Ryzen 5 3xxxXT (Matisse), Ryzen 5 PRO 4xxxG (Renoir), Ryzen 5 PRO 4xxxGE (Renoir), Ryzen 7 3xxx (Matisse), Ryzen 7 3xxxX (Matisse), Ryzen 7 3xxxXT (Matisse), Ryzen 7 PRO 4xxxG (Renoir), Ryzen 7 PRO 4xxxGE (Renoir), Ryzen 9 3xxxX (Matisse), Ryzen 9 3xxxXT (Matisse), Ryzen 5 5xxx (Vermeer), Ryzen 5 5xxxX (Vermeer), Ryzen 5 5xxx (Cezanne), Ryzen 5 5xxxG (Cezanne), Ryzen 7 5xxx (Cezanne), Ryzen 7 5xxxX (Vermeer), Ryzen 7 5xxxG (Cezanne), Ryzen 9 5xxxX (Vermeer)] AMD AM4 processors of the 4th (Zen 3) 3rd generation (Zen 2). NOT compatible with Ryzen 3 3200G and Ryzen 5 3400G. |
| Chipset | AMD A520 |
| Slots - PCIe x16 | 1x (of which: 1x PCIe x16) |
| BIOS | 256 Mbit AMI UEFI BIOS |
| Form factor | µATX |
| use | PC |
| Power supply | ATX12V (24-Pin + 8-Pin) |
| Memory - maximum | 64 GB |
| Connections (external) - Mouse/Keyboard Combo (PS/2) | 1 |
| Connectors (internal) - SATA | 4 |
| Ports (optional) - USB 3.2 Gen 1 (5Gbps) | 2 |
| SATA Controller | AMD B520 |
| directly usable RAID levels | 0, 1, 10 |
| USB-Controller | AMD B520 |
| Onboard Graphics | The graphics connections on the mainboard can only be used when using a CPU with an integrated graphics chip. |
| Sound | Realtek ALC897 |
| LAN | Realtek RTL8111M |
| Features | CrossFireX |
| More information | In order to support the latest processor cores, a BIOS update may be required. |
| Dimensions | Width: 235mm x Height: 244mm |
