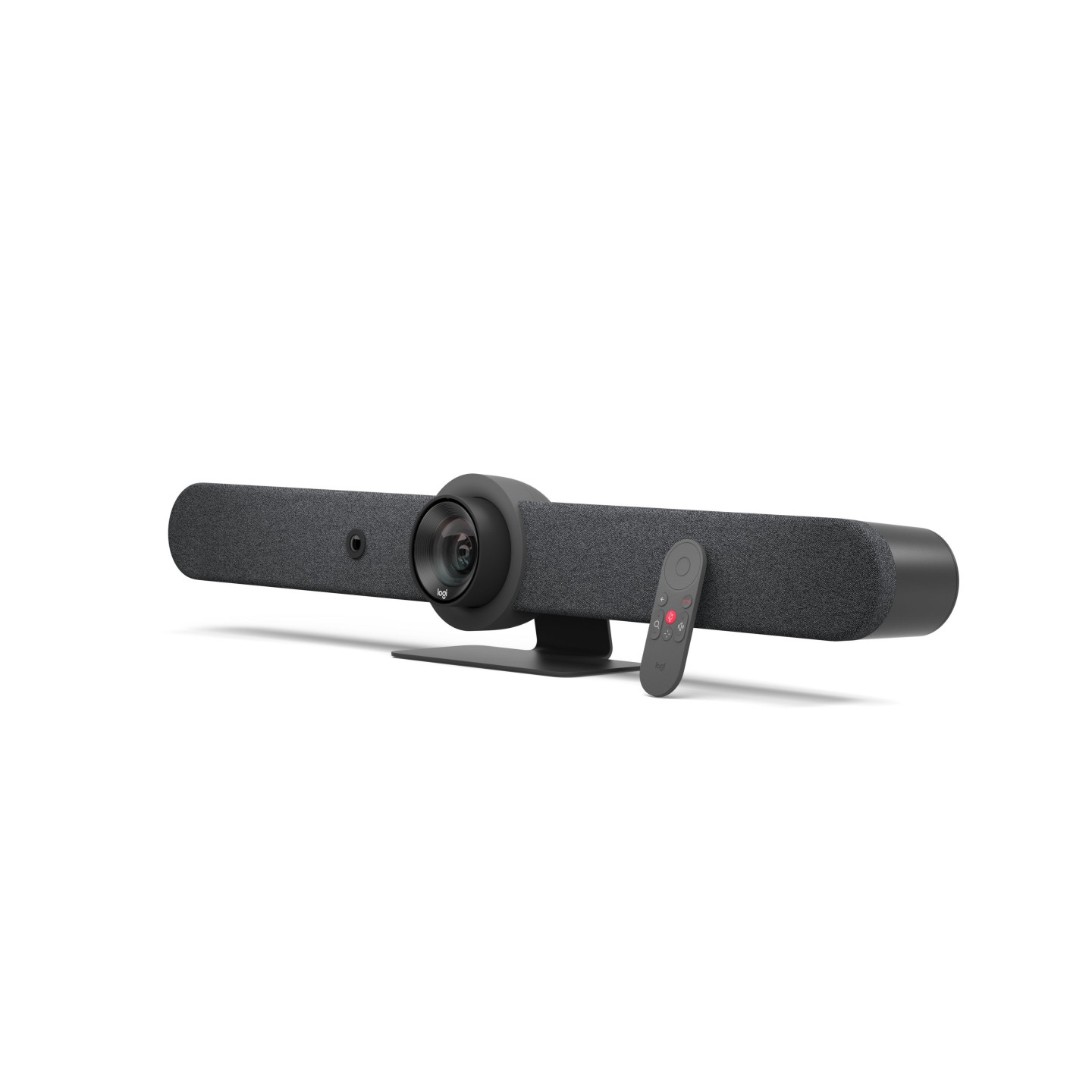

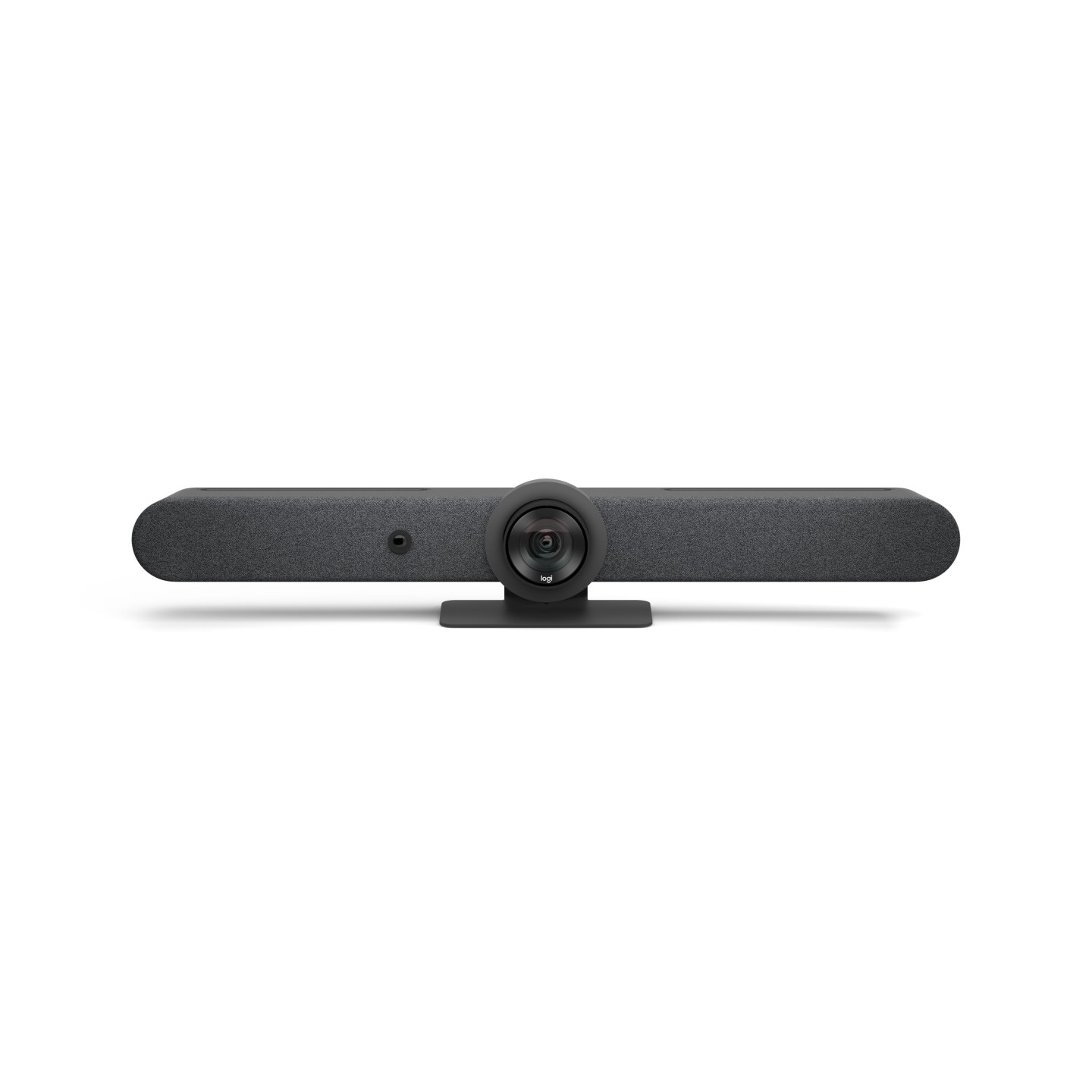

Logitech Rally Bar - 960-001311 - 4K Ultra HD Group Video Conferencing System, Graphite
4K Ultra HD group video bar, up to 30 fps, 5x optical & 3x digital zoom, beamforming microphones (4.5 m pickup), HDMI and USB-C connectivity, Graphite finish.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Product colour | Graphite |
| Product type | Group video conferencing system |
| Pan range | -25 - 25° |
| Tilt angle range | -15 - 15° |
| PTZ control | Yes |
| HD type | 4K Ultra HD |
| Supported video modes | 576p, 720p, 900p, 1440p, 2160p |
| Maximum frame rate | 30 fps |
| Built-in speaker(s) | Yes |
| Output level | 92/99 dB |
| Line-out impedance | 4 Ω |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Audio beamforming | Yes |
| Noise reduction | Yes |
| Echo cancellation | Yes |
| RMS rated power | 8 W |
| Microphone pick-up range | 4.5 m |
| Sample rates | 0 - 48 kHz |
| HDMI ports quantity | 3 |
| HDMI output ports quantity | 2 |
| HDMI input ports quantity | 1 |
| USB connector type | USB Type-A, USB Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| DC-in jack | Yes |
| Microphone in | Yes |
| Interface module Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Supported network protocols | IPv4, IPv6 |
| Security algorithms | 128-bit AES |
| Zoom capability | Yes |
| Optical zoom | 5x |
| Digital zoom | 3x |
| Horizontal field of view | 82.1° |
| Vertical field of view | 52.2° |
| Diagonal field of view | 90° |
| Remote control interface | Bluetooth |
| Microphone sensitivity | -36 dB |
| Microphone frequency | 90 - 16000 Hz |
| Microphone direction type | Omnidirectional |
| Sound pressure level (max) | 90 dB |
| Number of microphones | 6 |
| Telepresence | No |
| Master (outer) case gross weight | 9.91 kg |
| Master (outer) case length | 1004 mm |
| Master (outer) case width | 220 mm |
| Master (outer) case height | 231 mm |
| Harmonized System (HS) code | 85176990 |
| Battery capacity | 220 mAh |
| Windows operating systems supported | Windows 10, Windows 11 |
| Mac operating systems supported | Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage temperature (T-T) | -40 - 70 °C |
| Heat dissipation | 64 BTU/h |
| Power source type | AC |
| AC input voltage | 100 - 240 V |
| Current | 4.754 A |
| DC input voltage | 19 V |
| Battery technology | Lithium |
| Number of batteries supported | 2 |
| Power plug type | Type C |
| Width | 910 mm |
| Depth | 160 mm |
| Height | 164 mm |
| Weight | 7.08 kg |
| Package width | 207 mm |
| Package depth | 989 mm |
| Package height | 218 mm |
| Package weight | 9.3 kg |
| Cables included | AC, DC, HDMI, USB Type-A to USB Type-C |
| Power cable length | 2.5 m |
| HDMI cable length | 2 m |
| AC adapter included | Yes |
| Remote control included | Yes |
| Quick start guide | Yes |
| Packaging content | Rally Bar Power supply AC power cord HDMI cable USB cable Remote control Lens caps for main camera and AI Viewfinder User documentation |
