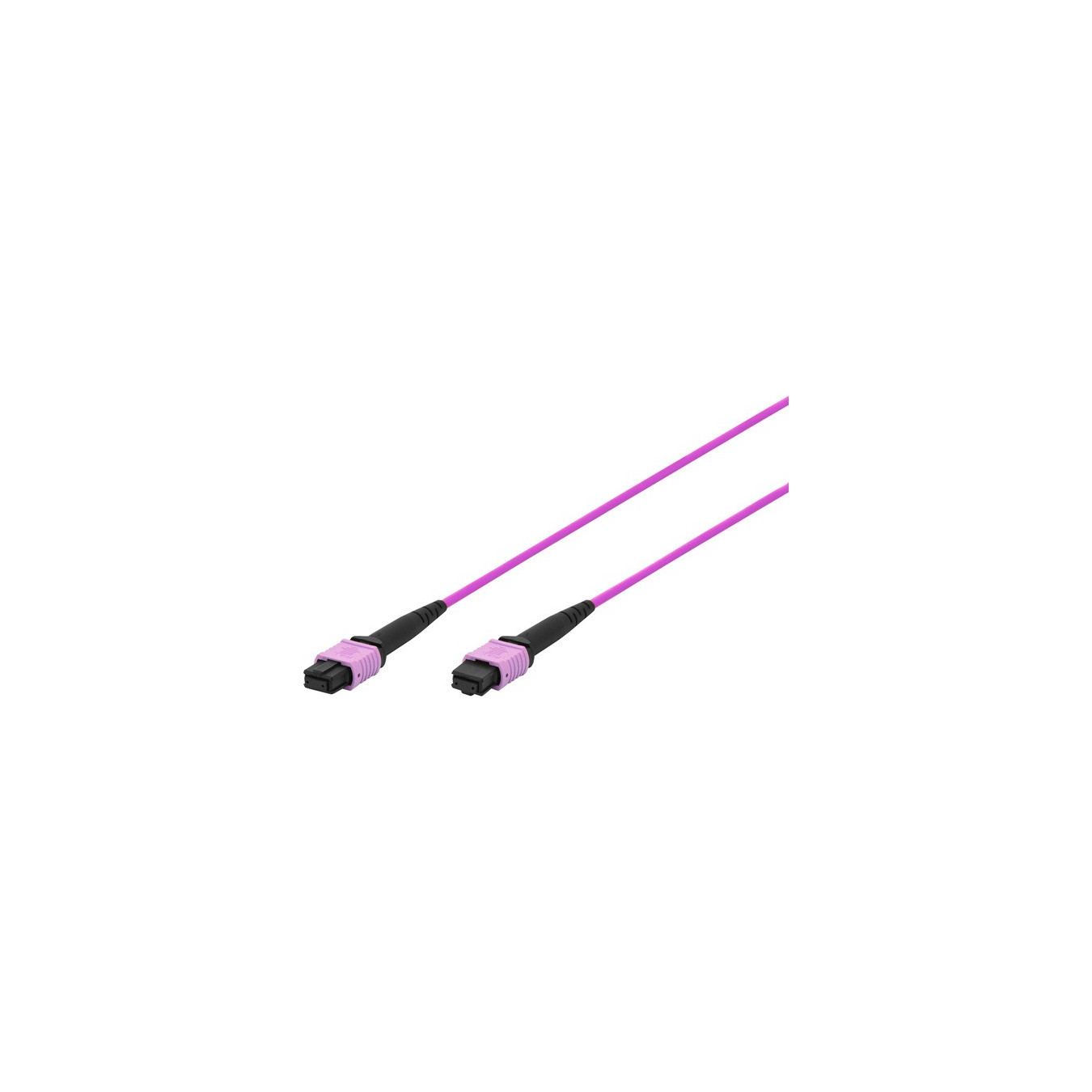

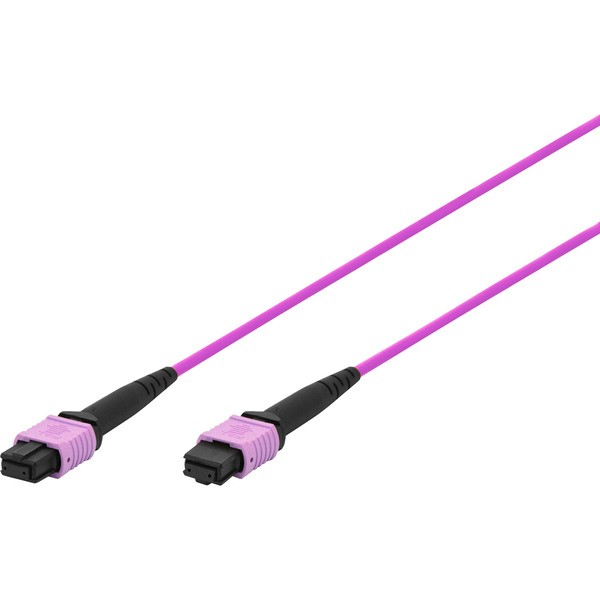

Fiber optic patch cable, MPO socket, OM4, method A
The MPO patch cable DK-2566-10/4 from DIGITUS enables data rates of 40Gb/s or 100Gb/s and is the answer to the growing bandwidth required by data centers. The standardized IEC61754...
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
The MPO patch cable DK-2566-10/4 from DIGITUS enables data rates of 40Gb/s or 100Gb/s and is the answer to the growing bandwidth required by data centers. The standardized IEC61754-7 and TIA/EIA 604-5 MPO connector (multi-fiber push-on) ensures the best performance across the entire network and is barely larger than a standard RJ-45 connector. The excellent attenuation and compact design make this patch cable the first choice when it comes to bandwidth and performance.
| Typ | Cable |
| Color | violet |
| EAN | 4016032347033 |
| Manufacturer no. | DK-2566-10/4 |
| Manufactured in | China |
| Area | network |
| taps | 2 |
| Characteristics | extern |
| Feature | Improved data transfer rates, ultra-low loss, slim and flexible, cable jacket LSOH |
| More information | MPO (multi-fiber push-on) on MPO, fiber type MM 50 / 125µ OM4 multimode, cut PC, method A, 12 fibers, cable Ø 3mm, max. tensile strength 300N, min. bending radius 30mm |
| Cable length | 10 Meter |
| Warnings and safety information | Safety instructions: When working with fiber optic cables, especially when testing or working with lasers, safety glasses that protect against harmful radiation should always be worn. Be careful never to look directly into the light of a fiber optic, even if the light source is invisible to the naked eye. |
