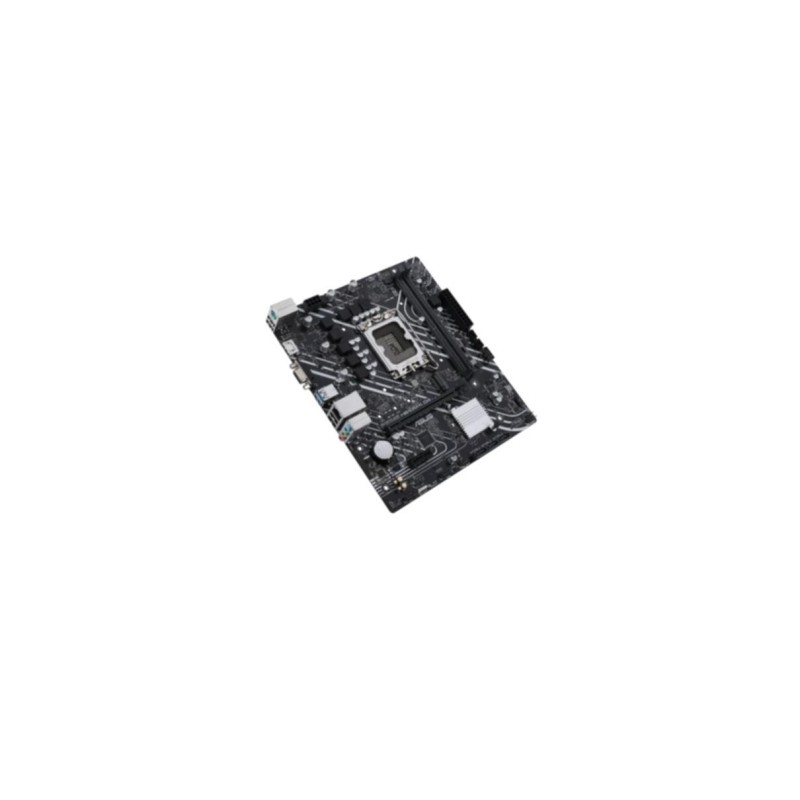

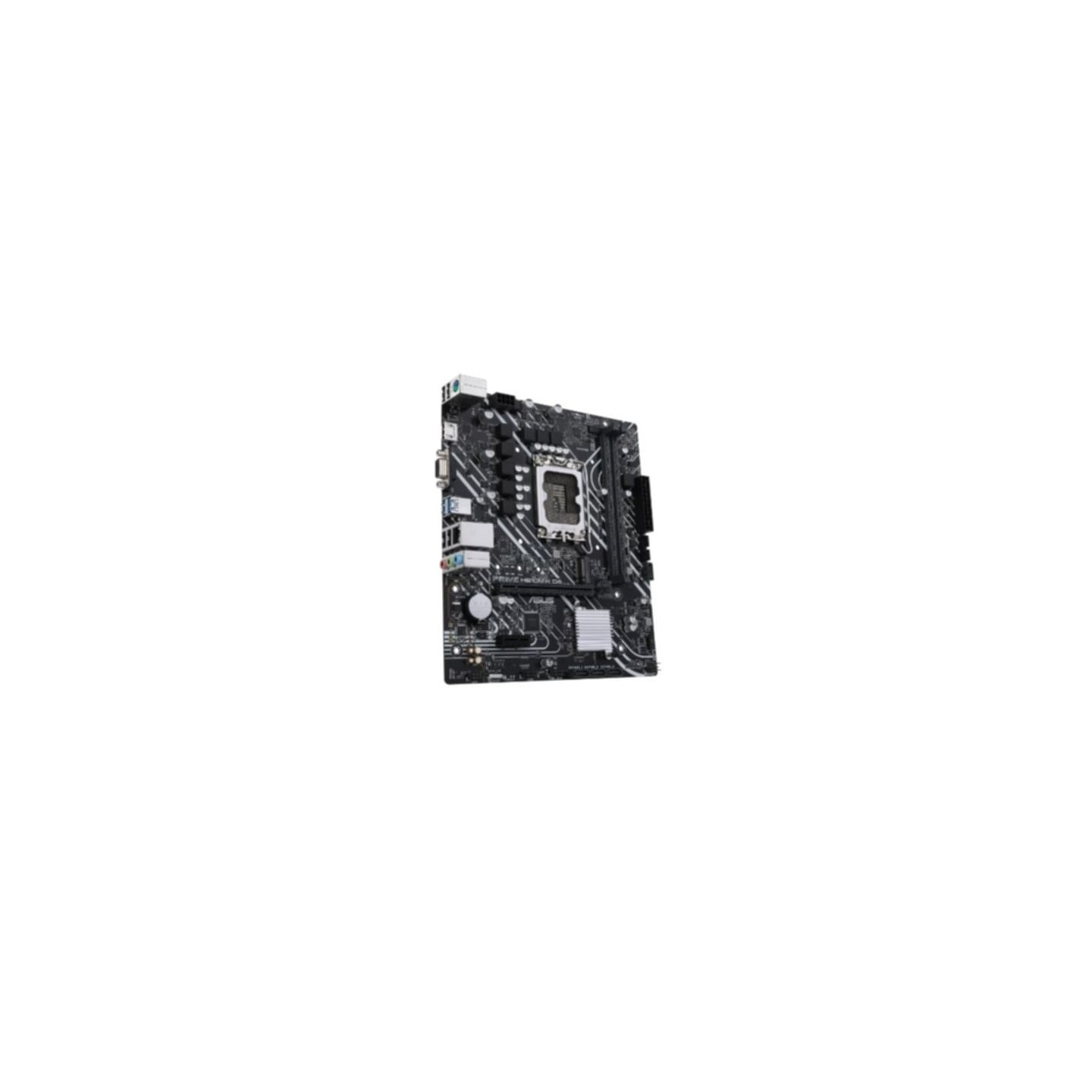

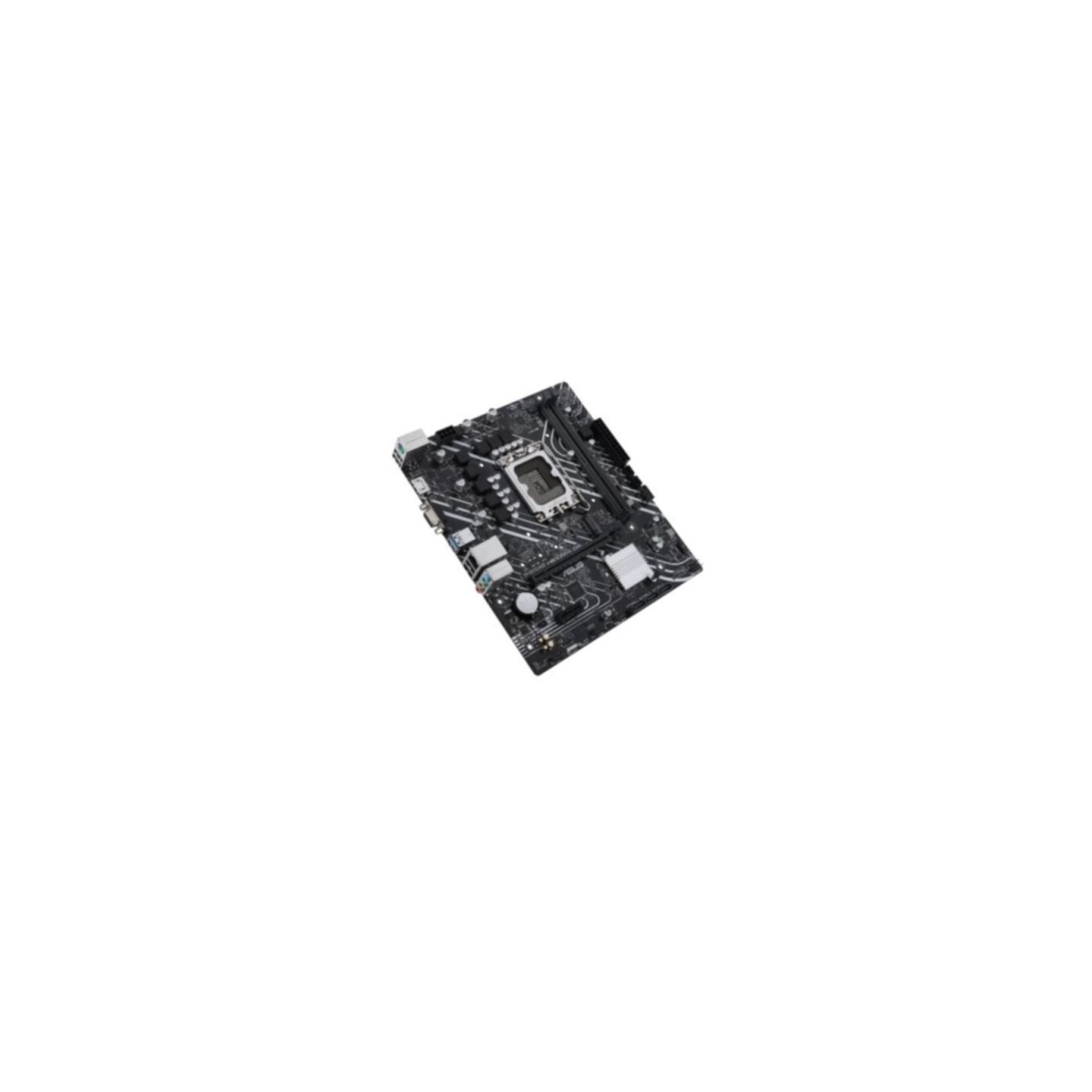

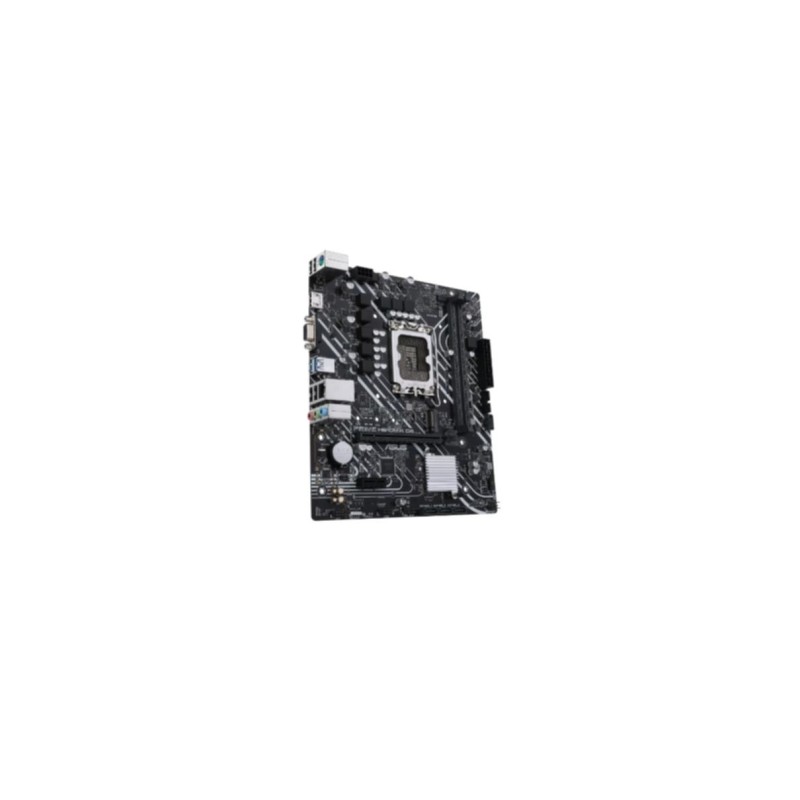

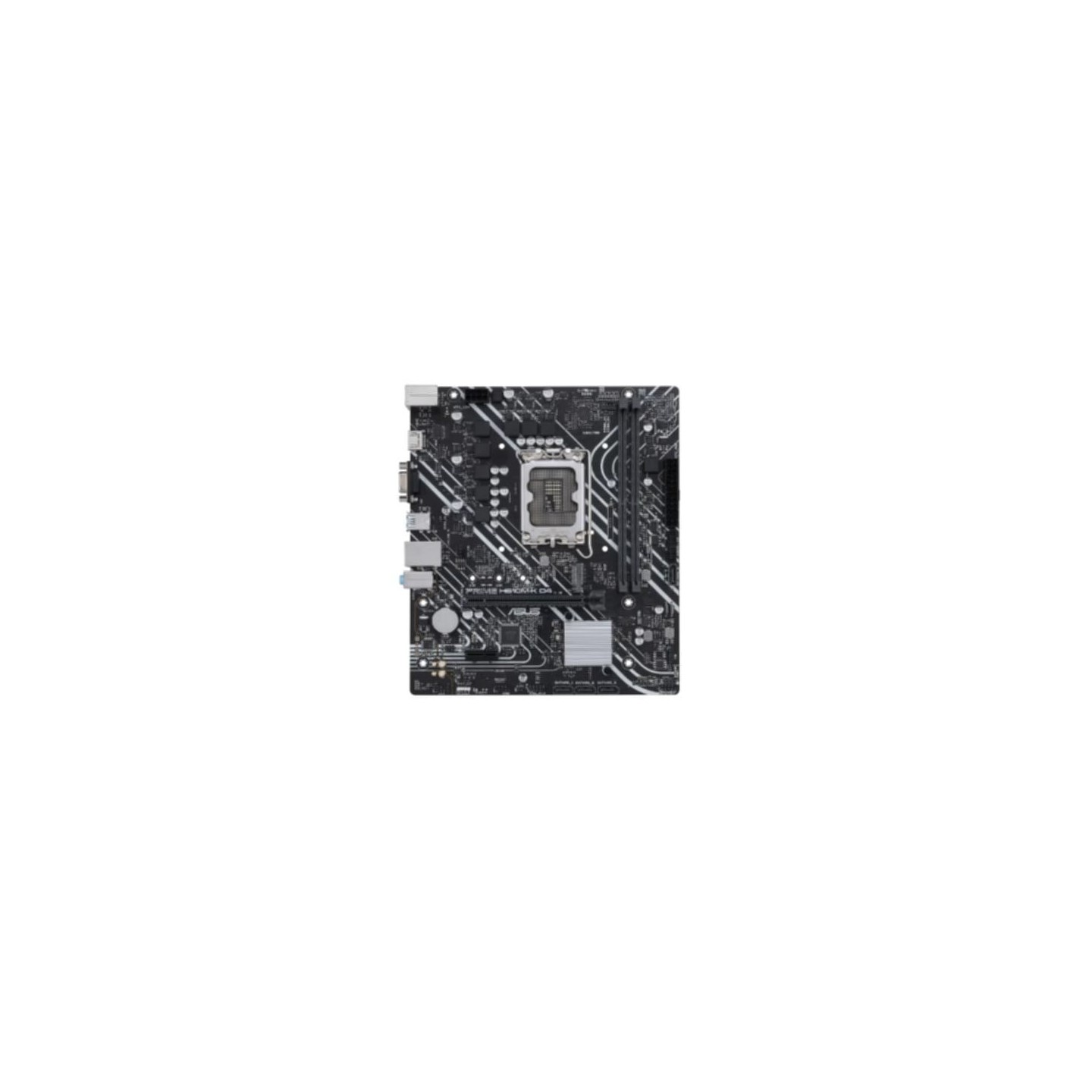

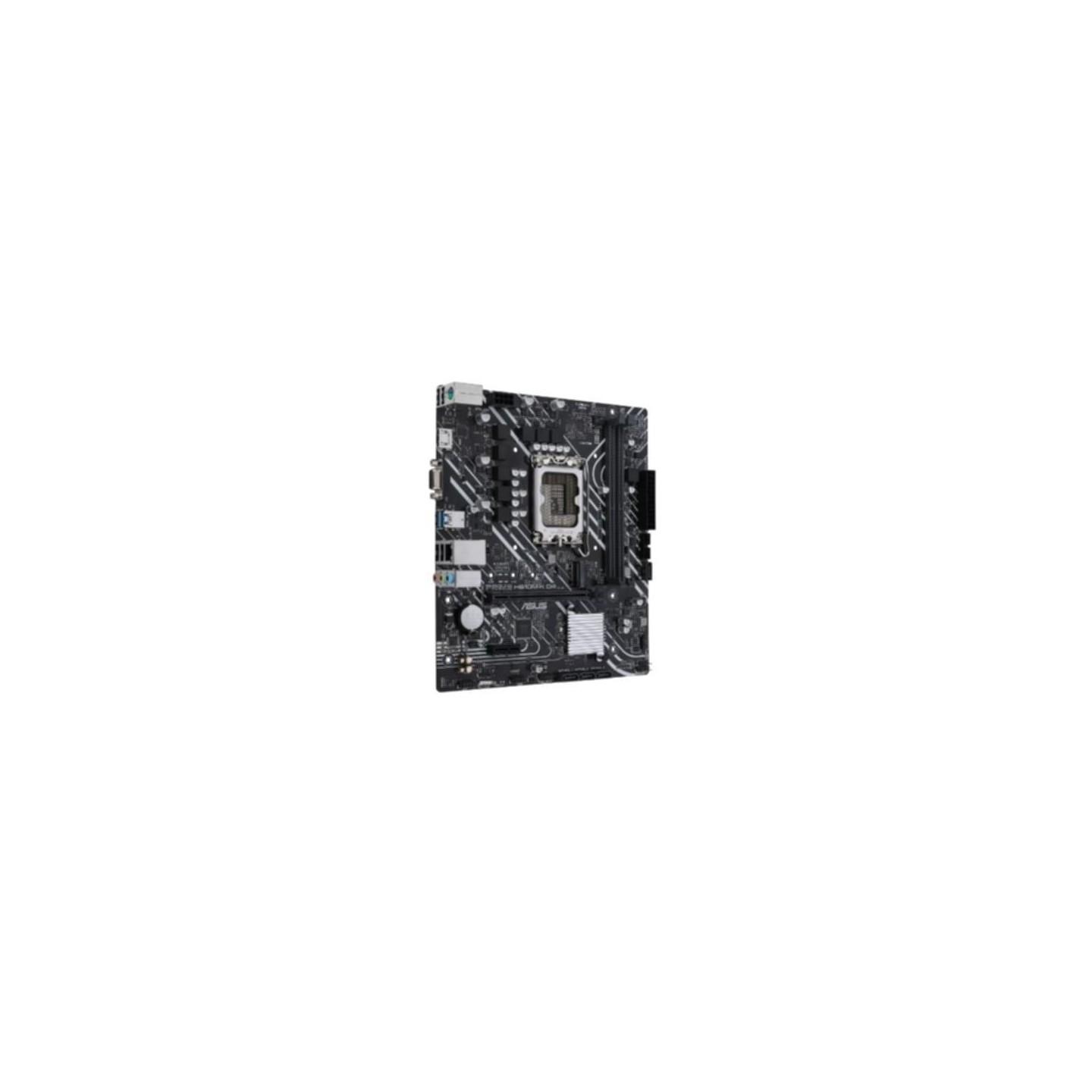

ASUS PRIME H610M-K D4 - Micro-ATX LGA1700 Motherboard - Intel H610, DDR4, Up to 64GB
LGA1700 micro-ATX motherboard for Intel 12th/13th/14th Gen CPUs. H610 chipset, 2x DDR4 up to 64GB 3200MHz, 1x M.2 PCIe 3.0, PCIe 4.0 x16, Gb LAN, HDMI/VGA. Robust power, cooling & 5X Protection III.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | LGA 1700 |
|---|---|
| Motherboards - Chipset | Intel H610 |
| Motherboards - Form Factor | Micro-ATX |
| Motherboards - Memory Type | DDR4 |
| Motherboards - Memory Profile Support | XMP |
| Motherboards - Memory Slots | 2 |
| Motherboards - Max Memory Capacity | 64 GB |
| Motherboards - Main Slot PCIe Version | PCIe 4.0 |
| Motherboards - Color | Black |
| Motherboards - M.2 Slots | 1 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C Support | None |
| Motherboards - RGB Headers | None |
| Motherboards - Wireless Connectivity | None |
ASUS Prime H610M-K D4 is a budget micro-ATX motherboard designed for Intel LGA1700 processors from 12th to 14th Gen, including Core i9/i7/i5/i3, Pentium and Celeron. Featuring the Intel H610 chipset, it supports DDR4 memory up to 64GB at 3200MHz across two DIMM slots with EZ XMP for easy overclocking. Ideal for entry-level builds, office PCs, light gaming and home theaters.
Storage options include 1x M.2 slot (PCIe 3.0 x4 up to 32Gbps) for fast NVMe SSDs and 4x SATA 6Gbps ports for HDDs/SSDs. Expansion features a PCIe 4.0 x16 slot for modern GPUs and PCIe 3.0 x1 slots. Connectivity comprises Realtek 1Gb Ethernet, rear USB 3.2 Gen1 (2x Type-A), USB 2.0, HDMI 2.1 (4K@60Hz), VGA, PS/2, and audio with Realtek ALC897 7.1-channel codec. Advanced cooling via Fan Xpert 2+, EPU power saving, and UEFI BIOS with intuitive controls.
Durability enhanced by 5X Protection III: SafeSlot Core, LANGuard, overvoltage/DRAM protection, stainless-steel I/O. No WiFi/BT or CPU overclocking, but solid VRM for mainstream CPUs. Includes Armoury Crate software for tuning.
- CPU Socket: LGA1700 (12th-14th Gen Intel)
- Memory: 2x DDR4, max 64GB 3200MHz
- Storage: 1x M.2 PCIe 3.0 + 4x SATA

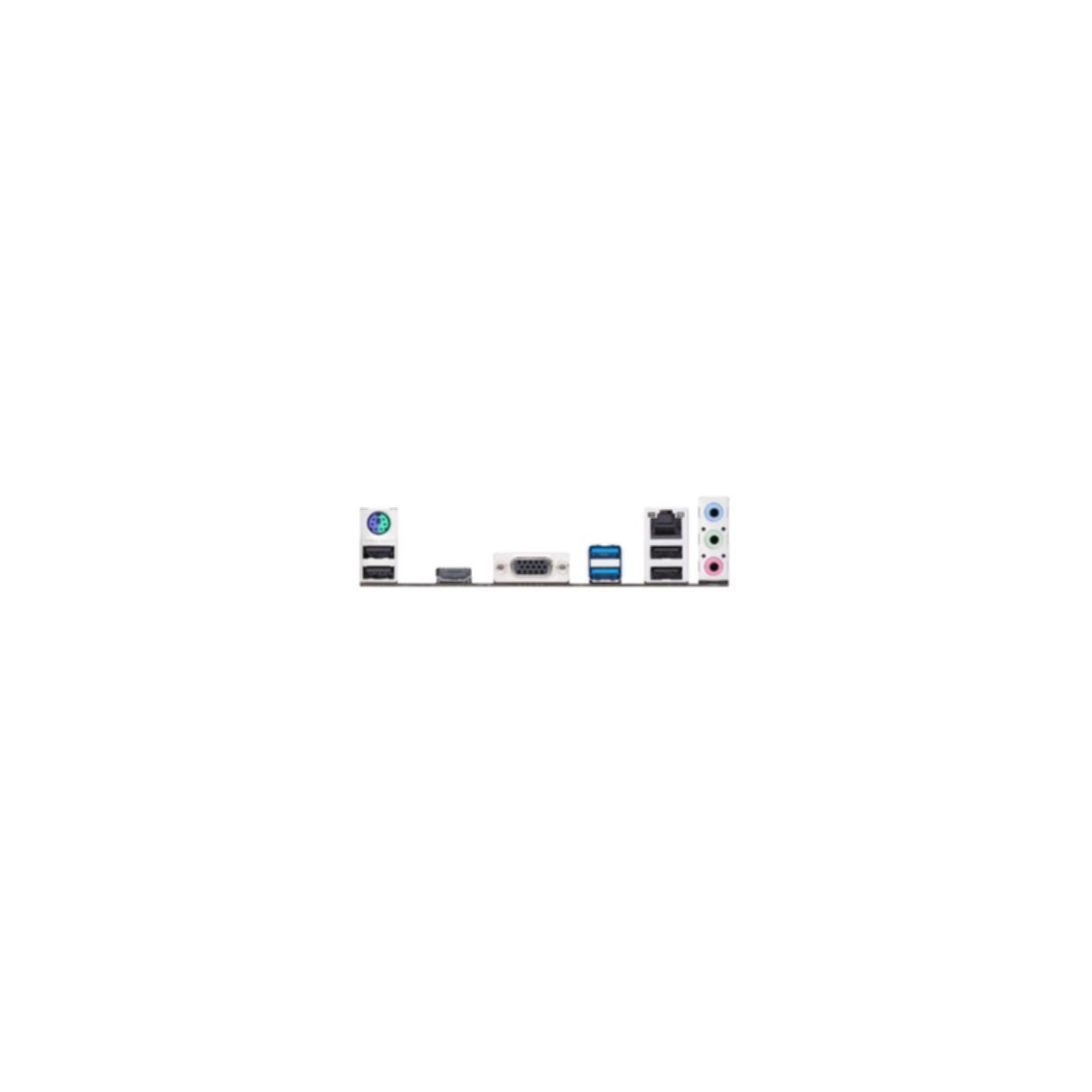

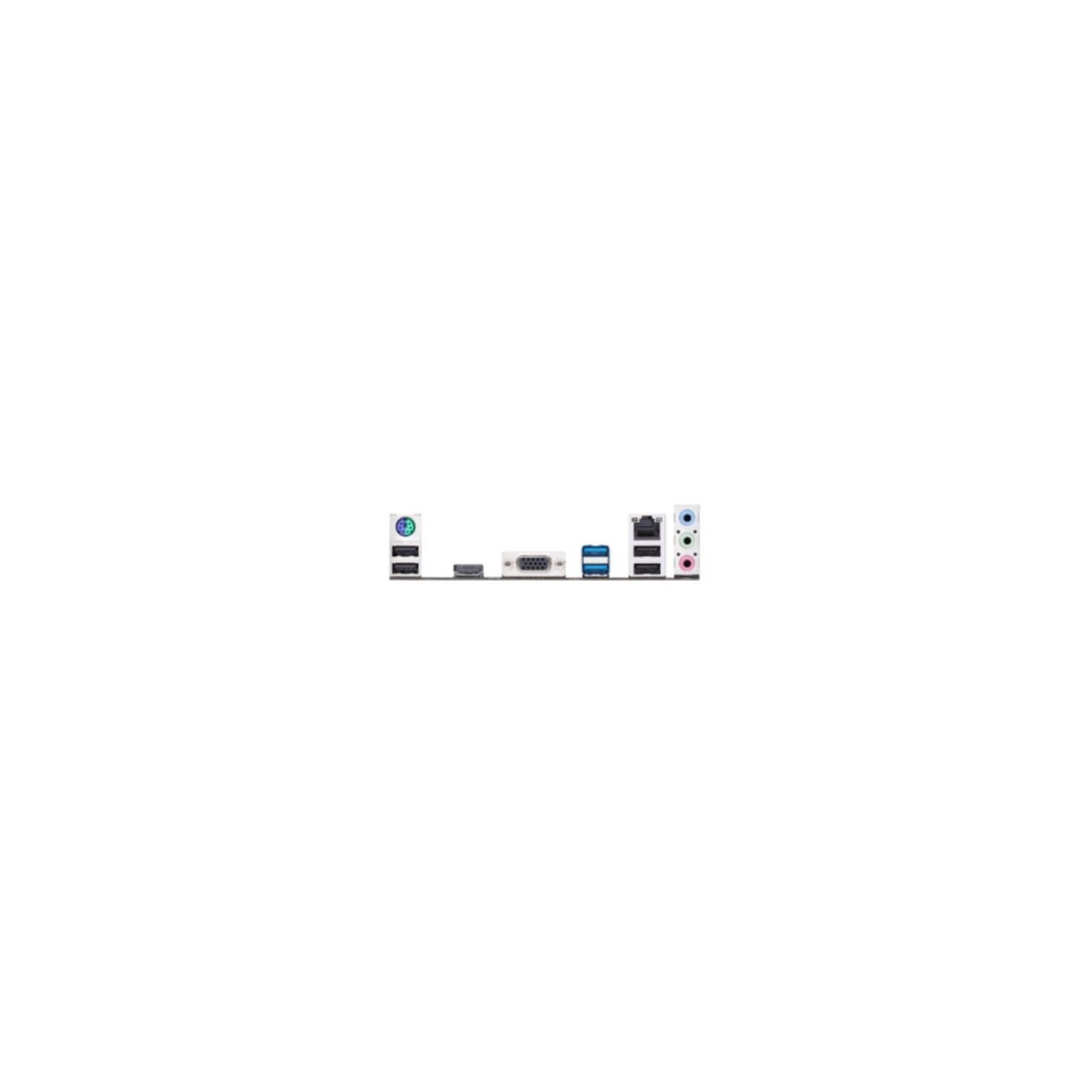

- Video: HDMI 2.1 + VGA
- LAN: Realtek 1GbE
- Form Factor: Micro-ATX
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®, Intel® Pentium® Gold |
| Maximum number of SMP processors | 1 |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 2133, 2400, 2666, 2800, 2933, 3000, 3200 MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory | Yes |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA |
| RAID levels | 0, 1, 5, 10 |
| Number of displays supported | 2 |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| EPS power connector (8-pin) | Yes |
| Number of COM connectors | 1 |
| TPM connector | Yes |
| 12V power connector | Yes |
| RGB LED pin header | Yes |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | No |
| Motherboard chipset | Intel H610 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Harmonized System (HS) code | 84733020 |
| Width | 234 mm |
| Depth | 203 mm |
| Height | 51 mm |
| Cables included | SATA |
| Drivers included | Yes |
| Weight | 842 g |
| Audio chipset | Realtek ALC897 |
