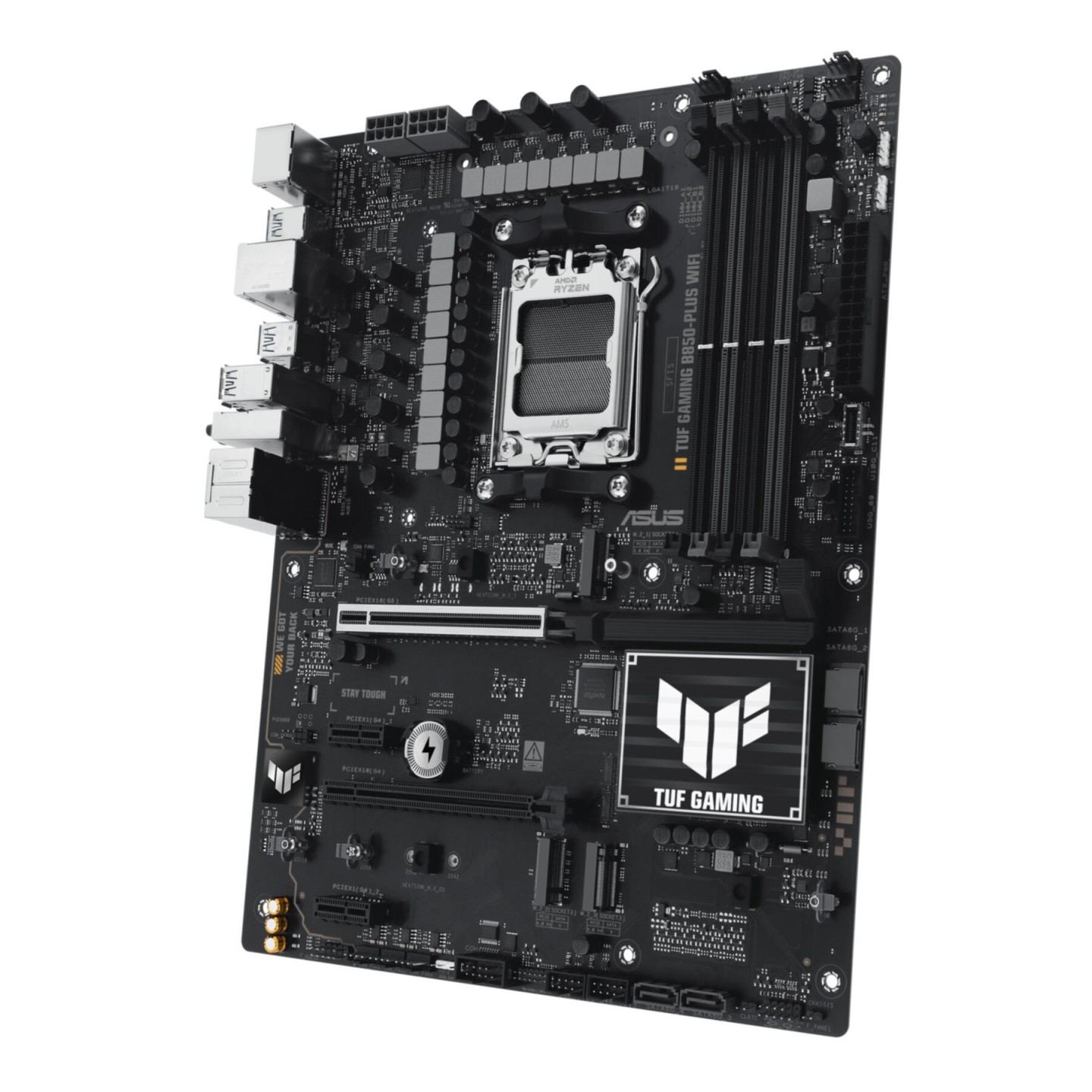

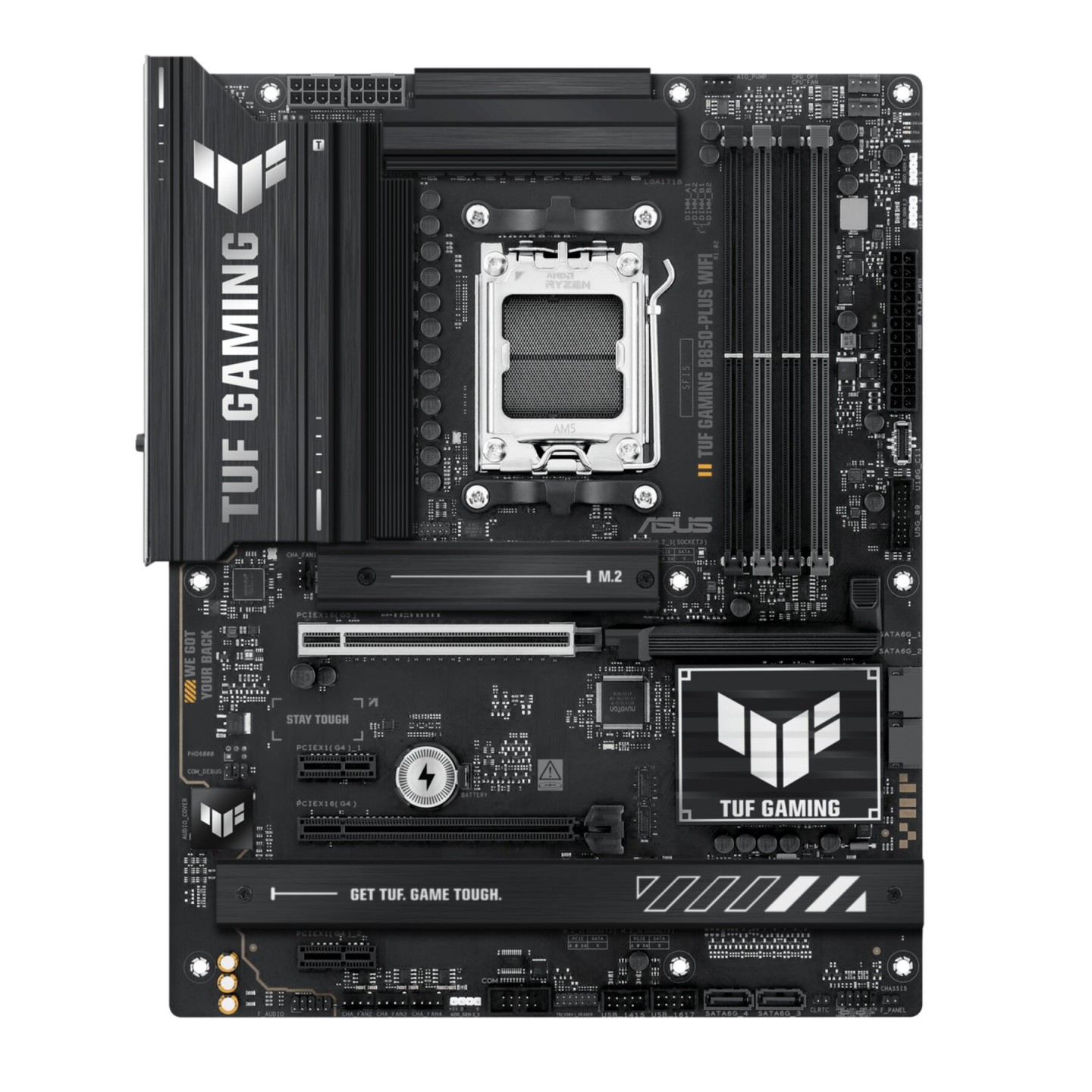

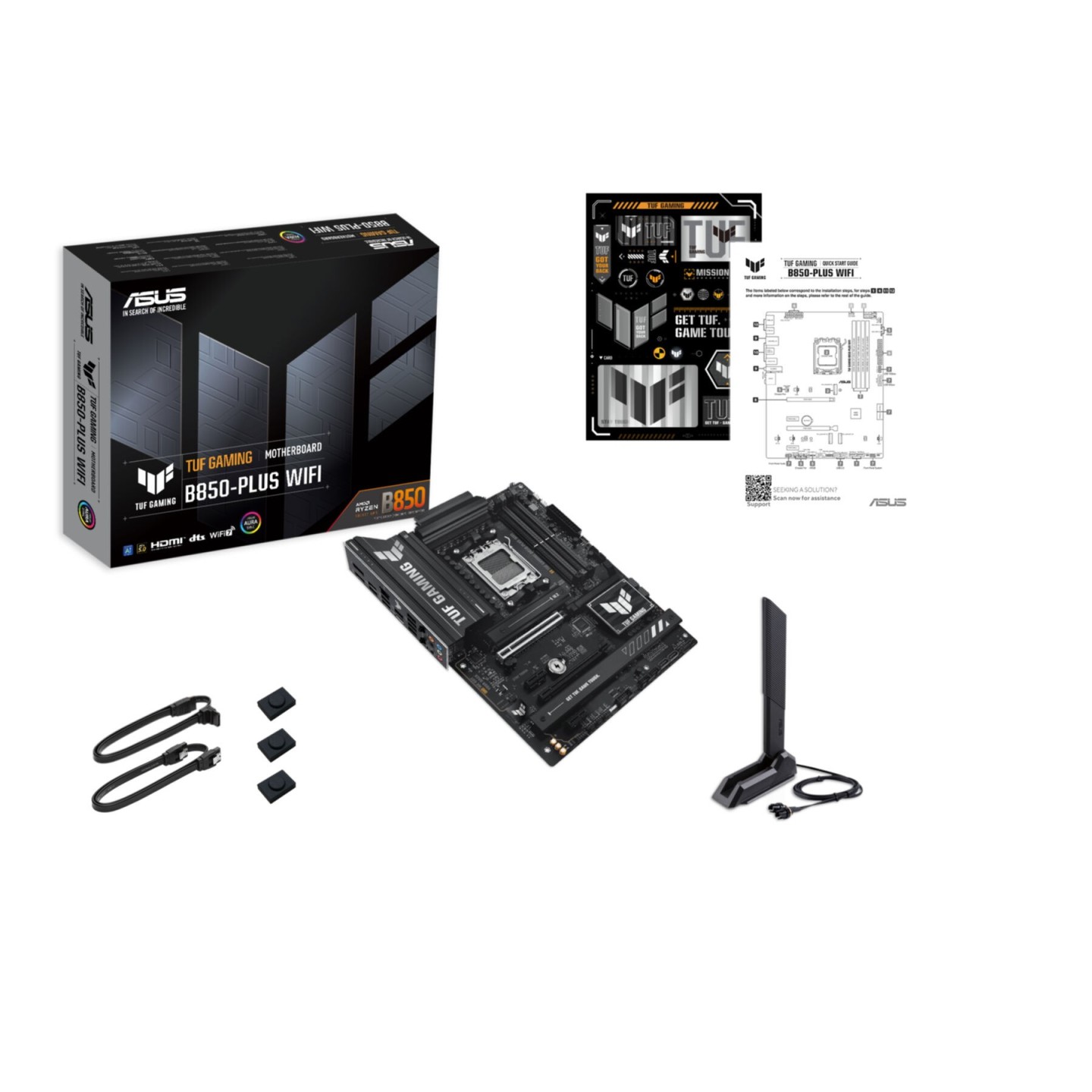

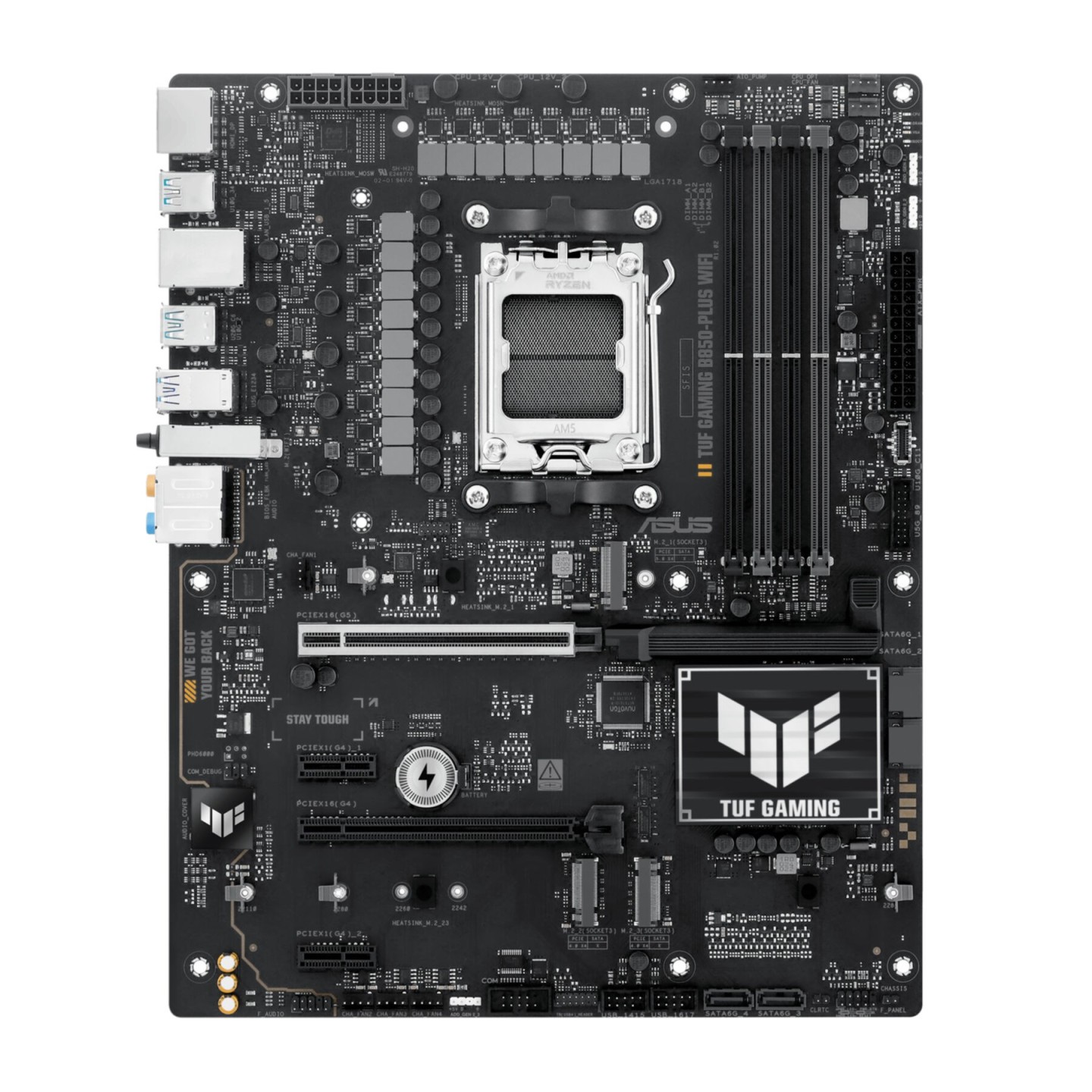

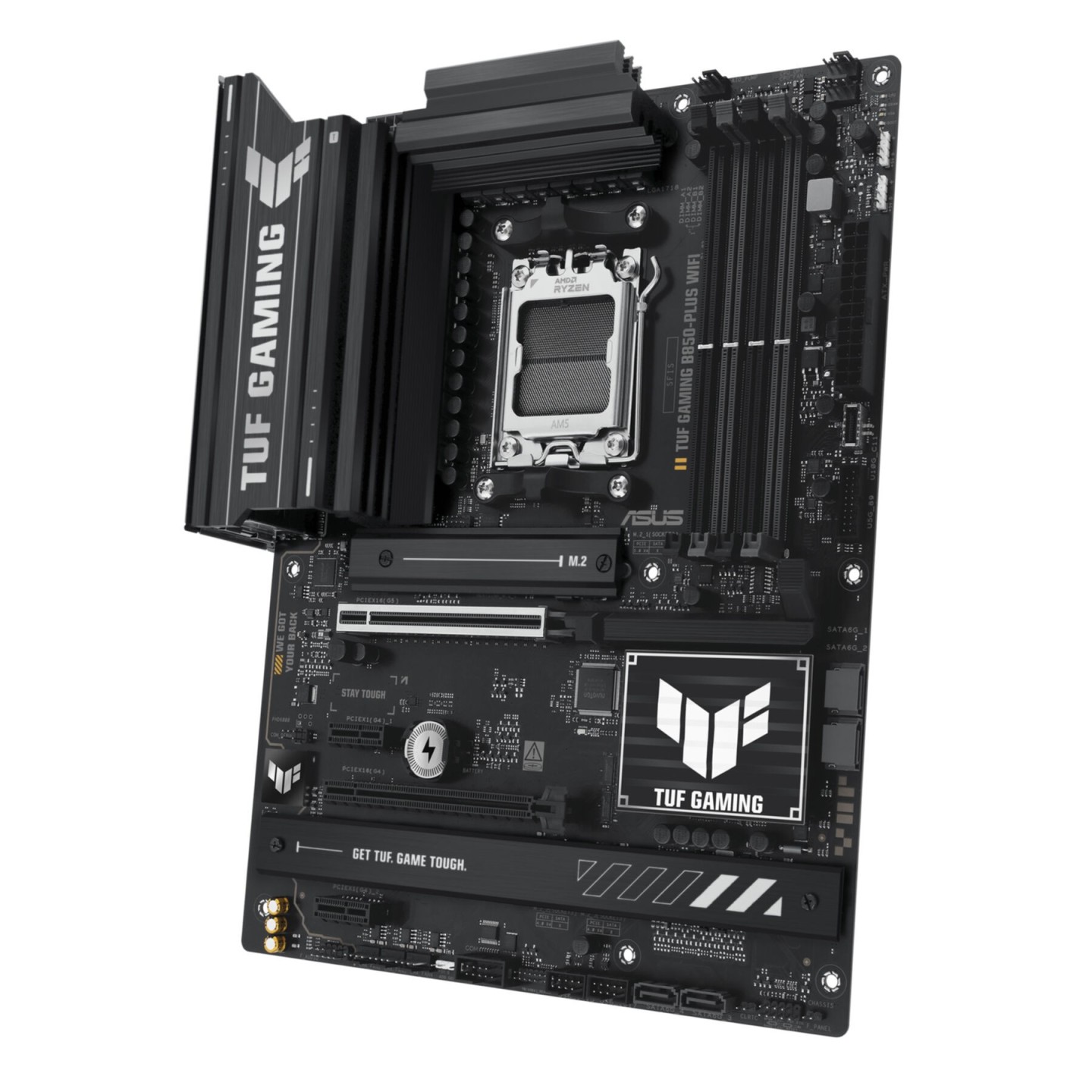

ASUS TUF Gaming B850-PLUS WiFi AM5 ATX DDR5 256GB WiFi7 (Boxed)
ATX AM5 B850 motherboard w/ DDR5 up to 256GB, WiFi 7, PCIe 5.0 GPU/M.2, 14+2+1 80A VRM, 2.5Gb LAN. Durable TUF design w/ AI tools, comprehensive cooling for gaming/AI PCs.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | AMD AM5 |
|---|---|
| Motherboards - Chipset | AMD B850 |
| Motherboards - Form Factor | ATX |
| Motherboards - Memory Type | DDR5 |
| Motherboards - Memory Profile Support | EXPO |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 192 GB 256 GB |
| Motherboards - Main Slot PCIe Version | PCIe 5.0 |
| Motherboards - Color | Black |
| Motherboards - M.2 Slots | 3 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C Support | Front Panel Type-C header Rear Type-C |
| Motherboards - RGB Headers | 3-pin 5V ARGB |
| Motherboards - Wireless Connectivity | Bluetooth WiFi |
The ASUS TUF Gaming B850-PLUS WiFi is a robust ATX motherboard for AMD Ryzen 7000/8000/9000 series on AM5 socket. Featuring military-grade components, 14+2+1 80A power stages, and advanced cooling, it delivers stable performance for gaming and AI workloads.
Key highlights include DDR5 support up to 256GB at 8000MHz+ (EXPO), one PCIe 5.0 M.2 slot (up to 128Gbps), WiFi 7 with Bluetooth 5.4, 2.5Gb Ethernet, rear USB 20Gbps Type-C, front USB 10Gbps Type-C, and Thunderbolt header. DIY features like M.2 Q-Latch, PCIe Q-Release, BIOS FlashBack simplify builds.
- ✅ PCIe 5.0 x16 GPU slot & M.2 storage
- ✅ Realtek ALC1220P 7.1 audio w/ DTS
- ✅ 3x ARGB + RGB headers for Aura Sync
- ✅ Comprehensive VRM/M.2/PCH heatsinks
- ✅ AI Advisor, Armoury Crate software
| Processor Socket | Socket AM5 |
| Chipset | AMD B850 |
| Form Factor | ATX |
| Memory Type | DDR5-SDRAM |
| Memory Slots | 4x DIMM |
| Max Memory | 256 GB |
| Max Memory Speed | 8000 MHz |
| M.2 Slots | 3 (1x PCIe 5.0, 2x PCIe 4.0) |
| SATA III Ports | 4 |
| PCIe x16 Slots | 1x Gen5, 1x Gen4 |
| Wi-Fi | Wi-Fi 7 (802.11be) |
| Ethernet | 2.5 Gigabit |
| Bluetooth | 5.4 |
| Audio | Realtek ALC1220P 7.1 |
| VRM | 14+2+1 (80A stages) |
| USB Rear Type-C | 20Gbps |
| USB Front Type-C | 10Gbps header |
| RGB Headers | 3x ARGB Gen2 |
| Product Width | 305 mm |
| Product Depth | 244 mm |
| Product Weight | 1.32 kg |
