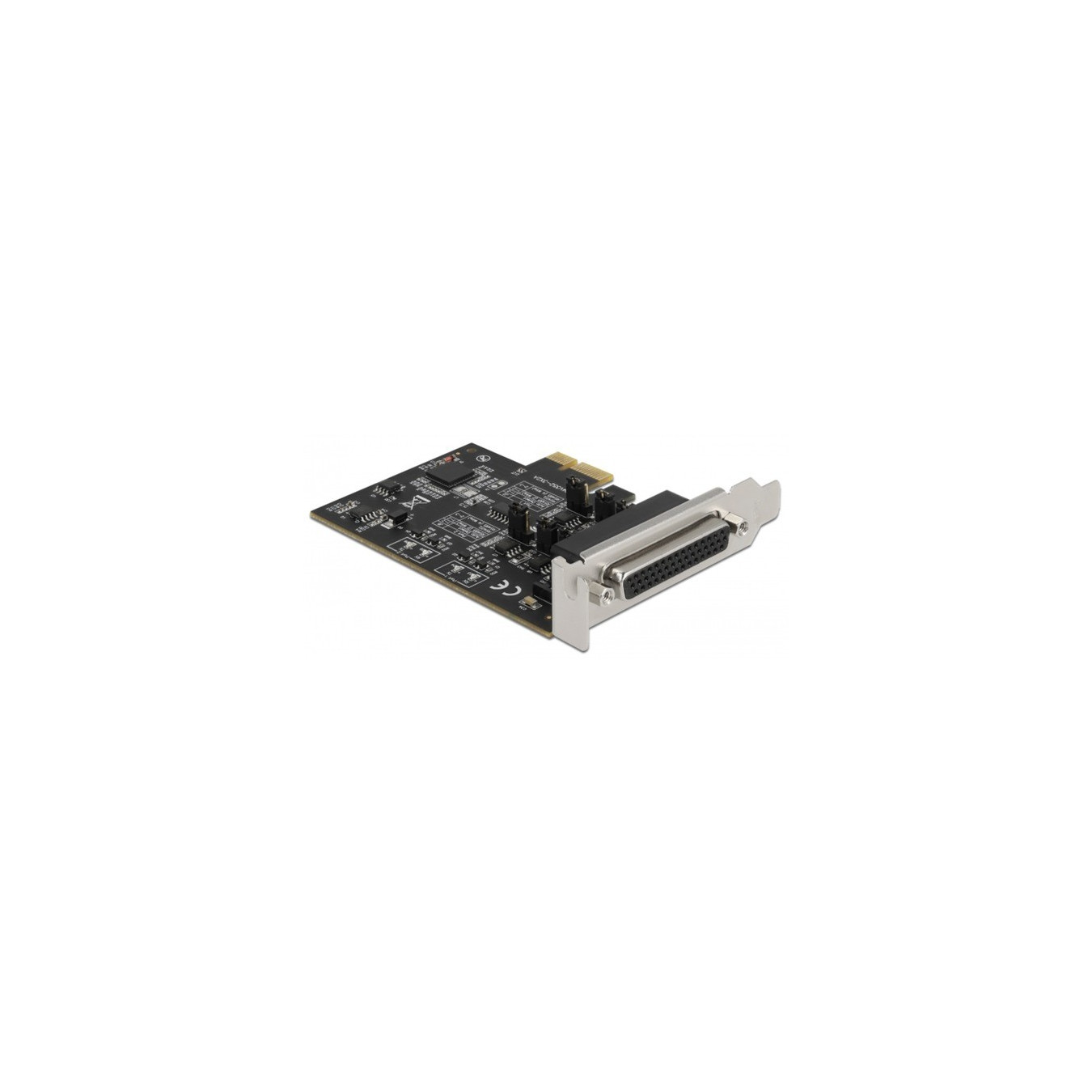

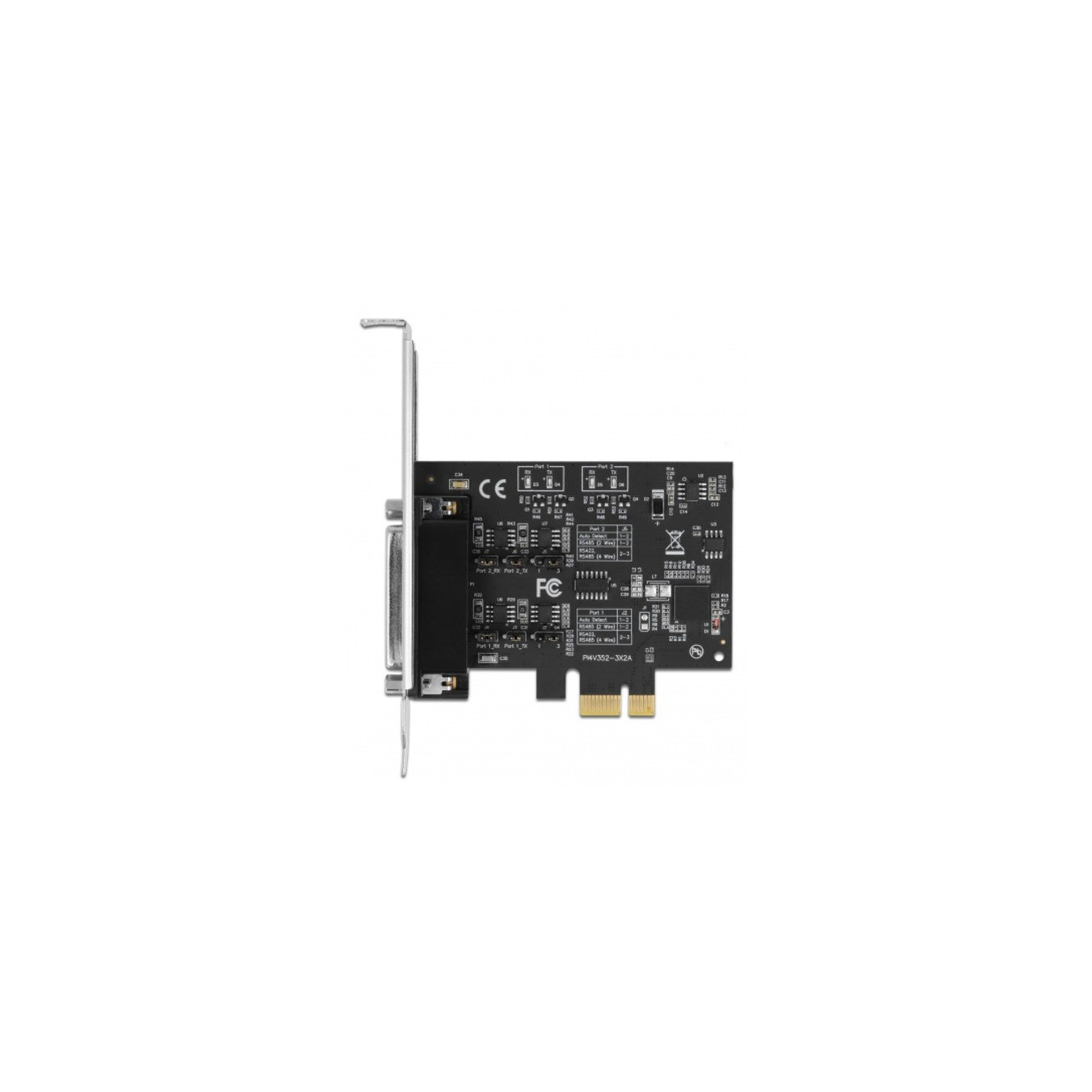

PCI Express card for 2 x serial RS-422 485 with 15 kV ESD protection
The Delock PCI Express card expands the PC with two external serial RS-422/485 ports. Devices such as: E.g. scanners, protocol converters, POS systems, infrared, IoT devices etc. a...
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
The Delock PCI Express card expands the PC with two external serial RS-422/485 ports. Devices such as: E.g. scanners, protocol converters, POS systems, infrared, IoT devices etc. and different modes can be used. The PCIe card supports 2- and 4-wire operation on both ports for both RS-422 and RS-485 devices. In addition, the integrated ones can be optionally added
| EAN | 4043619900480 |
| Manufacturer no. | 90048 |
| slot | PCIe x2 |
| Chip | MaxLinear XR17V352, SP3078E |
| Feature | external: 1 x DB44 socket | FIFO: 256 bytes |
| More information | The settings are made using the jumpers on the PCIe card and offer Auto Detect, RS-422 and RS-485 4-wire full duplex and RS-485 2-wire half-duplex modes. |

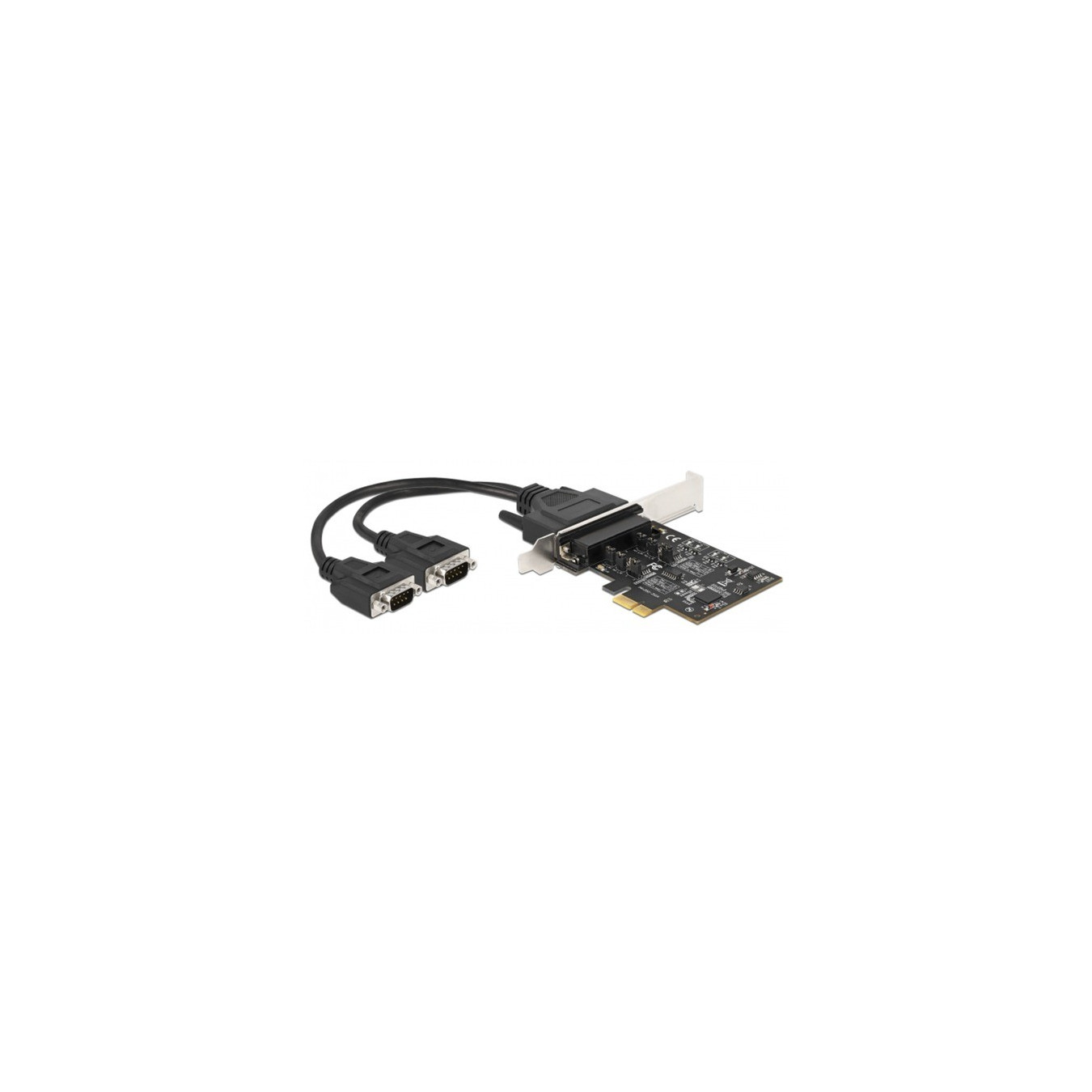

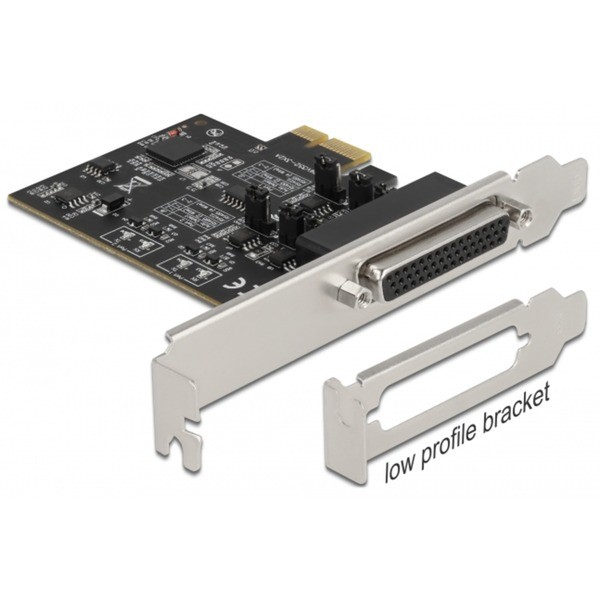

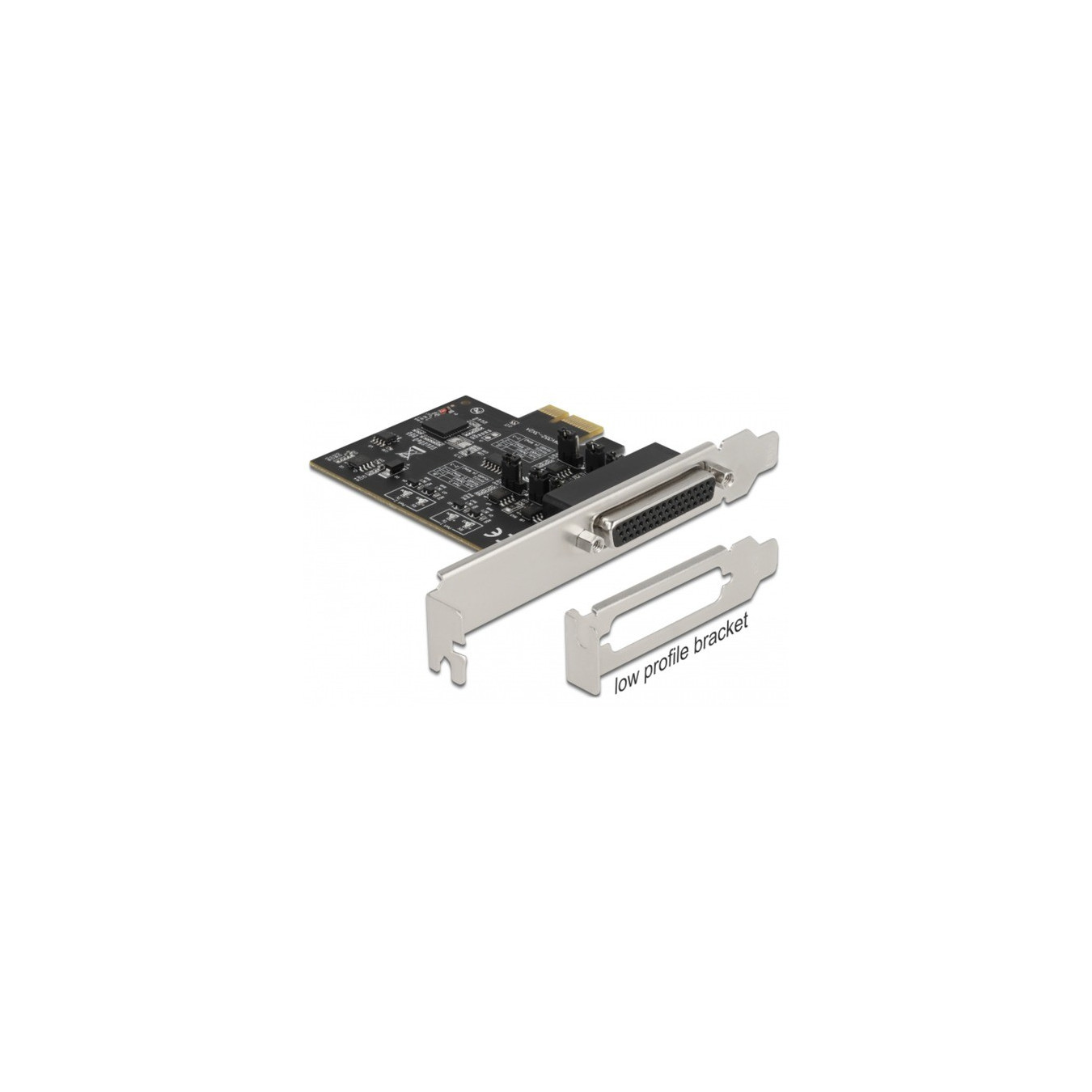

| Accessories - available | 1 serial connection cable, low profile cover, 4 x jumpers, driver CD, operating instructions |
