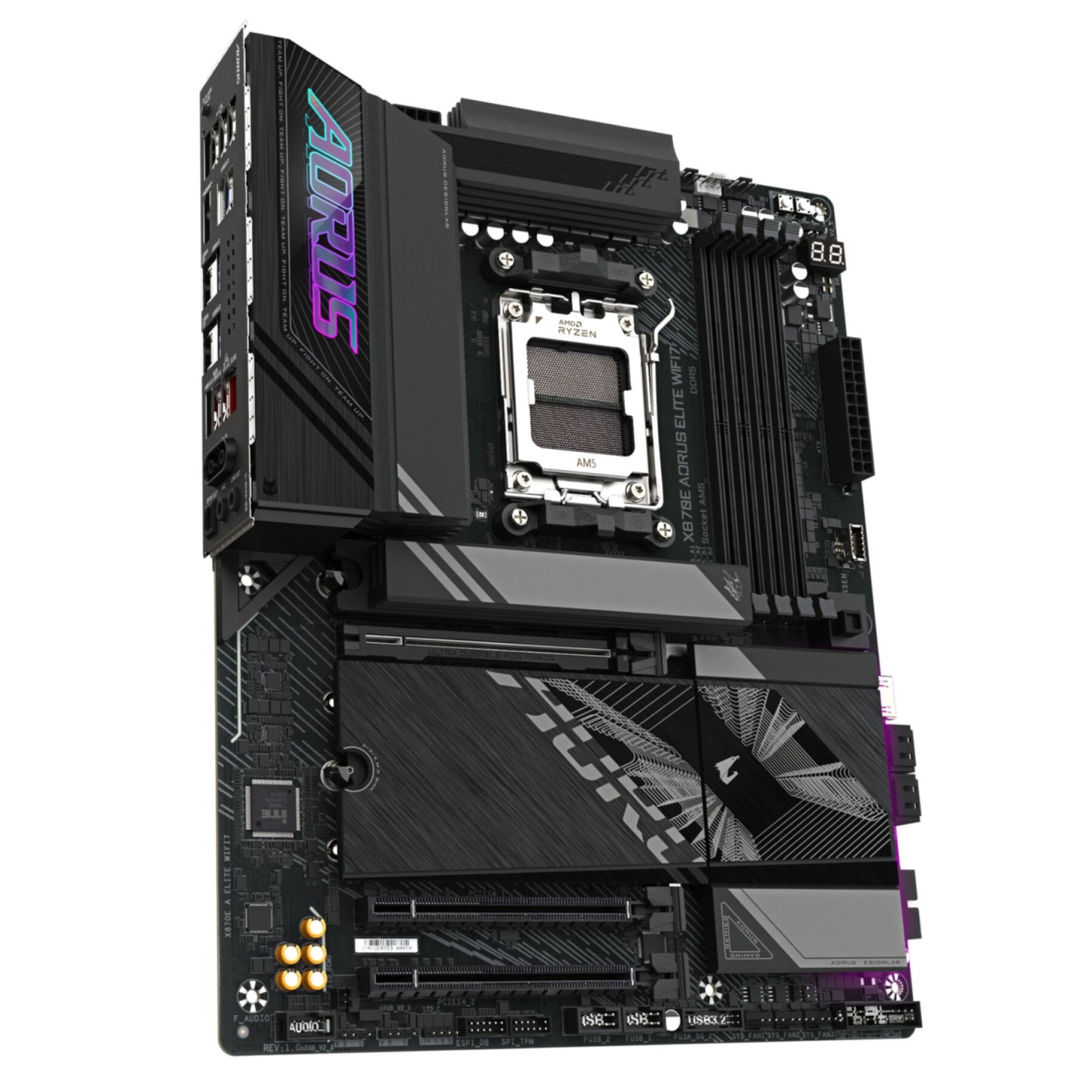

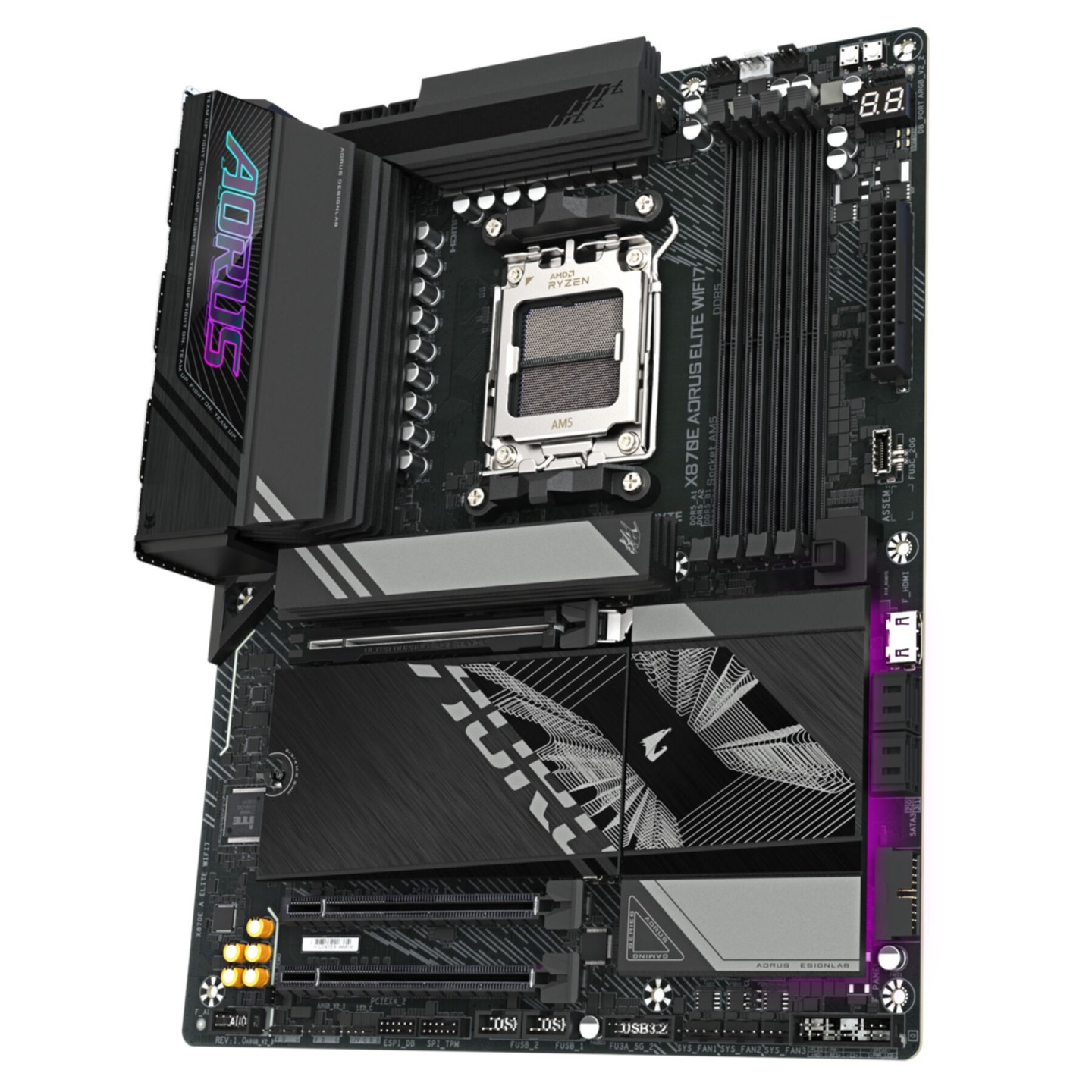

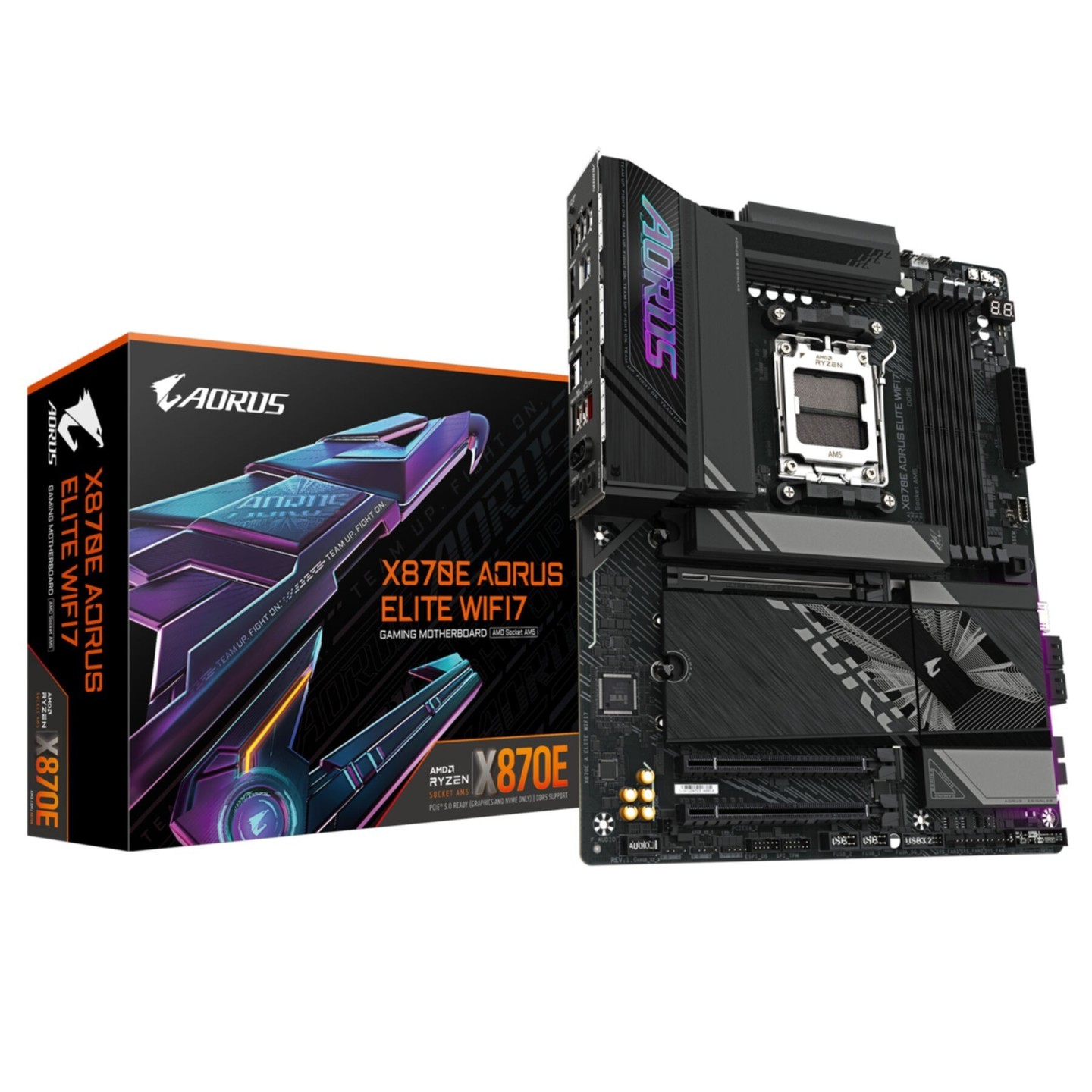

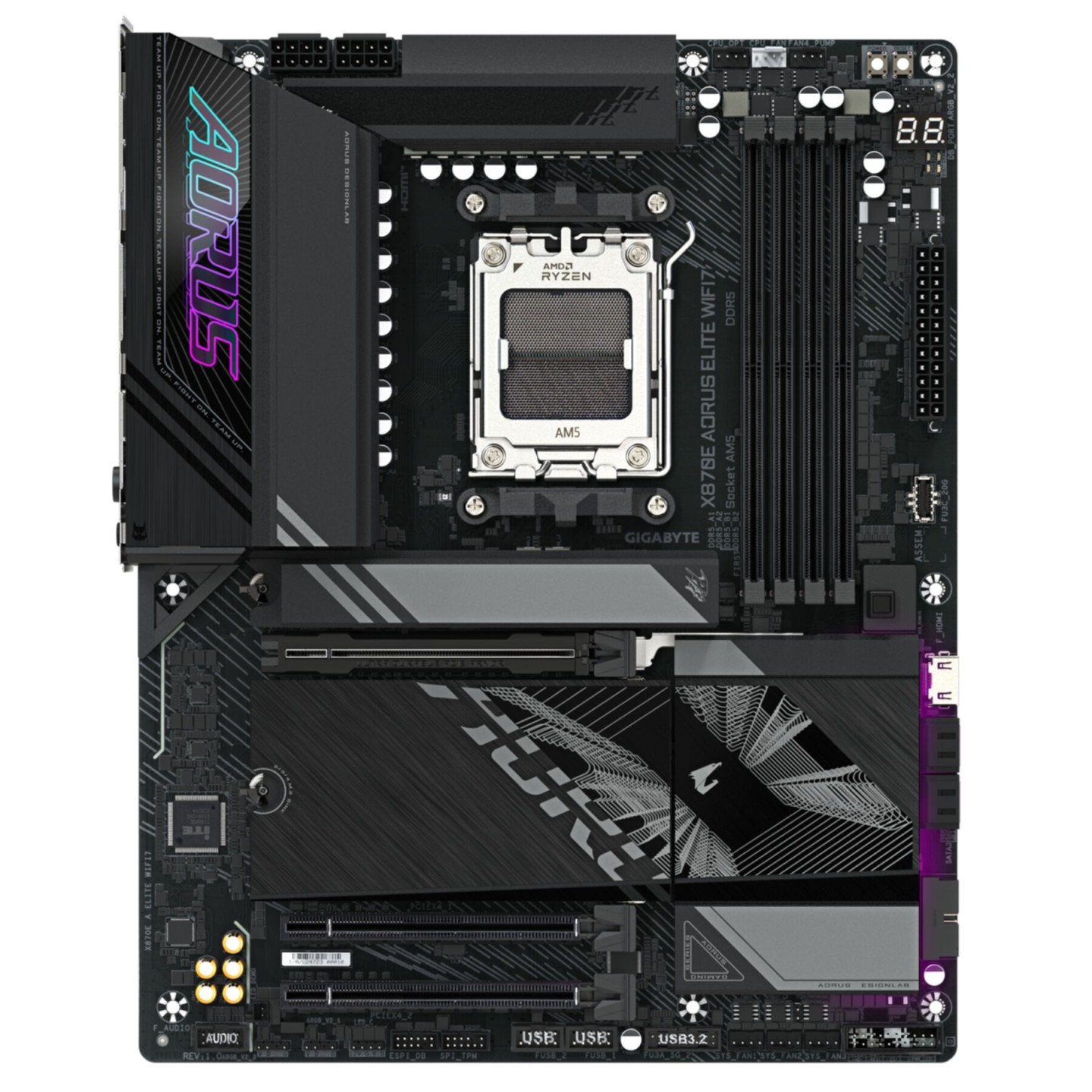

Gigabyte X870E AORUS Elite WiFi7 AM5 ATX Motherboard (Boxed)
Premium X870E ATX motherboard with PCIe 5.0 support, four M.2 slots, dual USB4, Wi-Fi 7, and 2.5Gb Ethernet for AMD Ryzen 7000/8000/9000 processors.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | AMD AM5 |
|---|---|
| Motherboards - Chipset | AMD X870E |
| Motherboards - Form Factor | ATX |
| Motherboards - Memory Type | DDR5 |
| Motherboards - Memory Profile Support | EXPO |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 256 GB |
| Motherboards - Main Slot PCIe Version | PCIe 5.0 |
| Motherboards - Color | Black |
| Motherboards - M.2 Slots | 4 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C Support | Rear Type-C |
| Motherboards - RGB Headers | 3-pin 5V ARGB 4-pin 12V RGB |
| Motherboards - Wireless Connectivity | Bluetooth WiFi |
The Gigabyte X870E AORUS Elite WiFi7 is a premium ATX motherboard designed for high-performance computing with AMD Ryzen 7000, 8000, and 9000 Series processors. Built on the X870E chipset, this board delivers exceptional connectivity and expansion capabilities with full PCIe 5.0 support for both graphics cards and NVMe storage, making it ideal for gamers, content creators, and enthusiasts seeking cutting-edge performance.
This motherboard features a robust 16+2+2 phase VRM with 60A stages and advanced thermal management through large aluminum heatsinks with 8mm heatpipes, ensuring stable power delivery even during overclocking. The board includes four M.2 slots (three PCIe 5.0 and one PCIe 4.0), dual USB4 ports (40Gbps each), Wi-Fi 7 connectivity, and 2.5Gb Ethernet for ultra-fast networking. With support for up to 256GB of DDR5 memory across four DIMM slots and comprehensive ease-of-use features like PCIe EZ-Latch Plus and EZ-Latch Click M.2 heatsinks, this motherboard simplifies system building while delivering professional-grade reliability.
Key features include:
- PCIe 5.0 certified primary x16 slot with reinforced design for heavy graphics cards
- Three PCIe 5.0 M.2 slots plus one PCIe 4.0 M.2 slot for ultra-fast NVMe storage
- Dual USB4 Type-C ports with DisplayPort Alt Mode support
- Wi-Fi 7 (802.11be) with directional ultra-high gain antennas
- 2.5Gb Ethernet with Realtek RTL8125 controller
- Bluetooth 5.4 for wireless peripherals
- Support for AMD EXPO memory profiles and up to 8200 MHz DDR5
- Advanced thermal armor and VRM cooling for stable overclocking
| Chipset | AMD X870E |
| CPU Socket | Socket AM5 (LGA 1718) |
| Compatible Processors | AMD Ryzen 7000, 8000, 9000 Series |
| Form Factor | ATX |
| Memory Type | DDR5-SDRAM |
| Memory Slots | 4 DIMM |
| Memory Channels | Dual-channel |
| Maximum Memory Capacity | 256 GB |
| Supported Memory Speeds | DDR5-4400 to DDR5-8200 MHz |
| Memory Profile Support | AMD EXPO |
| VRM Configuration | 16+2+2 Phase Digital VRM with 60A stages |
| VRM Controller | RT3678BE with doublers |
| M.2 Slots | 4 slots (3x PCIe 5.0 x4, 1x PCIe 4.0 x4) |
| M.2 Slot 1 Key Size | 2510 |
| M.2 Slot 2 Key Size | 2211 |
| M.2 Slot 3 Key Size | 2211 |
| M.2 Slot 4 Key Size | 2211 |
| SATA Ports | 4x SATA III |
| PCIe Slots | 3x PCIe x16 (1x Gen 5 x16, 1x Gen 4 x4, 1x Gen 3 x4) |
| Primary PCIe Slot | PCIe 5.0 x16 with reinforced design and metal armor |

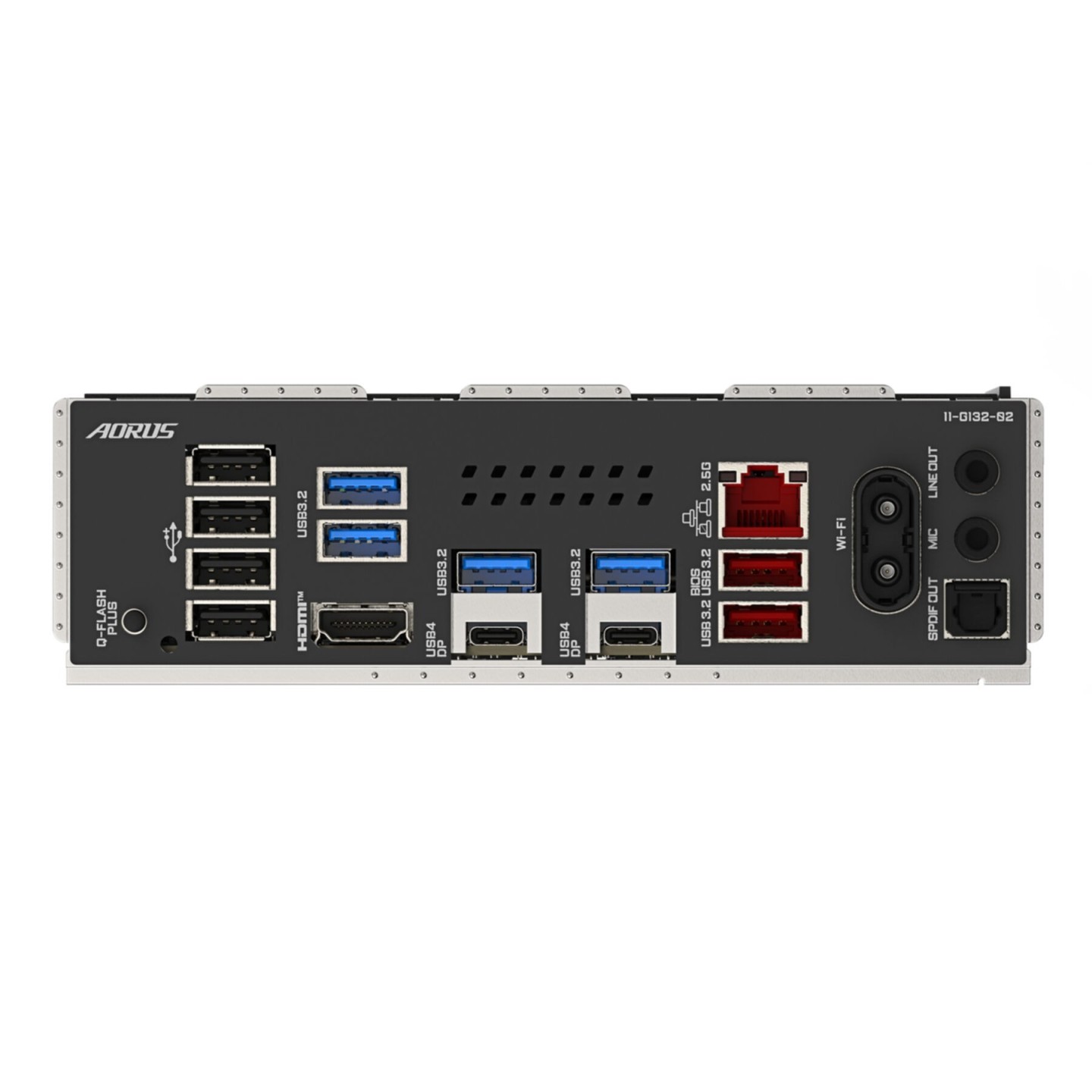

| USB Ports (Rear) | 2x USB 2.0, 4x USB 3.2 Gen 1 Type-A, 2x USB 3.2 Gen 2 Type-A, 2x USB4 Type-C (40Gbps) |
| USB Headers | 1x USB 3.2 Gen 2x2 (20 Gbps) Type-C, 2x USB 3.2 Gen 1 (5 Gbps), 2x USB 2.0 |
| Ethernet | 2.5Gb Ethernet (Realtek RTL8125) |
| Wi-Fi | Wi-Fi 7 (802.11be) with MediaTek MT7925 controller |
| Bluetooth | Bluetooth 5.4 |
| Audio Codec | Realtek ALC1220 HD Audio |
| Audio Channels | 7.1 channels |
| Video Outputs | 1x HDMI 2.1, 2x USB4 Type-C with DP Alt Mode |
| Power Connectors | 1x 24-pin ATX, 2x 8-pin EPS |
| Fan Headers | 2x CPU Fan (4-pin), 4x System Fan (4-pin), 2x Water Pump (4-pin) |
| RGB Headers | 4x 3-pin 5V ARGB, 1x 4-pin 12V RGB |
| BIOS | UEFI AMI, 256 Mbit |
| CMOS Battery | CR2032 Lithium-Manganese Dioxide |
| Motherboard Dimensions | 305 x 244 x 35 mm |
| Motherboard Weight | 2.4 kg |
| Color | Black |
| Warranty | 3 years |
| Included Accessories | Wi-Fi antennas, I/O shield, SATA cables, M.2 screws, documentation |
