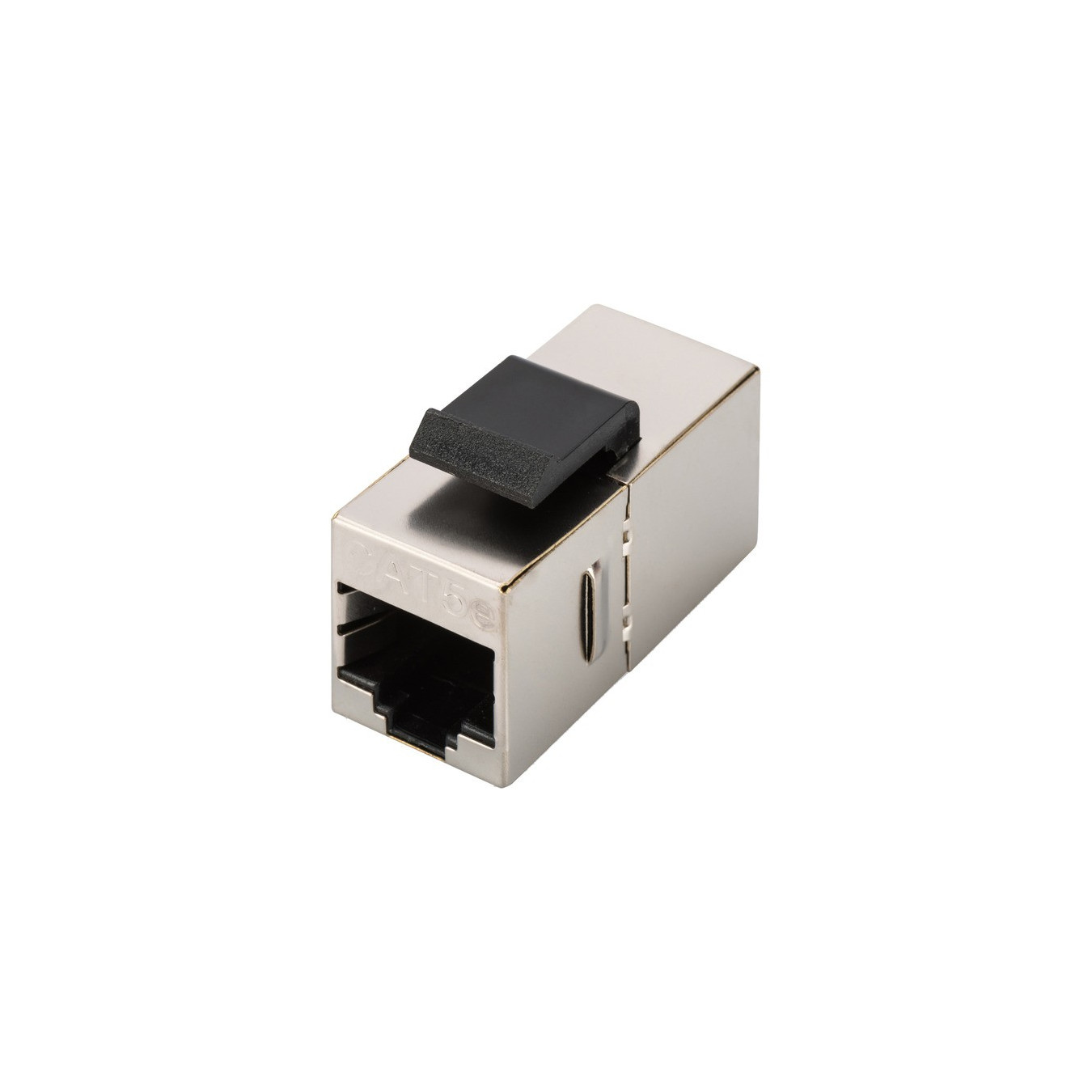

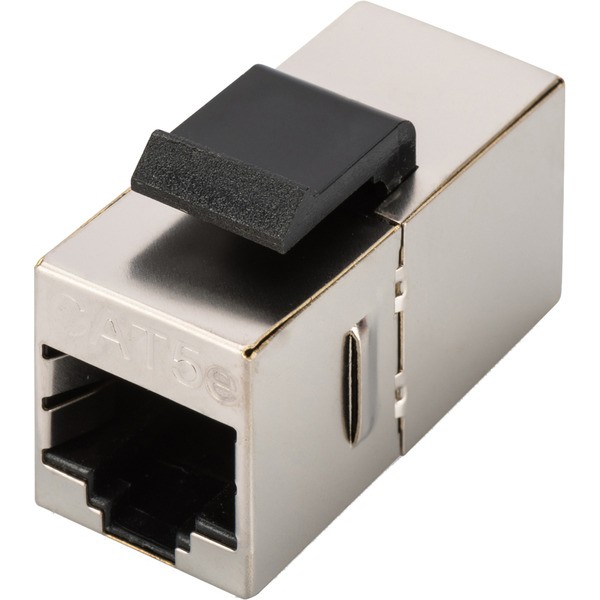

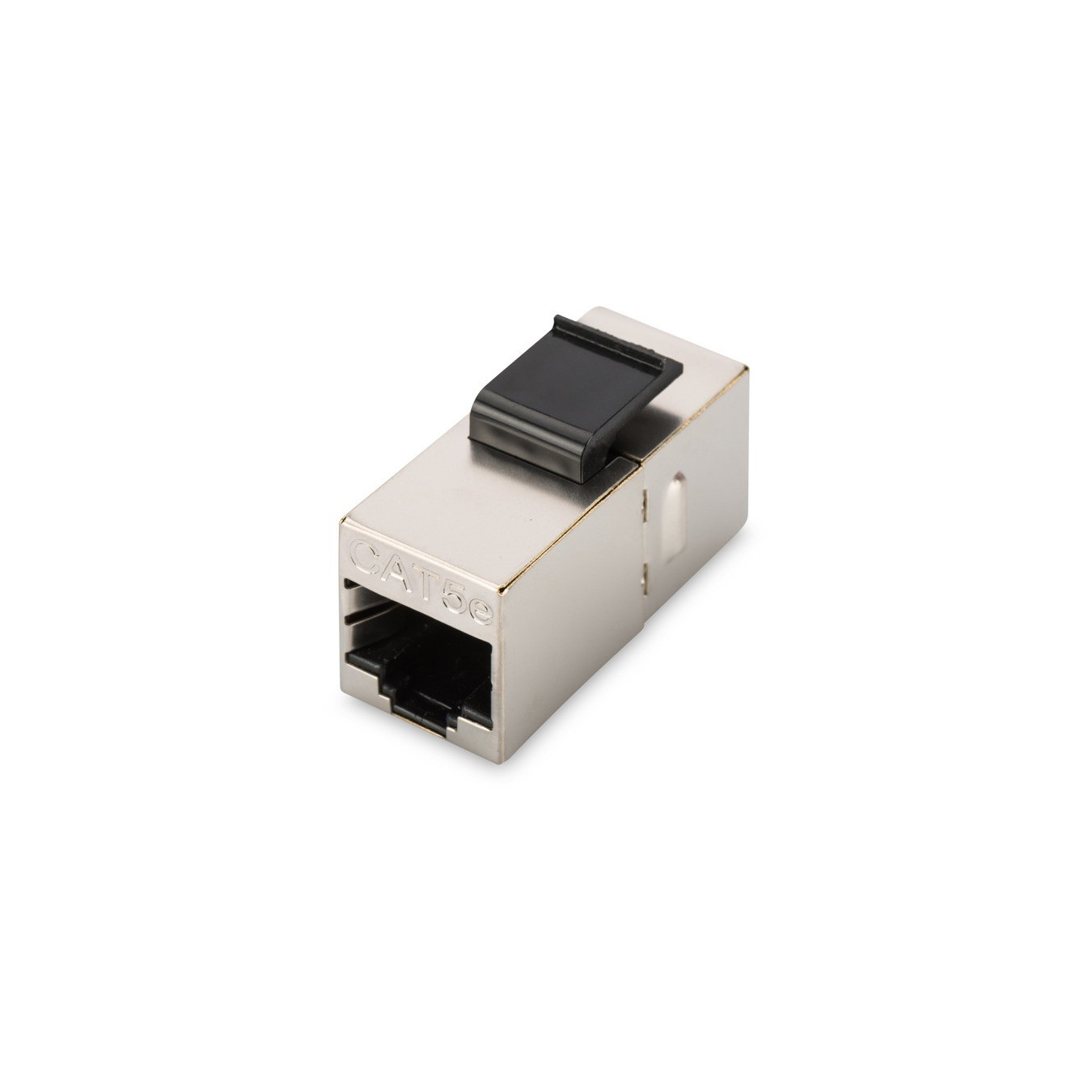

Cat.5e modular coupling, shielded
The modular Cat.5e coupling DN-93513 from DIGITUS consists of two shielded RJ-45 sockets. Occupancy is 1:1. It is used to quickly and easily extend patch cables and is suitable for...
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
The modular Cat.5e coupling DN-93513 from DIGITUS consists of two shielded RJ-45 sockets. Occupancy is 1:1. It is used to quickly and easily extend patch cables and is suitable for patch panel mounting. The RJ-45 sockets are shielded and offer optimal security. The coupling offers a long service life (mating cycles).
| Typ | coupling |
| EAN | 4016032245179 |
| Manufacturer no. | DN-93513 |
| Manufactured in | China |
| Application example | Quick, easy extension of patch cables for patch panels |
| Area | network |
| Connection - from | 1x RJ-45 (socket) |
| taps | 2 |
| Category - Plugs | Cat.5e |
| Characteristics | Adapter, extern |
| Feature | Up to 100 MHz, 10/100Base-T, 1GBase-T, suitable for 483mm (19") cabinet mounting |
| More information | 2x RJ-45 sockets 8P8C, 360° shield contact, 1:1 occupied, nickel-plated zinc die-cast housing, insertion force 30N max. (IEC 60603-7-5), tensile load 7.7kg between socket and plug, socket mating cycle > 750, insulation resistance > 500 Mohm, contact resistance < 20 MilliOhm |
