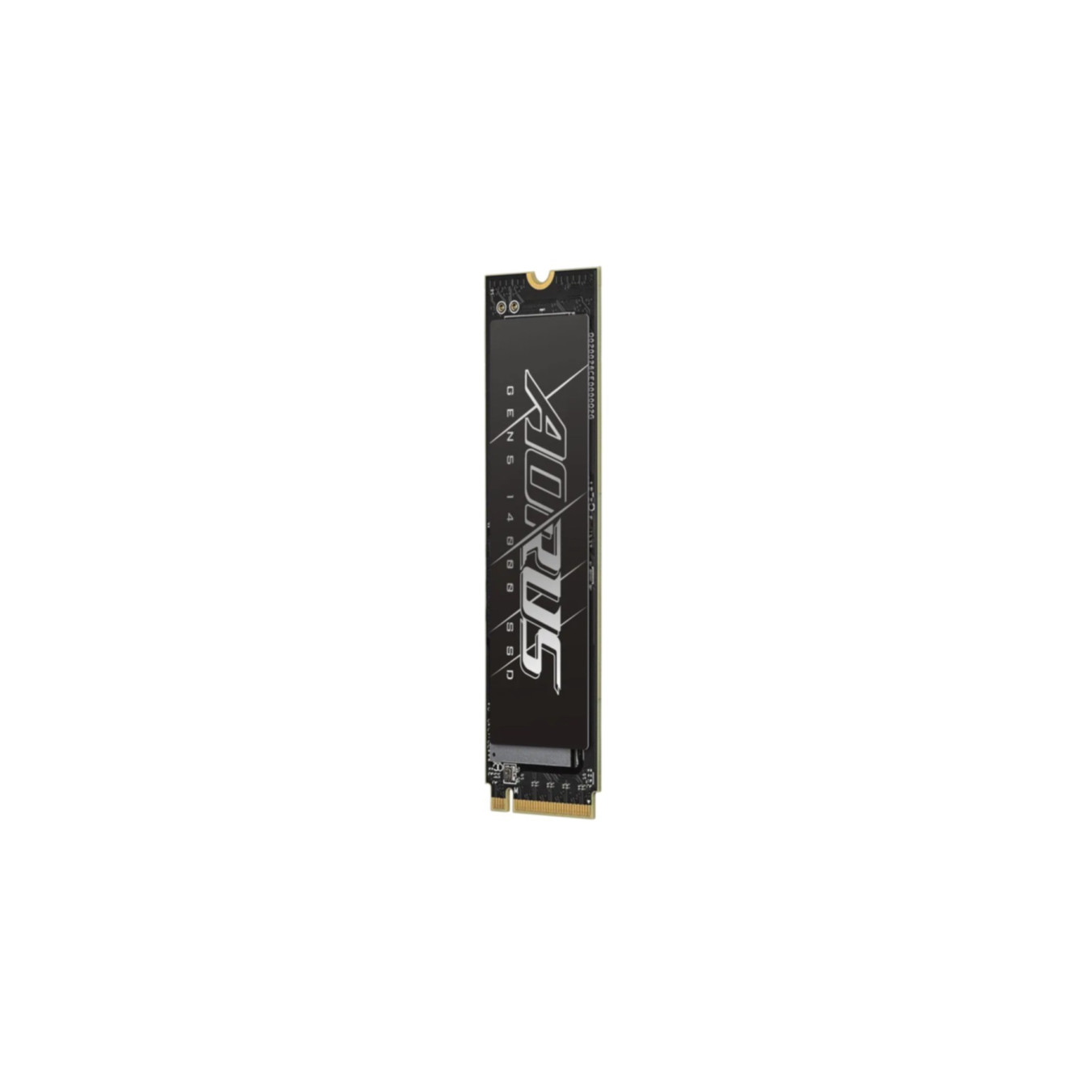

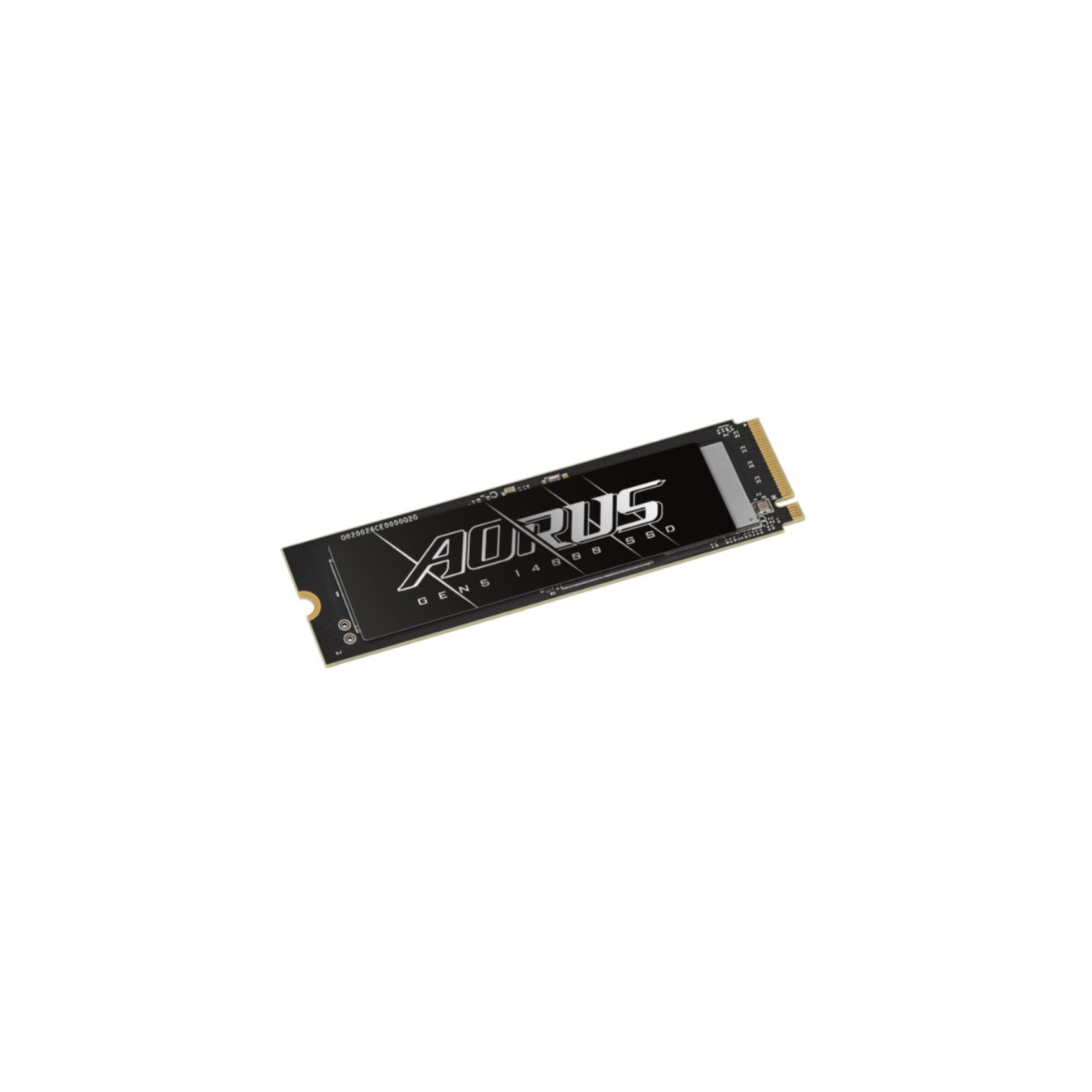

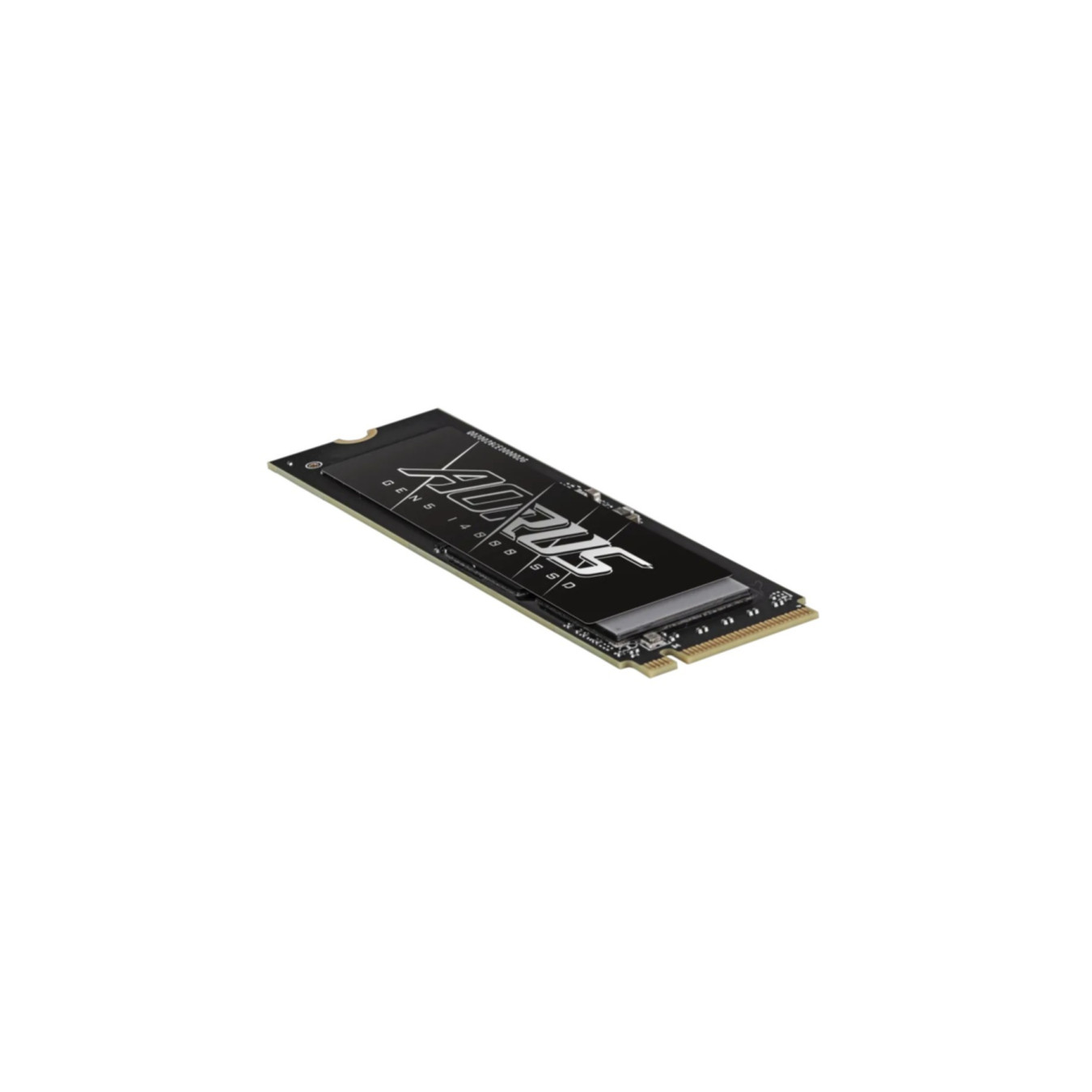

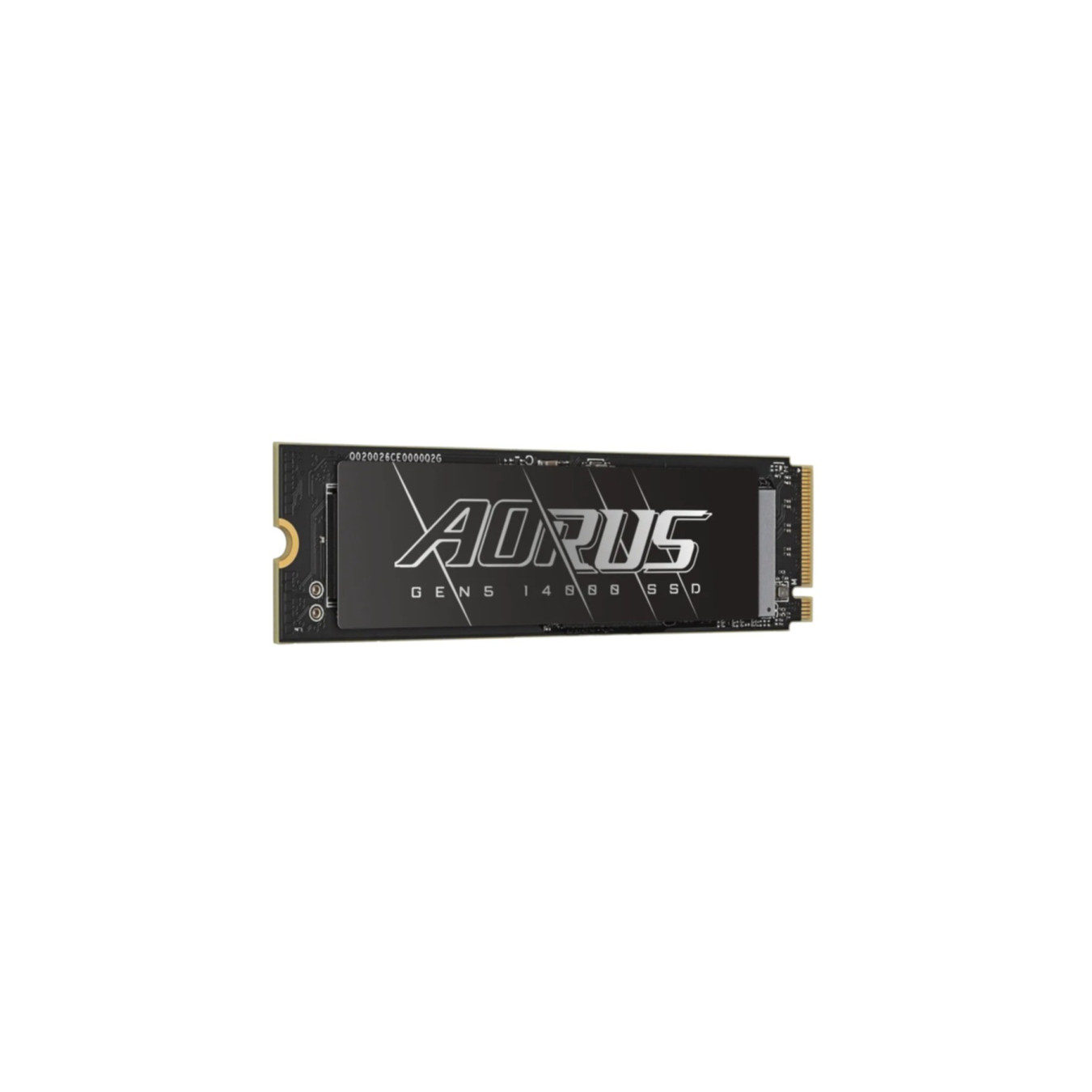

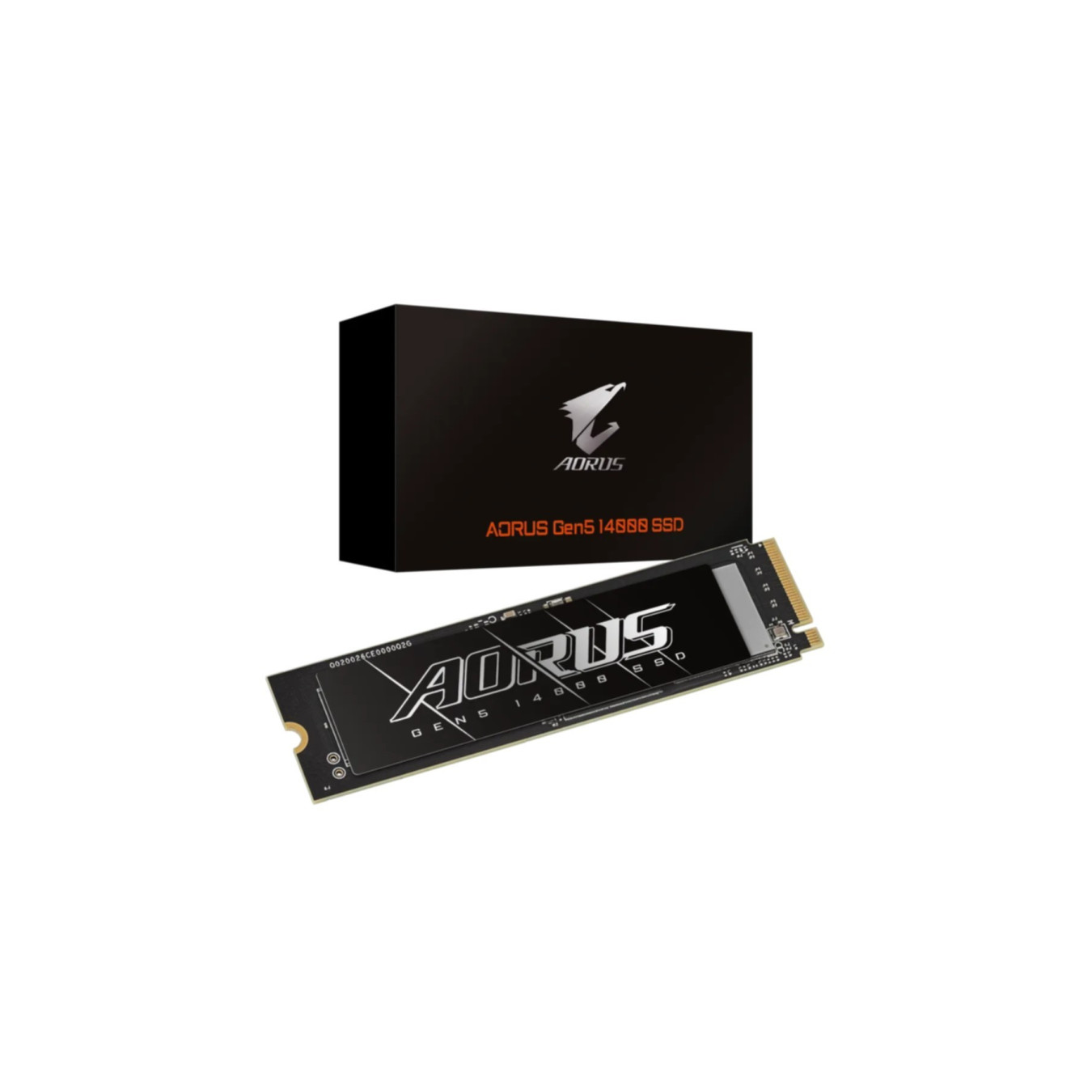

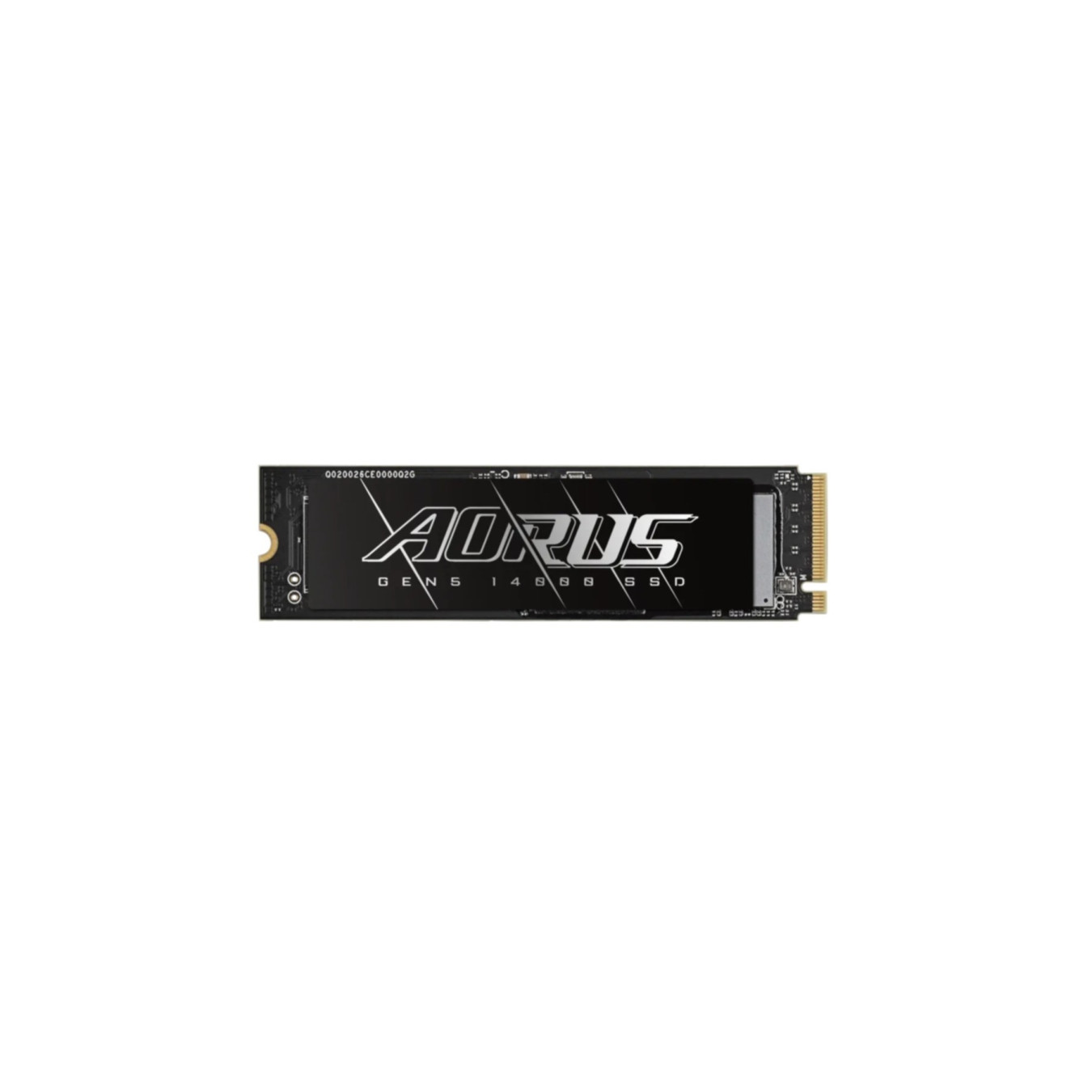

GIGABYTE AORUS Gen5 14000 - 2TB M.2 2280 NVMe PCIe Gen5 x4 (Black)
GIGABYTE AORUS Gen5 14000 — 2TB M.2 2280 NVMe PCIe Gen5 x4 SSD; up to 14,500 MB/s read and 12,700 MB/s write, Phison E26 controller, 3D TLC NAND.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Storage (SSD & HDD) - Type | SSD |
|---|---|
| Storage (SSD & HDD) - Capacity | 2TB |
| Storage (SSD & HDD) - Interface | NVMe PCIe Gen5 x4 |
| Storage (SSD & HDD) - Form Factor | M.2 2280 |
| Storage (SSD & HDD) - PCIe Version (SSD) | Gen5 |
| Storage (SSD & HDD) - PCIe Lanes (SSD) | x4 |
| Storage (SSD & HDD) - NVMe Version (SSD) | 2.0 |
| Storage (SSD & HDD) - NAND Type (SSD) | 3D TLC |
GIGABYTE AORUS Gen5 14000 SSD. SSD capacity: 2 TB. SSD form factor: M.2. Read speed: 14500 MB/s. Write speed: 12700 MB/s. Component for: PC/Laptop
| NVMe version | 2.0 |
| SSD capacity | 2 TB |
| SSD form factor | M.2 |
| Interface | PCI Express 5.0 |
| Feature | Waste Electrical and Electronic Equipment (WEEE) compliance |
| Memory type | 3D TLC NAND |
| Component for | PC/Laptop |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Read speed | 14500 MB/s |
| Write speed | 12700 MB/s |
| Controller type | Phison PS5026-E26 |
| Lithography | 12 nm |
| PCI Express interface data lanes | x4 |
| External DDR cache quantity | 4000 MB |
| Mean time between failures (MTBF) | 1600000 h |
| TBW rating | 1400 |
| Power consumption (read) | 11.5 W |
| Power consumption (write) | 11.5 W |
| Power consumption DevSlp (device sleep) | 144 mW |
| Width | 22 mm |
| Depth | 80 mm |
| Height | 2.3 mm |
| Package type | Box |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Product colour | Black |
| Compliance certificates | CE. EAC. Federal Communications Commission (FCC). UKCA |
