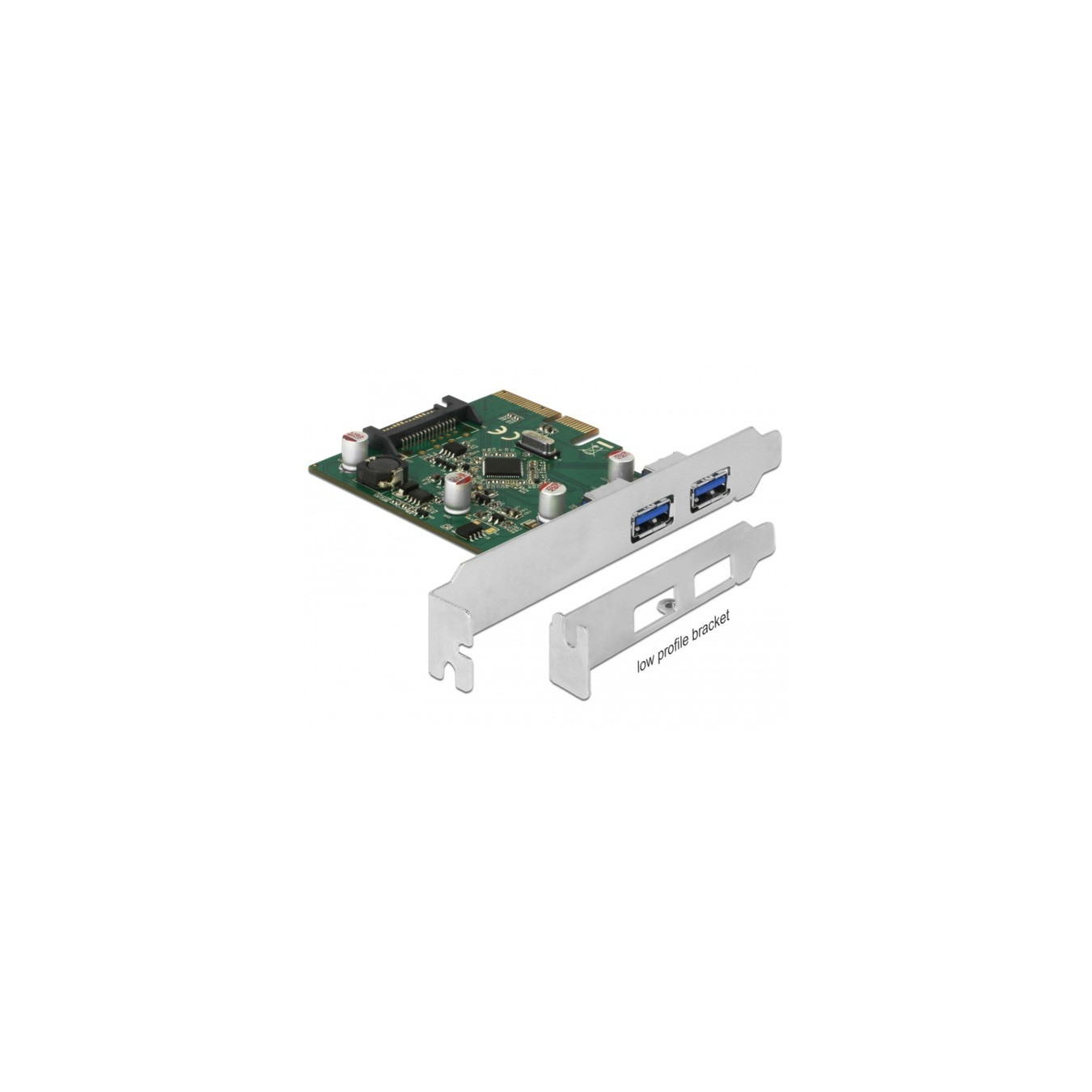

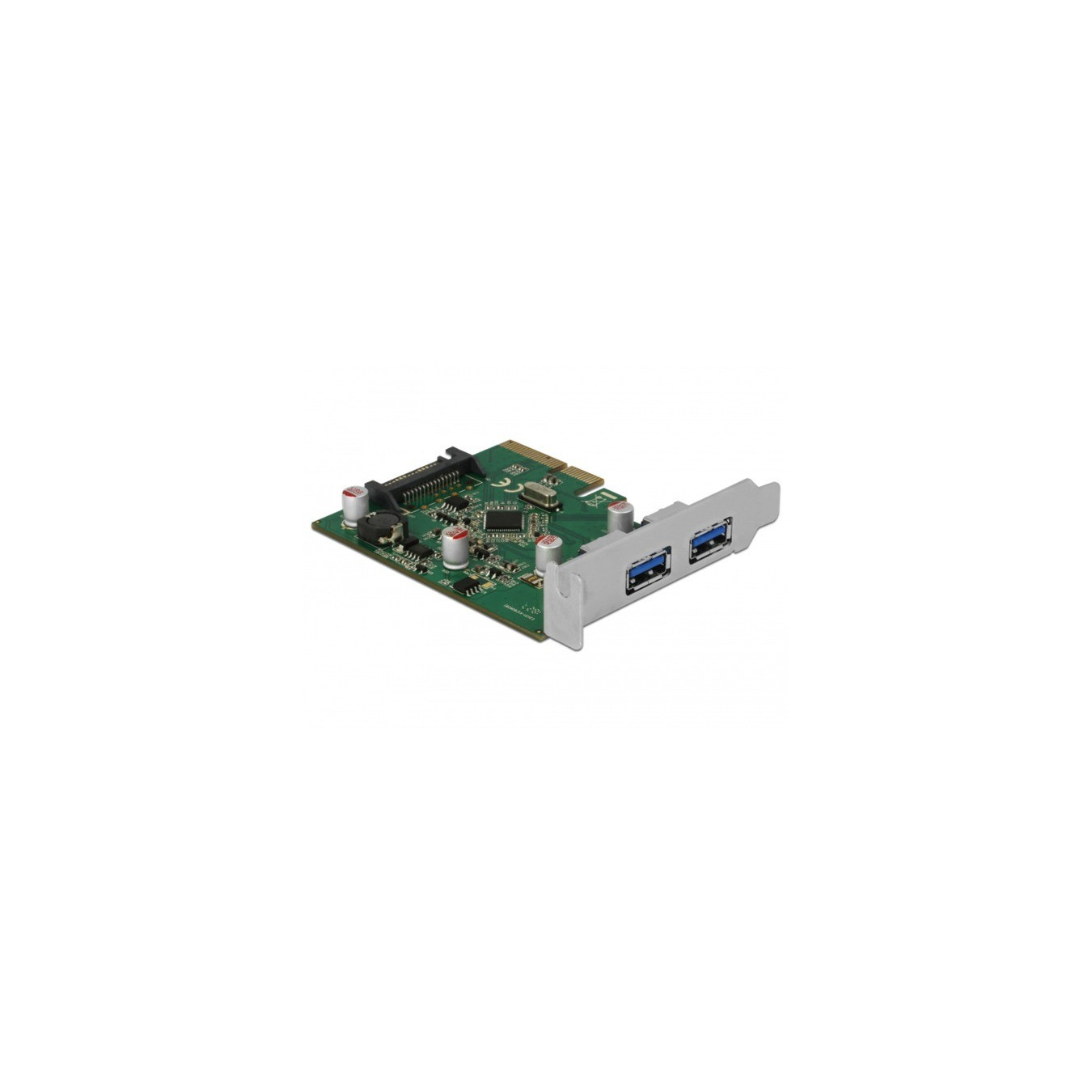

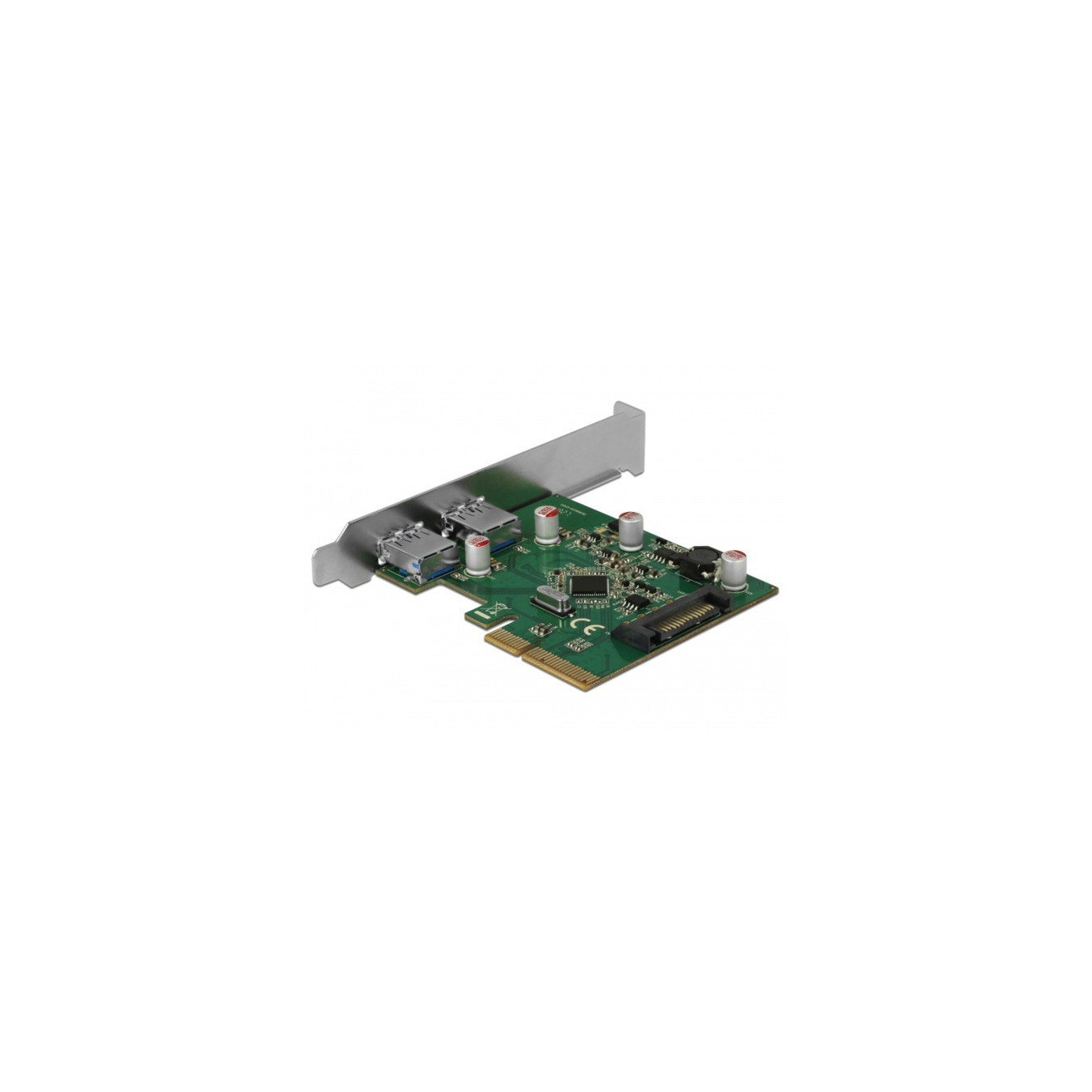

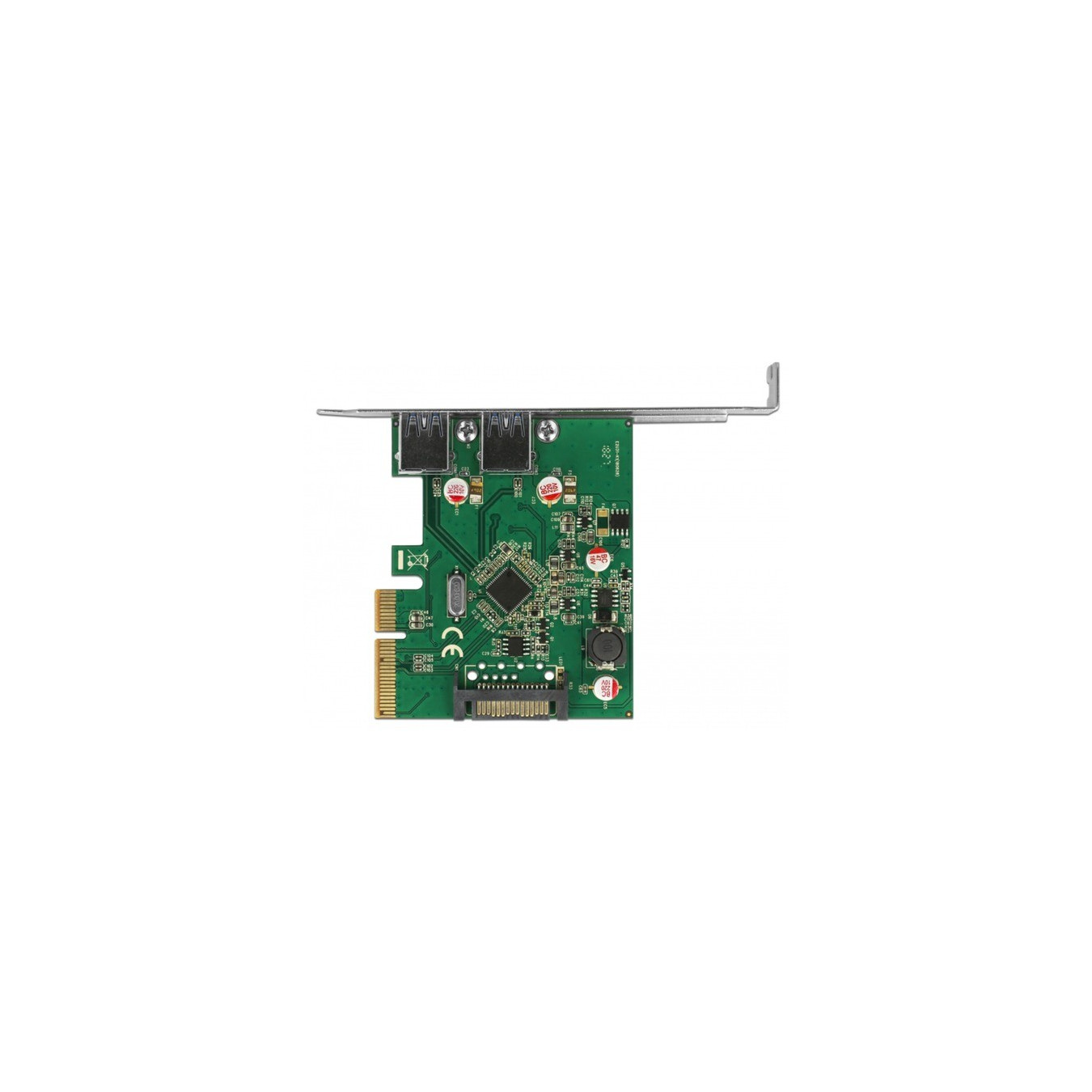

PCIe x4 to 2x ext USB 3.1 Gen2 A, USB-Controller
The PCI Express card from Delock expands the PC with two external USB 3.2 (10 Gbit/s) ports. Various USB Type-A devices, such as: B. docking stations, card readers, external housin...
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
The PCI Express card from Delock expands the PC with two external USB 3.2 (10 Gbit/s) ports. Various USB Type-A devices, such as: B. docking stations, card readers, external housings, etc., can be connected. The card enables a data transfer rate of 10 Gbps on both ports when used simultaneously.
| Typ | USB-Controller |
| EAN | 4043619902989 |
| Manufacturer no. | 90298 |
| Controller Art | USB 3.2 (10 Gbit/s) |
| slot | PCIe x4 Version 3,0 |
| Chip | Asmedia ASM3142 |
| Protocol | USB 3.2 Gen 2 (10 Gbit/s) |
| Connections - external | 2x USB A |
| directly usable devices | 2 |
| Feature | Power supply via PCI Express interface or via the SATA 15 pin power connector Electrical power per port: max. 4.5 watts (5 V / 900 mA) | Supports eXtensible Host Controller Interface (xHCI) specification 1.1 | Supports UASP | Supports multiple INs |
| Notice | The USB 3.2 ports (10 Gbit/s) correspond to the former USB 3.1 standard. |
| Weight | 205 Gramm |
