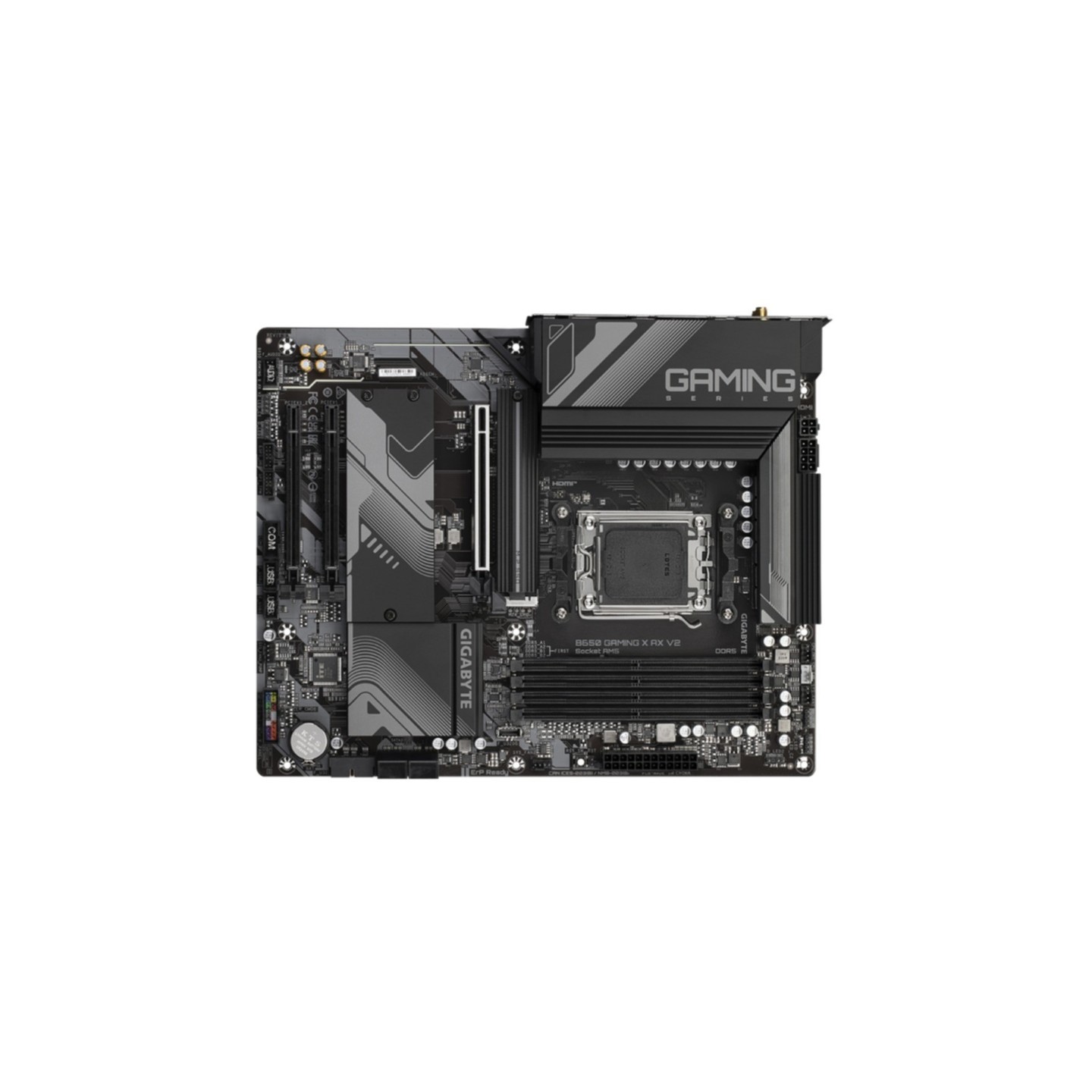

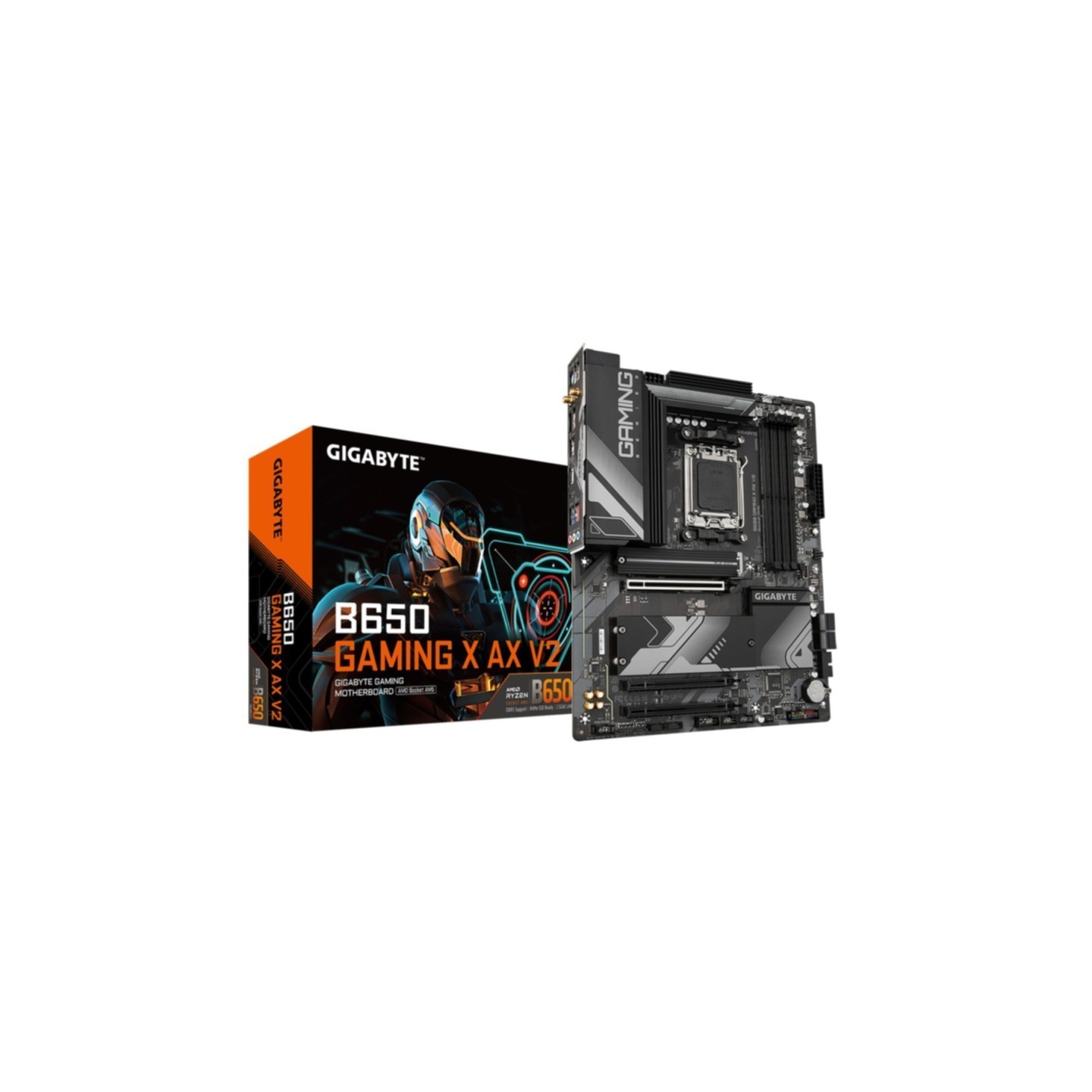

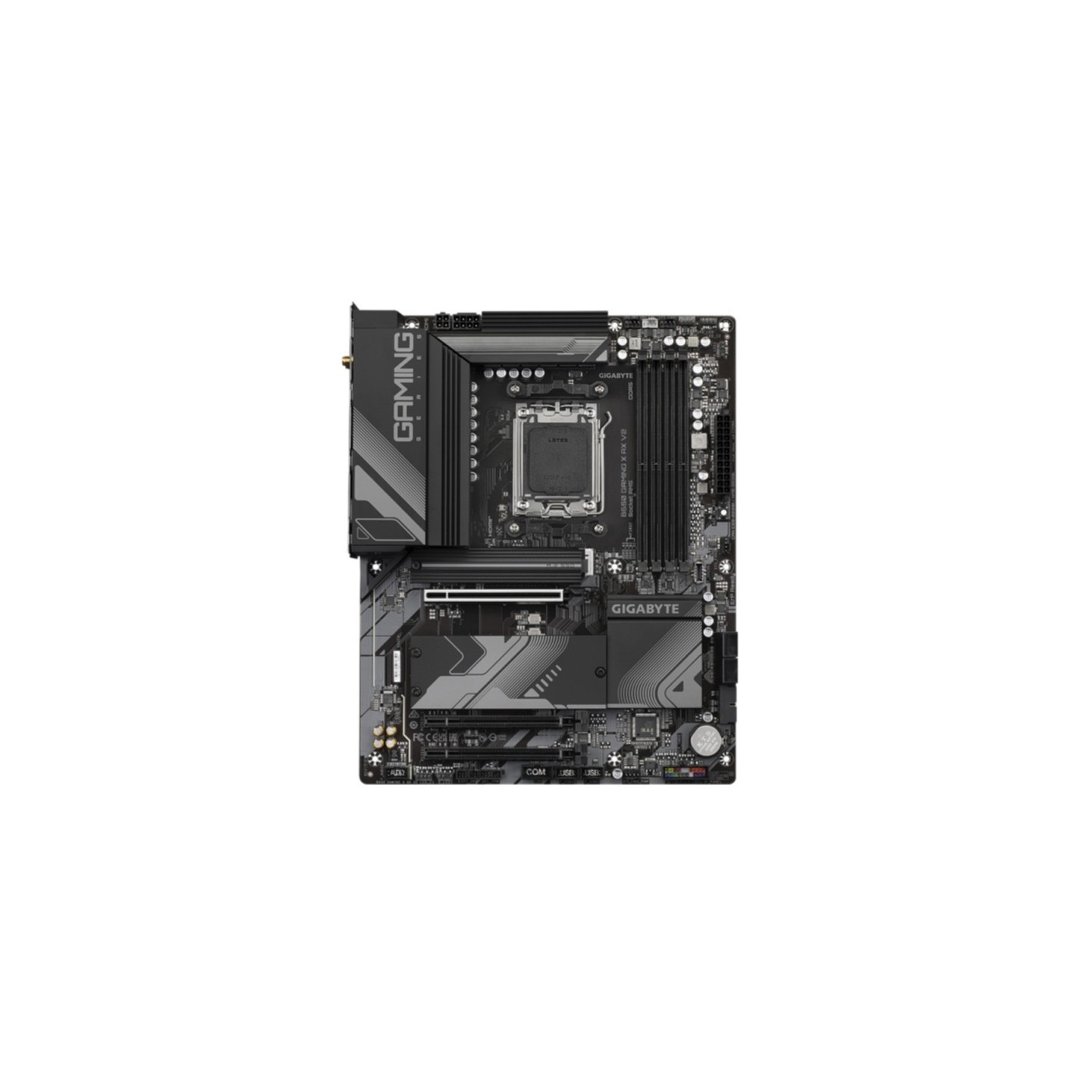

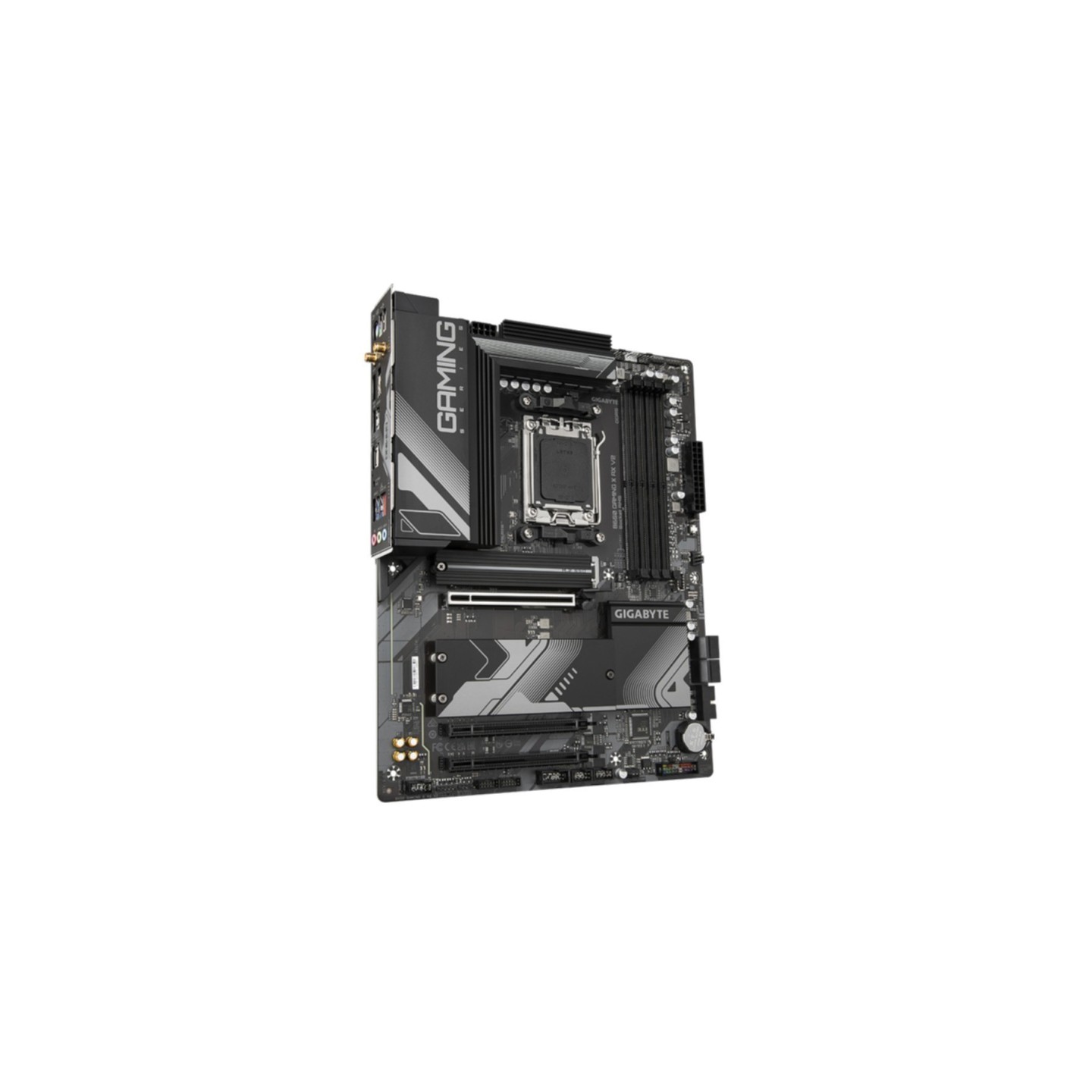

GIGABYTE B650 Gaming X AX V2 AM5 ATX DDR5 Motherboard (Boxed)
AMD B650 ATX motherboard for AM5 socket. Supports Ryzen 7000/8000/9000, DDR5 up to 256GB, PCIe 5.0 M.2, WiFi 6E, 2.5GbE. 8+2+2 VRM, EXPO/XMP, Q-Flash Plus.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | AMD AM5 |
|---|---|
| Motherboards - Chipset | AMD B650 |
| Motherboards - Form Factor | ATX |
| Motherboards - Memory Type | DDR5 |
| Motherboards - Memory Profile Support | EXPO XMP |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 256 GB |
| Motherboards - Main Slot PCIe Version | PCIe 5.0 |
| Motherboards - Color | Black |
| Motherboards - M.2 Slots | 3 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C Support | Front Panel Type-C header Rear Type-C |
| Motherboards - RGB Headers | 3-pin 5V ARGB 4-pin 12V RGB |
| Motherboards - Wireless Connectivity | Bluetooth WiFi |
The GIGABYTE B650 Gaming X AX V2 delivers robust performance for AMD Ryzen 7000/8000/9000 series processors on the AM5 platform. Featuring a direct 8+2+2 phase digital VRM with advanced thermal design, it ensures stable power delivery even under heavy loads or overclocking. Dual-channel DDR5 support with 4 DIMM slots (up to 256GB) includes AMD EXPO and Intel XMP profiles for easy memory overclocking.

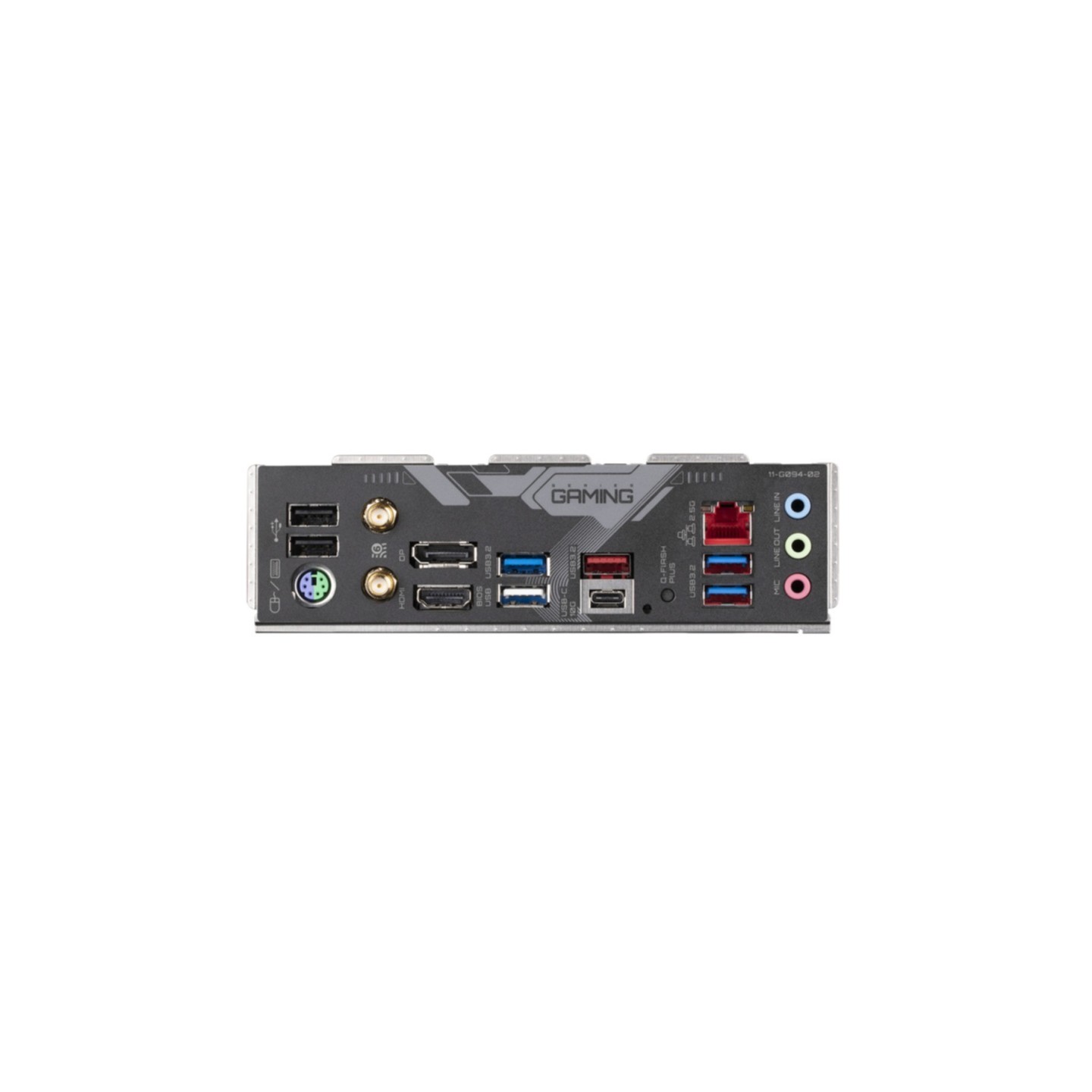

Storage options are future-proofed with 3x M.2 slots (1x PCIe 5.0 x4, 2x PCIe 4.0 x4) featuring M.2 Thermal Guard, plus 4x SATA III ports. Connectivity shines with Realtek 2.5GbE LAN, Wi-Fi 6E (MediaTek MT7922), Bluetooth 5.3, rear USB-C 10Gbps, front USB-C 20Gbps header, HDMI 2.1, and DisplayPort 1.4. Smart Fan 6 provides hybrid fan headers with FAN STOP for quiet operation.
- ✅ PCIe 5.0 M.2 + Q-Flash Plus for BIOS updates without CPU/RAM/GPU
- ✅ EZ-Latch PCIe x16 slot for easy GPU installation
- ✅ 5x ARGB + RGB headers for custom lighting
- ✅ Hi-Fi audio with Realtek ALC897 7.1-channel and noise guard
- ✅ Over 2600 reviews averaging 4.5 stars for reliability[1][5]
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Motherboard chipset | AMD B650 |
| Motherboard form factor | ATX |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Maximum internal memory | 256 GB |
| Memory channels | Dual-channel |
| Supported memory clock speed (max) | 8000 MHz (OC) |
| Number of M.2 (M) slots | 3 |
| 1st M.2 highest PCI Express generation | 5.0 |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Bluetooth | Yes |
| VRM Phases | 8+2+2 Digital |
| Memory Profile Support | AMD EXPO, Intel XMP |
| BIOS Flashback | Q-Flash Plus |
| Fan Headers | Multiple Hybrid with Smart Fan 6 |
| RGB LED pin headers | 5 |
| Audio chip | Realtek ALC897 |
| Package weight | 2.16 kg |
| Warranty period | 3 year(s) |
