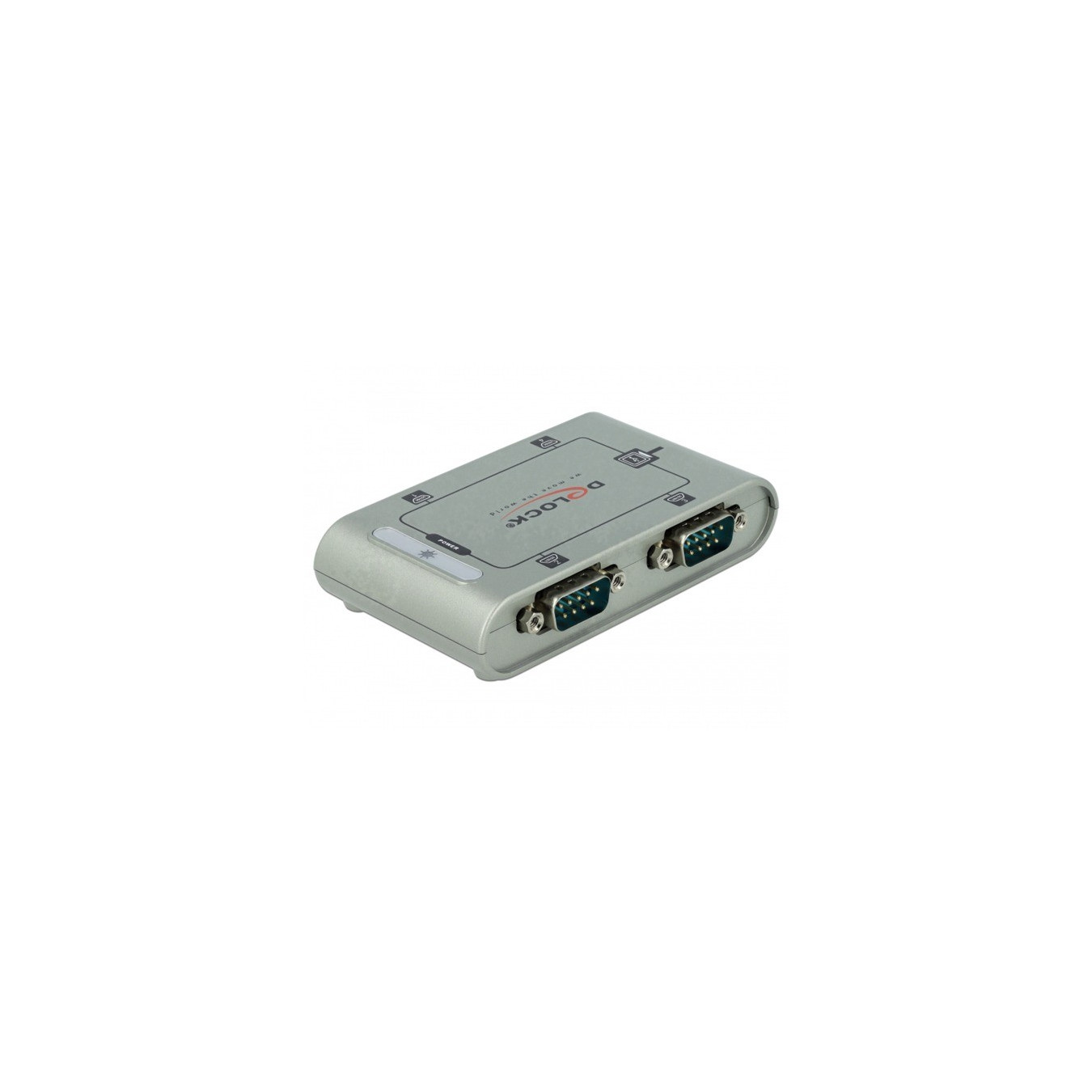

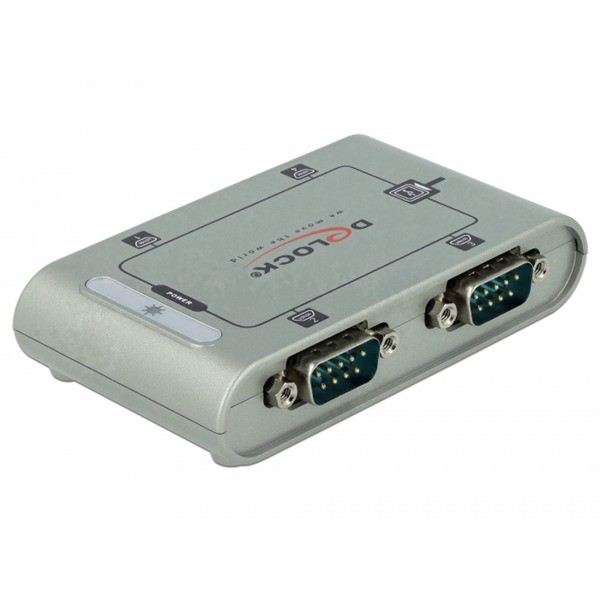

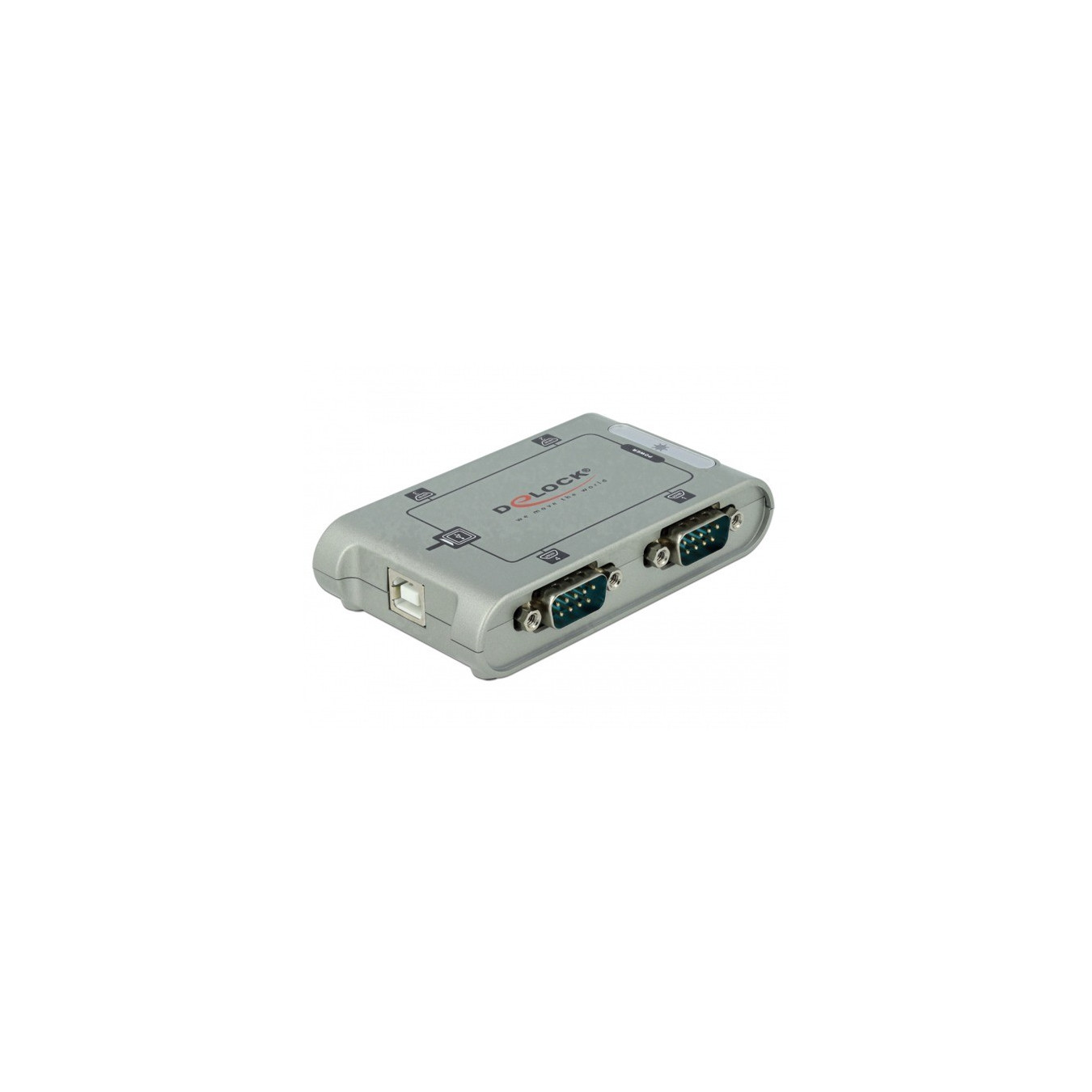

USB 2.0 adapter, USB-A connector to 4x serial RS-232 connector

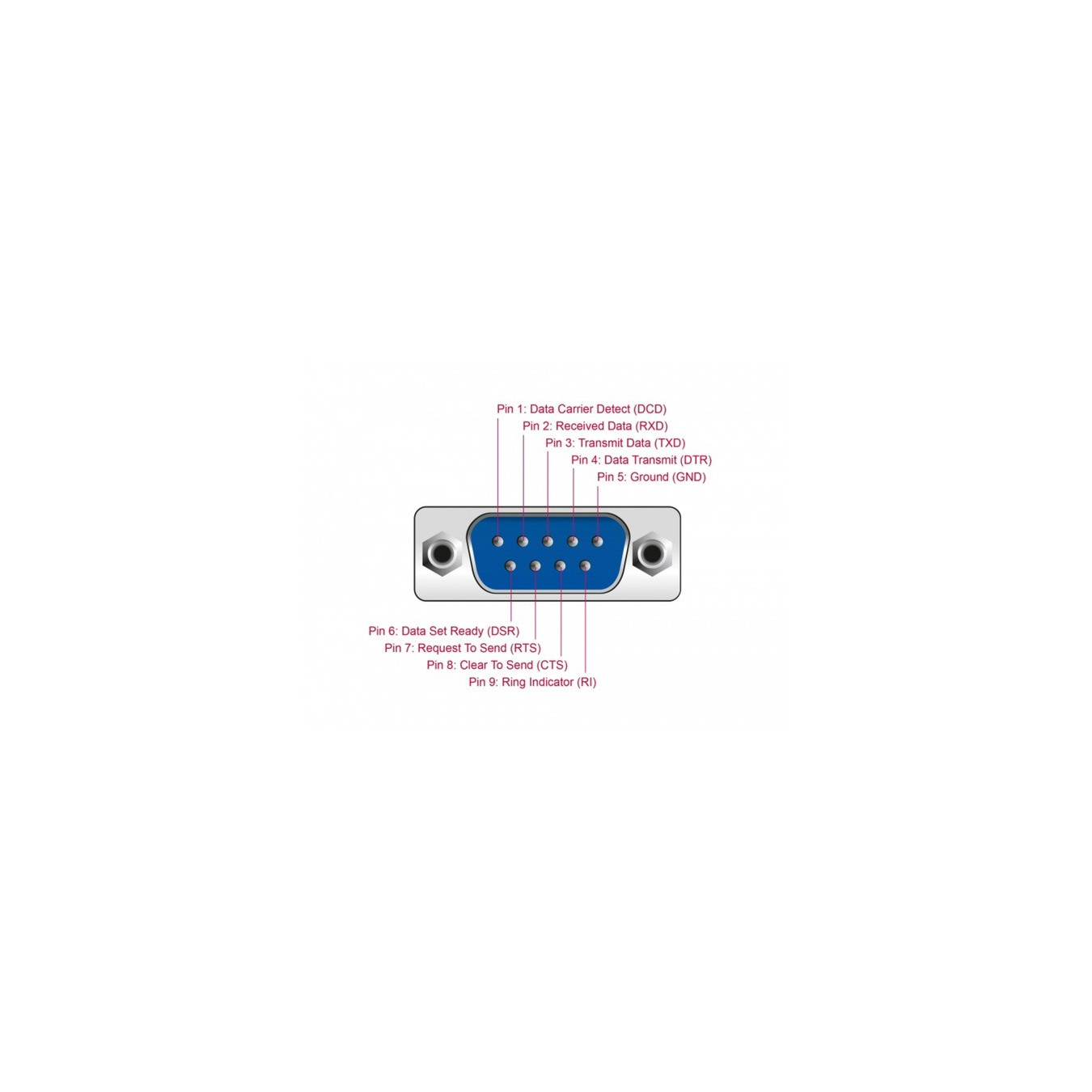

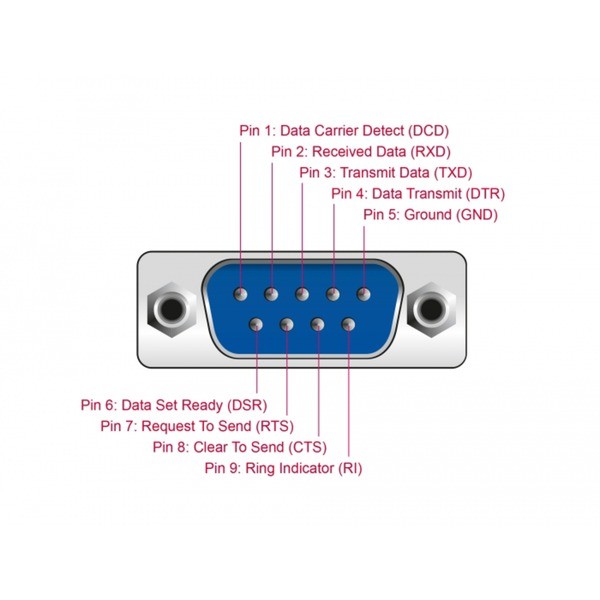

The USB 2.0 to serial adapter 87414 from Delock enables the connection of up to 4 serial devices with RS-232 DB9 sockets to a free USB port on the PC or notebook.
Item no.: 1781027
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
The USB 2.0 to serial adapter 87414 from Delock enables the connection of up to 4 serial devices with RS-232 DB9 sockets to a free USB port on the PC or notebook.
| Typ | Adapter |
| Color | silber |
| EAN | 4043619874149 |
| Manufacturer no. | 87414 |
| Manufactured in | China |
| Application example | For connecting 4 serial RS-232 devices via USB |
| Area | Data transfer |
| Connection - from | 1x USB-A (Stecker) |
| Protocol | USB 2.0 |
| taps | 5 |
| Characteristics | Adapter, extern |
| Feature | LED display, plug & play |
| More information | Chipset: ASIX / Moschip MCS 7840, serial connector with nuts, data transfer rate up to 921.6 Kbps, automatic selection of IRQ and I/O addresses, four 16C450 / 16C550 compatible UARTs, supports FIFO 512 bytes per port (receive / send), data transmission asynchronous, full duplex |
| Notice | System requirements: Windows Server 2003, Windows 2000 / XP / Vista / Vista-64 / 7 / 7-64 / 8.1 / 8.1-64 / 10 / 10-64 / 11 |

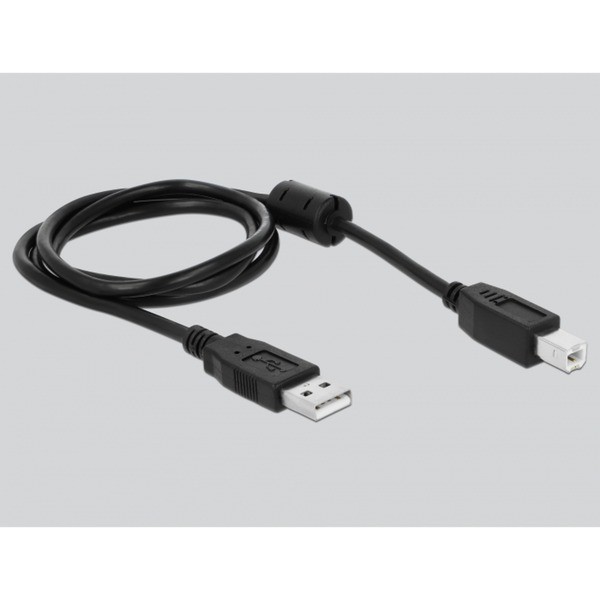

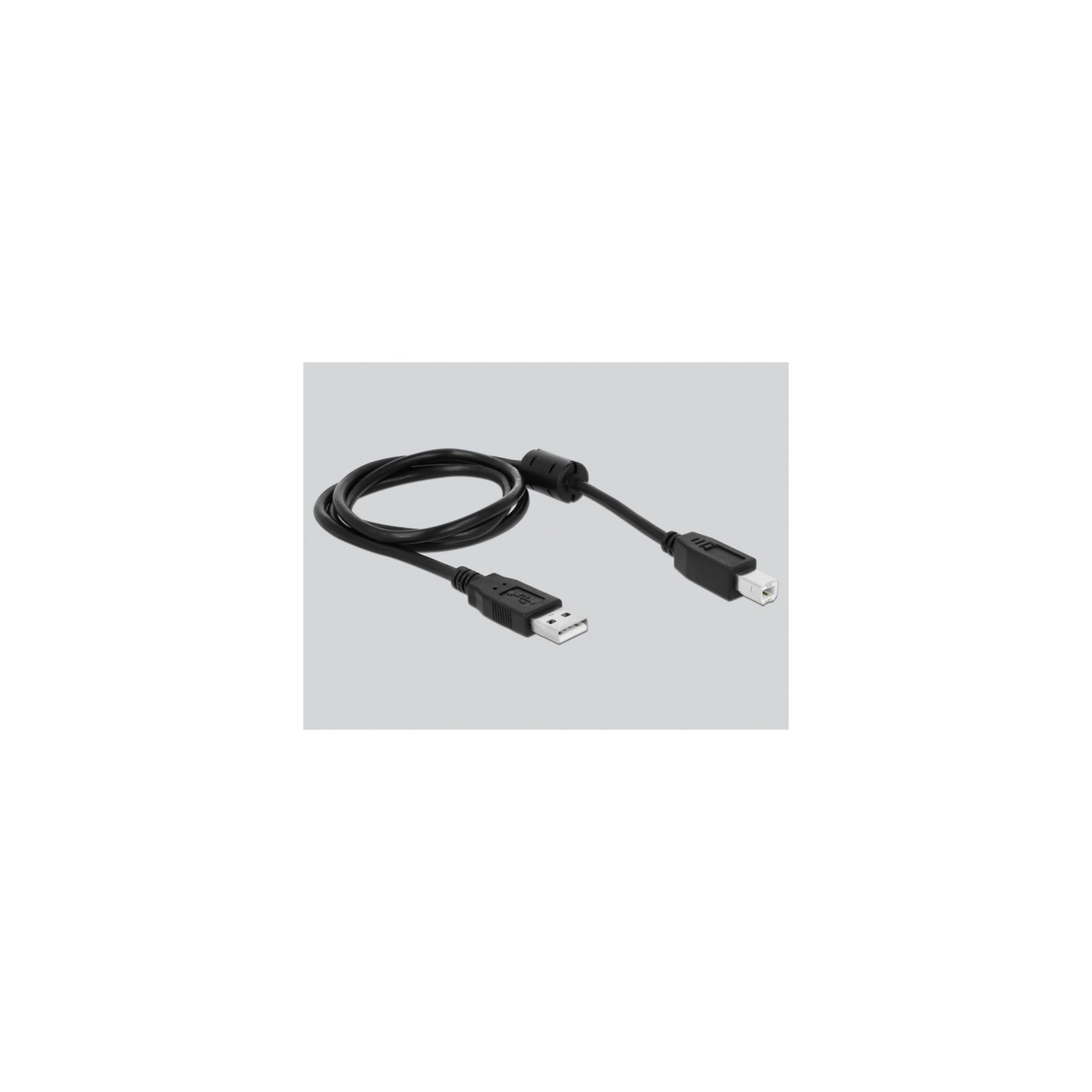

| Accessories - available | USB 2.0 cable (1 meter), driver CD, user manual |
| Dimensions | Width: 60mm x Height: 20mm x Depth/Length: 95mm |
| Cable length | 1 Meter |
