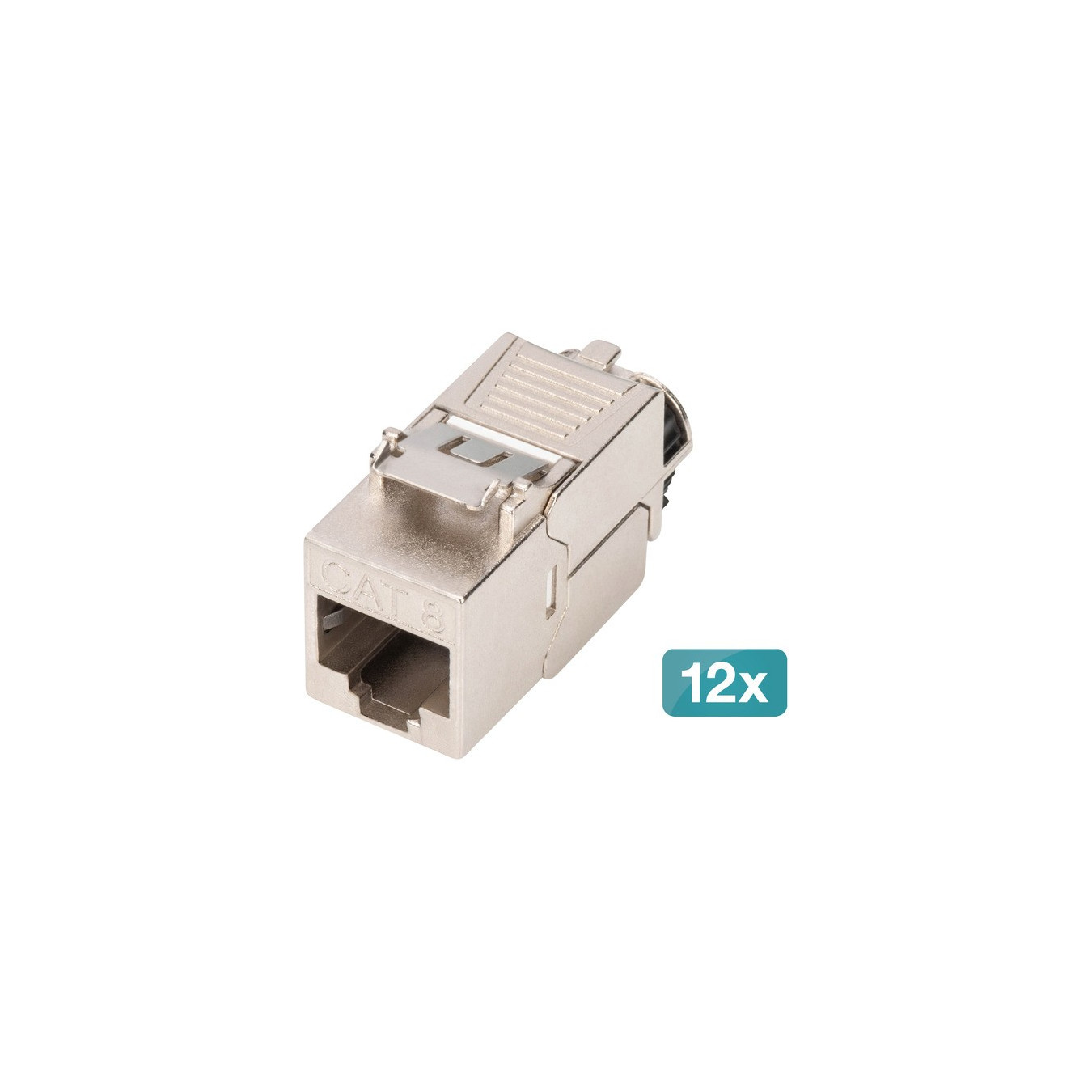

Keystone module Cat. 8.1, shielded, 12 pieces
The Cat. 8.1 Keystone Module DN-93816 from DIGITUS is a shielded keystone module with a tool-free mounting connection that offers excellent performance and connection quality. The ...
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
The Cat. 8.1 Keystone Module DN-93816 from DIGITUS is a shielded keystone module with a tool-free mounting connection that offers excellent performance and connection quality. The compact design allows a series installation of 24 pieces in a 483mm (19") 1U panel. It offers 25 / 40GBase-T transmission speeds in permanent link up to 24 meters and channel link up to 30 meters. Especially for ToR and MoR cabling in data centers.
| Typ | Keystone-Modul |
| Color | silber |
| EAN | 4016032495215 |
| Manufacturer no. | DN-93816-12 |
| Manufactured in | China |
| Form | Keystone-Modul |

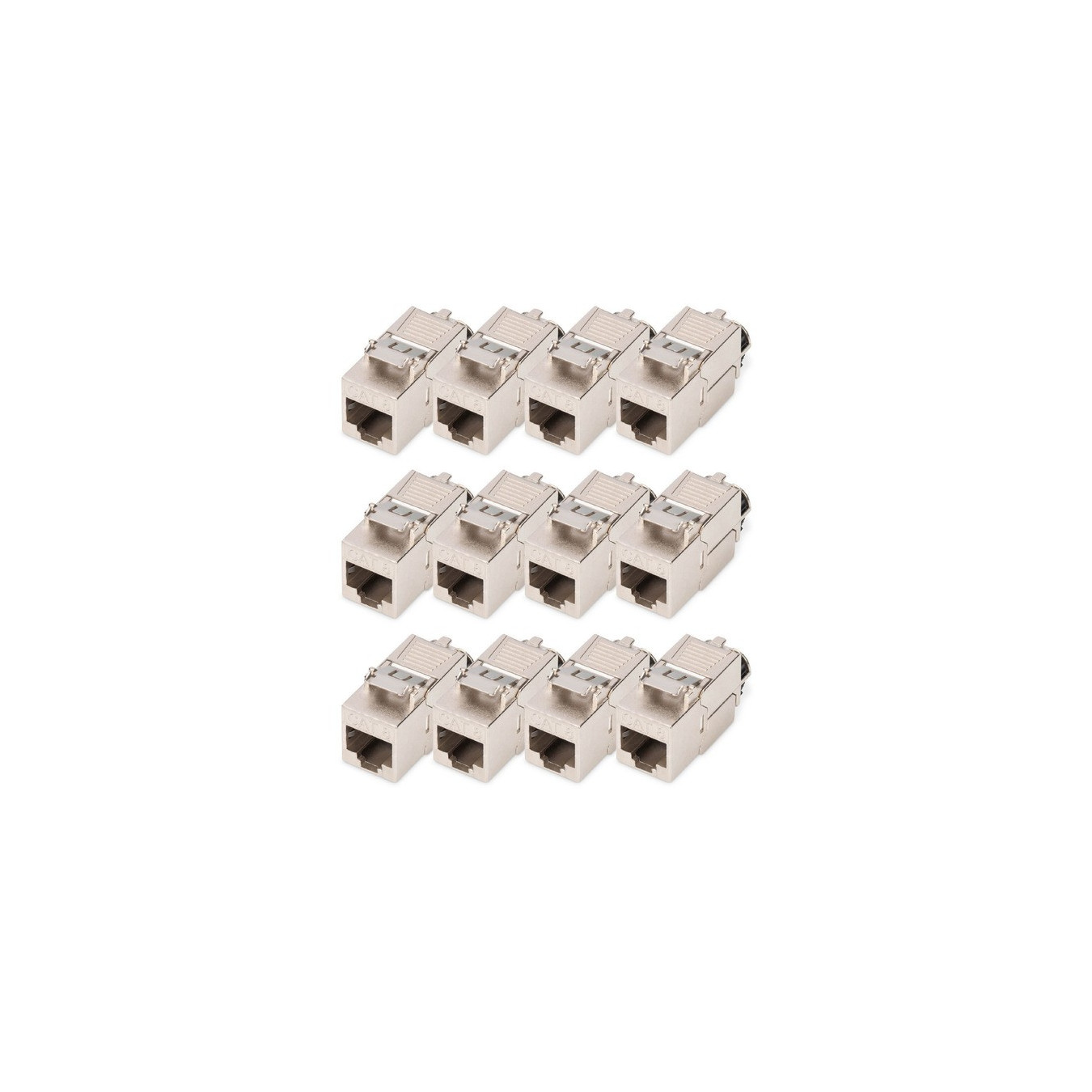

| Number | 12 pieces |
| Application example | For distribution panel and junction box assembly |
| Area | network |
| Connection - from | 1x RJ-45 (socket) |
| Category - Plugs | Cat.8.1 |
| Characteristics | Set |
| Feature | Tool-free mounting connection, cable installation via LSA strips, color coded according to EIA/TIA 568 A & B |
| More information | 360° shield contact, wire intake: 22-26 AWG solid and stranded conductors, suitable for IEEE 802.3 af/at/bt - PoE, PoE+ & 4PPoE (in permanent link), up to 2000 MHz, 25/40GBase-T |
| Dimensions | Width: 14.5mm x Height: 21mm x Depth/Length: 34.5mm |
| Weight | 22 Gramm |
