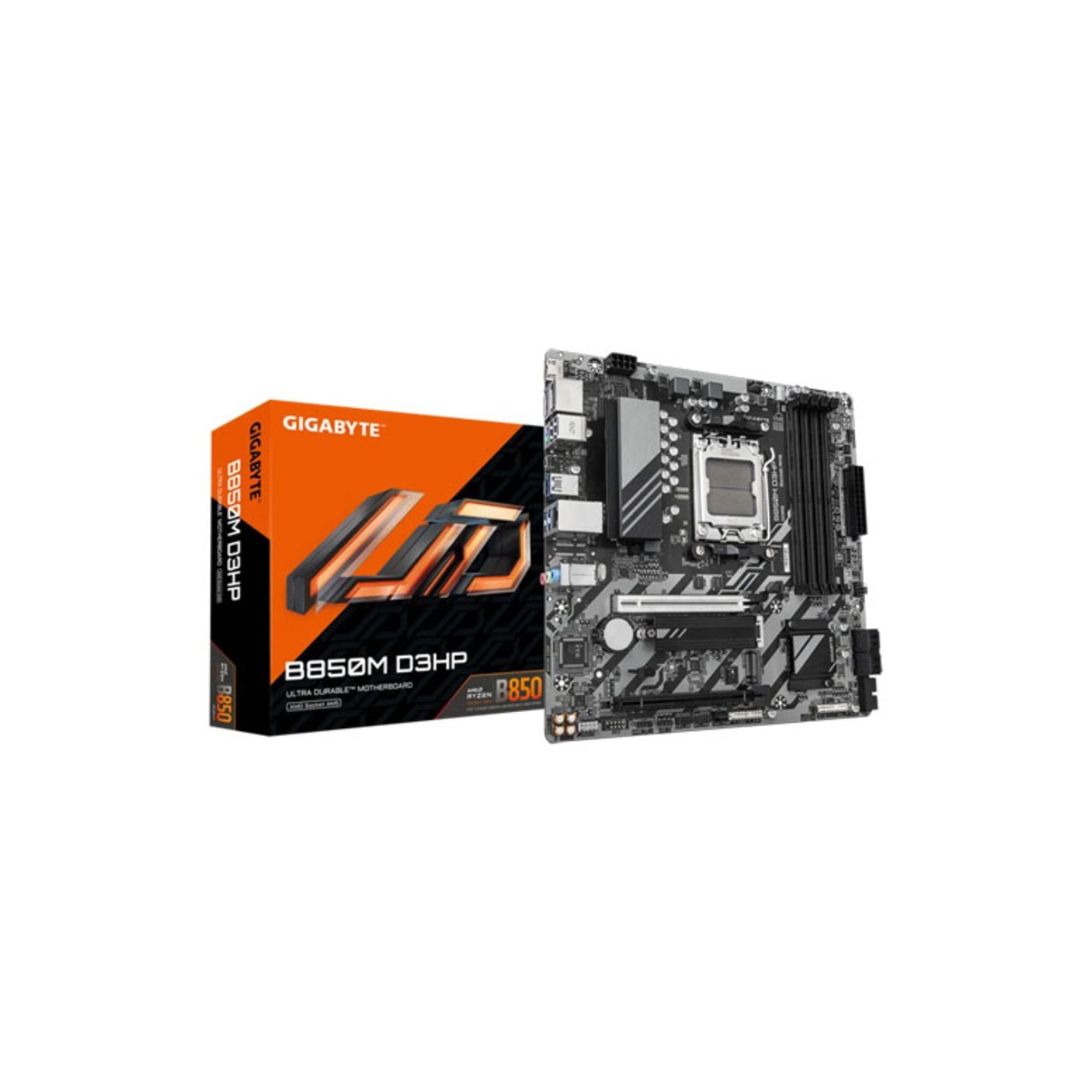

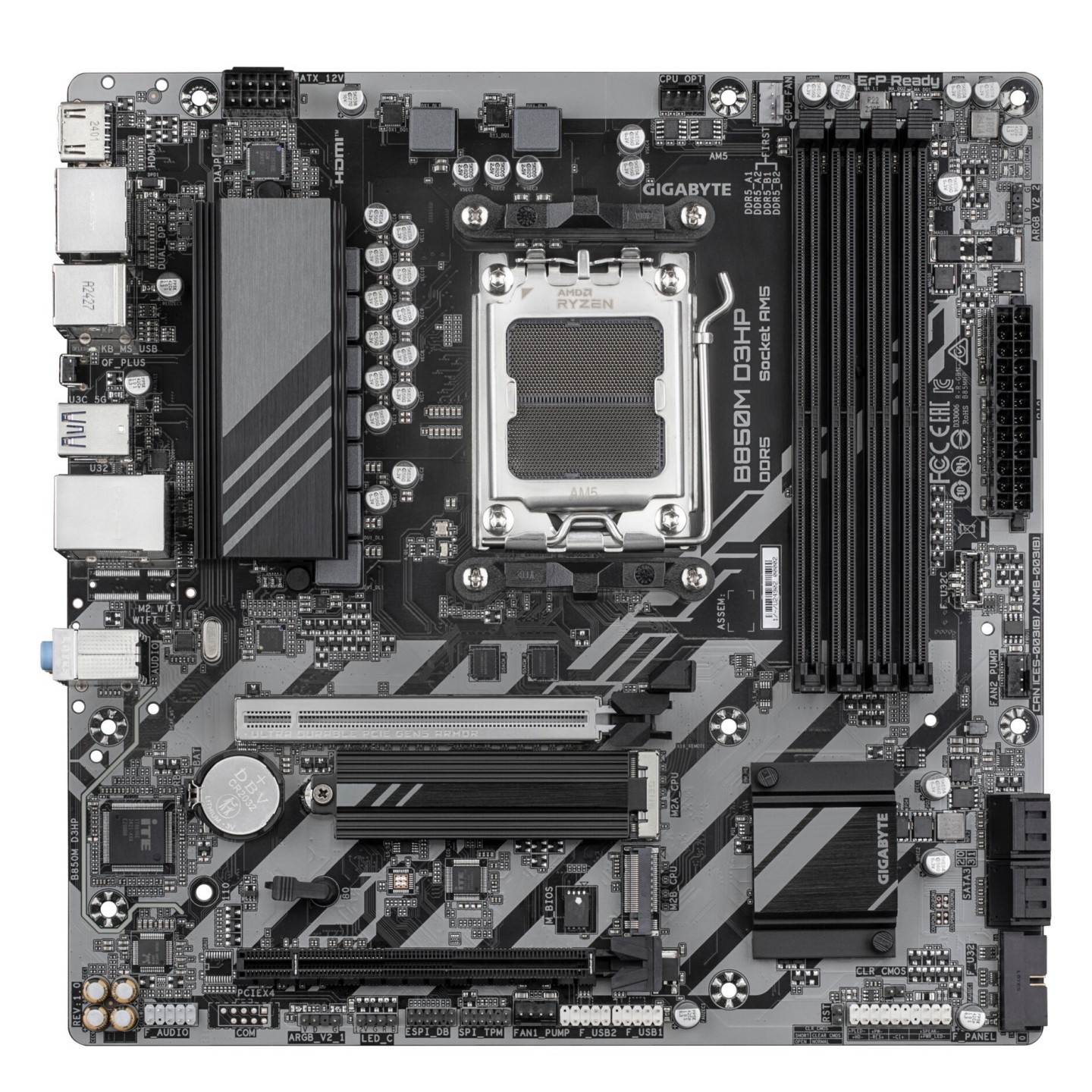

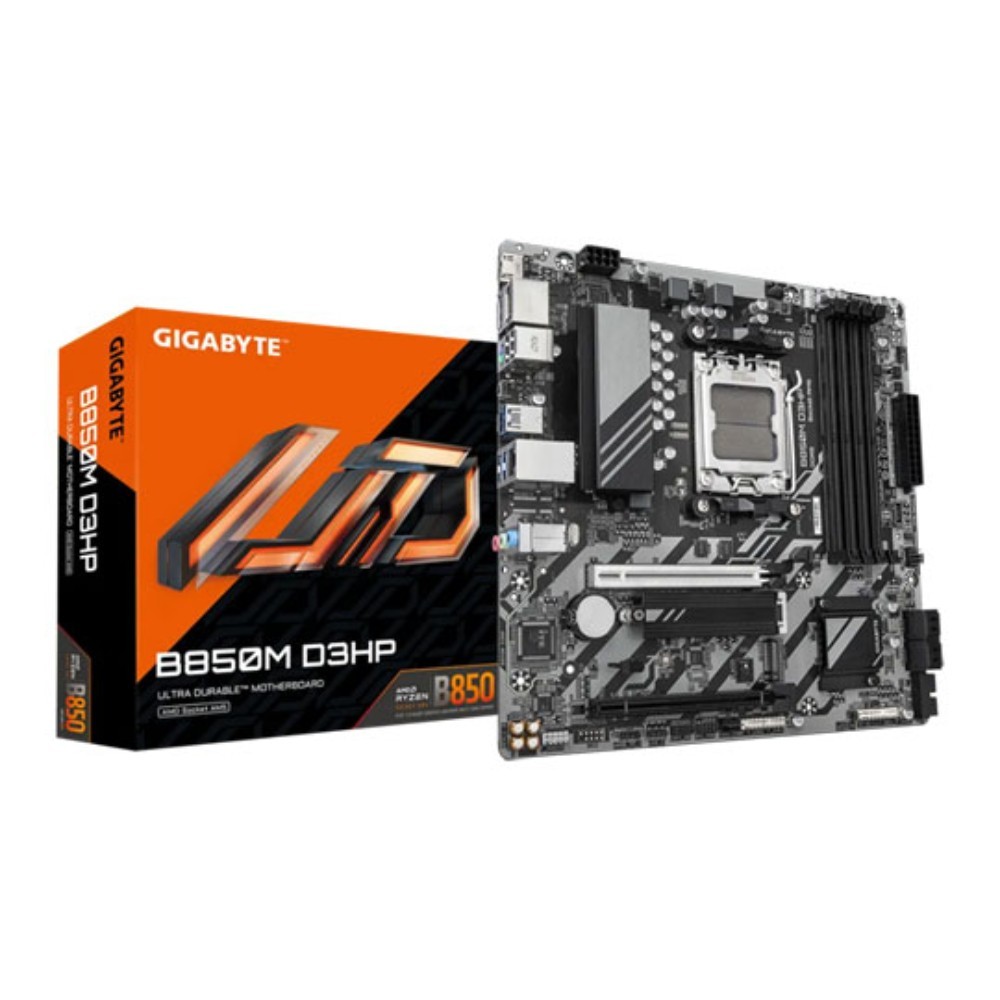

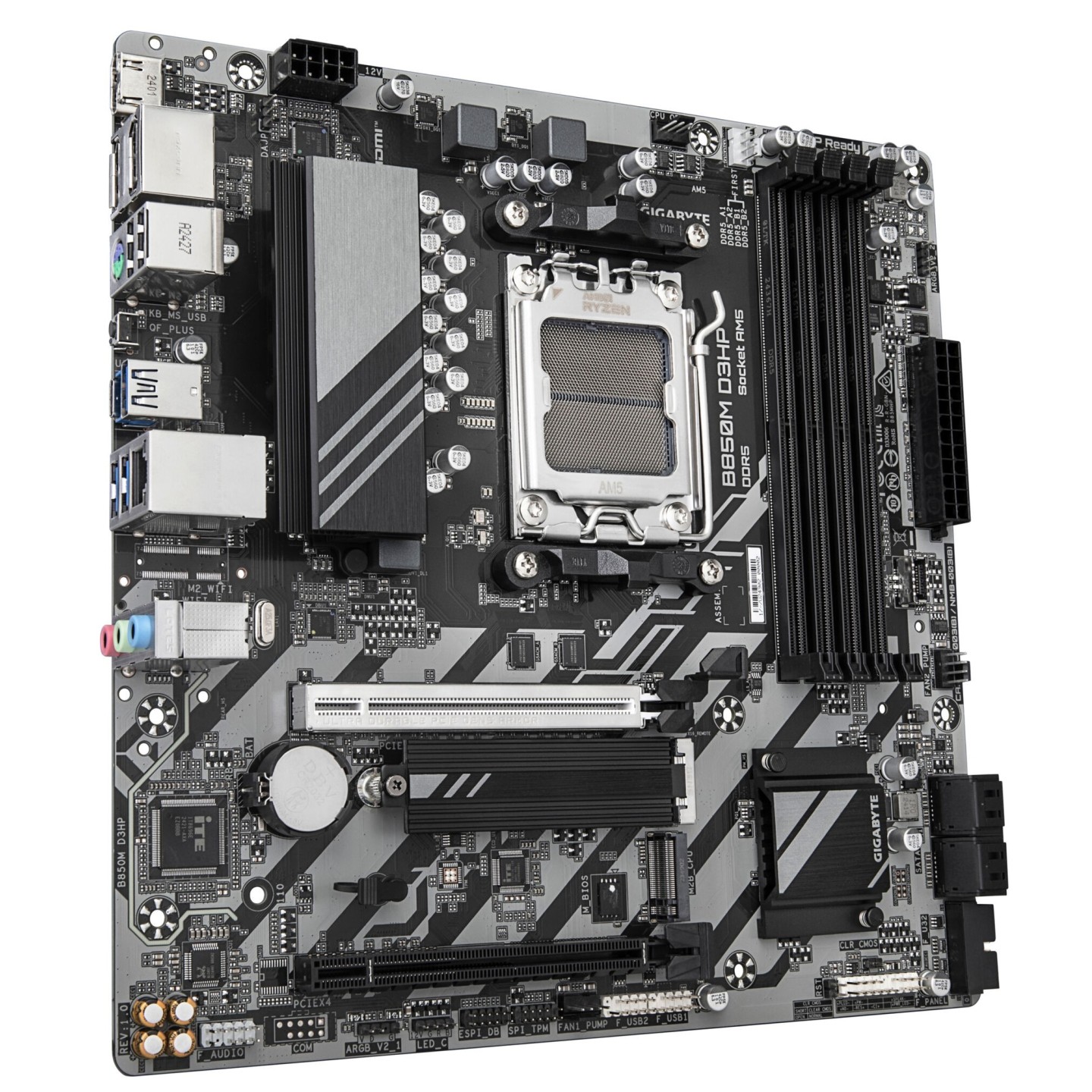

Gigabyte B850M D3HP AM5 Micro-ATX Motherboard AMD B850 DDR5 PCIe 5.0 (Boxed)
AM5 Micro-ATX motherboard for Ryzen 7000/8000/9000 Series. AMD B850 chipset, DDR5 up to 256GB/8200MHz+(EXPO/XMP), PCIe 5.0 x16 slot, 2x M.2 (1x PCIe5), 4x SATA, HDMI 2.1+2xDP, Realtek ALC897 7.1 audio, X3D Turbo Mode.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | AMD AM5 |
|---|---|
| Motherboards - Chipset | AMD B850 |
| Motherboards - Form Factor | Micro-ATX |
| Motherboards - Memory Type | DDR5 |
| Motherboards - Memory Profile Support | EXPO XMP |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 256 GB |
| Motherboards - Main Slot PCIe Version | PCIe 5.0 |
| Motherboards - M.2 Slots | 2 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C Support | Rear Type-C |
| Motherboards - RGB Headers | 3-pin 5V ARGB 4-pin 12V RGB |
| Motherboards - Wireless Connectivity | None |
Elevate your PC build with the Gigabyte B850M D3HP, a feature-packed Micro-ATX motherboard designed for AMD Ryzen 7000, 8000, and 9000 Series processors on the AM5 socket. Built on the AMD B850 chipset, it delivers robust performance for gaming, content creation, and everyday computing with support for DDR5 memory up to 256GB at overclocked speeds of 8200MHz+ via AMD EXPO and XMP profiles.

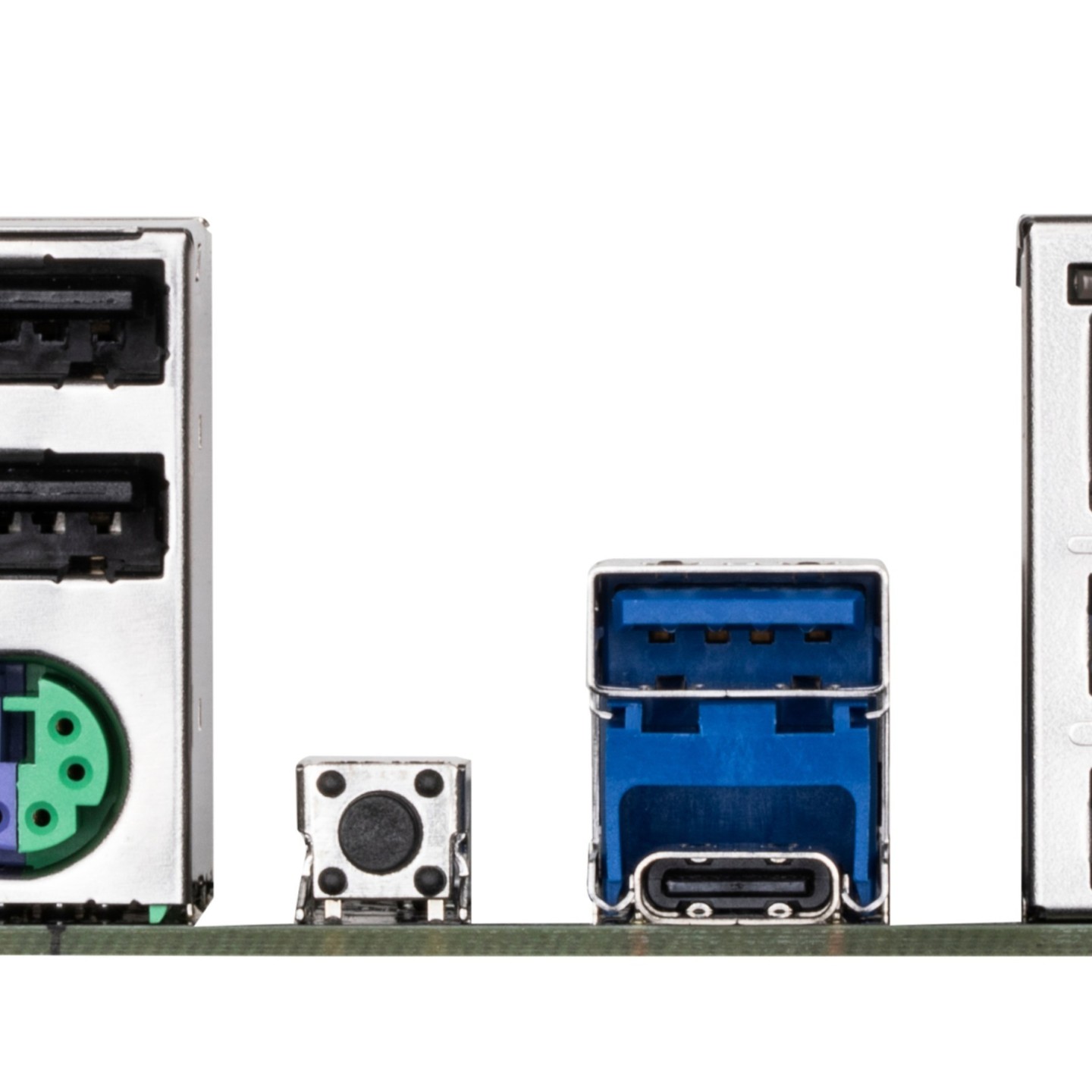

Key highlights include a PCIe 5.0 x16 slot for next-gen GPUs, dual M.2 slots (one PCIe 5.0 x4, one PCIe 4.0 x4), four SATA III ports, and comprehensive connectivity: 1x HDMI 2.1, 2x DisplayPort 1.4 for triple-display setups up to 4096x2160@60Hz, USB 3.2 Gen1 Type-C, Gigabit Ethernet, and Realtek ALC897 7.1-channel HD audio with premium capacitors. Unique X3D Turbo Mode optimizes non-X3D CPUs to match X3D gaming performance. RGB FUSION offers 2x addressable LED headers and 1x RGB header for customization, plus EZ-Latch and Debug Zone for easy building.
- Supports AMD Ryzen 9000/8000/7000 Series (AM5 socket)
- 4x DDR5 DIMM slots, Dual Channel, max 256GB, 8200MHz+(OC)
- 1x PCIe 5.0 x16, 2x M.2, 4x SATA III, RAID 0/1/10
- Display: 1x HDMI 2.1 (4K@60Hz), 2x DP 1.4 (4K@144Hz)
- Audio: Realtek ALC897 7.1ch Hi-Fi
- VRM: Digital 5+2+2 phases
- RGB: 2x ARGB (3-pin), 1x RGB (4-pin)
- Windows 11/10 compatible, 3-year warranty
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Motherboard chipset | AMD B850 |
| Motherboard form factor | micro ATX |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory channels | Dual-channel |
| Maximum internal memory | 256 GB |
| Supported memory clock speed (max) | 8200 MHz (OC) |
| Number of M.2 (M) slots | 2 |
| Number of SATA III connectors | 4 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | No |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| RGB LED pin header | Yes |
| Number of RGB LED pin headers | 3 (2x ARGB, 1x RGB) |
| Width | 244 mm |
| Depth | 244 mm |
| Weight | 1.3 kg |
| Warranty period | 3 year(s) |
