Professional Cat.5e F UTP Verlegekabel simplex, Eca
The Digitus Professional Cat.5e F/UTP installation cable DK-1521-V-305 is characterized by a 4x2 AWG 24/1 cable structure and achieves a transmission frequency of up to 100 MHz. Th...
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

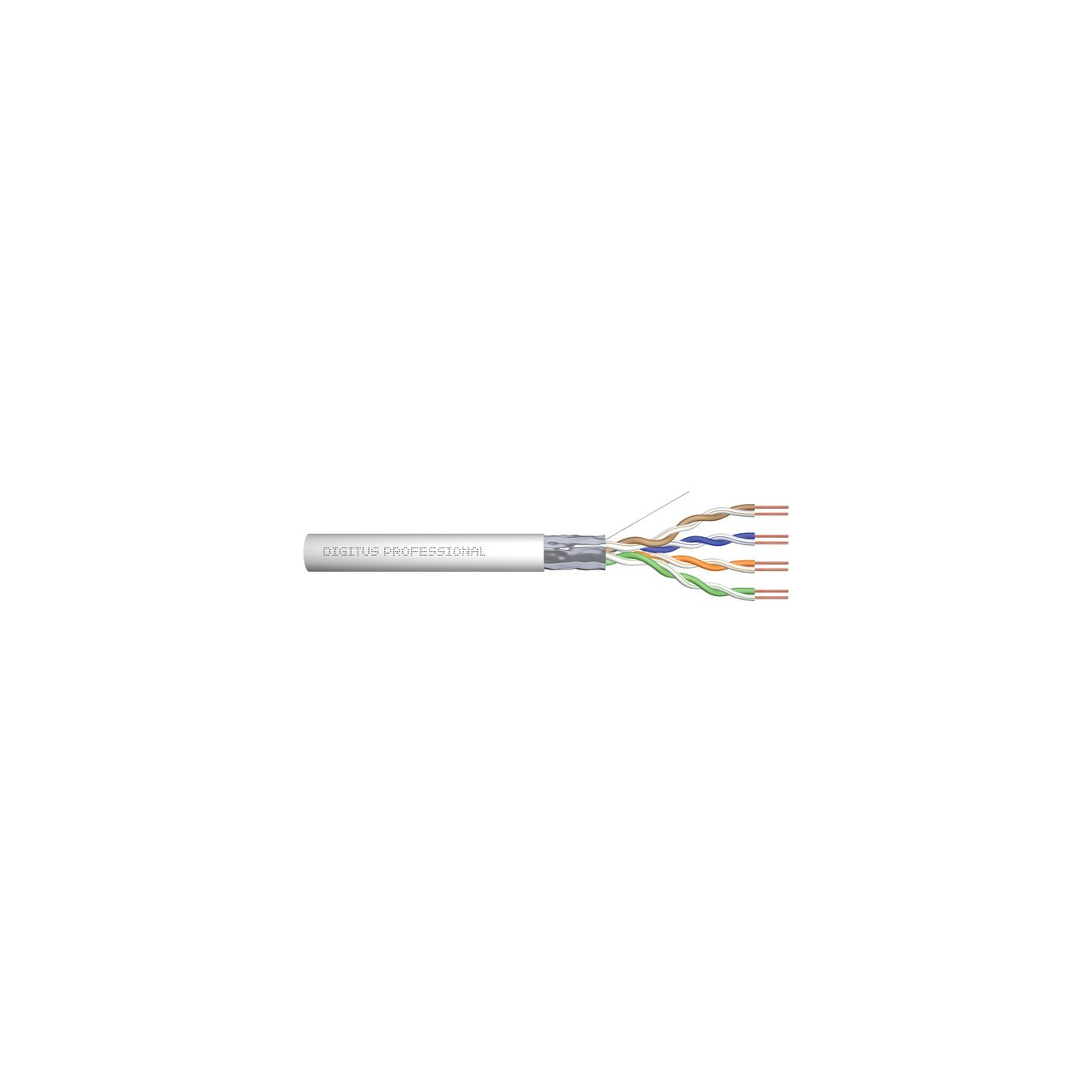

The Digitus Professional Cat.5e F/UTP installation cable DK-1521-V-305 is characterized by a 4x2 AWG 24/1 cable structure and achieves a transmission frequency of up to 100 MHz. The cable jacket corresponds to BauPVO Euroclass Eca. The installation cable is designed for use in building cabling, is ideal for the transmission of analog and digital data and supports POE. It has excellent mechanical properties and offers a tensile load of max. 150N, the dynamic bending radius is at least 8x OD mm, the static bending radius is at least 4x OD mm.
| Typ | Cable |
| Color | grau |
| EAN | 4016032241126 |
| Manufacturer no. | DK-1521-V-305 |
| Manufactured in | China |
| Application example | Data center and building cabling |
| Area | network |
| Connection - from | 1x cable end without plug |
| Cable cross section | 24 AWG |
| Category - Cable | Cat.5e |
| shielding | F/UTP |
| Characteristics | extern |
| Execution | Premium |
| Feature | 1GBit Ethernet, 100 MHz transmission frequency, PoE Power over Ethernet support |
| More information | BauPVO class Eca according to EN 50575, conductor material: bare copper wire, AWG 24/1, PVC sheath, overall shielding: foil shield drain wire, gray (RAL 7035) |
| Notice | Corresponds to the standards ISO/IEC 11801, DIN EN 50288-2-1, DIN EN 50173 |
| Cable length | 305 Meter |
| Weight | 13,5 kg |
