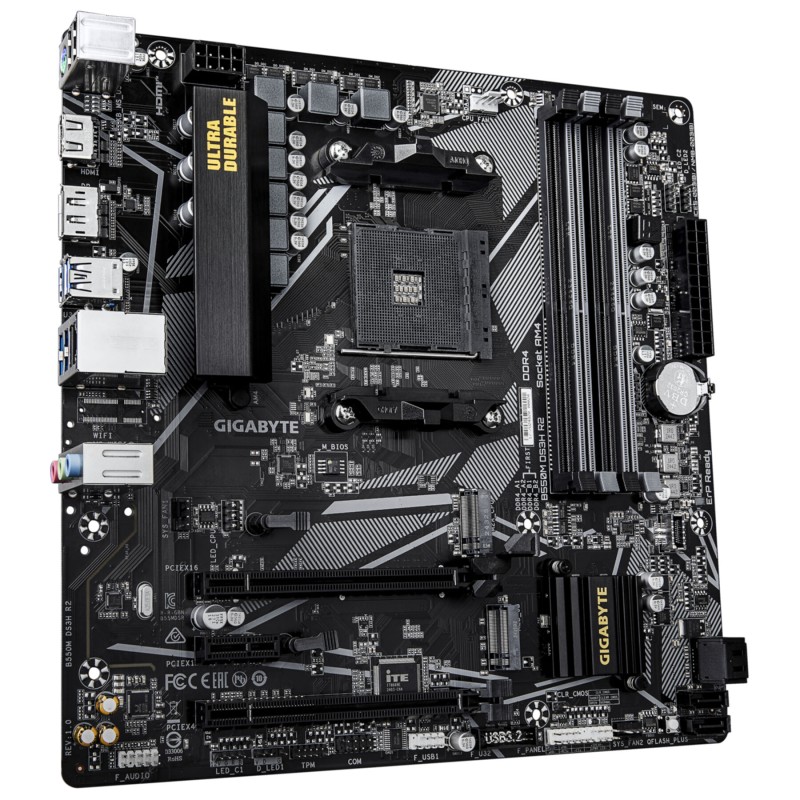

GIGABYTE GA-B550M-DS3H R2.0 - B550 Micro-ATX AM4 Motherboard, DDR4, 4 DIMM, 128GB Max
B550 AM4 micro-ATX motherboard for AMD Ryzen 3000/4000/5000 series. 4x DDR4 DIMM slots, up to 128GB, PCIe 4.0 support for discrete GPU.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - Socket | AM4 |
|---|---|
| Motherboards - Chipset | AMD B550 |
| Motherboards - Form Factor | Micro-ATX |
| Motherboards - Memory Type | DDR4 |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 128 GB |
| Motherboards - PCIe Version (primary GPU) | PCIe 4.0 |
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series |
| Supported processor sockets | Socket AM4 |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 4733, 4600, 4400, 4266, 4133, 4000, 3866, 3733, 3600, 3466, 3400, 3200, 2933, 2667, 2400, 2133 MHz |
| Supported memory clock speed (max) | 4733 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Maximum internal memory per slot | 32 GB |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 3.0, PCI Express 4.0, SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| RAID support | Yes |
| RAID levels | 0, 1, 10 |
| Parallel processing technology support | Not supported |
| Maximum resolution | 5120 x 2880 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of CPU fan connectors | 1 |
| Number of chassis fan connectors | 2 |
| EPS power connector (8-pin) | Yes |
| Number of EPS power connectors (8-pin) | 1 |
| TPM connector | Yes |
| Serial port headers | 1 |
| RGB LED pin header | Yes |
| Number of RGB LED pin headers | 5 |

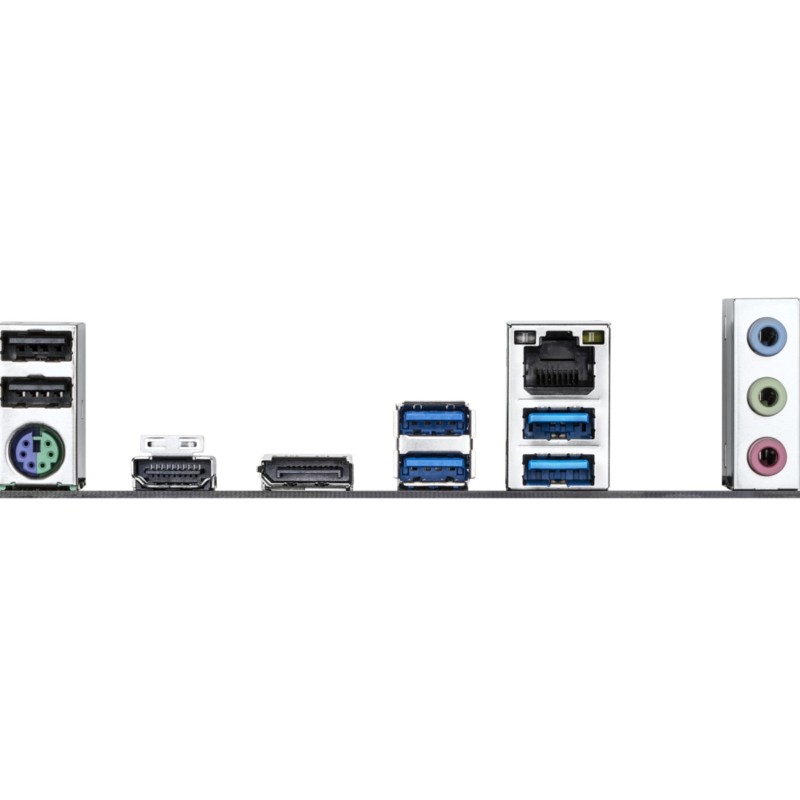

| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Headphone outputs | 1 |
| Line-in | Yes |
| Microphone in | Yes |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111H |
| Wi-Fi | No |
| Motherboard chipset | AMD B550 |
| Audio chip | Realtek ALC1220-VB |
| Audio output channels | 7.1 channels |
| Product colour | Dark brown |
| PC health monitoring | Fan, Temperature, Voltage |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Cooling type | Passive |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 3.0 |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Products per shipping (inner) case | 1 pc(s) |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Package width | 265 mm |
| Package depth | 265 mm |
| Package height | 54 mm |
| Package weight | 947 g |
| Width | 244 mm |
| Depth | 244 mm |
| Height | 35 mm |
| Batteries included | Yes |
| Screws included | Yes |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Weight | 870 g |
| Warranty period | 3 year(s) |
