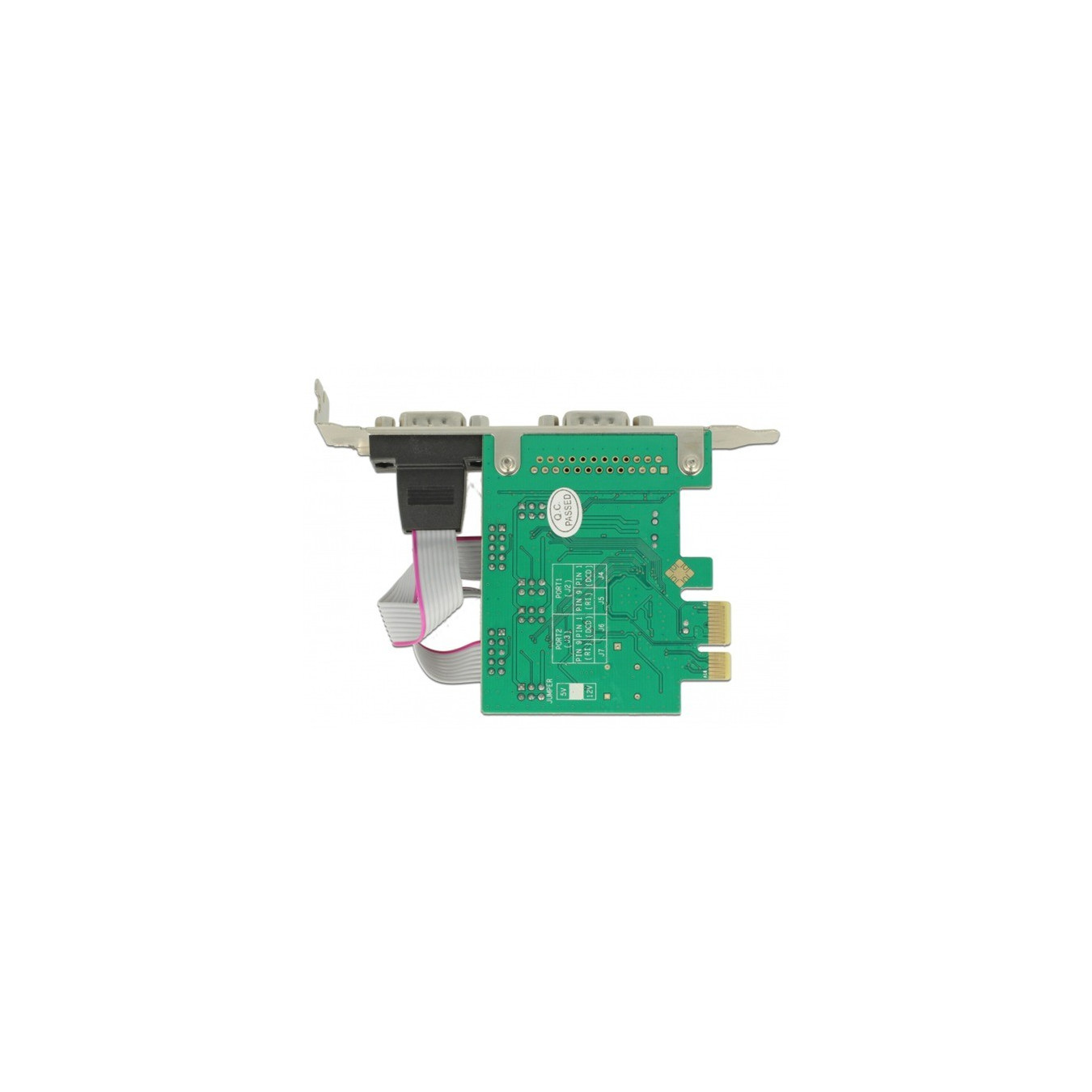

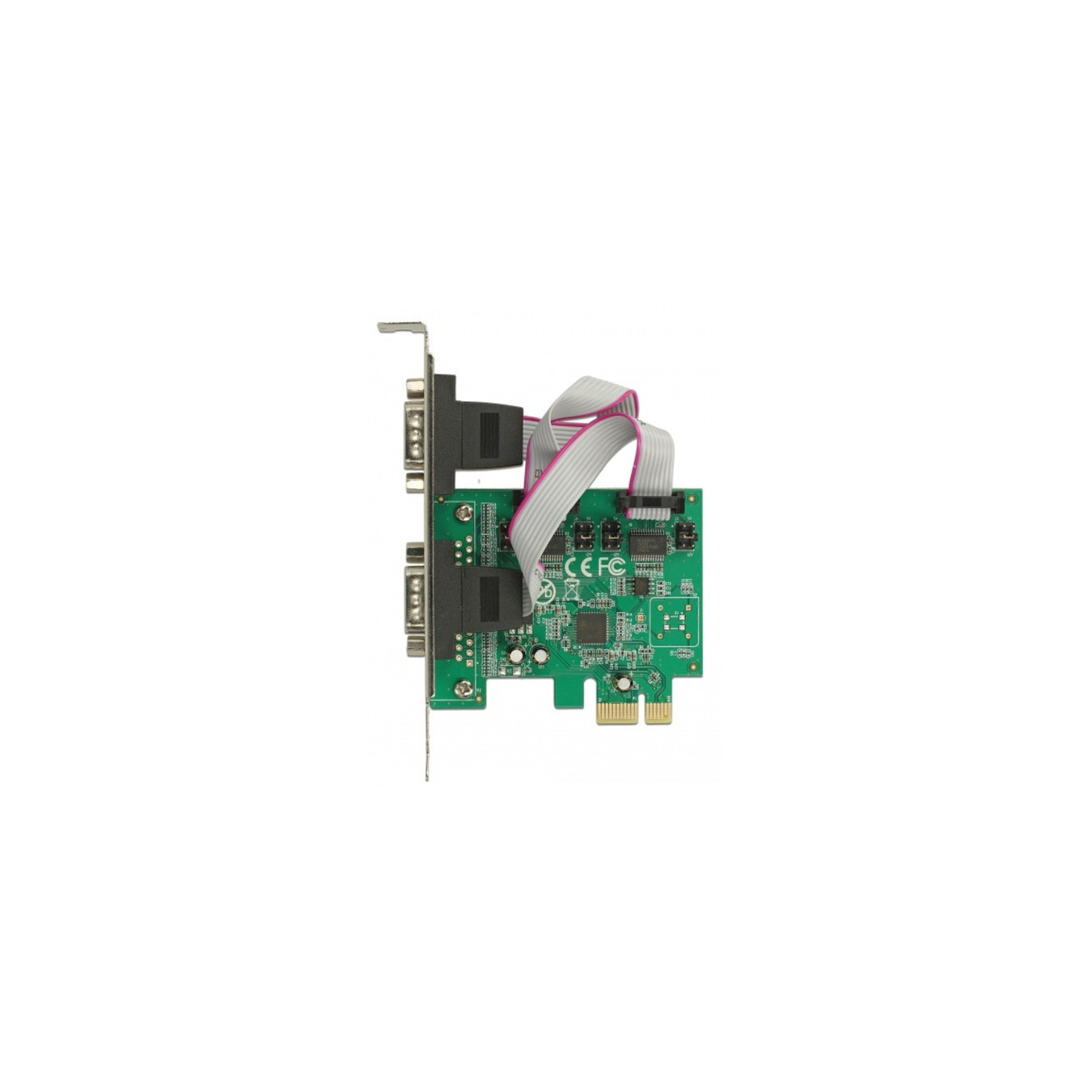

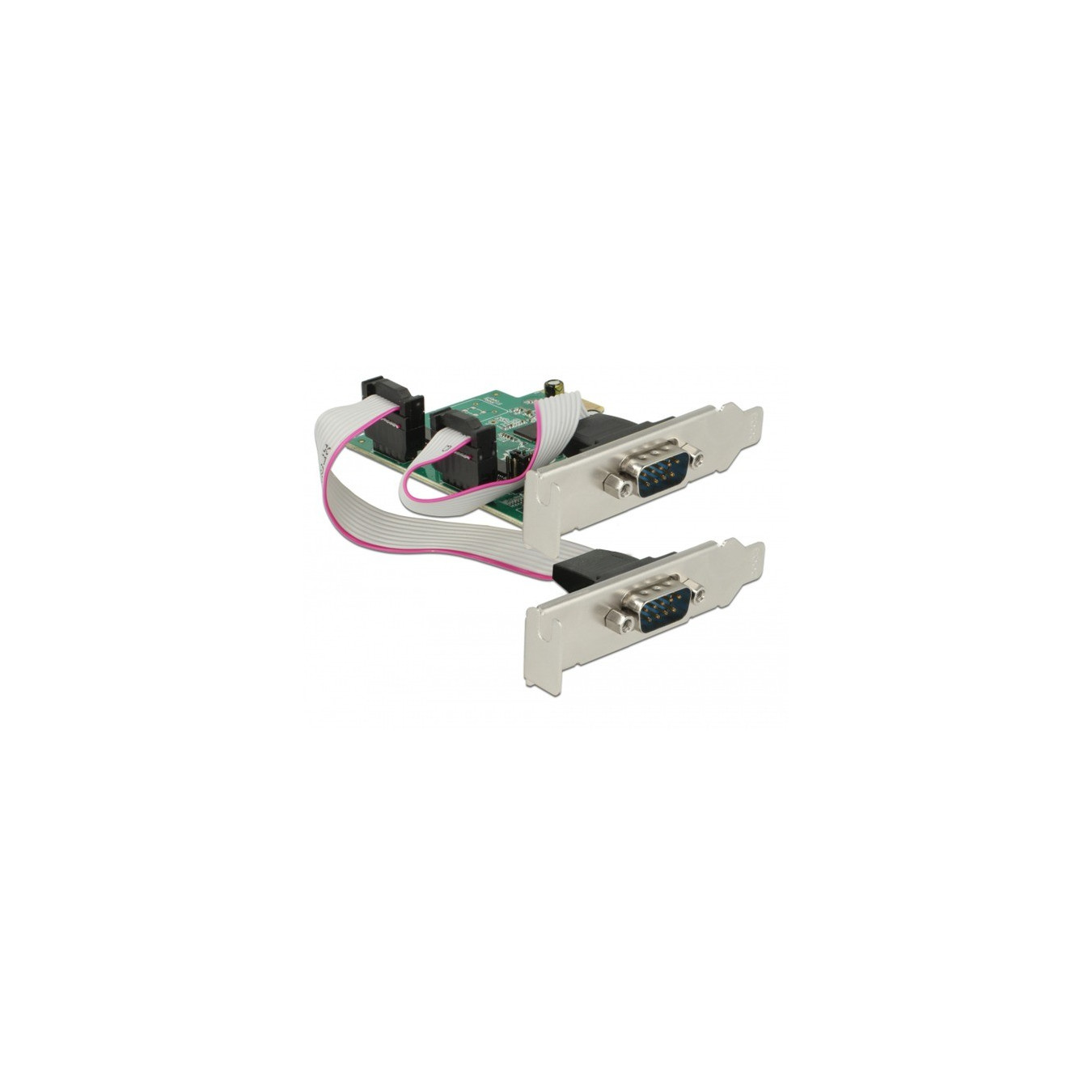

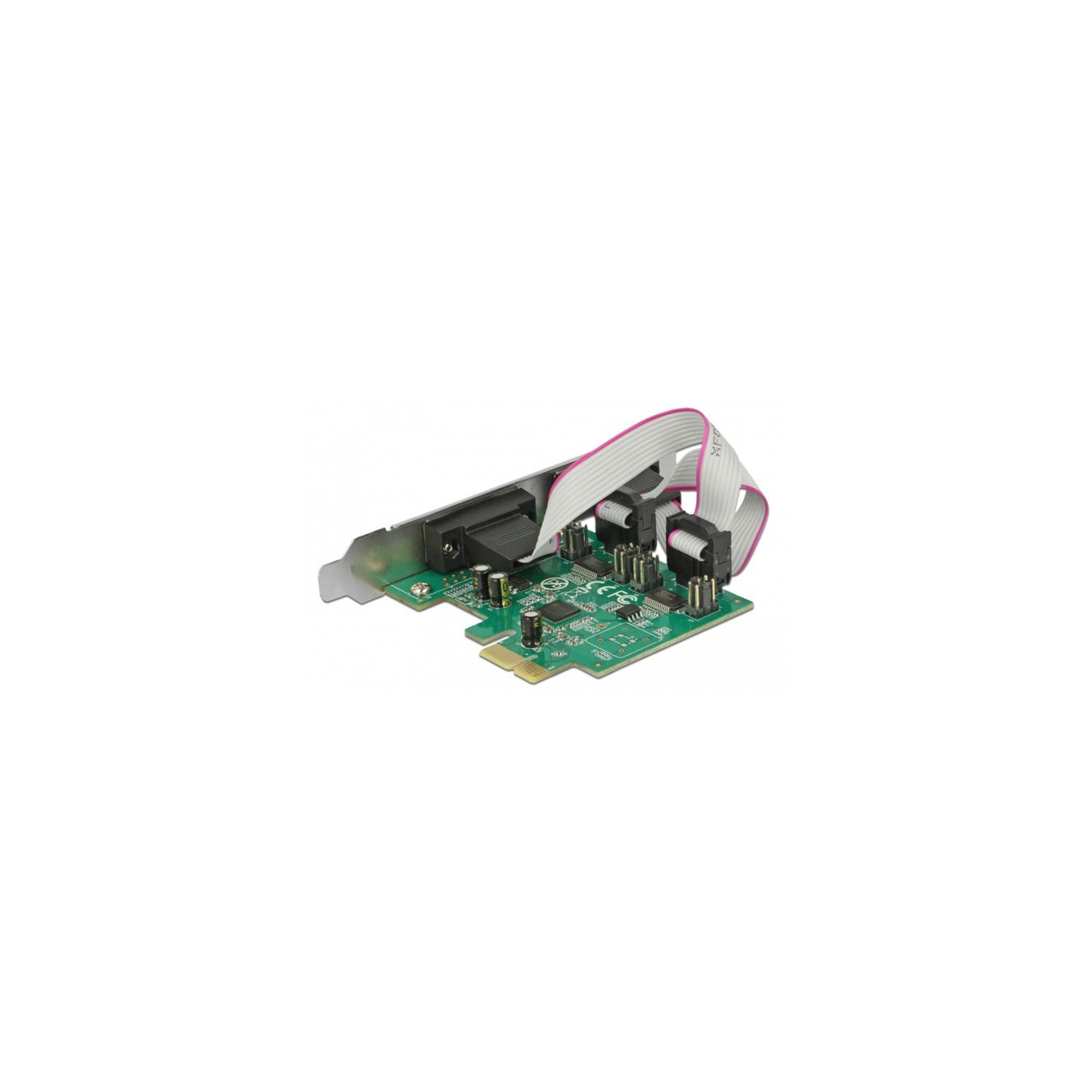

PCI Express card to 2 x serial RS-232 high speed 921K, interface card
With the PCI Express card from Delock you can expand the PC with two external serial RS-232 ports. Devices such as: E.g. scanners, protocol converters, POS systems, infrared, IoT d...
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
With the PCI Express card from Delock you can expand the PC with two external serial RS-232 ports. Devices such as: E.g. scanners, protocol converters, POS systems, infrared, IoT devices etc. and different modes can be used. A power supply is optionally available at the connections. Using the low profile panels included in delivery, the PCI Express card can also be installed in a mini PC.
| Typ | Interface card |
| EAN | 4043619896417 |
| Manufacturer no. | 89641 |
| Controller Art | Serial |
| slot | PCIe x1 Version 2.0 |
| Chip | ASIX AX99100 |
| Operating System - Supported | Windows 7, Windows 8, Windows 10 |
| Low Profile | optional |
| Feature | External connections: 2x serial RS-232 DB9 connector, internal connections: 1x PCI Express x1, V2.0, compatible with 16C950 UART, adjustable voltage supply: Pin 1 / 9, maximum total power output 23 W, 5 V (max. 1 A) and 12 V (max. 1.5 A), supports Active State Power Management (ASPM), supports Direct Memory Access (DMA), modes: supported slow IrDA mode up to 115 Kbps, supports multi-drop 9-bit mode |
| More information | System requirements: Windows 7/7-64/8.1/8.1-64/10/10-64, PC with a free PCI Express slot |

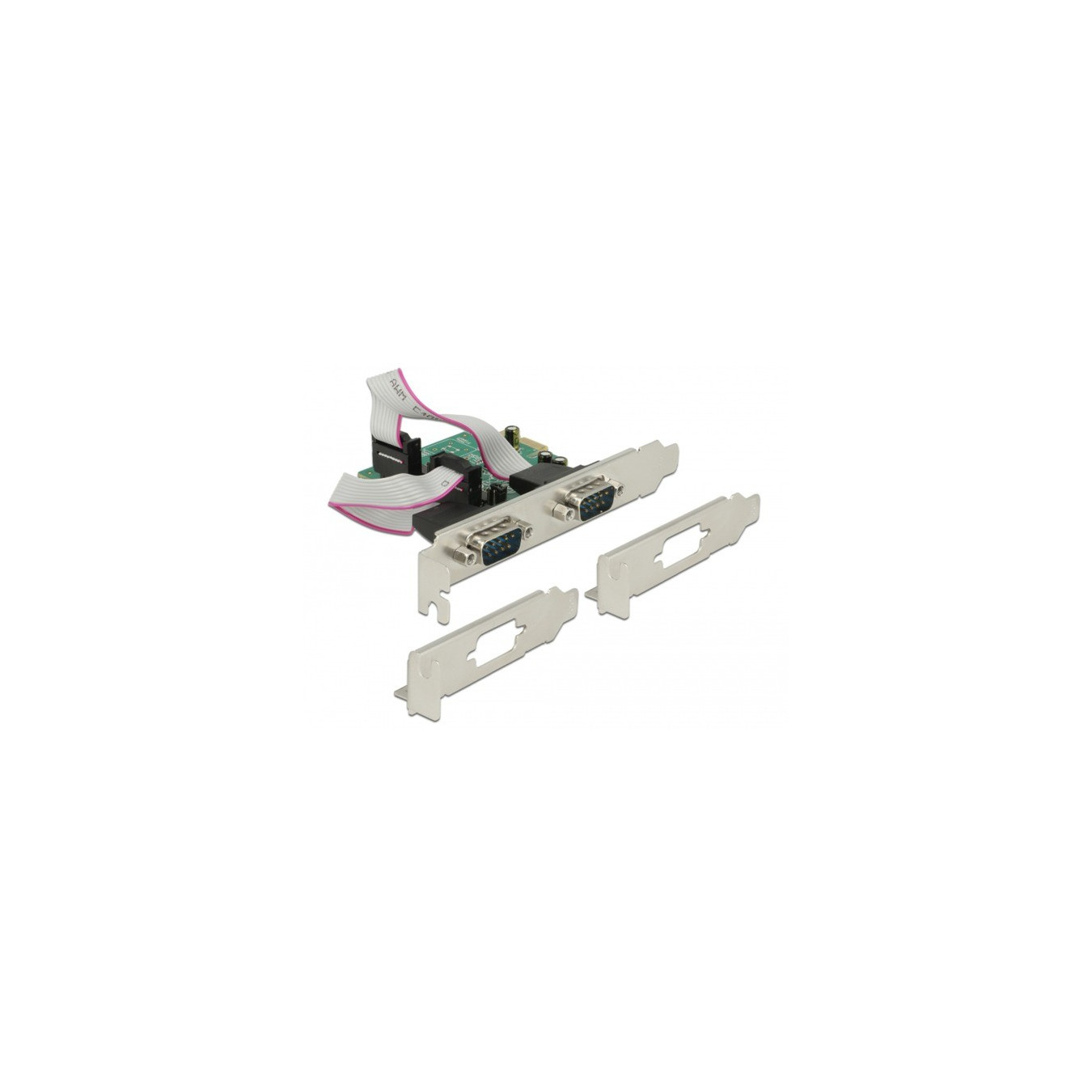

| Accessories - available | Operating instructions, driver CD, 2x low profile bezel |
| Dimensions | Width: 63mm x Height: 10mm x Depth/Length: 72mm |
| Weight | 150 Gramm |
