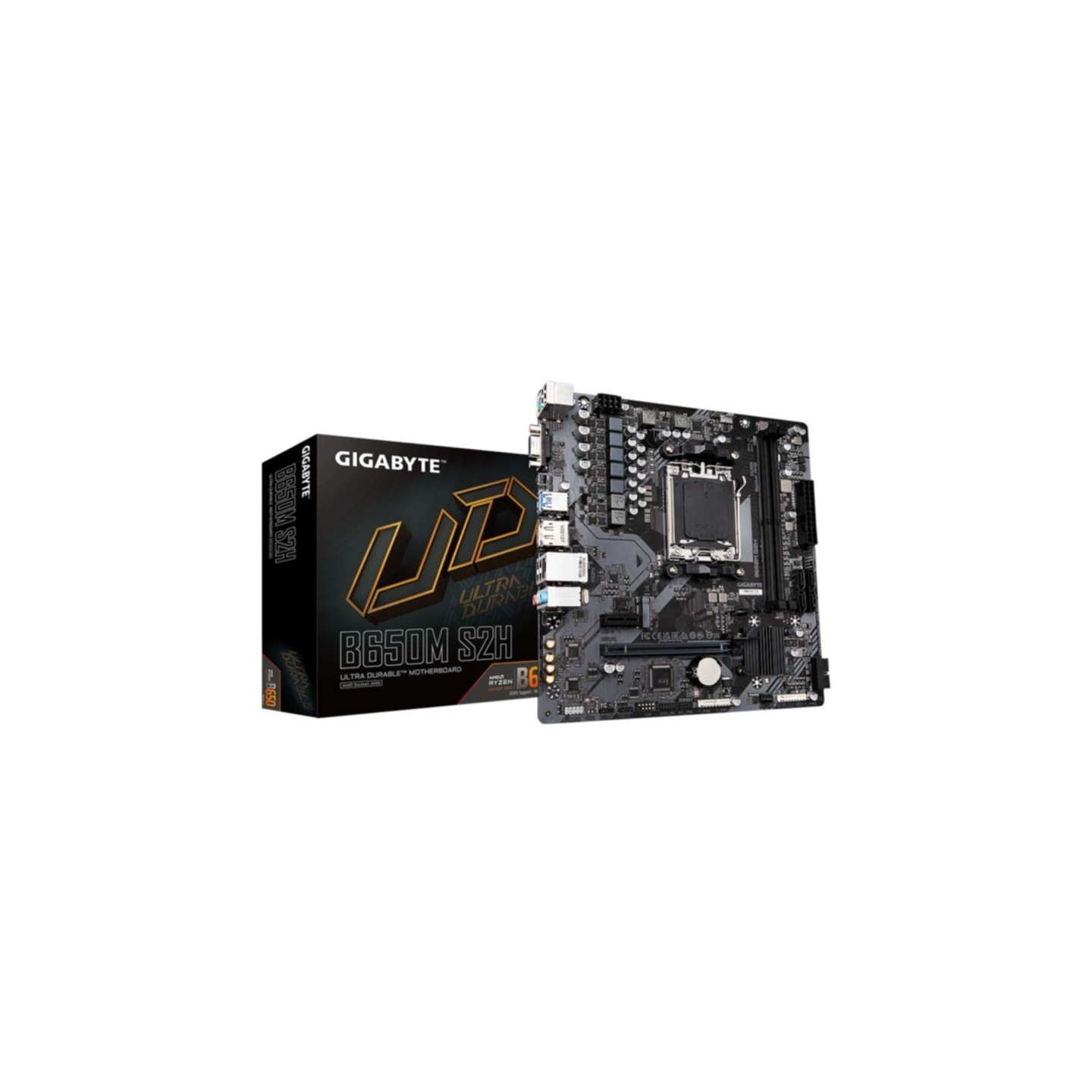

Gigabyte B650M S2H AM5 Micro-ATX Motherboard - DDR5, PCIe 4.0, HDMI 2.1 (Boxed)
Micro-ATX AM5 socket motherboard supporting AMD Ryzen 7000/8000/9000 series processors. Features dual-channel DDR5 memory support up to 128GB, PCIe 4.0 x16 slot, single M.2 NVMe connector, and comprehensive connectivity including HDMI 2.1 and DisplayPort 1.4 outputs.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | AMD AM5 |
|---|---|
| Motherboards - Chipset | AMD B650 |
| Motherboards - Form Factor | Micro-ATX |
| Motherboards - Memory Type | DDR5 |
| Motherboards - Memory Slots | 2 |
| Motherboards - Max Memory Capacity | 128 GB |
| Motherboards - Main Slot PCIe Version | PCIe 4.0 |
| Motherboards - M.2 Slots | 1 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C Support | None |

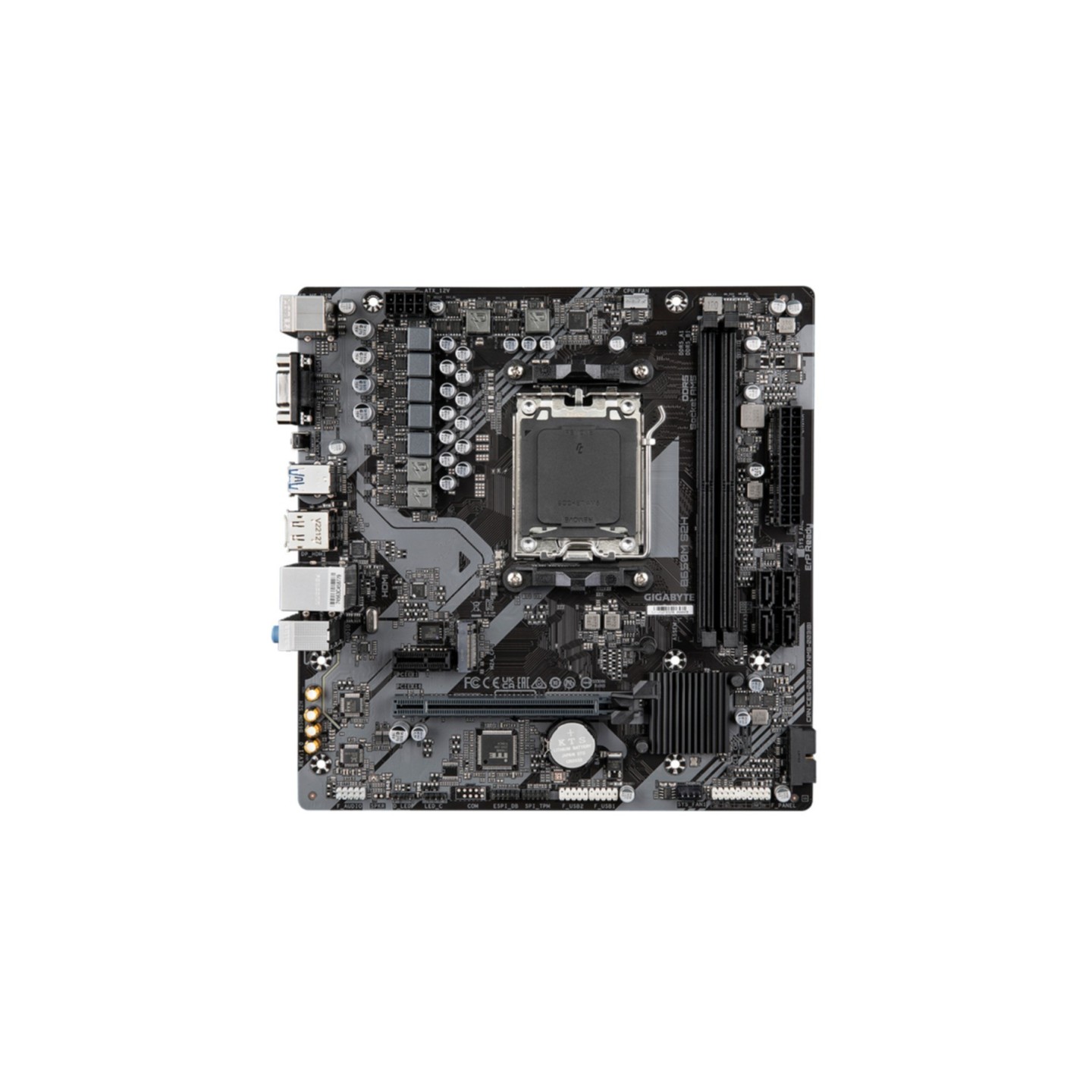

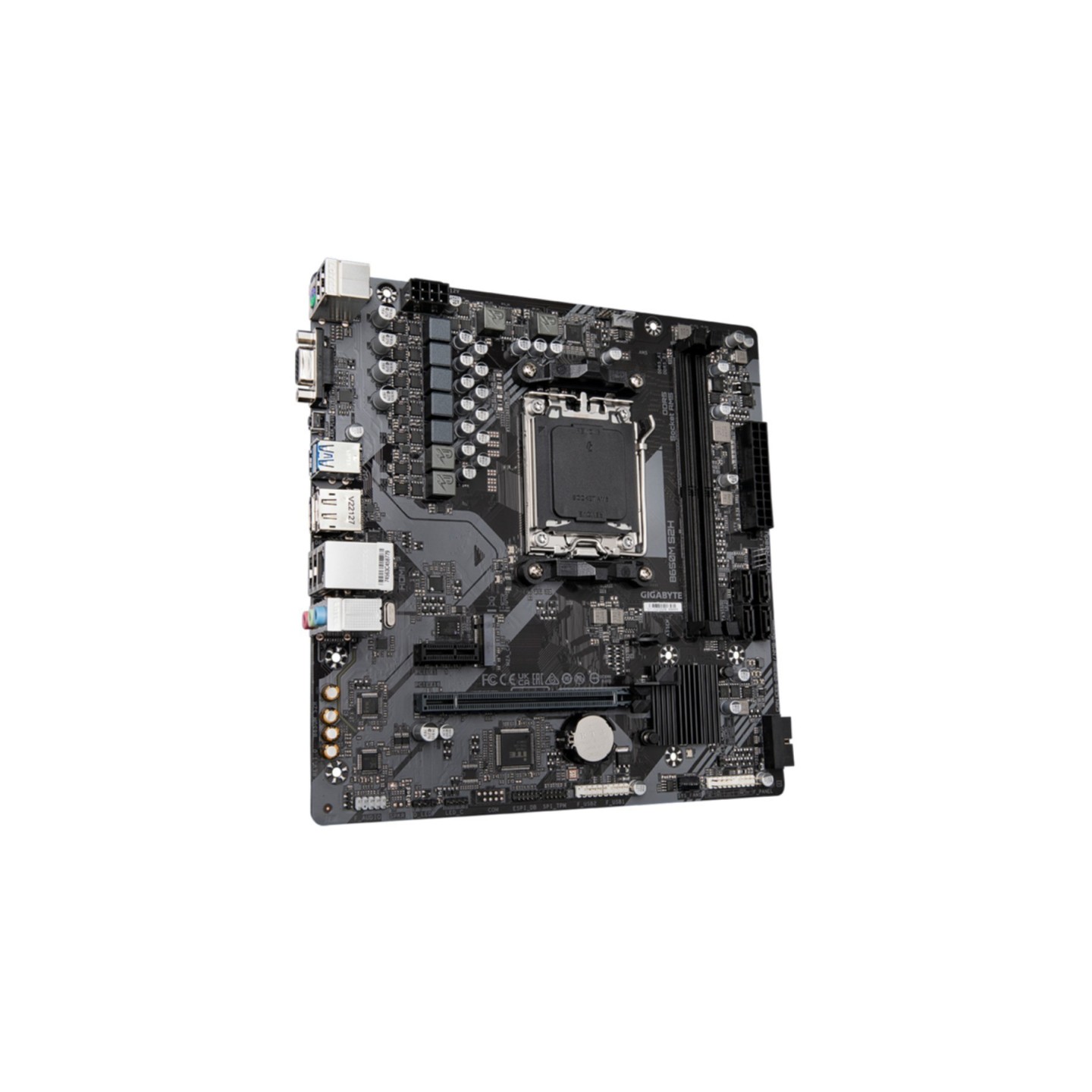

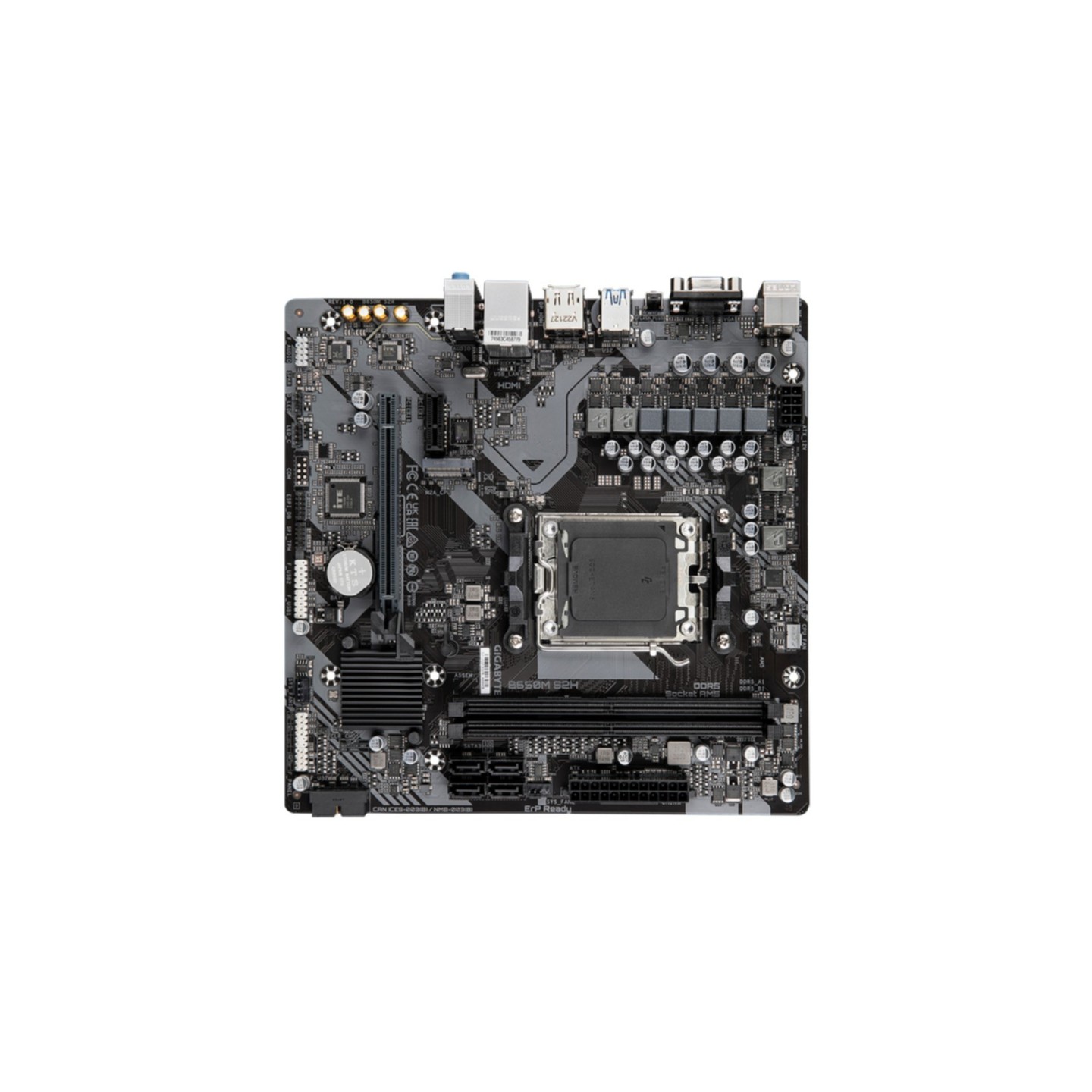

The Gigabyte B650M S2H is a feature-rich micro-ATX motherboard designed for AMD Ryzen 7000, 8000, and 9000 series processors on the AM5 socket. This board delivers solid performance with a 5+2+2 phase digital VRM solution, ensuring stable power delivery for demanding workloads. It supports dual-channel DDR5 memory up to 128GB capacity with speeds ranging from 4400 to 6400 MHz, including AMD EXPO and Intel XMP profile compatibility for optimized performance.
Connectivity and expansion options are comprehensive for a micro-ATX form factor. The motherboard includes PCIe 4.0 x16 slot with EZ-Latch quick-release design, one M.2 NVMe connector supporting PCIe 4.0 speeds, and four SATA III ports for traditional storage devices. Display outputs feature HDMI 2.1 and DisplayPort 1.4 supporting up to 4K resolution, alongside a D-Sub connector for legacy displays. The integrated Realtek ALC897 audio codec provides 7.1-channel surround sound, while Gigabit Ethernet ensures reliable network connectivity.
The B650M S2H incorporates Gigabyte's Smart Fan 6 technology with multiple temperature sensors and hybrid fan headers supporting both PWM and DC fans, plus water cooling pump connections. Additional conveniences include Q-Flash Plus BIOS update capability without CPU installation, and comprehensive I/O with USB 3.2 Gen1 ports, USB 2.0 headers, and RGB LED connectors for system customization.
- AMD Socket AM5 with support for Ryzen 7000/8000/9000 series
- Dual-channel DDR5 memory up to 128GB (4400-6400 MHz)
- PCIe 4.0 x16 slot and M.2 NVMe connector
- HDMI 2.1 and DisplayPort 1.4 video outputs
- Realtek ALC897 7.1-channel audio
- Gigabit Ethernet LAN connectivity
- Smart Fan 6 with advanced cooling control
- Q-Flash Plus BIOS update without CPU/RAM
| Processor Socket | Socket AM5 |
| Compatible Processor Series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Chipset | AMD B650 |
| Memory Type | DDR5-SDRAM |
| Memory Slots | 2 x DIMM |
| Memory Channels | Dual-channel |
| Supported Memory Speeds | 4400, 4800, 5200, 5600, 6000, 6200, 6400 MHz |
| Maximum Memory Capacity | 128 GB |
| Maximum Memory Per Slot | 64 GB |
| Memory Profile Support | AMD EXPO, Intel XMP |
| PCIe Slots | 1 x PCIe 4.0 x16 |
| M.2 Connectors | 1 x M.2 (PCIe 4.0 x4, Socket 3, M key, 2580/2280) |
| SATA III Ports | 4 |
| RAID Support | RAID 0, 1, 10 |
| USB 2.0 Headers | 2 |
| USB 3.2 Gen1 Ports | 2 |
| USB 2.0 Ports | 4 |
| Ethernet | 1 x Gigabit Ethernet (Realtek RTL8111H) |
| Wi-Fi | No |
| Audio Codec | Realtek ALC897 |
| Audio Channels | 7.1 channels |
| Video Outputs | 1 x HDMI 2.1, 1 x DisplayPort 1.4, 1 x D-Sub (VGA) |
| Maximum Resolution (HDMI) | 4096 x 2160 @ 60 Hz |
| Maximum Resolution (DisplayPort) | 3840 x 2160 @ 144 Hz |
| Maximum Resolution (D-Sub) | 1920 x 1200 @ 60 Hz |
| CPU Power Connector | 1 x 8-pin EPS |
| Main Power Connector | 1 x 24-pin ATX |
| CPU Fan Headers | 1 |
| Chassis Fan Headers | 2 (PWM/DC hybrid with water pump support) |
| RGB LED Headers | 2 |
| Cooling Solution | Passive (Smart Fan 6 with multiple temperature sensors) |
| Form Factor | Micro-ATX |
| Motherboard Dimensions | 230 mm (W) x 225 mm (D) x 35 mm (H) |
| BIOS Type | UEFI AMI |
| BIOS Memory | 256 Mbit |
| ACPI Version | 5.0 |
| DMI Version | 2.7 |
| SMBIOS Version | 2.7 |
| Clear CMOS Jumper | Yes |
| Q-Flash Plus | Yes (BIOS update without CPU/RAM installation) |
| CMOS Battery | CR2032 (Lithium-Manganese Dioxide) |
| Supported Operating Systems | Windows 10 x64, Windows 11 x64 |
| Color | Brown |
| Warranty | 3 years |
| Country of Origin | China |
