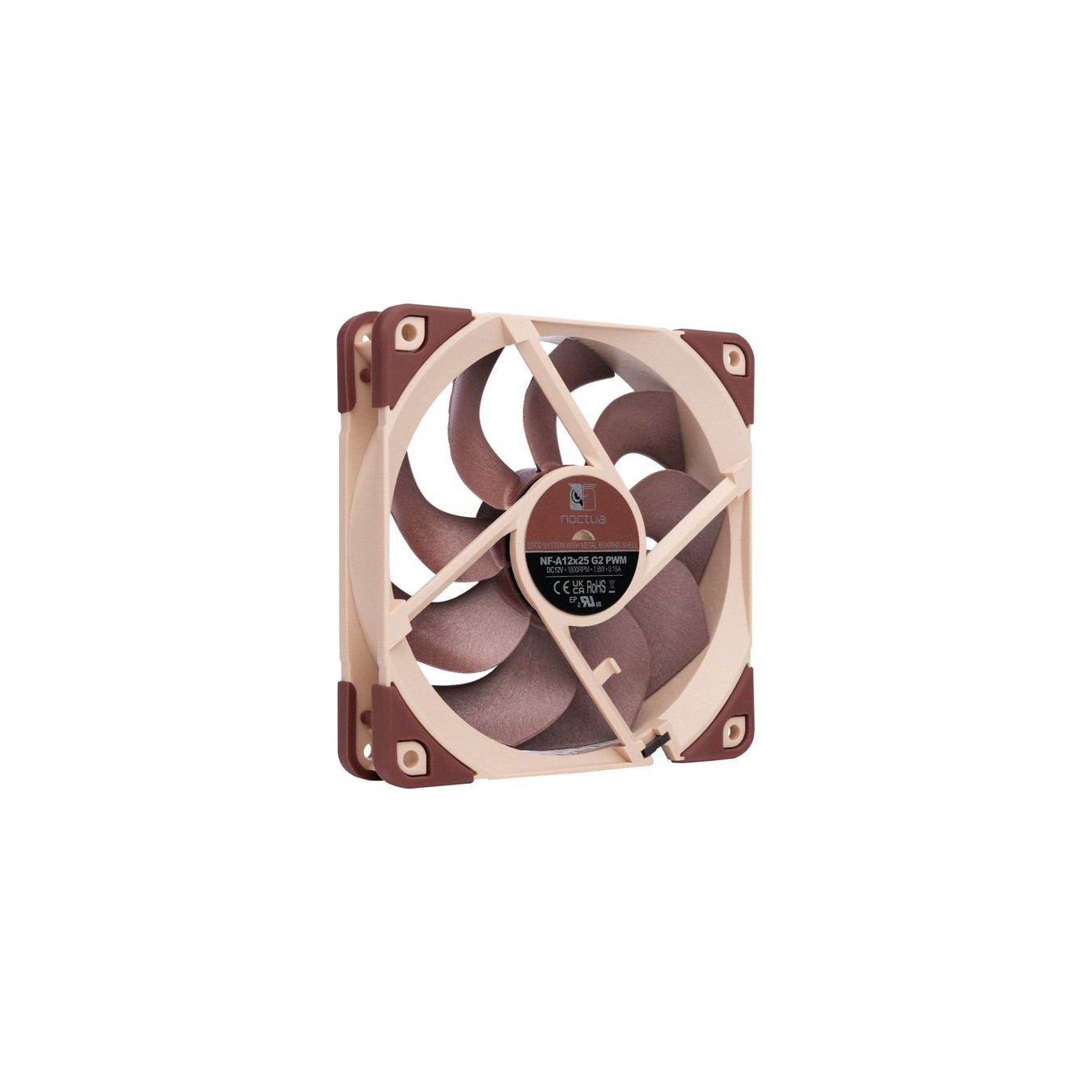

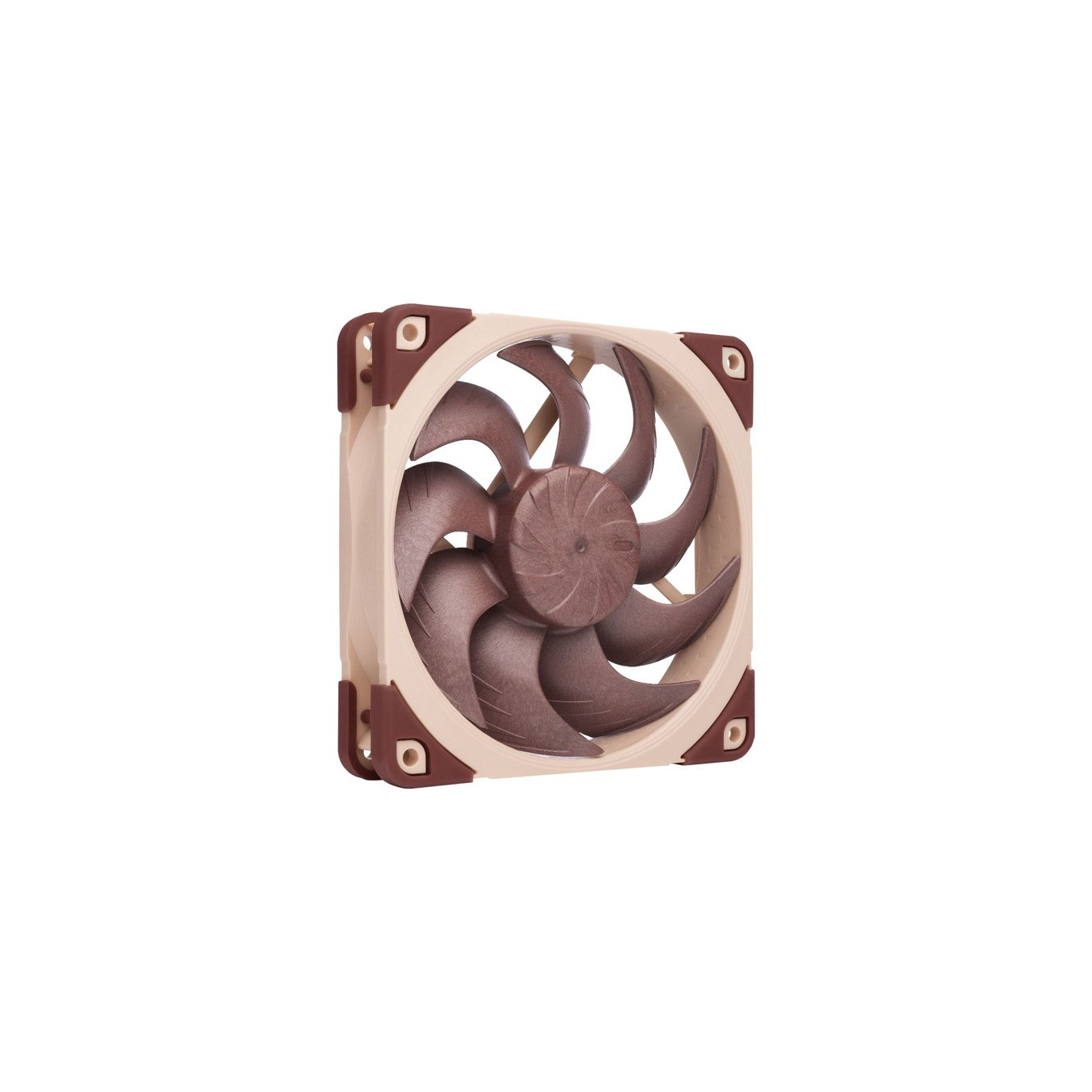

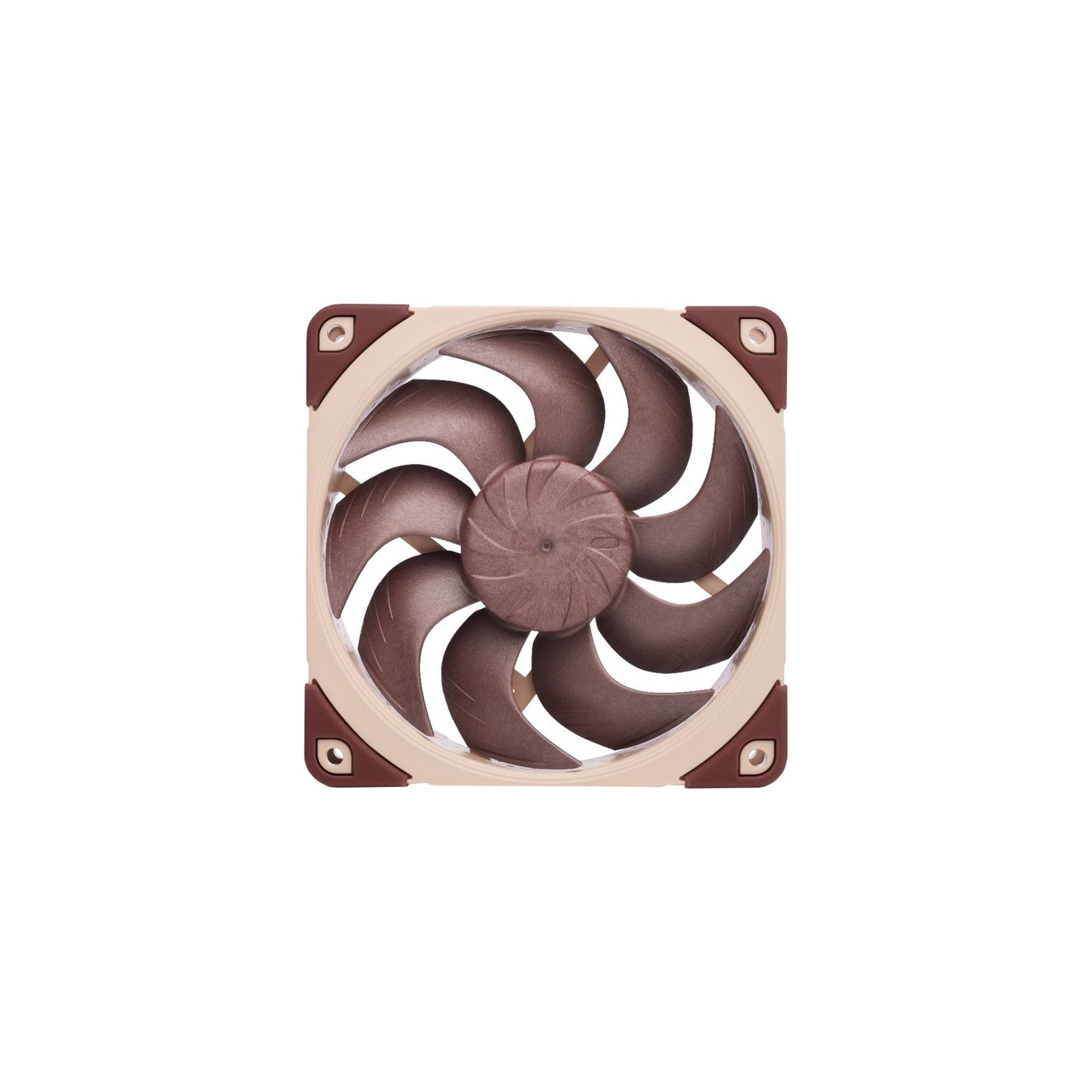

NF-A12x25 G2 PWM, case fan
The NF-A12x25 G2 PWM shines with outstanding efficiency and low noise. With its highly optimized progressive-bend impeller made from Sterrox LCP with winglets, flow acceleration ch...
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
The NF-A12x25 G2 PWM shines with outstanding efficiency and low noise. With its highly optimized progressive-bend impeller made from Sterrox LCP with winglets, flow acceleration channels and centrifugal turbulator hub as well as an impeller gap of just 0.5mm, the NF-A12x25 G2 offers an impressive combination of performance and smoothness. It delivers strong performance in all application scenarios - whether as a case fan or as a cooler on water cooling radiators. The included accessories allow adaptation to different environments: The NF-A12x25 G2 PWM comes with a pre-installed NA-AVG1 anti-vibration sealing lip, which allows for a better seal on radiators. Also included is a low-noise adapter, which reduces the maximum speed in PWM operation from 1800 to 1500 revolutions per minute. The extremely low-loss motor with its SSO2 bearing not only offers impressive smoothness, but can also call up additional speed reserves if necessary to keep the fan speed constant even at high dynamic pressure - a real plus when used on coolers or radiators.
| Typ | Case fan |
| Color | brown/beige |
| EAN | 9010018100686 |
| Manufacturer no. | NF-A12x25 G2 PWM |
| Art | Case fan |
| Fastening | screwed |
| volume | 22,5 dB |
| speed | 1,800 U/min |
| Fan storage | SSO 2 |
| Volume flow | 107,3 m³/h |
| Air pressure | From 1.71 mm/H2O to 3.14 mm/H2O |
| Power connection | 4-Pin-PWM |
| Voltage range | 12 Volt |
| Power consumption | 1,8 Watt |
| Cable length | 50 cm |
| More information | Cable length: 20 cm + 30 cm NA-EC1 extension cable | Blades with Flow Acceleration Channels, frame with Advanced Acoustic Optimization | MTTF > 150000 hours | Noise development 18.1 dB(A) with low noise adapter |

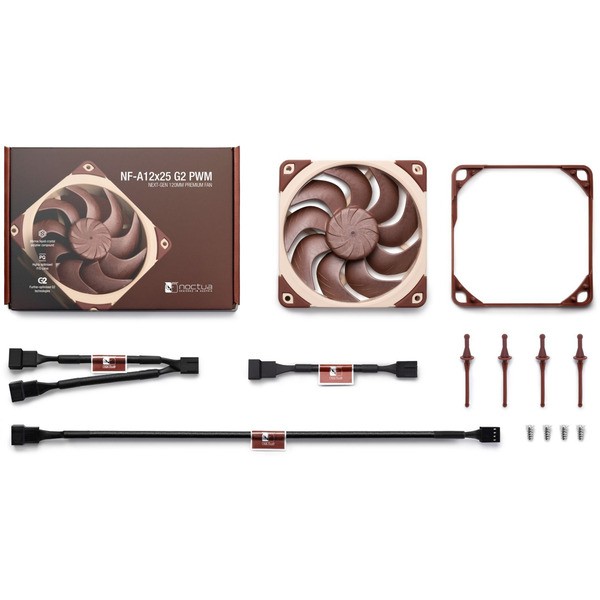

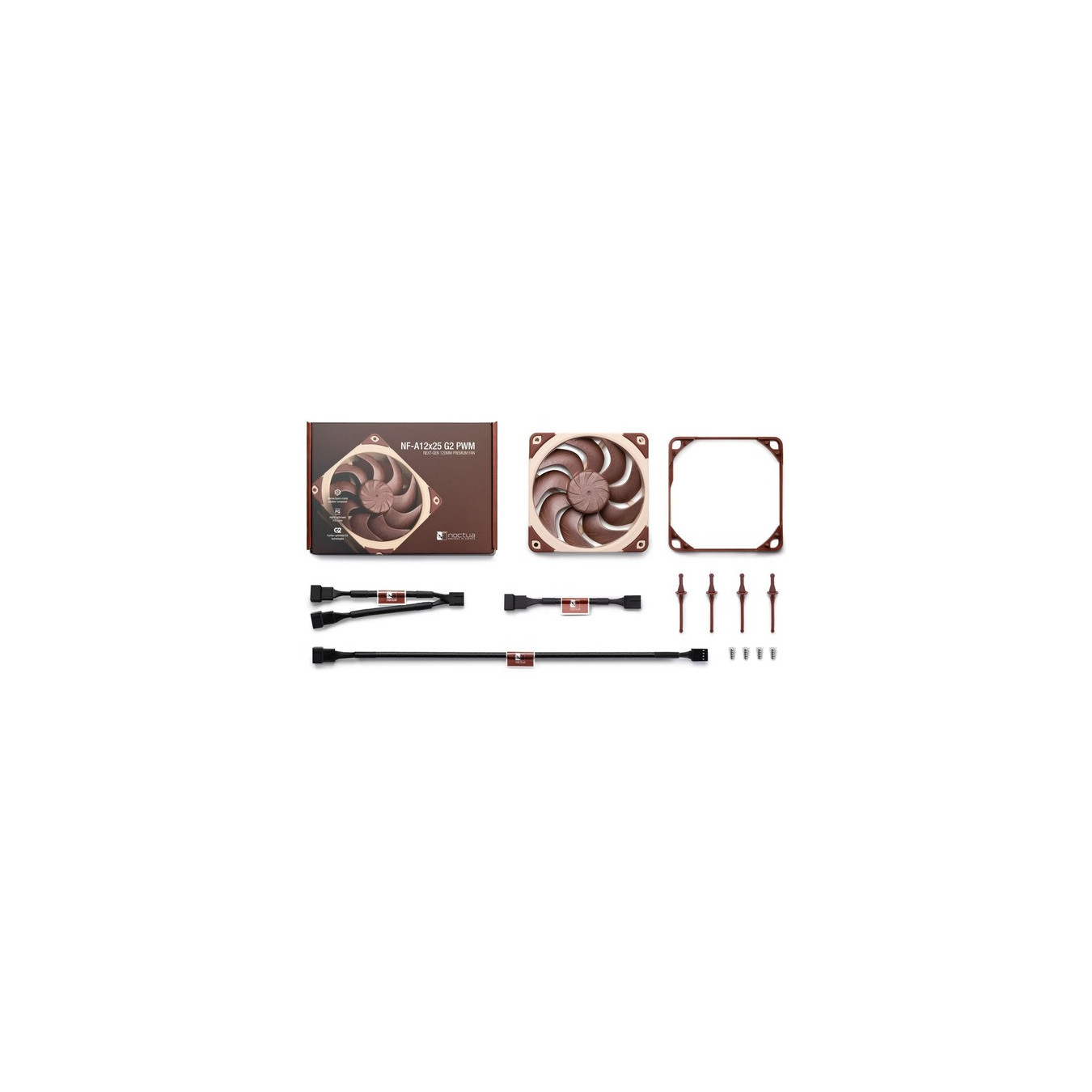

| Accessories - available | NA-RC7 low noise adapter (L.N.A.), NA-YC1 4-pin PWM Y-cable, NA-EC1 30cm extension cable, 4x NA-AV2 anti-vibration mounts, NA-AVG1 anti-vibration sealing lip, fan screws |
| Dimensions - Fan1 | Quantity: 1 piece, width: 120 mm, height: 120 mm, depth: 25 mm |
