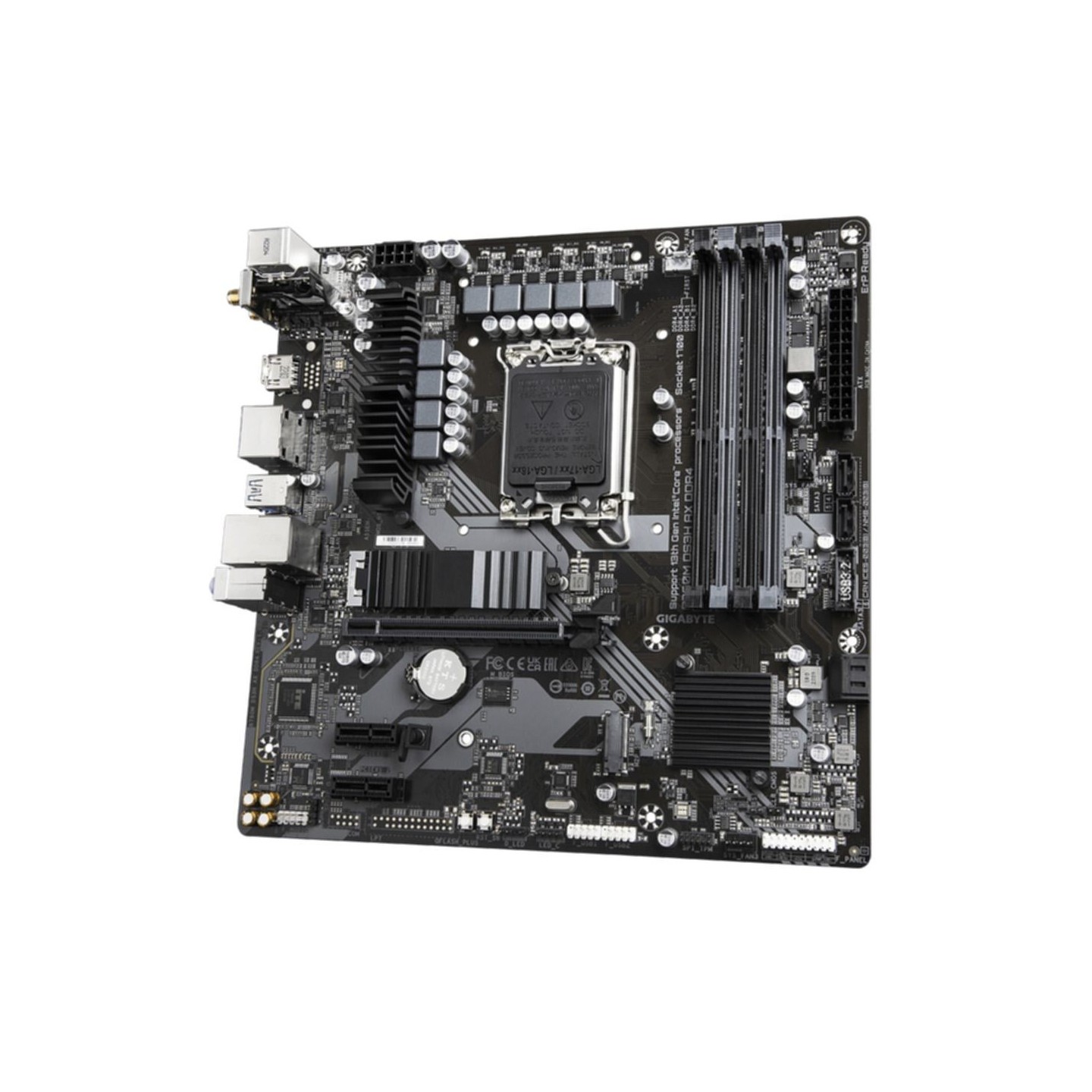

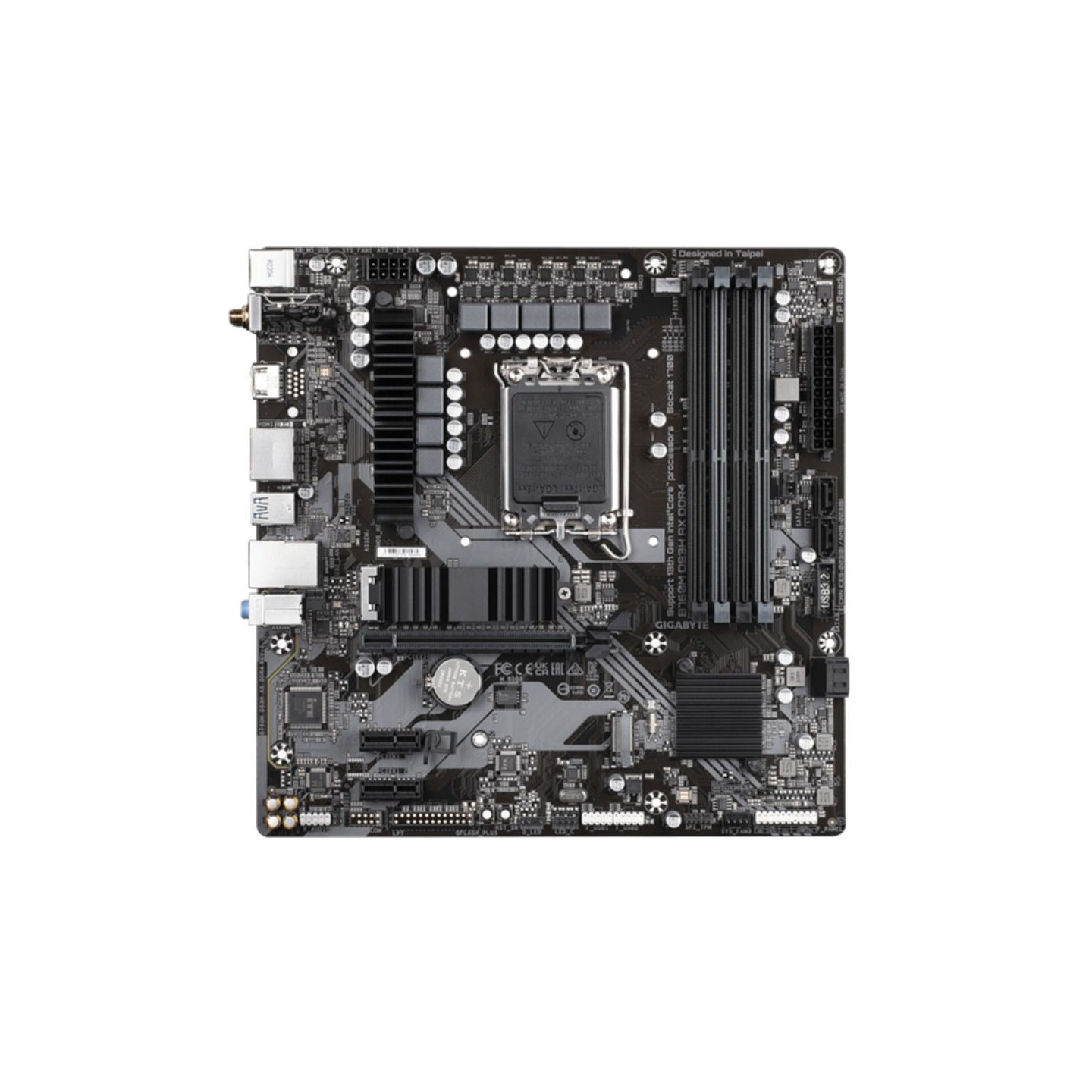

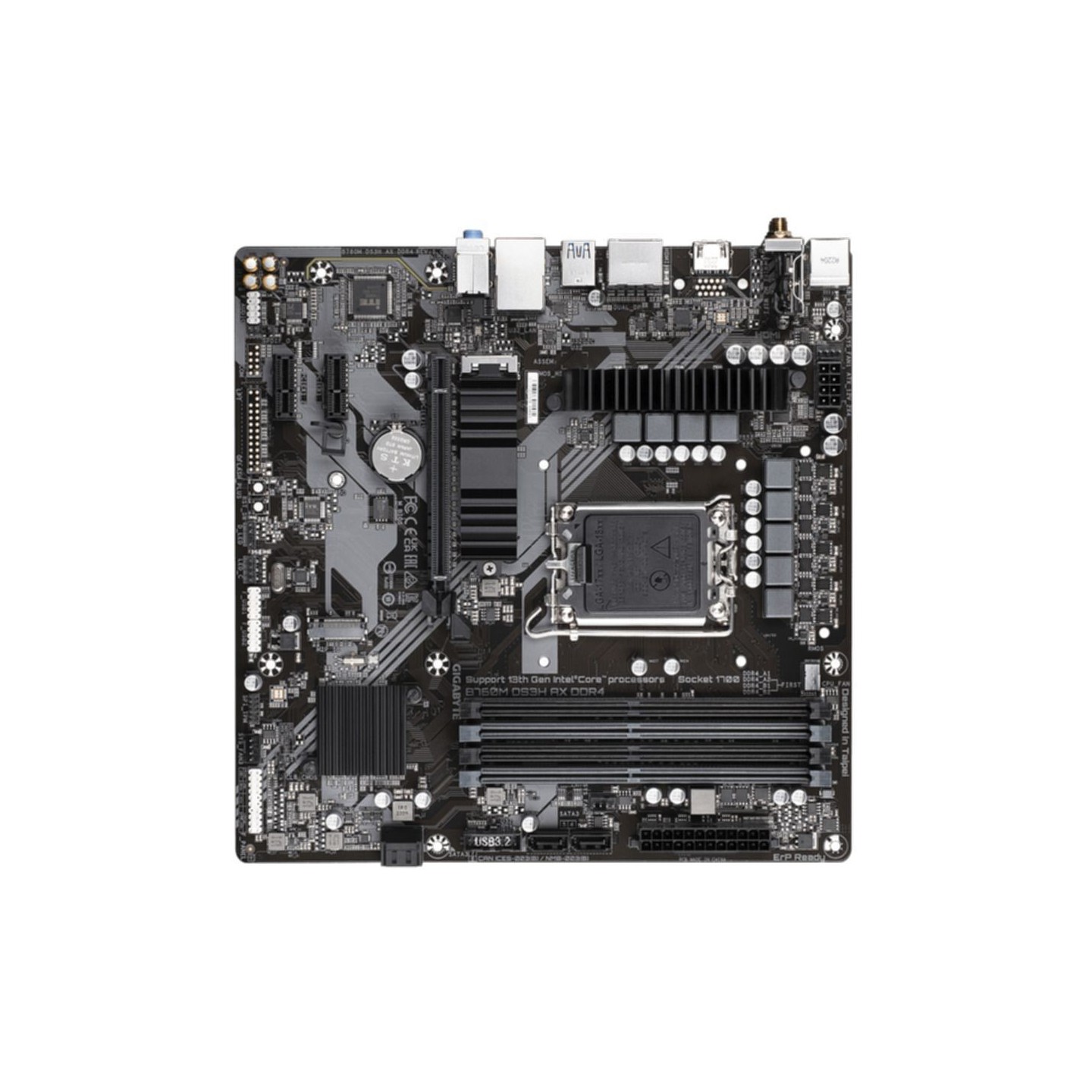

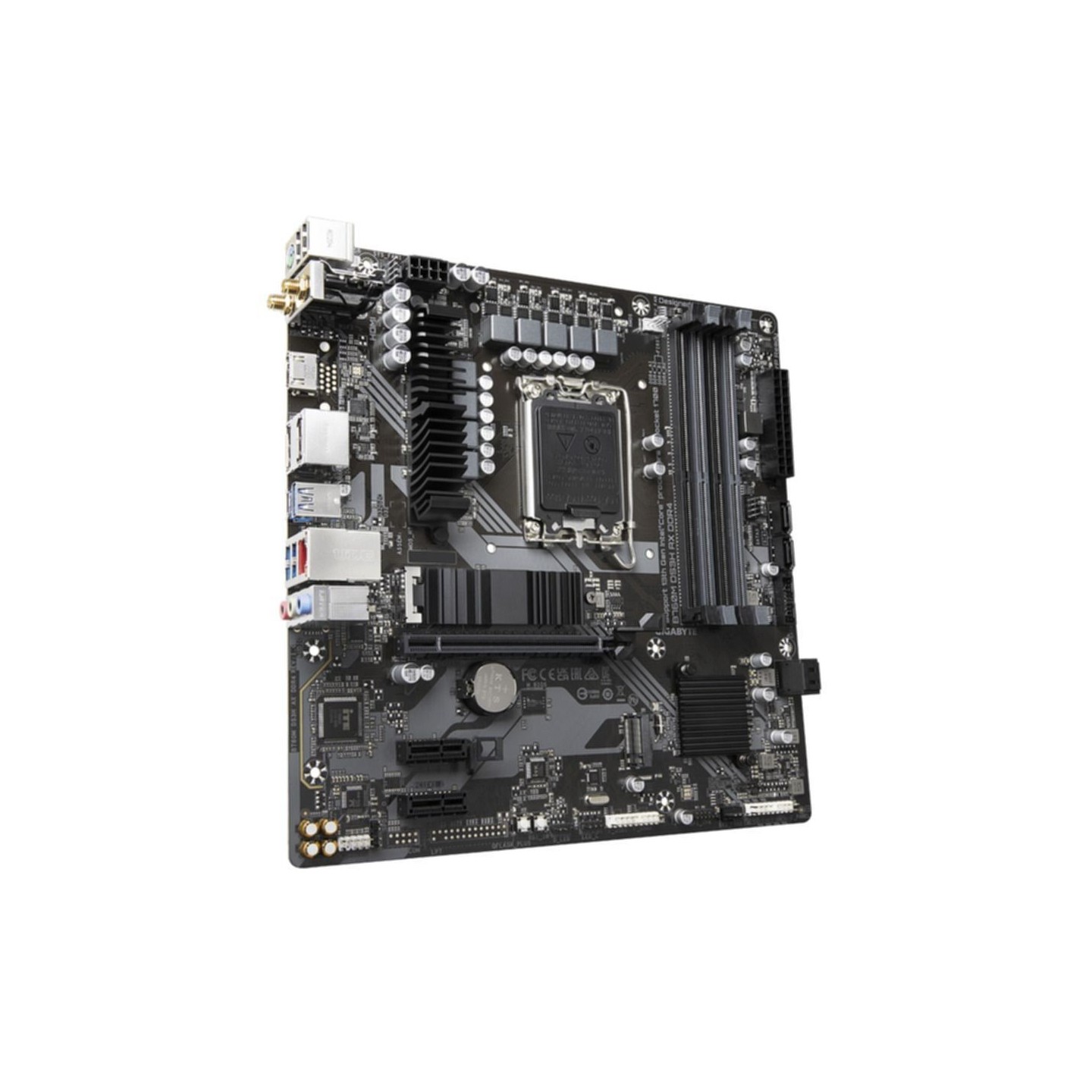

GIGABYTE B760M DS3H AX DDR4 - LGA1700 Micro-ATX Motherboard, Intel B760, 4x DDR4 (128GB Max), Wi-Fi 6E, 2.5GbE, USB-C
Micro-ATX motherboard with LGA1700 socket supporting Intel 12th-14th gen, 4x DDR4 DIMM slots (up to 128GB), B760 chipset, PCIe 4.0, 2x M.2, Wi-Fi 6E, 2.5GbE, USB-C.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | LGA 1700 |
|---|---|
| Motherboards - Chipset | Intel B760 |
| Motherboards - Form Factor | Micro-ATX |
| Motherboards - Memory Type | DDR4 |
| Motherboards - Memory Profile Support | XMP |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 128 GB |
| Motherboards - Main Slot PCIe Version | PCIe 4.0 |
| Motherboards - Color | Black |
| Motherboards - M.2 Slots | 2 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C Support | Rear Type-C |
| Motherboards - RGB Headers | 3-pin 5V ARGB 4-pin 12V RGB |
| Motherboards - Wireless Connectivity | Bluetooth WiFi |
The GIGABYTE B760M DS3H AX DDR4 is a Micro-ATX motherboard designed for Intel's 12th, 13th, and 14th generation Core processors. Built on the Intel B760 chipset, this board delivers reliable performance for mainstream computing, gaming, and content creation. The motherboard features a robust 6+2+1 Phases Hybrid Digital VRM design with premium chokes and capacitors, ensuring stable power delivery and efficient thermal management for your processor.
Connectivity and expansion are well-covered with PCIe 4.0 support, including one x16 slot and two M.2 connectors for high-speed NVMe storage. Memory support includes four DDR4 DIMM slots capable of handling up to 128GB of RAM with speeds up to 5333 MHz, and full XMP profile support for optimized performance. The board includes Wi-Fi 6E (802.11ax) and Bluetooth 5.2 for wireless connectivity, plus a 2.5 Gigabit Ethernet port for wired networking. Additional features include USB 3.2 Gen 2 Type-C rear connectivity, 8-channel HD audio with noise guard, and comprehensive system monitoring via Smart Fan 6 technology.
- LGA1700 socket for Intel 12th, 13th, and 14th gen processors
- 4x DDR4 DIMM slots supporting up to 128GB memory
- Intel B760 Express chipset
- PCIe 4.0 x16 slot and 2x M.2 NVMe connectors
- Wi-Fi 6E and Bluetooth 5.2 wireless connectivity
- 2.5GbE Ethernet and USB 3.2 Gen 2 Type-C
- 6+2+1 Phases Hybrid Digital VRM with premium components
- Micro-ATX form factor for compact builds
| CPU Socket | LGA1700 |
| Supported Processors | Intel Core 14th, 13th, 12th Gen; Intel Pentium Gold; Intel Celeron |
| Chipset | Intel B760 Express |
| Form Factor | Micro-ATX |
| Memory Type | DDR4 SDRAM |
| Memory Slots | 4x DIMM |
| Maximum Memory | 128 GB |
| Memory Speed Support | DDR4-2133, 2400, 2666, 2933, 3000, 3200, 3300, 3333, 3400, 3466, 3600, 3666, 3733, 3800, 3866, 4000, 4133, 4266, 4300, 4400, 4500, 4600, 4700, 4800, 4933, 5000, 5133, 5333 MHz |
| Memory Profile Support | XMP (Extreme Memory Profile) |
| ECC Support | ECC and Non-ECC (operates in non-ECC mode) |
| Storage Interfaces | 4x SATA III, 2x M.2 (PCIe 4.0 x4) |
| RAID Support | RAID 0, 1, 5, 10 |
| PCIe Slots | 1x PCIe 4.0 x16, 2x PCIe 4.0 x4 M.2 |
| PCIe Version | PCIe 4.0 |
| VRM Design | 6+2+1 Phases Hybrid Digital VRM with Low RDS(on) MOSFETs, Premium Chokes and Capacitors |
| Audio | 8-channel HD Audio with Audio Noise Guard and High-End Audio Capacitors |
| Networking | 2.5 Gigabit Ethernet (RJ-45), Wi-Fi 6E (802.11ax), Bluetooth 5.2 |
| Wireless Controller | RZ608 |

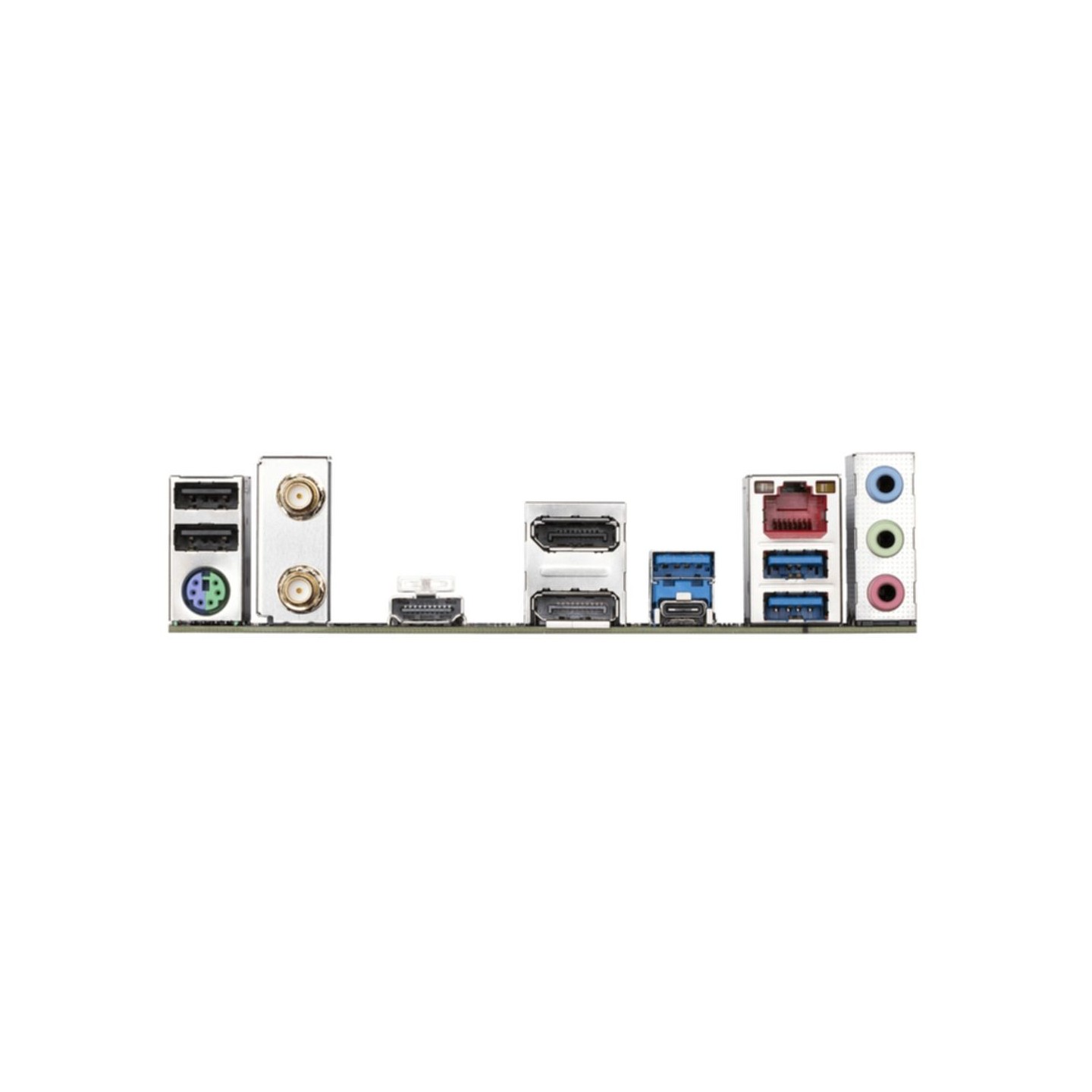

| USB Ports (Rear) | 2x USB 2.0, 3x USB 3.2 Gen 1, 1x USB 3.2 Gen 2 Type-C |
| Video Output | 1x HDMI (4096x2160@60Hz), 2x DisplayPort 1.2 |
| Audio Connectors | 3x Headphone outputs, 1x Microphone input, 1x S/PDIF output |
| Internal Headers | 1x 24-pin ATX Power, 1x 8-pin EPS Power, 1x 12V Power, CPU Fan, System Fan, 1x Addressable LED (5V ARGB), 1x RGB LED (12V), Front Panel Audio, Front Panel Connector, S/PDIF, USB 2.0 (4x internal), USB 3.0 (2x internal) |
| BIOS | UEFI AMI, 128 Mbit, Q-Flash Plus (update without CPU/RAM/GPU) |
| System Management | Smart Fan 6, PC Health Monitoring (Fan, Temperature, Voltage, Water Cooling), DMI 2.7, SMBIOS 2.7, ACPI 5.0 |
| CMOS Battery | CR2032 Lithium-Manganese Dioxide |
| Motherboard Dimensions | 244 x 244 x 35 mm |
| Motherboard Weight | 1.1 kg (unboxed) |
| Operating Systems | Windows 10 x64, Windows 11 x64 |
| Warranty | 3 years |
| Included Accessories | SATA cables, CR2032 battery, Norton Internet Security (software) |
