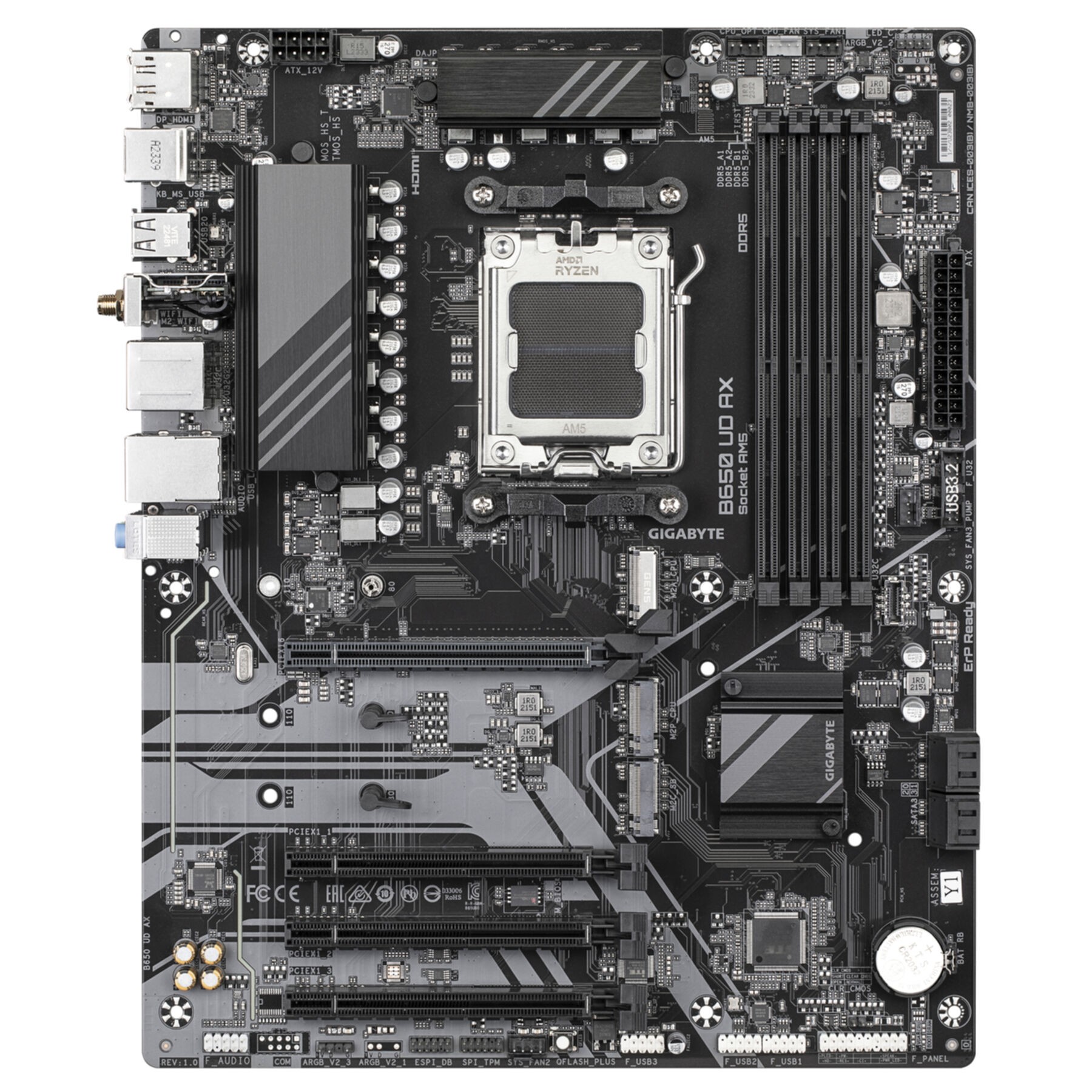

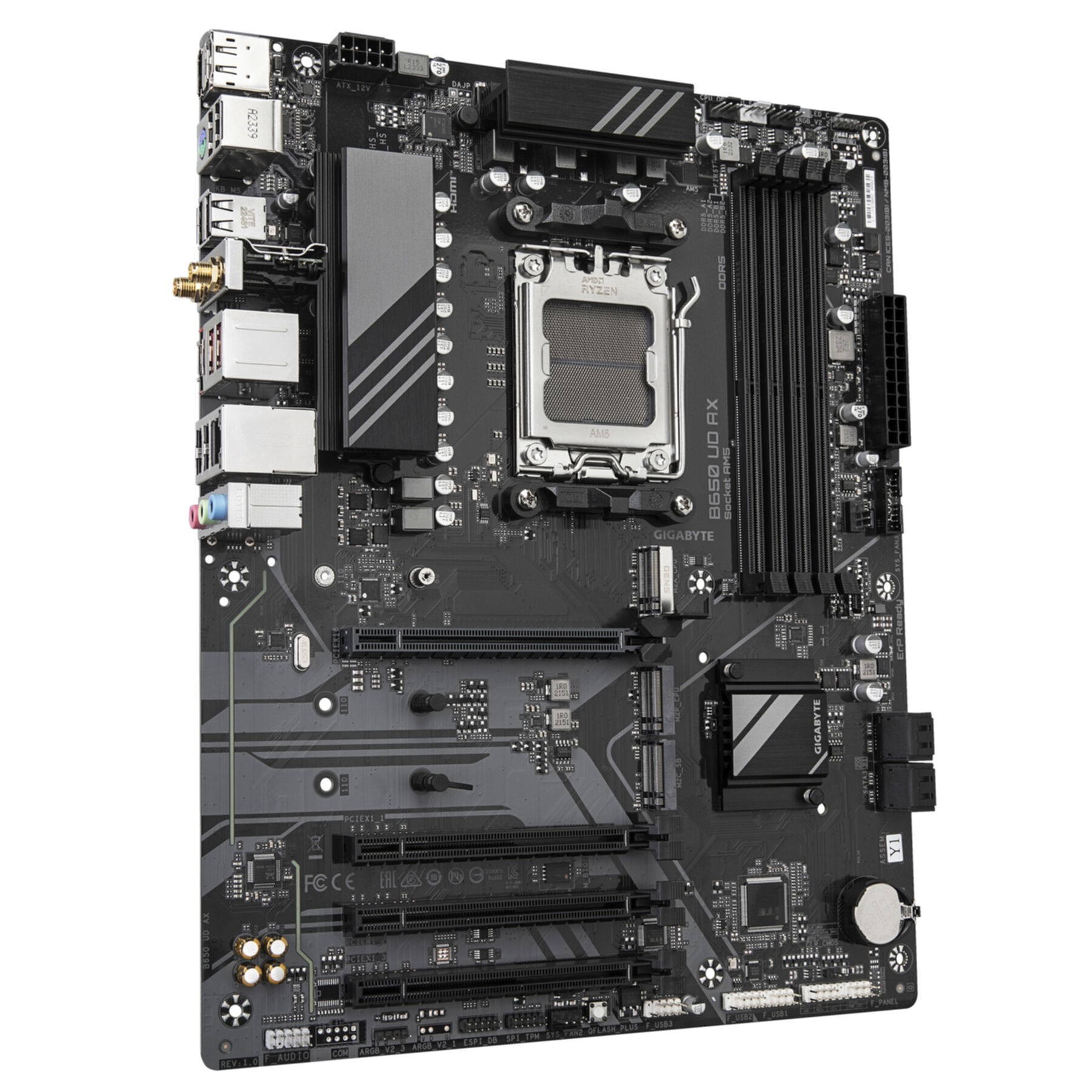

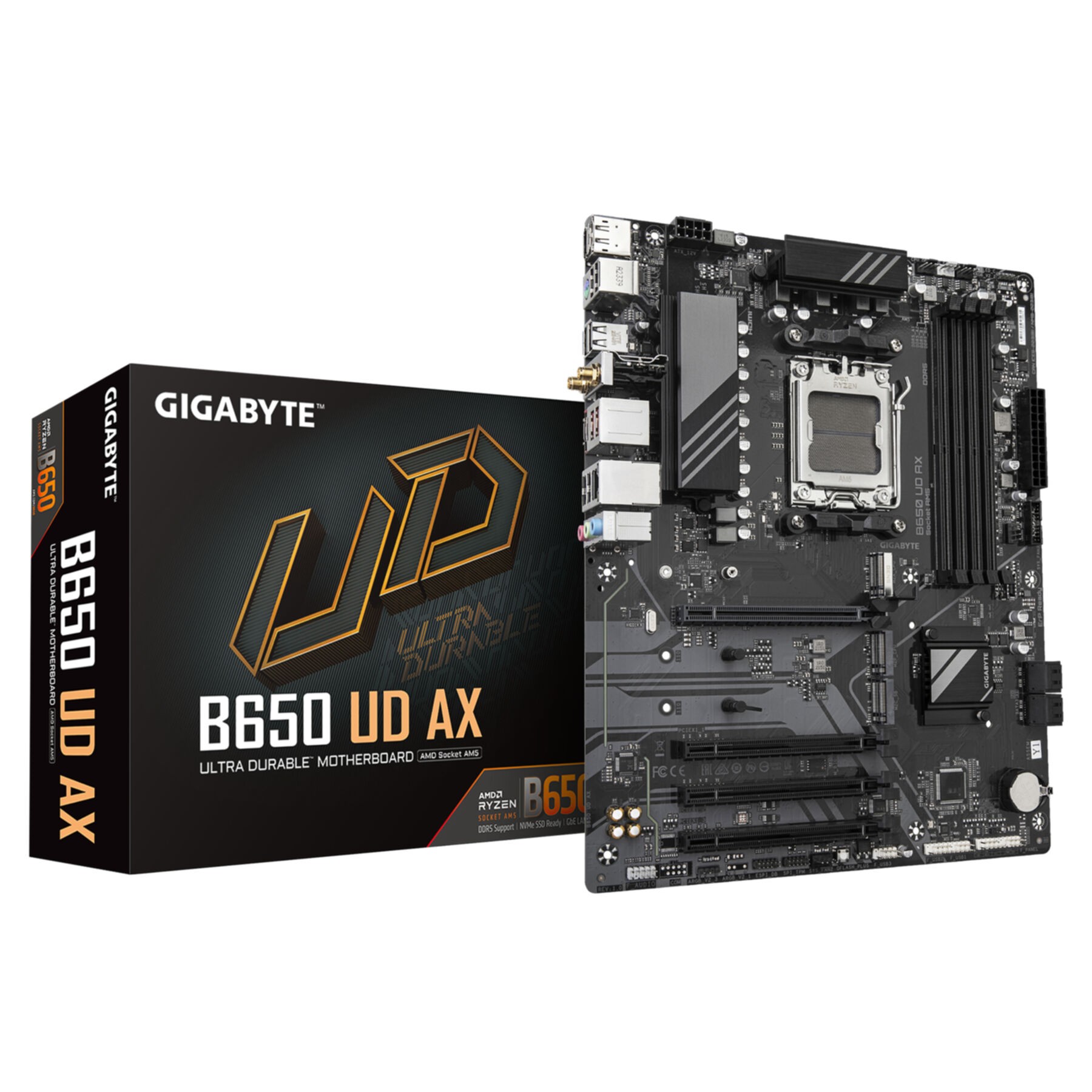

Gigabyte GA-B650 UD AX - AM5 ATX Motherboard, AMD B650, DDR5 up to 7600MHz, 4x DIMM (256GB), Wi‑Fi 6
AM5 ATX motherboard (Gigabyte GA-B650 UD AX) with AMD B650 chipset. Supports Ryzen 7000/8000/9000, DDR5 up to 7600MHz (4x DIMM, 256GB), 3x M.2, SATA III x4, Wi‑Fi 6.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Motherboards - Socket | AM5 |
|---|---|
| Motherboards - Chipset | AMD B650 |
| Motherboards - Form Factor | ATX |
| Motherboards - Memory Type | DDR5 |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 256 GB |
| Motherboards - PCIe Version (primary GPU) | PCIe 4.0 |
| Motherboards - M.2 Slots | 3 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C | Rear Type-C |
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Supported processor sockets | Socket AM5 |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 4800, 5200, 5600, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7600 MHz |
| Supported memory clock speed (max) | 7600 MHz |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| Maximum internal memory per slot | 64 GB |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 7 |
| RAID support | Yes |
| RAID levels | 0, 1, 10 |
| Parallel processing technology support | Not supported |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |
| USB 2.0 connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of CPU fan connectors | 2 |
| Number of chassis fan connectors | 3 |
| EPS power connector (8-pin) | Yes |
| Number of EPS power connectors (8-pin) | 1 |
| TPM connector | Yes |
| Serial port headers | 1 |
| 12V power connector | Yes |
| Number of water pump connectors | 2 |
| RGB LED pin header | Yes |
| Number of RGB LED pin headers | 4 |

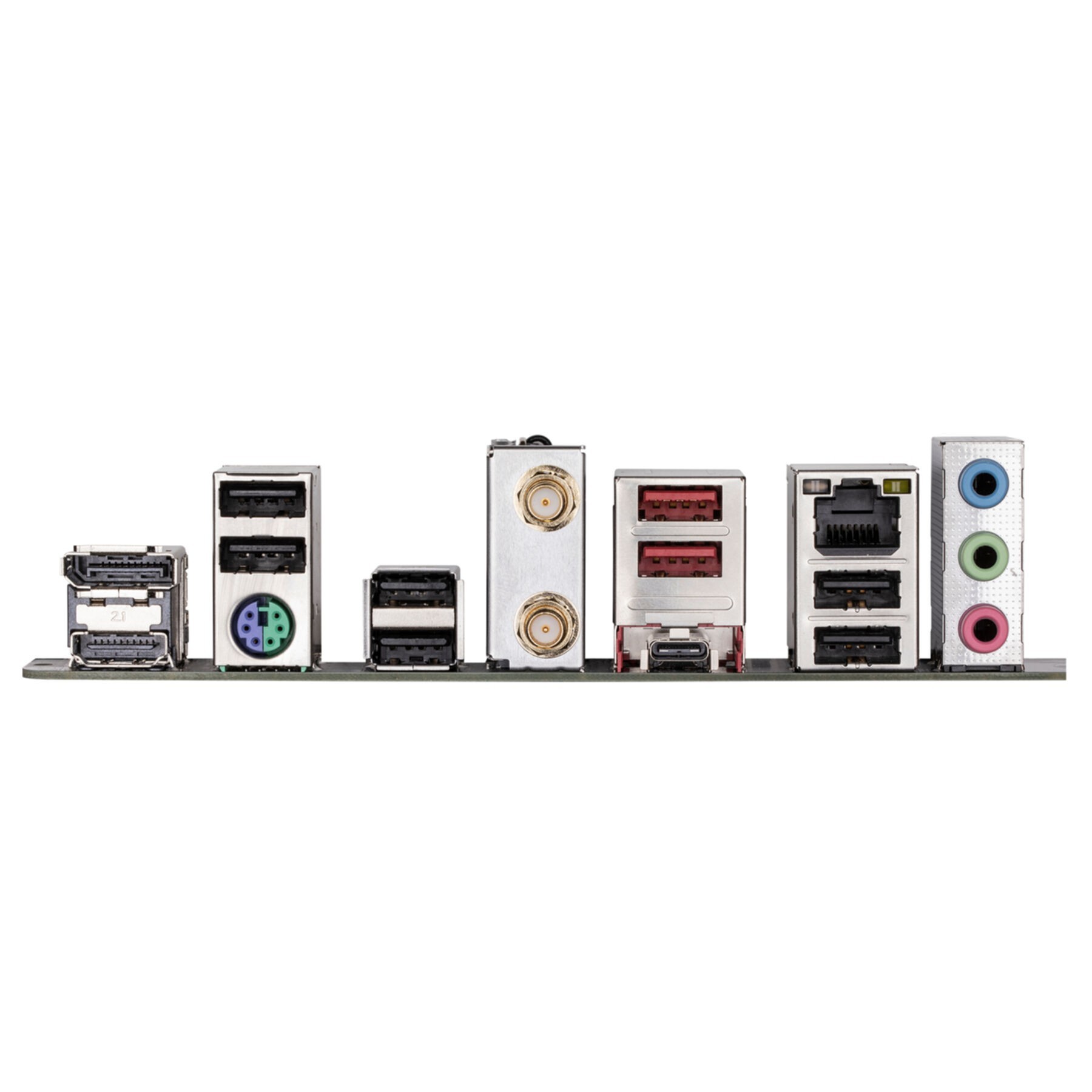

| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| WiFi-AP antenna jack | 2 |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111H |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN controller model | Realtek RTL8851BE |
| Motherboard chipset | AMD B650 |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Product colour | Brown |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| PCI Express x16 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 3 |
| 1st M.2 largest key size | 25110 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 22110 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
| Clear CMOS button | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Country of origin | China |
| Products per shipping (inner) case | 1 pc(s) |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Package width | 335 mm |
| Package depth | 270 mm |
| Package height | 80 mm |
| Package weight | 2.2 kg |
| Width | 305 mm |
| Depth | 244 mm |
| Height | 35 mm |
| Batteries included | Yes |
| Antenna included | Yes |
| Screws included | Yes |
| Bundled software | Norton Internet Security (OEM version) LAN bandwidth management software |
| Weight | 1.95 kg |
| Warranty period | 3 year(s) |
