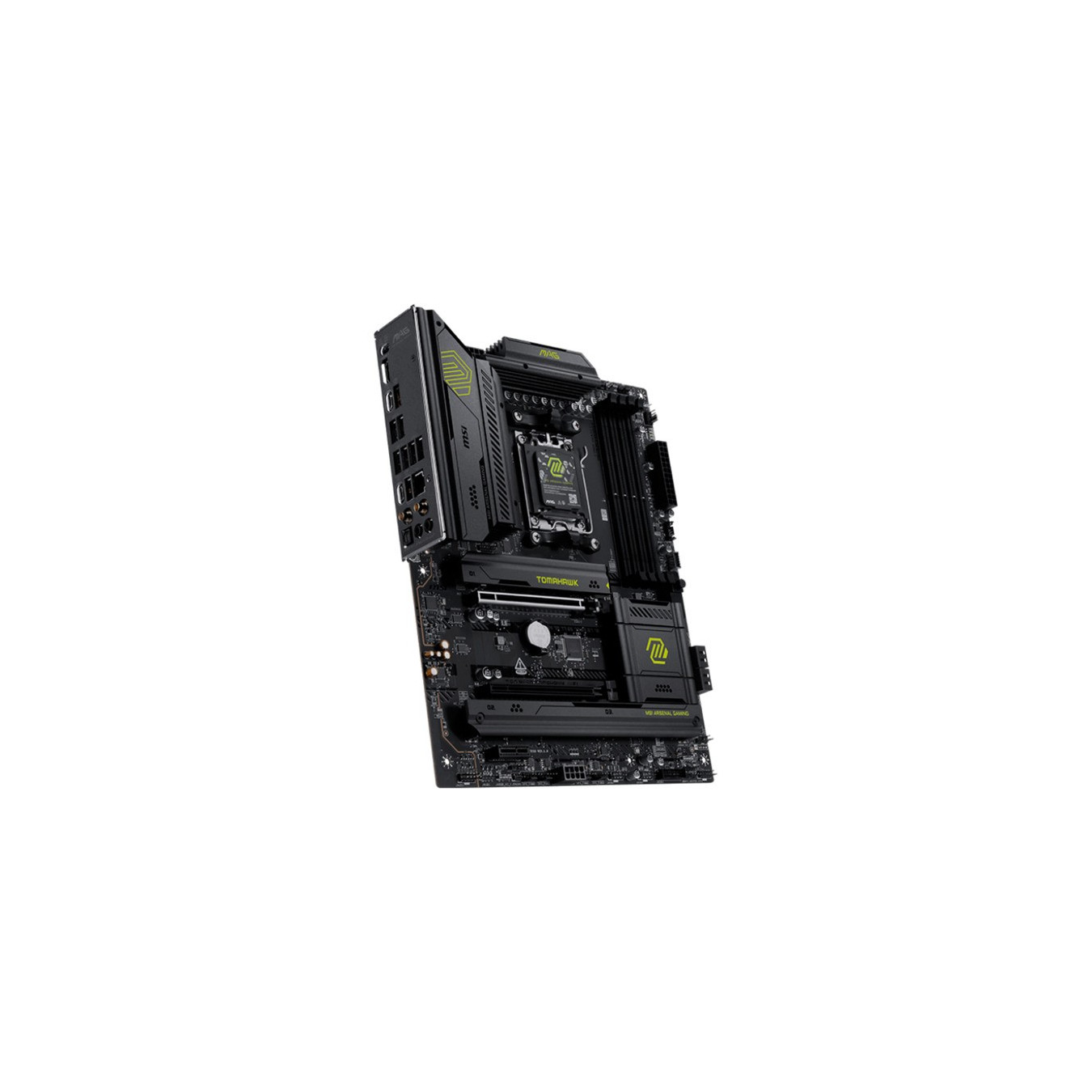

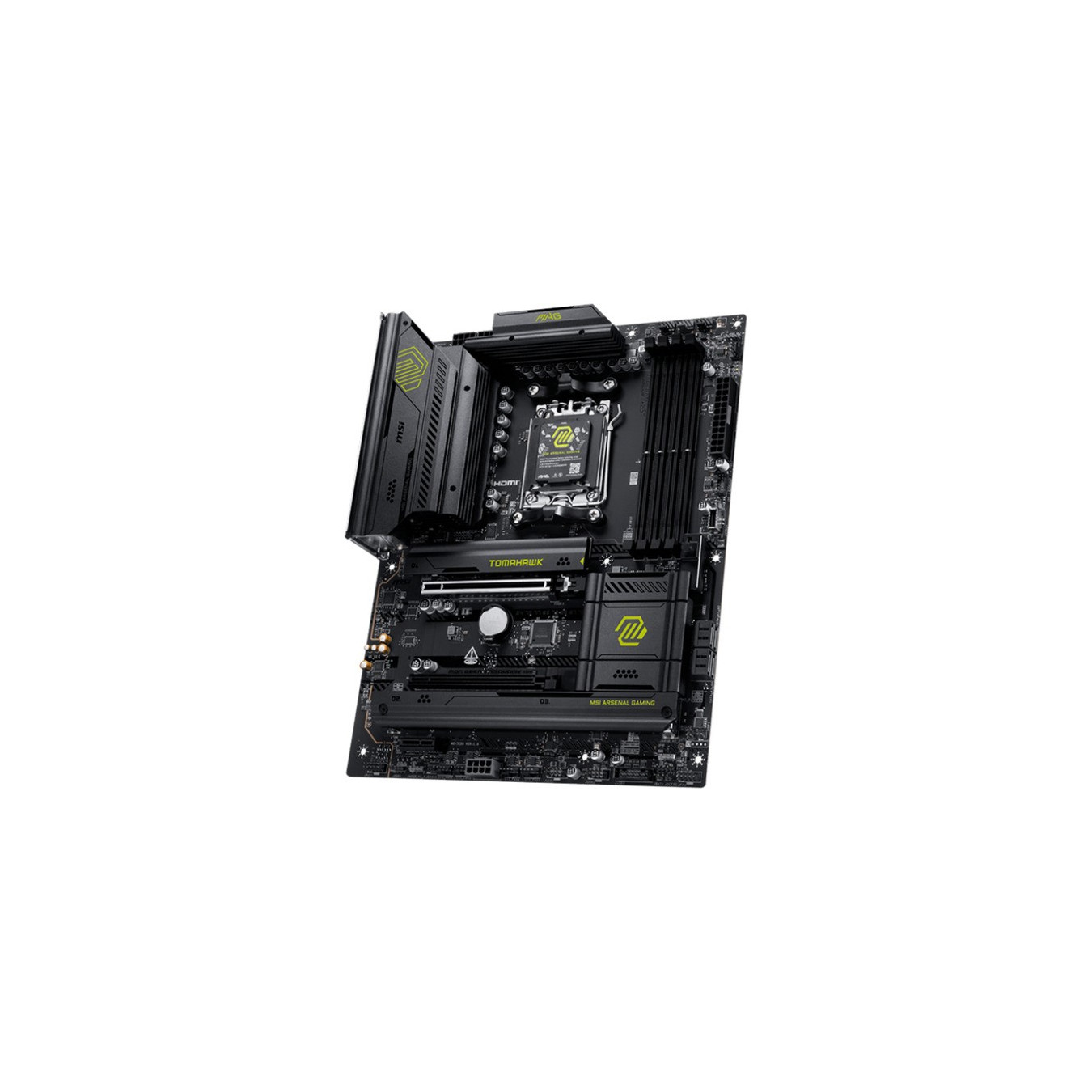

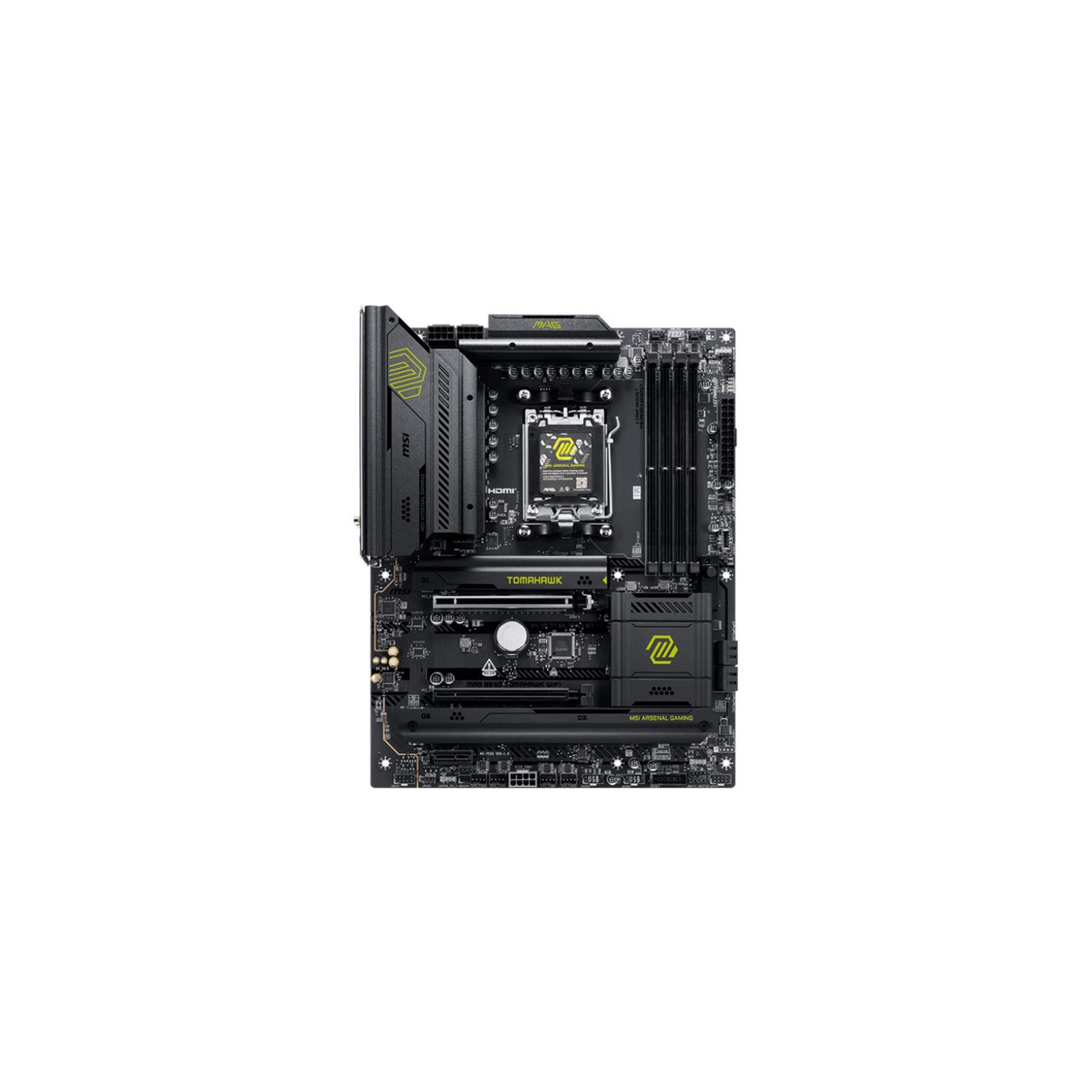

MAG B850 TOMAHAWK WIFI, Mainboard
The MSI MAG B850 TOMAHAWK WIFI is based on the AMD B850 chipset and supports AMD processors for socket AM5. It has four DDR5 slots for up to 256 GB of memory. The MSI MAG B850 TOMA...
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
The MSI MAG B850 TOMAHAWK WIFI is based on the AMD B850 chipset and supports AMD processors for socket AM5. It has four DDR5 slots for up to 256 GB of memory. The MSI MAG B850 TOMAHAWK WIFI's additional features include a PCIe 5.0 x16 slot, a PCIe 4.0 x16 slot (x4 lanes) and a PCIe 3.0 x1 slot. The MSI MAG B850 TOMAHAWK WIFI also has 8-channel sound, a 5 Gigabit LAN interface, four SATA3 ports, WiFi7, Bluetooth, three M.2 ports and a number of USB interfaces.
| Typ | Mainboard |
| EAN | 4711377402859 |
| Manufacturer no. | 7E53-001R |
| base | AM5 |
| Max. supported CPUs | 1 |
| Operating system support | Windows 10 ready, Windows 11 ready |
| Processor - Supported Models | Ryzen 5 7xxx (Raphael), Ryzen 5 7xxxX (Raphael), Ryzen 5 7xxxF (Raphael), Ryzen 5 7xxxX3D (Raphael), Ryzen 5 8xxxF (Phoenix), Ryzen 5 8xxxG (Phoenix), Ryzen 5 9xxx (Granite Ridge), Ryzen 5 9xxxX (Granite Ridge), Ryzen 7 7xxx (Raphael), Ryzen 7 7xxxX (Raphael), Ryzen 7 7xxxX3D (Raphael), Ryzen 7 8xxxG (Phoenix), Ryzen 7 8xxxF (Phoenix), Ryzen 7 9xxxX (Granite Ridge), Ryzen 7 9xxxX3D (Granite Ridge), Ryzen 9 7xxx (Raphael), Ryzen 9 7xxxX (Raphael), Ryzen 9 7xxxX3D (Raphael), Ryzen 9 9xxxX (Granite Ridge), Ryzen 9 9xxxX3D (Granite Ridge) |
| Chipset | AMD B850 |
| Slots - PCIe x16 | 2x (default: 1x PCIe x16, 4x PCIe x4) |
| BIOS - EFI-BIOS | And |
| Form factor | ATX |
| use | PC |
| Power supply | ATX12V (24-Pin + 2x 8-Pin) |
| Memory - maximum | 256 GB |
| Ports (external) - USB-C 3.2 Gen 2x2 (20 Gbit/s) | 1 |
| Connectors (internal) - SATA | 4 |
| Ports (optional) - USB 3.2 Gen 1 (5Gbps) | 2 |
| SATA Controller | AMD B850 |
| directly usable RAID levels | 0, 1, 10 |
| USB-Controller | AMD B850 |
| Onboard Graphics | The graphics connections on the mainboard can only be used when using a CPU with an integrated graphics chip. |
| Sound | Realtek ALC4080 |
| LAN | Realtek 8126VB 5G LAN |
| More information | In order to support the latest processor cores, a BIOS update may be required. |

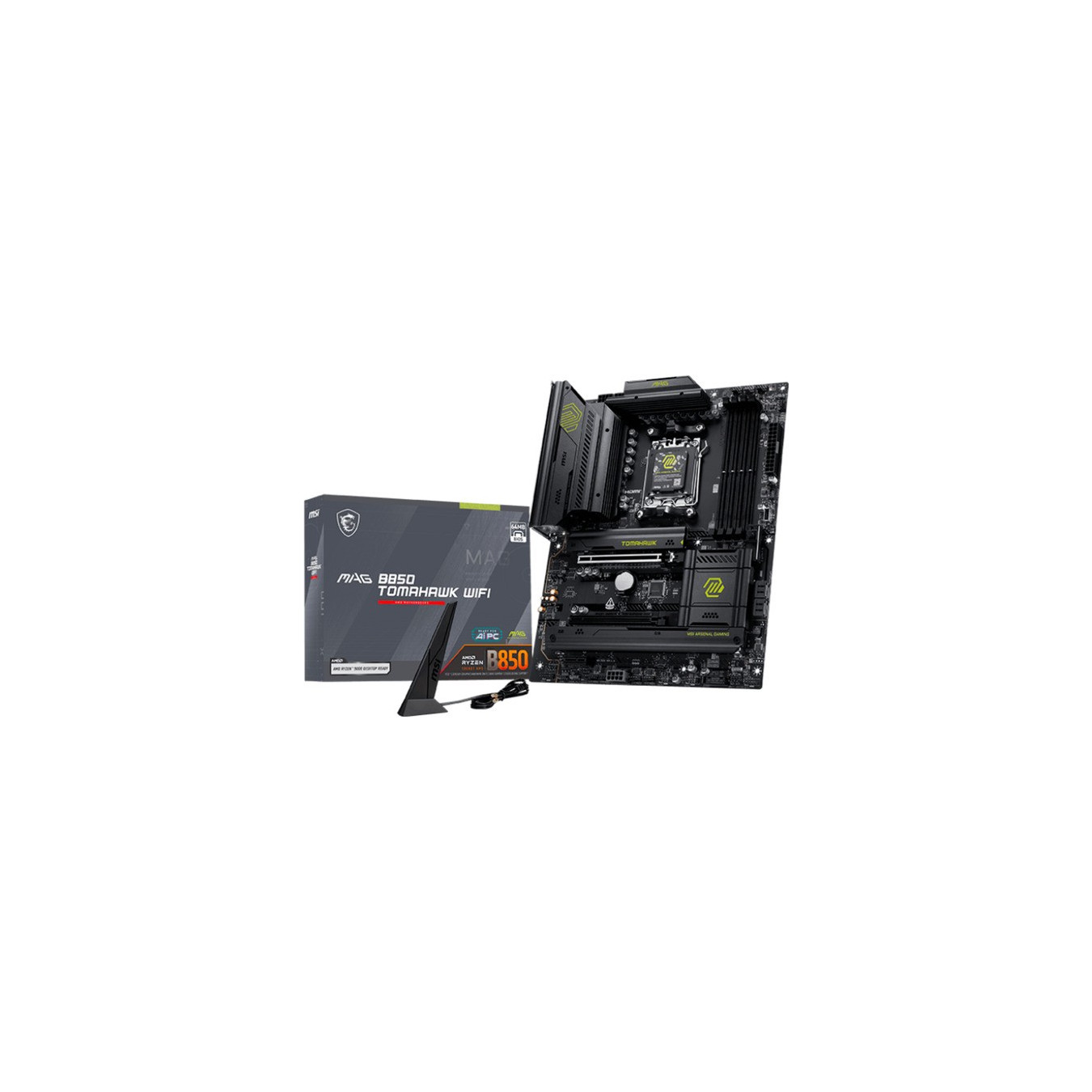

| Accessories - available | EZ WiFi Antenne, EZ M.2 Clip II, EZ M.2 Clip Remover, SATA Kabel, ARGB Extension Kabel, 1 zu 3 EZ Conn Kabel, EZ Frontpanel Kabel |
| Dimensions | Width: 243.84mm x Height: 304.8mm |
| Warnings and safety information | Warnings: Attention: Product contains a button cell or coin battery. |
