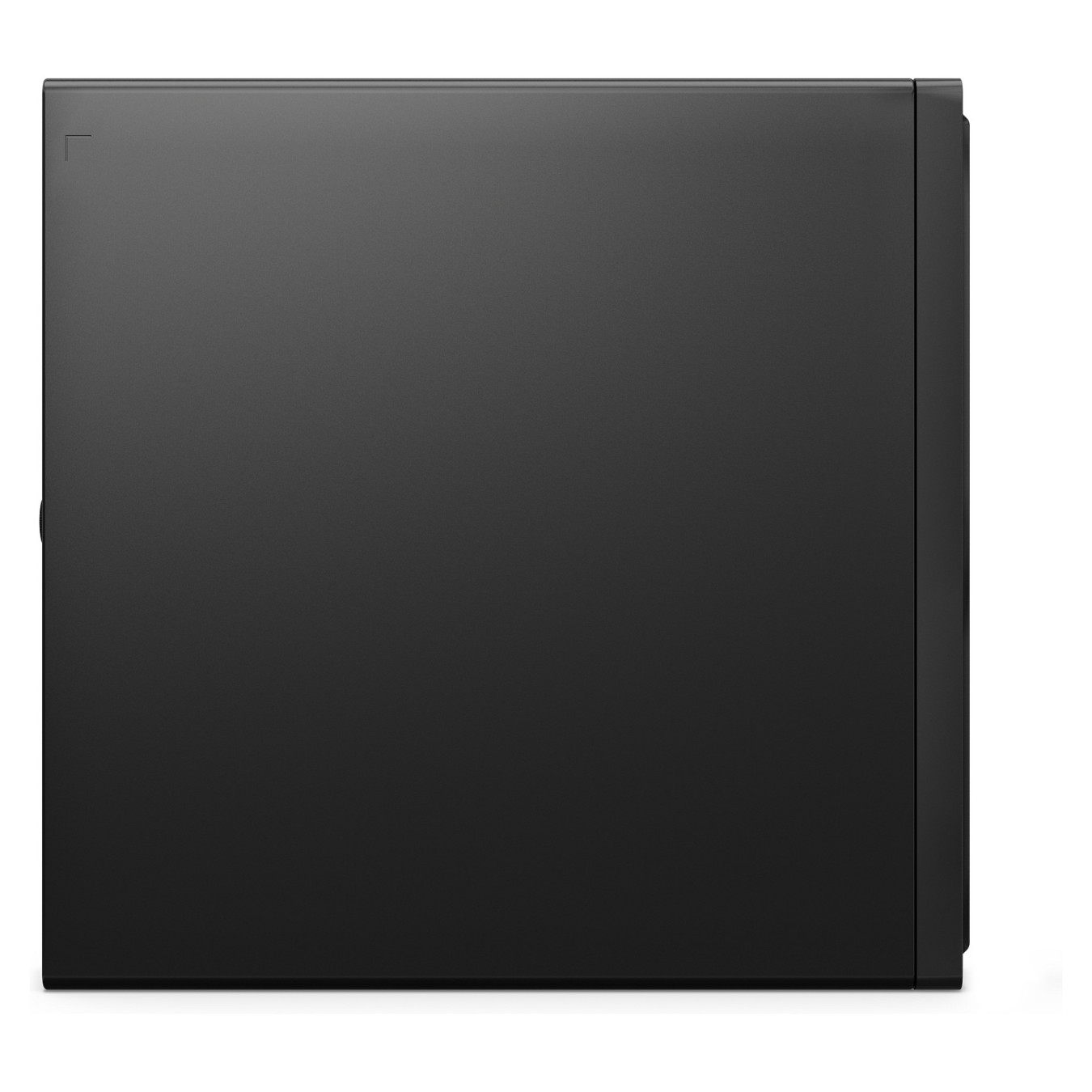

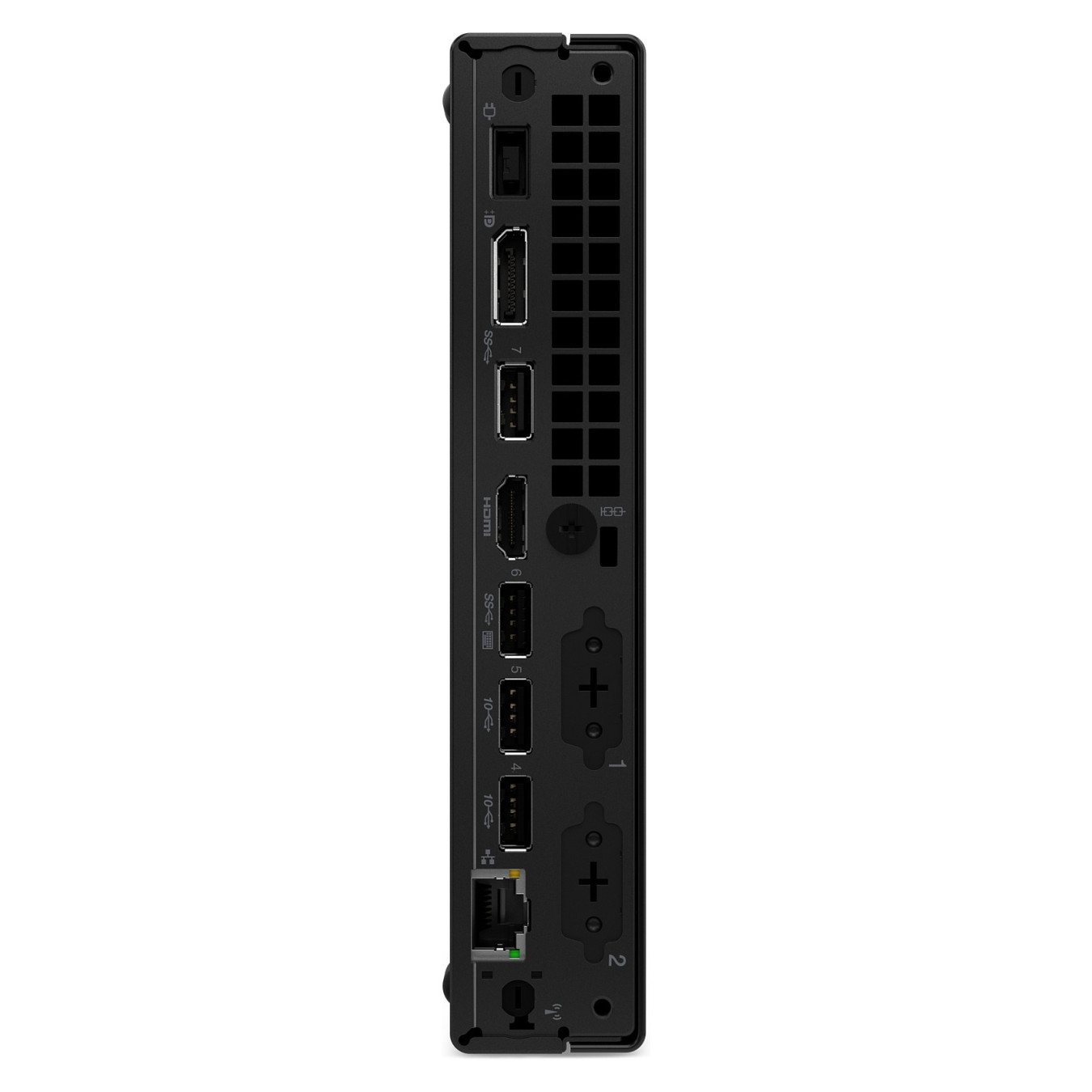

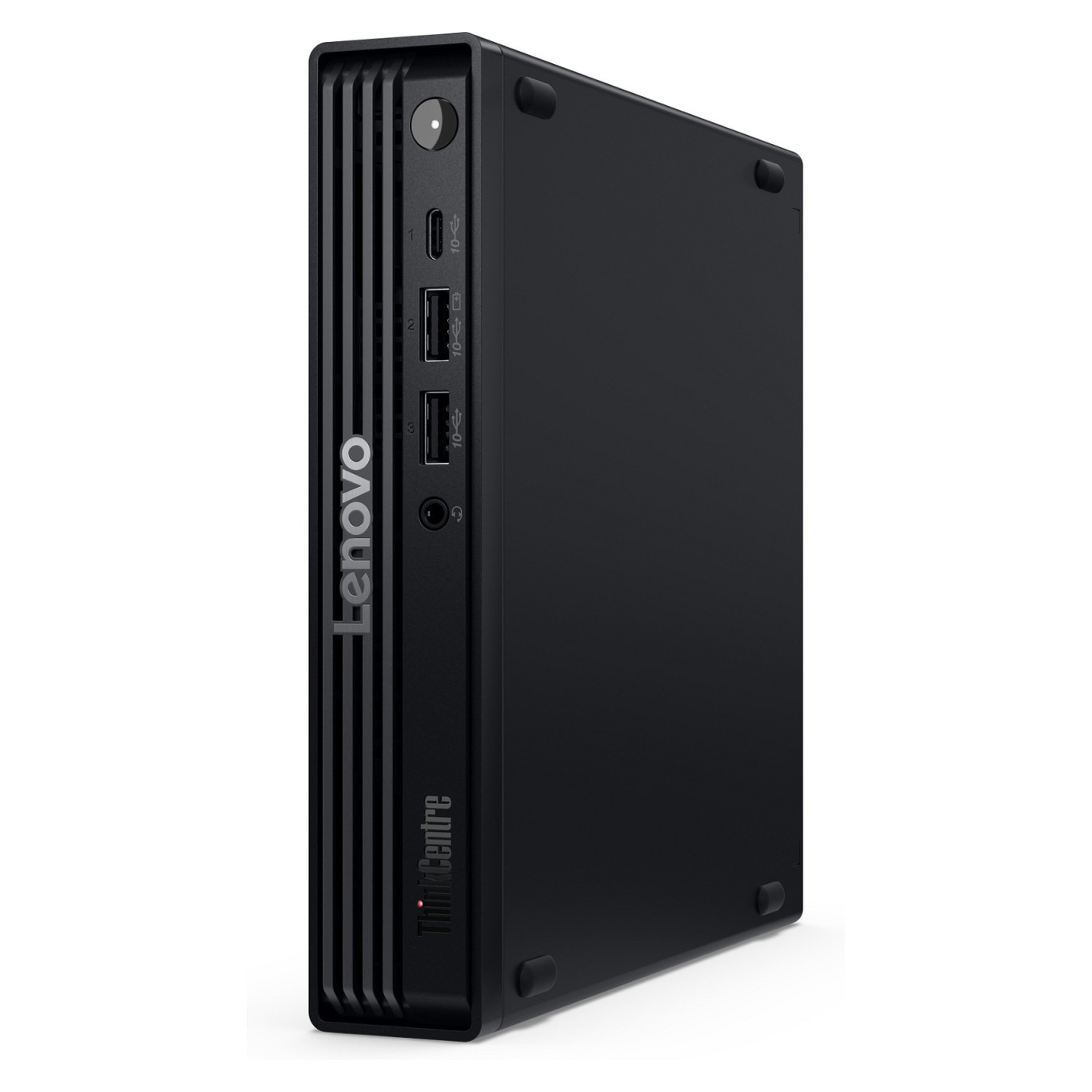

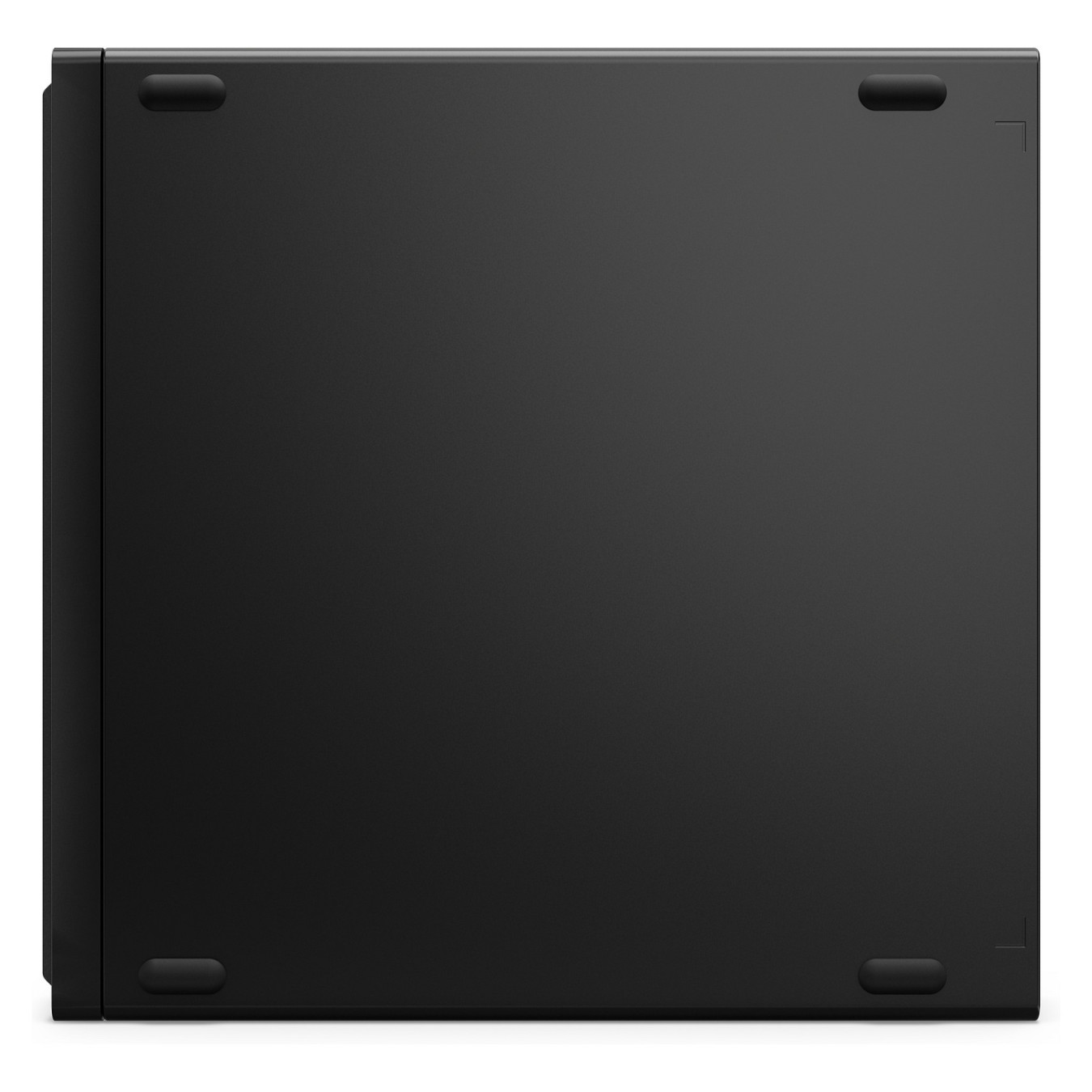

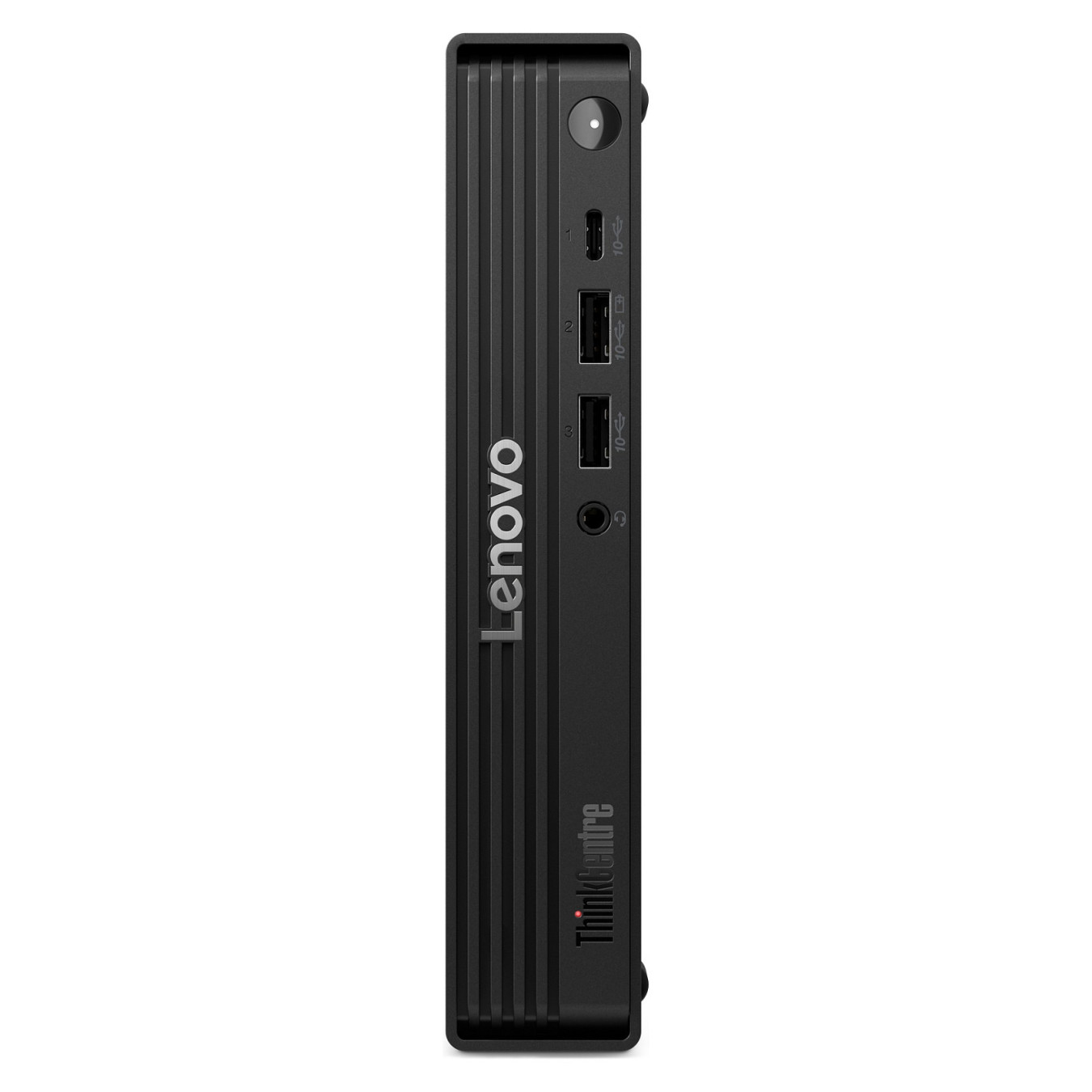

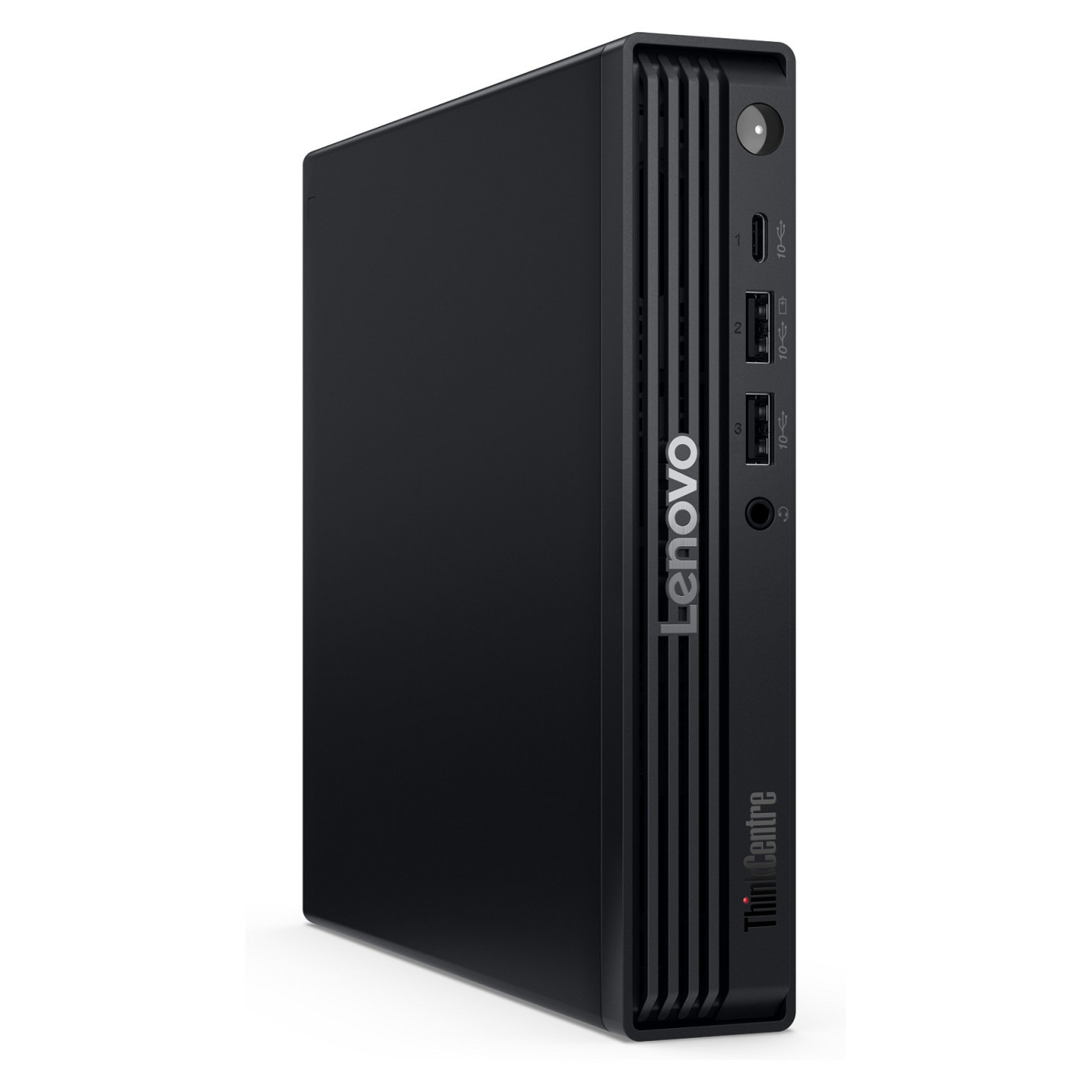

Lenovo ThinkCentre M70Q G6 Core Ultra 5 225T 16GB 512GB Mini PC (Boxed)
Lenovo ThinkCentre M70Q Gen 6 compact mini PC with Intel Core Ultra 5 225T processor, 16GB DDR5 RAM, 512GB SSD, Windows 11 Pro, and 1L form factor for efficient business computing.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Barebone & Mini PC - System Type | Complete Mini PC |
|---|---|
| Barebone & Mini PC - Processor Family | Intel Core Ultra 5 |
| Barebone & Mini PC - Graphics Chipset | Intel HD Graphics |
| Barebone & Mini PC - Operating System | Windows 11 Pro |
| Barebone & Mini PC - Installed Storage | 512 GB |
| Barebone & Mini PC - Installed Memory (RAM) | 16 GB |
The Lenovo ThinkCentre M70Q Gen 6 is a powerful yet compact mini PC designed for business environments, featuring an Intel Core Ultra 5 225T processor with 10 cores (6 Performance + 4 Efficiency) delivering up to 4.9GHz performance. This 1-liter form factor system combines productivity with space efficiency, making it ideal for corporate offices, healthcare facilities, and point-of-sale environments.
Equipped with 16GB DDR5-5600MHz memory (expandable to 64GB) and a 512GB M.2 PCIe 4.0 NVMe SSD, the M70Q Gen 6 delivers responsive performance for multitasking and data-intensive applications. The system includes Windows 11 Pro (64-bit), integrated Intel Graphics, and advanced connectivity features including Intel Wi-Fi 7 (5 Gig), Bluetooth 5.4, and support for up to 4 displays. Built on the Intel Q870 chipset with Intel vPro technology, it provides robust security features and enterprise-grade reliability with optional 3-year onsite support.
Key specifications include High Definition Audio with Realtek codec, 100/1000M Gigabit Ethernet, multiple USB 3.2 ports (Gen 1 and Gen 2), DisplayPort, HDMI 2.1, and optional Thunderbolt connectivity. The toolless chassis design enables easy upgrades and maintenance, while the compact 179 x 182.9 x 36.5mm dimensions and 1.18kg weight make it highly portable.
- Processor: Intel Core Ultra 5 225T (10C/10T, up to 4.9GHz)
- Memory: 16GB DDR5-5600MHz (2x SO-DIMM, max 64GB)
- Storage: 512GB M.2 2280 SSD PCIe 4.0x4 NVMe
- Graphics: Integrated Intel Graphics with AI Boost (up to 13 TOPS)
- Connectivity: Wi-Fi 7, Bluetooth 5.4, Gigabit Ethernet, USB 3.2, DisplayPort, HDMI 2.1
- Operating System: Windows 11 Pro (64-bit)
- Form Factor: 1L Mini PC (179 x 182.9 x 36.5mm, 1.18kg)
- Power: 135W adapter (90% efficient)
| Processor Manufacturer | Intel |
| Processor Family | Intel Core Ultra 5 |
| Processor Model | 225T |
| Processor Cores | 10 (6 Performance + 4 Efficiency) |
| Processor Threads | 10 |
| Base Clock Speed (P-cores) | 2.5 GHz |
| Base Clock Speed (E-cores) | 1.9 GHz |
| Max Turbo Frequency (P-cores) | 4.9 GHz |
| Max Turbo Frequency (E-cores) | 4.4 GHz |
| Cache (L2) | 22MB |
| Cache (L3/Smart Cache) | 20MB |
| Chipset | Intel Q870 |
| Installed Memory | 16GB |
| Memory Type | DDR5 SDRAM |
| Memory Speed | 5600 MHz |
| Memory Configuration | 2x 8GB SO-DIMM |
| Memory Slots | 2x DDR5 SO-DIMM (dual-channel capable) |
| Maximum Memory | 64GB |
| Storage Capacity | 512GB |
| Storage Type | SSD |
| Storage Interface | M.2 2280 PCIe 4.0x4 NVMe |
| Storage Security | Opal 2.0 |
| Graphics | Integrated Intel Graphics |
| AI Accelerator | Intel AI Boost, up to 13 TOPS |
| Audio System | High Definition Audio |
| Audio Codec | Realtek ALC233VB or Conexant CX11771 |
| Speakers | 2W x 1 |
| Ethernet | Integrated 100/1000M Gigabit LAN |
| Wireless LAN | Intel Wi-Fi 7 (802.11be) with 5 Gig capability |
| Bluetooth | 5.4 |
| USB 3.2 Gen 1 Type-A | 2 ports |
| USB 3.2 Gen 2 Type-A | 4 ports |
| USB 3.2 Gen 2 Type-C | 1 port |
| HDMI | 1x HDMI 2.1 |
| DisplayPort | 1x DisplayPort |
| Display Support | Up to 4 displays |
| Keyboard | USB Traditional Keyboard (Black, English) - Included |
| Mouse | Not specified |
| Security Features | Intel vPro, TPM 2.0, Kensington lock slot |
| Operating System | Windows 11 Pro (64-bit) |
| Form Factor | Mini PC (1L) |
| Dimensions (Device) | 179 x 182.9 x 36.5 mm (7.05 x 7.2 x 1.44 inches) |
| Weight (Device) | 1.18 kg |
| Power Supply | 135W external adapter |
| Power Efficiency | 90% efficient |
| Input Voltage | 100-240V AC |
| Input Frequency | 50/60 Hz |
| Certifications | ENERGY STAR, TCO, RoHS |
| Chassis Design | Toolless chassis with easy access for upgrades |
| Color | Black |
| Support | 3-year onsite support available |
