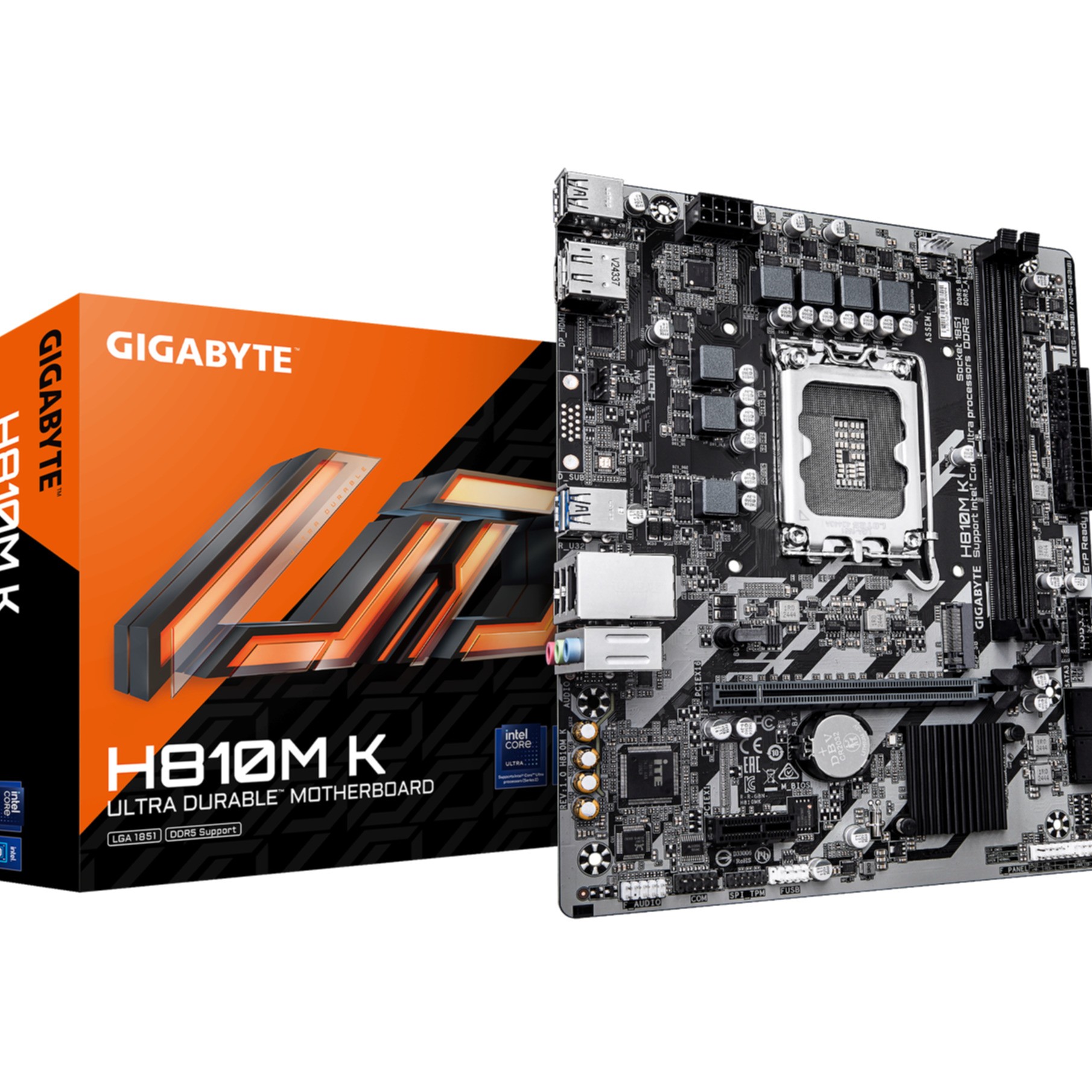

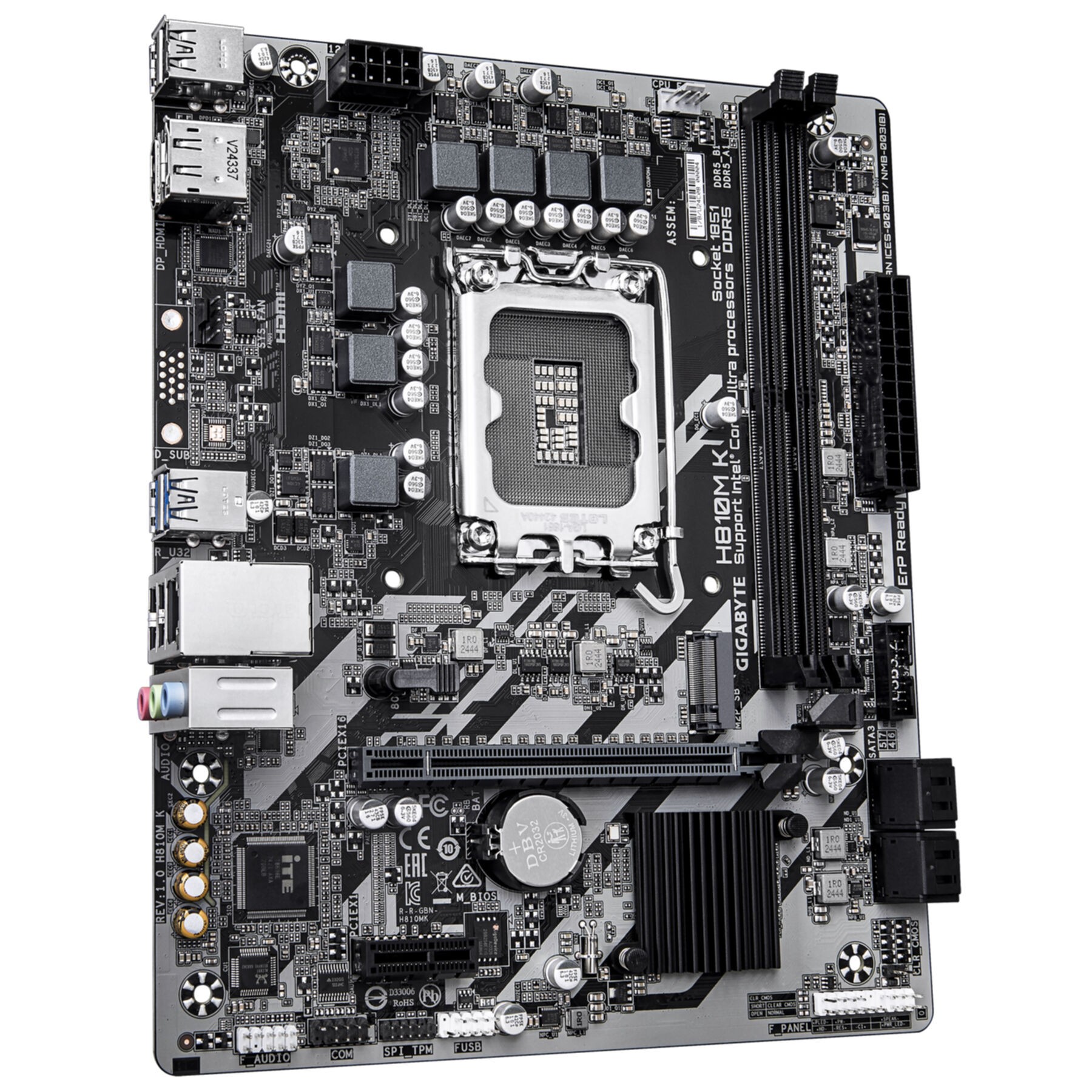

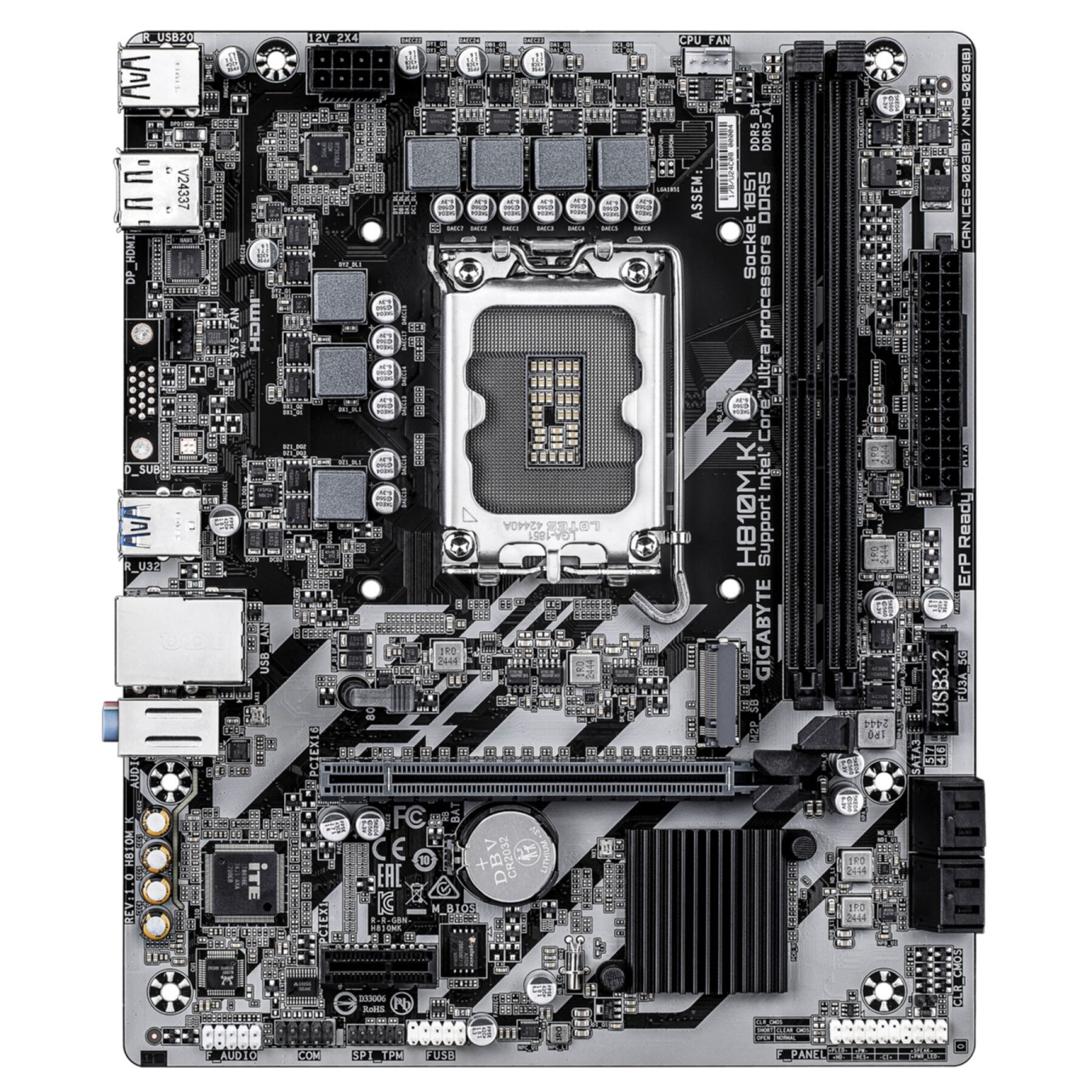

Gigabyte GA-H810M K - LGA1851 Micro-ATX Motherboard - DDR5, 2x DIMM, Up to 128GB, PCIe 4.0
Gigabyte GA-H810M K micro-ATX Intel LGA1851 motherboard with DDR5 (2 DIMMs, up to 128GB), PCIe 4.0, M.2 and SATA III connectivity — ideal for gaming and content creation.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - Socket | LGA 1851 (Socket V1) |
|---|---|
| Motherboards - Form Factor | Micro-ATX |
| Motherboards - Memory Type | DDR5 |
| Motherboards - Memory Slots | 2 |
| Motherboards - Max Memory Capacity | 128 GB |
| Motherboards - PCIe Version (primary GPU) | PCIe 4.0 |
| Motherboards - M.2 Slots | 1 |
| Motherboards - SATA Ports | 4 |
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
| Processor manufacturer | Intel |
| Processor socket | LGA 1851 (Socket V1) |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Supported processor sockets | LGA 1851 |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 5600, 6400 MHz |
| Supported memory clock speed (max) | 6400 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Maximum internal memory per slot | 64 GB |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 5 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Parallel processing technology support | Not supported |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of CPU fan connectors | 1 |
| Number of chassis fan connectors | 1 |
| EPS power connector (8-pin) | Yes |
| Number of EPS power connectors (8-pin) | 1 |
| TPM connector | Yes |
| Serial port headers | 1 |

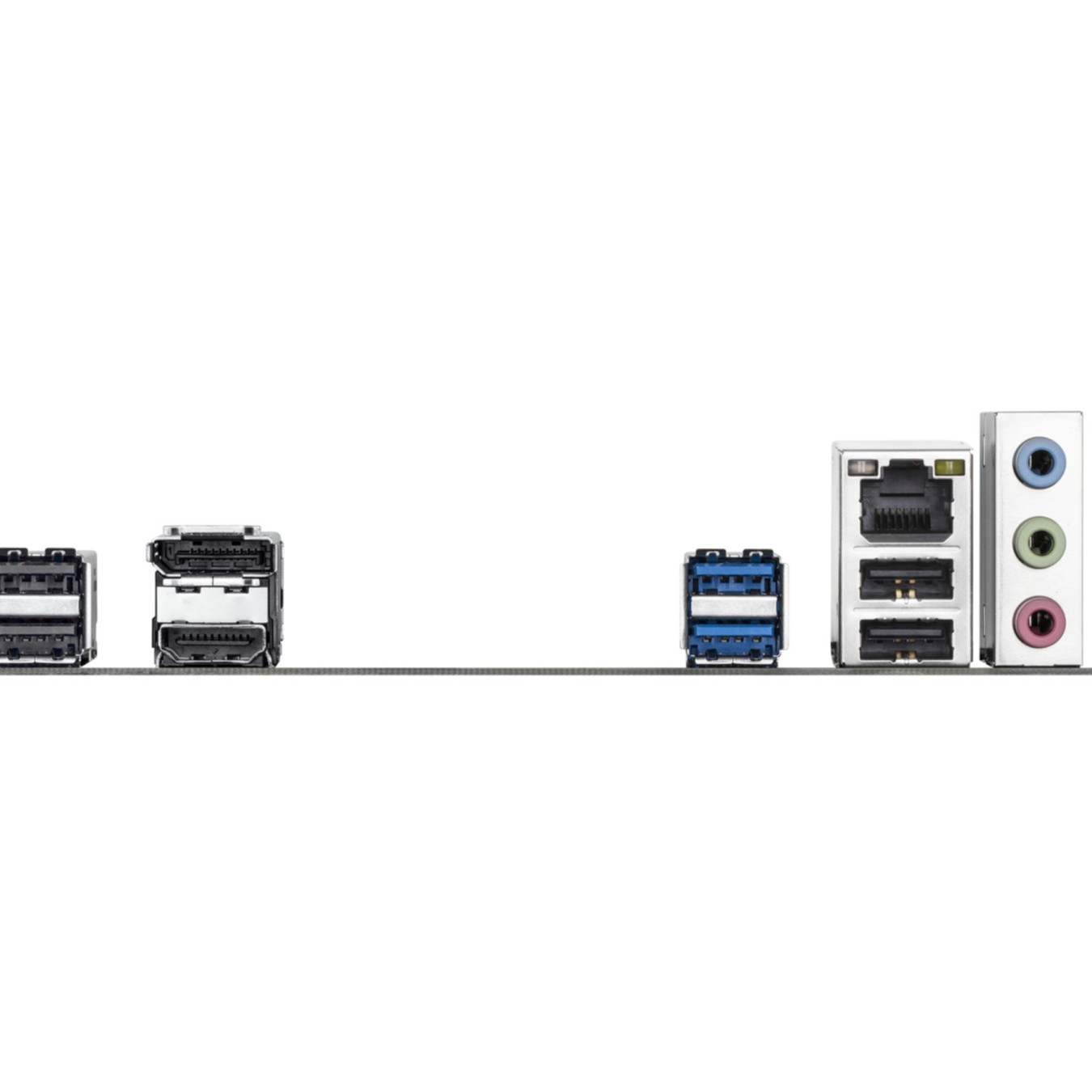

| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 2.1 |
| Headphone outputs | 1 |
| Line-in | Yes |
| Microphone in | Yes |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111H |
| Wi-Fi | No |
| Motherboard chipset | Intel H810 |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Product colour | Dark brown |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Cooling type | Passive |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 4.0 |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Country of origin | China |
| Products per shipping (inner) case | 1 pc(s) |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Package width | 265 mm |
| Package depth | 265 mm |
| Package height | 54 mm |
| Package weight | 766.6 g |
| Width | 226 mm |
| Depth | 185 mm |
| Height | 35 mm |
| Batteries included | Yes |
| Screws included | Yes |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Weight | 688 g |
| Warranty period | 3 year(s) |
