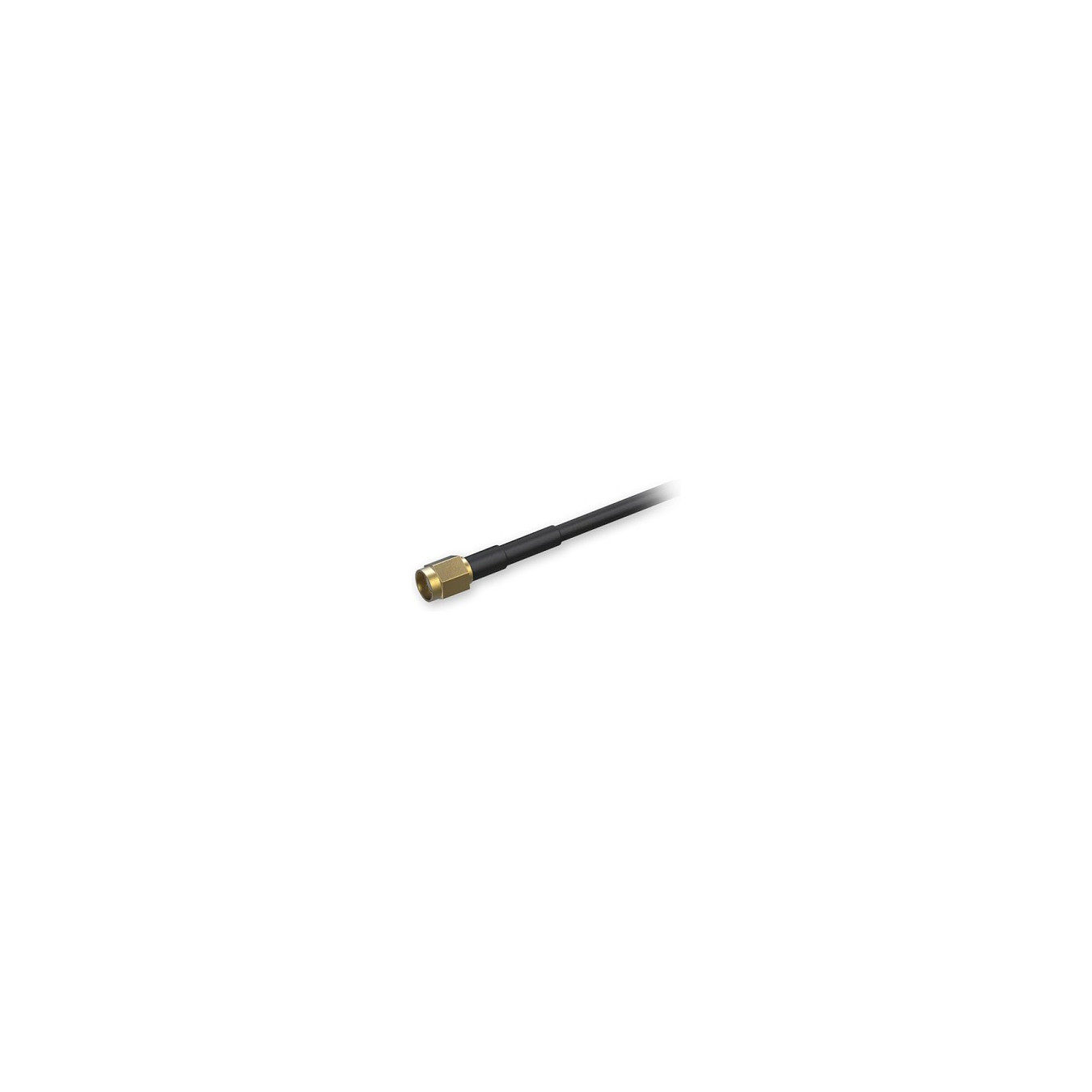

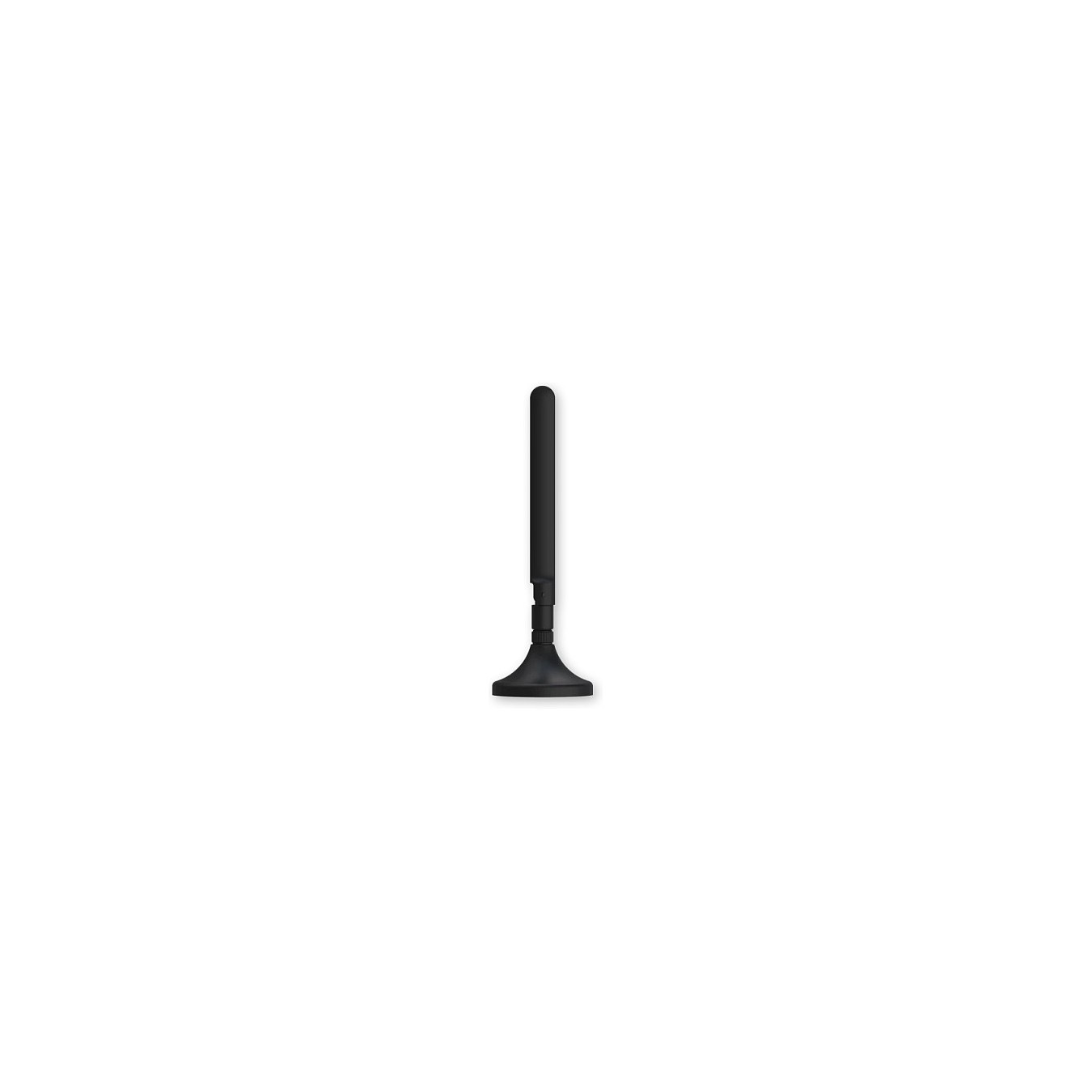

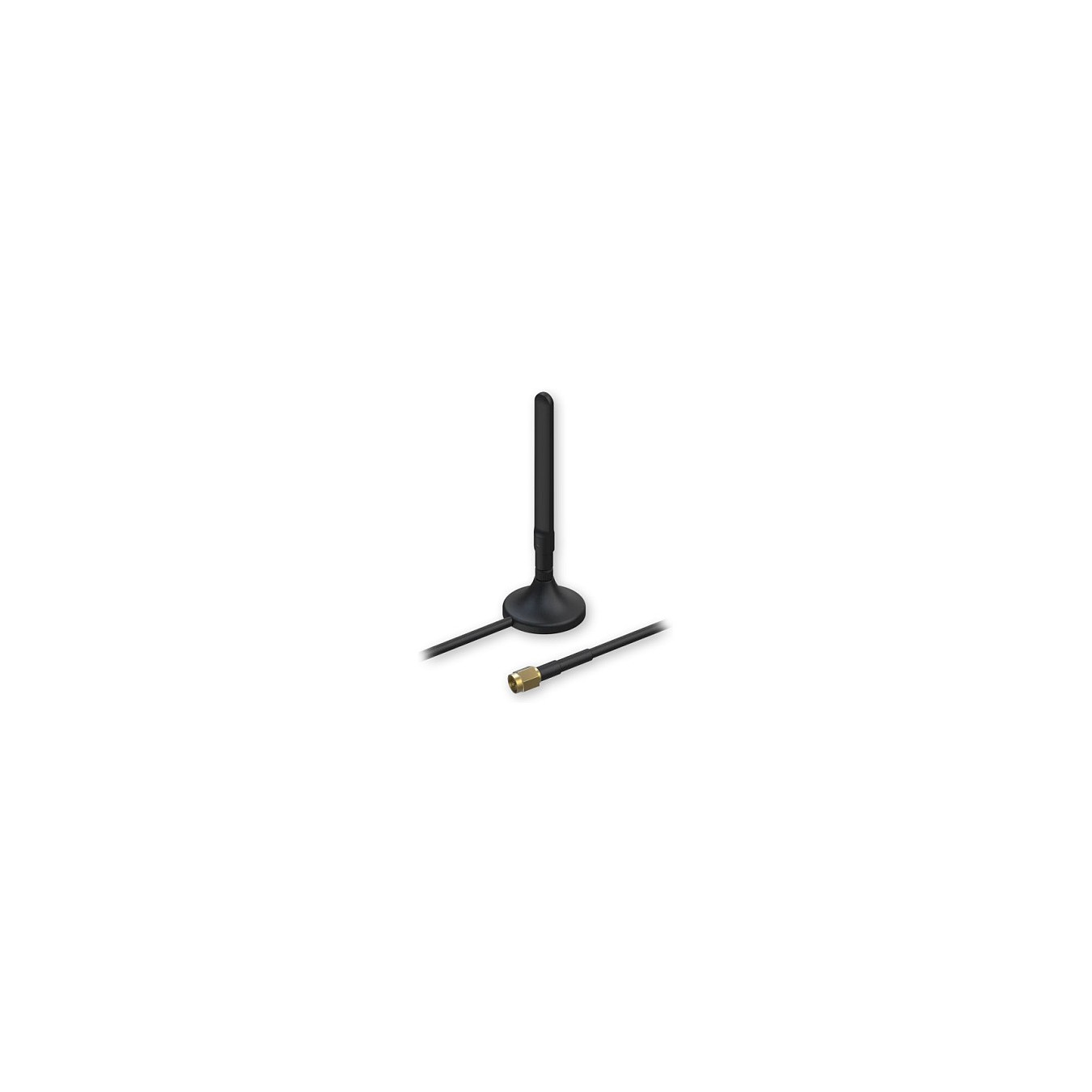

Teltonika PR1KS536 SMA Antenne
Teltonika 5G Mobile Magnetic SMA Antenna. 3.6 dBi. 0.617 - 0.96. 1.4 - 2.69. 3.3 - 5.9 GHz. 50 Ohm. Omnidirektionale Antenne. SMA. Männlich
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Teltonika 5G Mobile Magnetic SMA Antenna. Antenne Zunahmeniveau (max): 3.6 dBi. Frequenzband: 0.617 - 0.96. 1.4 - 2.69. 3.3 - 5.9 GHz. Impedanz: 50 Ohm. Antennentyp: Omnidirektionale Antenne. Antenne Steckertyp: SMA. Steckerverbindergeschlecht: Männlich. Energiequelle: Gleichstrom. Konformitätsbescheinigungen: RoHS. Höhe: 183.4 mm. Durchmesser: 6 cm. Gewicht: 150 g
| Frequenzband | 0.617 - 0.96. 1.4 - 2.69. 3.3 - 5.9 GHz |
| Impedanz | 50 Ohm |
| Antenne Zunahmeniveau (max) | 3.6 dBi |
| Antennentyp | Omnidirektionale Antenne |
| Antenne Steckertyp | SMA |
| Steckerverbindergeschlecht | Männlich |
| Polarisation | Lineare Polarisation |
| Spannung Stellung-Welle Verhältnis (VSWR) | 3.5 |
| Produktfarbe | Schwarz |
| Internationale Schutzart (IP-Code) | IP33 |
| Maximale Eingangsleistung | 20 W |
| Kabellänge | 3 m |
| Kabeltyp | RG-58 |
| Energiequelle | Gleichstrom |
| Feature | Nachhaltigkeitskonformität |
| Konformitätsbescheinigungen | RoHS |
| Betriebstemperatur | -20 - 65 °C |
| Höhe | 183.4 mm |
| Durchmesser | 6 cm |
| Gewicht | 150 g |
| Menge pro Packung | 1 Stück(e) |
