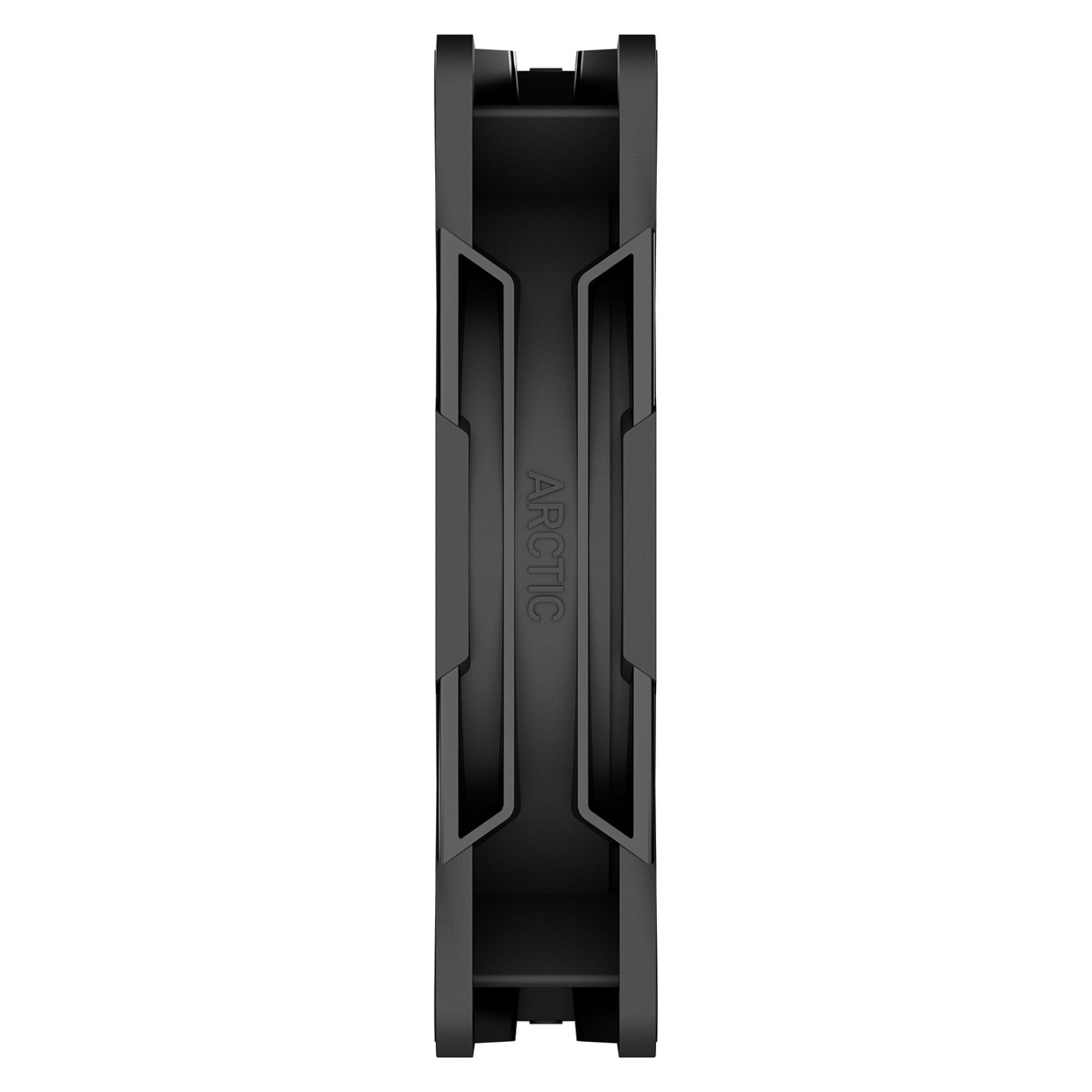

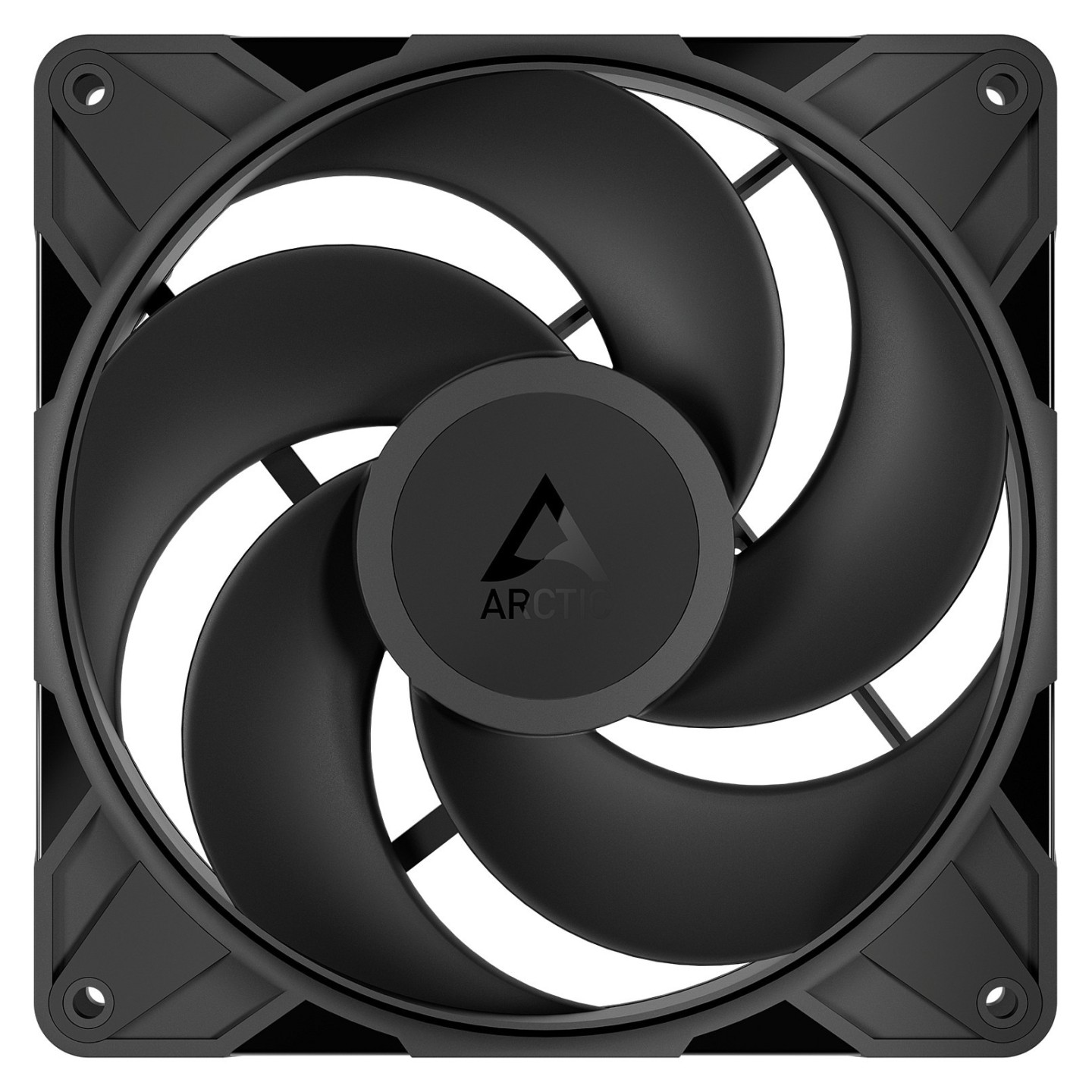

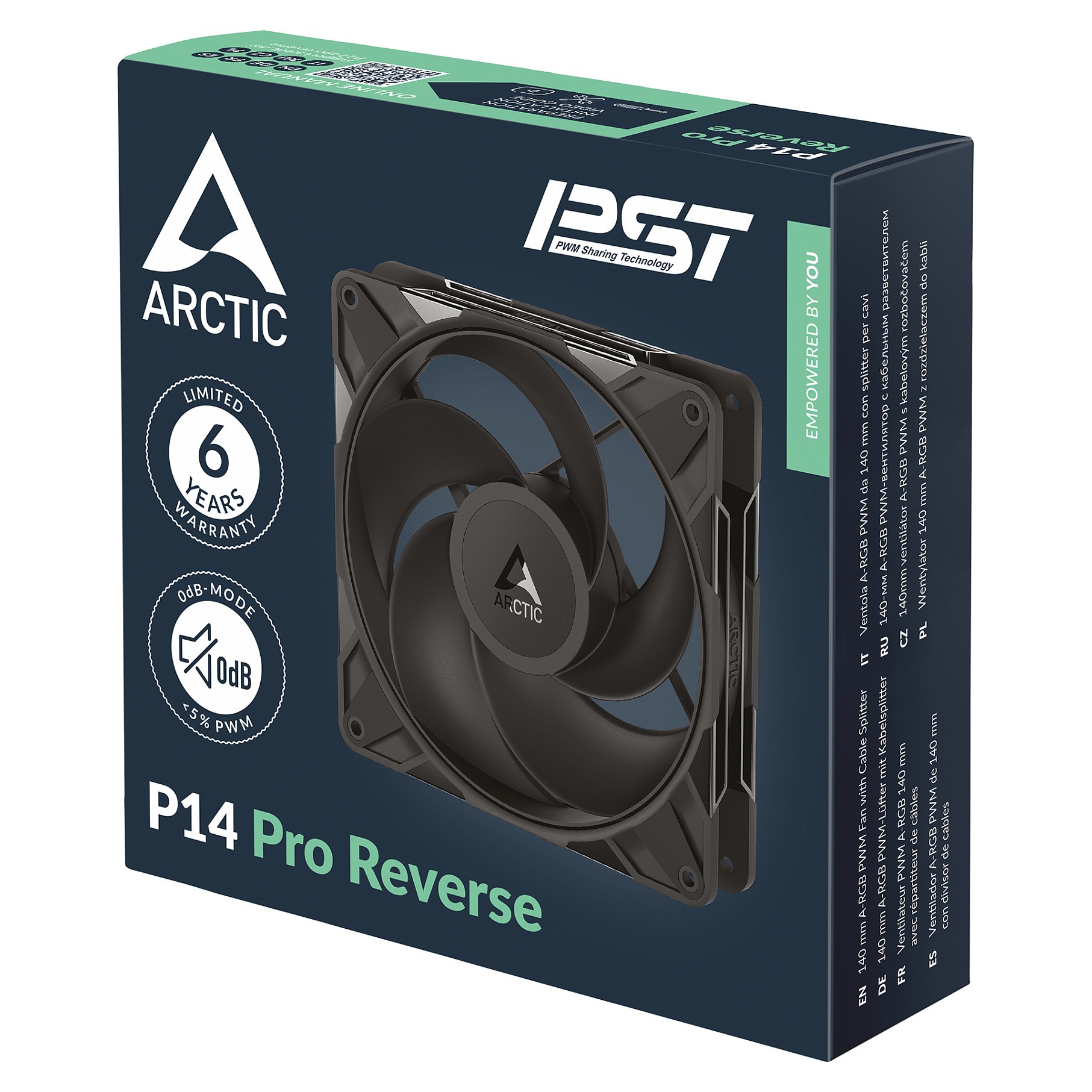

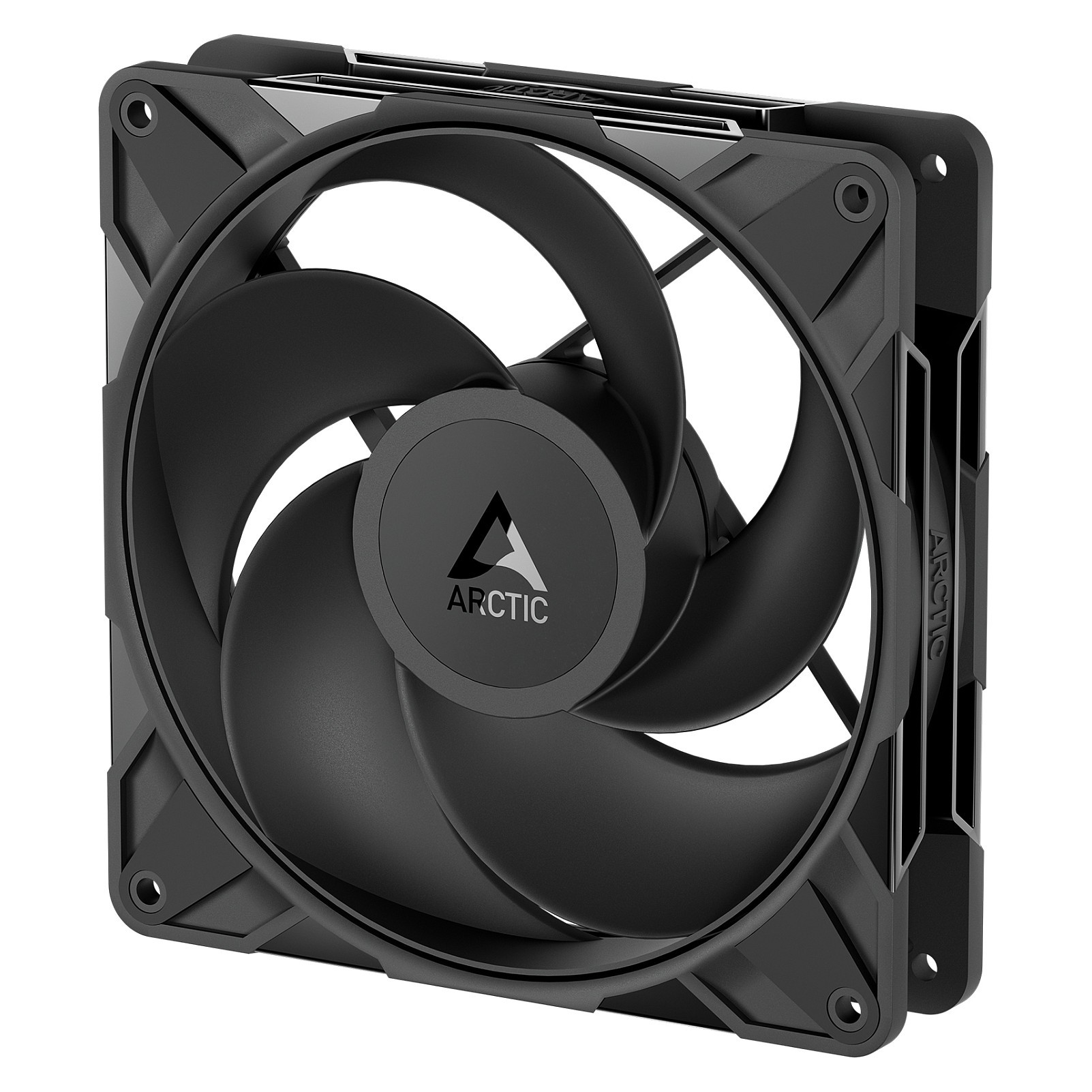

ARCTIC P14 Pro Reverse Blade PWM Fan 140mm 3-Pack (Boxed)
ARCTIC P14 Pro Reverse - 3 Pack: 140mm PWM fans with reverse airflow for aesthetic intake. 400-2650 RPM, 166.5 m³/h airflow, 5.1 mmH2O pressure, FDB bearing. Daisy-chain splitter included. Black, quiet, high static pressure for cases/radiators.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Cooling (CPU & Case) - Device Type | Case Fan |
|---|---|
| Cooling (CPU & Case) - Fan Size | 140 mm |
| Cooling (CPU & Case) - Lightning | None |
| Cooling (CPU & Case) - Connector | 4-Pin PWM |
| Cooling (CPU & Case) - Color | Black |
| Cooling (CPU & Case) - Special Features | Daisy-Chain Low Noise Reverse Blade |

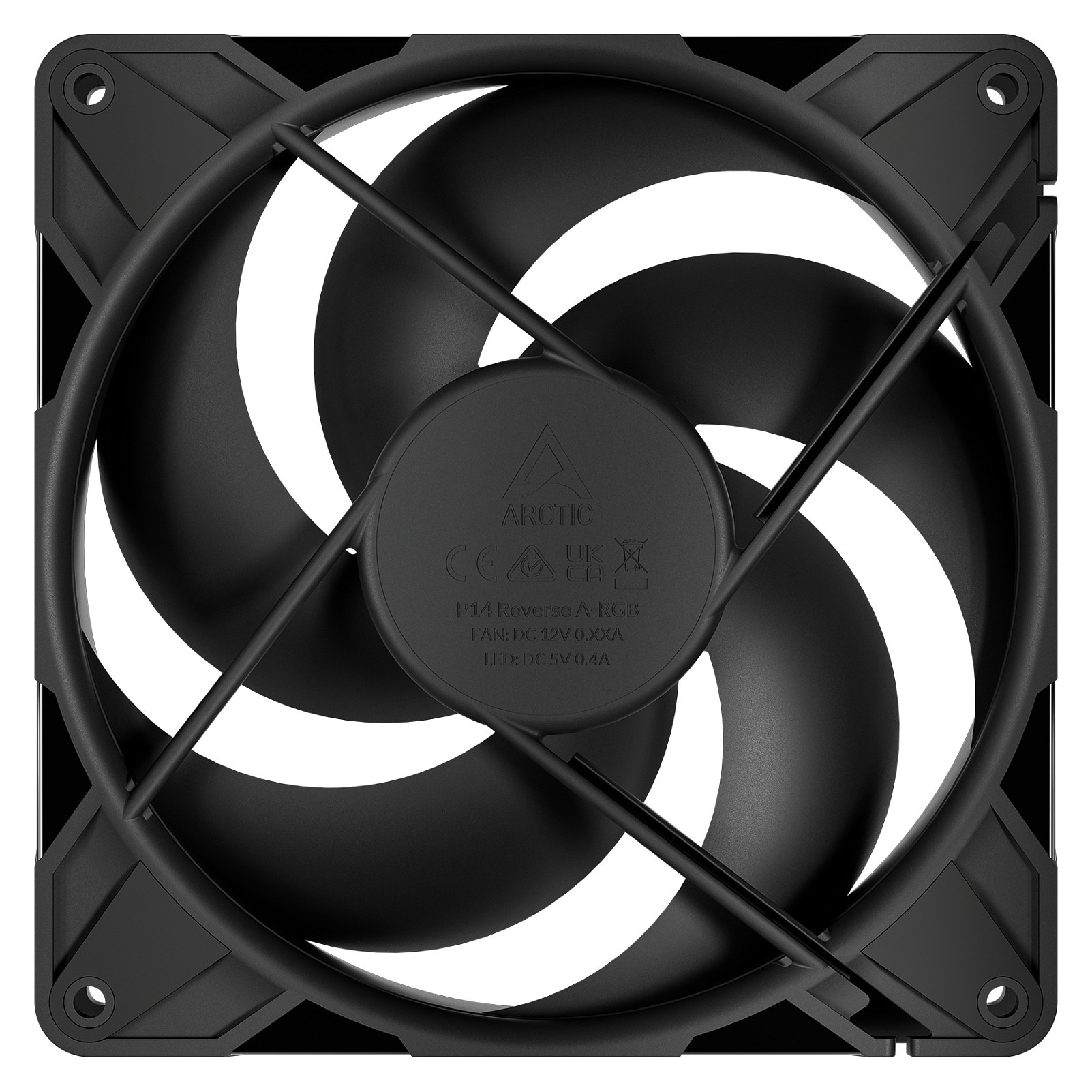

The ARCTIC P14 Pro Reverse 3-Pack features premium 140 mm PWM case fans engineered with reverse blade design for clean air intake from the back side. Ideal for glass-panel PC builds where front intake fans would disrupt aesthetics. Delivers high static pressure of 5.1 mmH₂O to penetrate dense meshes, radiators, and filters effectively.
Key highlights include fluid dynamic bearing (FDB) for durability and low noise, PWM control (400-2650 RPM, 0 RPM <5% PWM), and 166.5 m³/h (98 CFM) airflow. The included daisy-chain cable splitter (400 mm + 80 mm) simplifies connecting multiple fans to one header. SOTA microcontroller reduces motor noise and protects against voltage issues. 6-year warranty.
- Reverse airflow: Perfect for visible intake without blade visibility
- High precision balancing: Minimal vibration and turbulence
- Trumpet intake & optimized spokes: Maximized efficiency
- Dimensions per fan: 140 x 140 x 30 mm, weight 248 g
- Connector: 4-pin PWM with splitter
| Type | Fan |
| Recommended Placement | Computer case |
| Fan Diameter | 14 cm |
| Max Airflow | 98 CFM |
| Airflow | 166.5 m³/h |
| Static Pressure | 5.1 mmH2O |
| Bearing Type | Fluid Dynamic Bearing (FDB) |

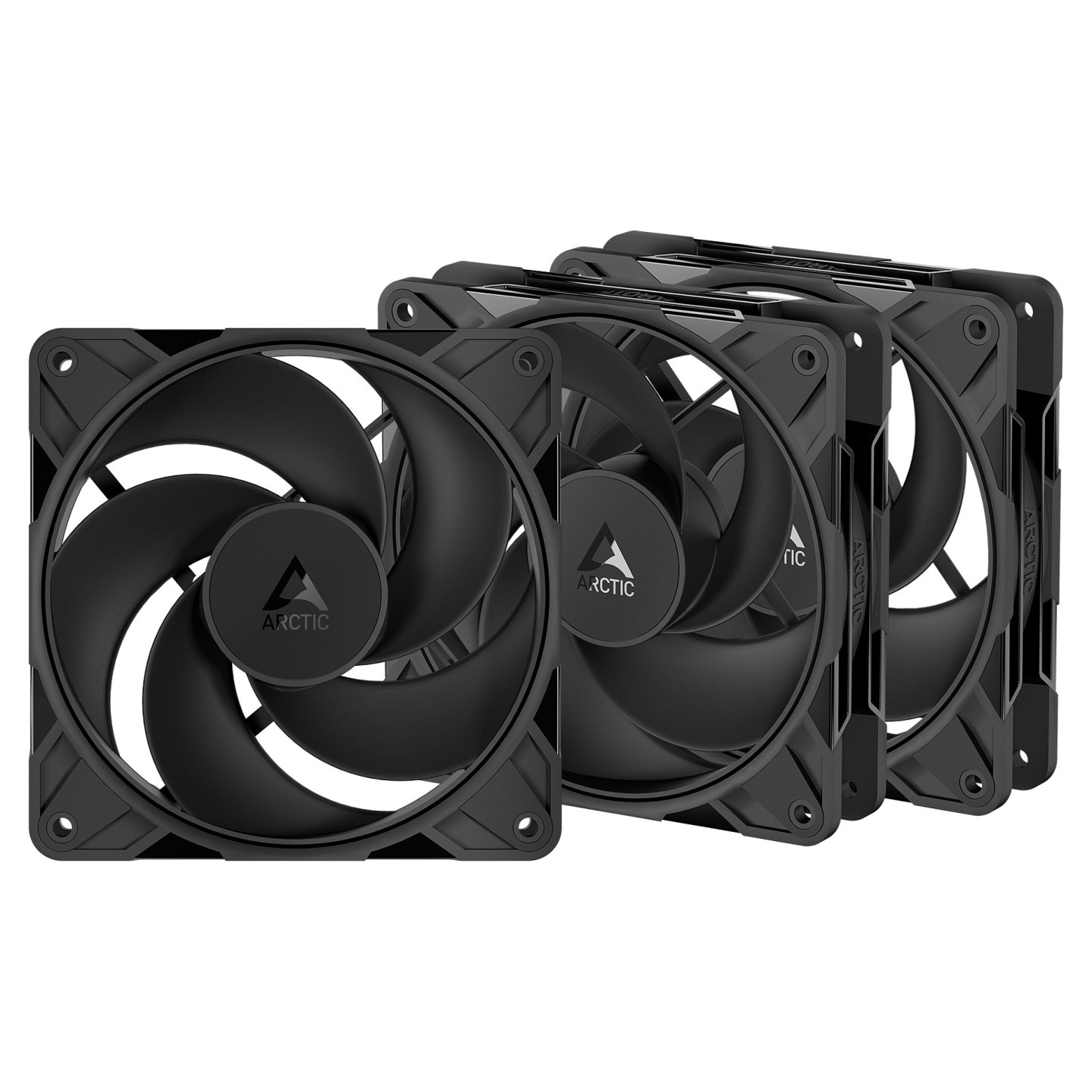

| Quantity per Pack | 3 pcs |
| Fan Speed (min) | 400 RPM |
| Fan Speed (max) | 2650 RPM |
| Operating Temperature | 0 - 40 °C |
| Product Color | Black |
| Number of Fan Blades | 5 |
| Fan Connector | 4-pin PWM + splitter |
| Rated Voltage | 12 V |
| Startup Voltage | 4 V |
| Rated Current | 0.4 A |
| Fan Dimensions (W x D x H) | 140 x 140 x 30 mm |
| Fan Weight | 248 g |
| Cable Length | 0.4 m + 0.08 m daisy-chain |
| Package Width | 144 mm |
| Package Depth | 148 mm |
| Package Height | 100 mm |
| Package Weight | 810 g |
| Screws Included | 12 |
| Warranty | 6 Years |
