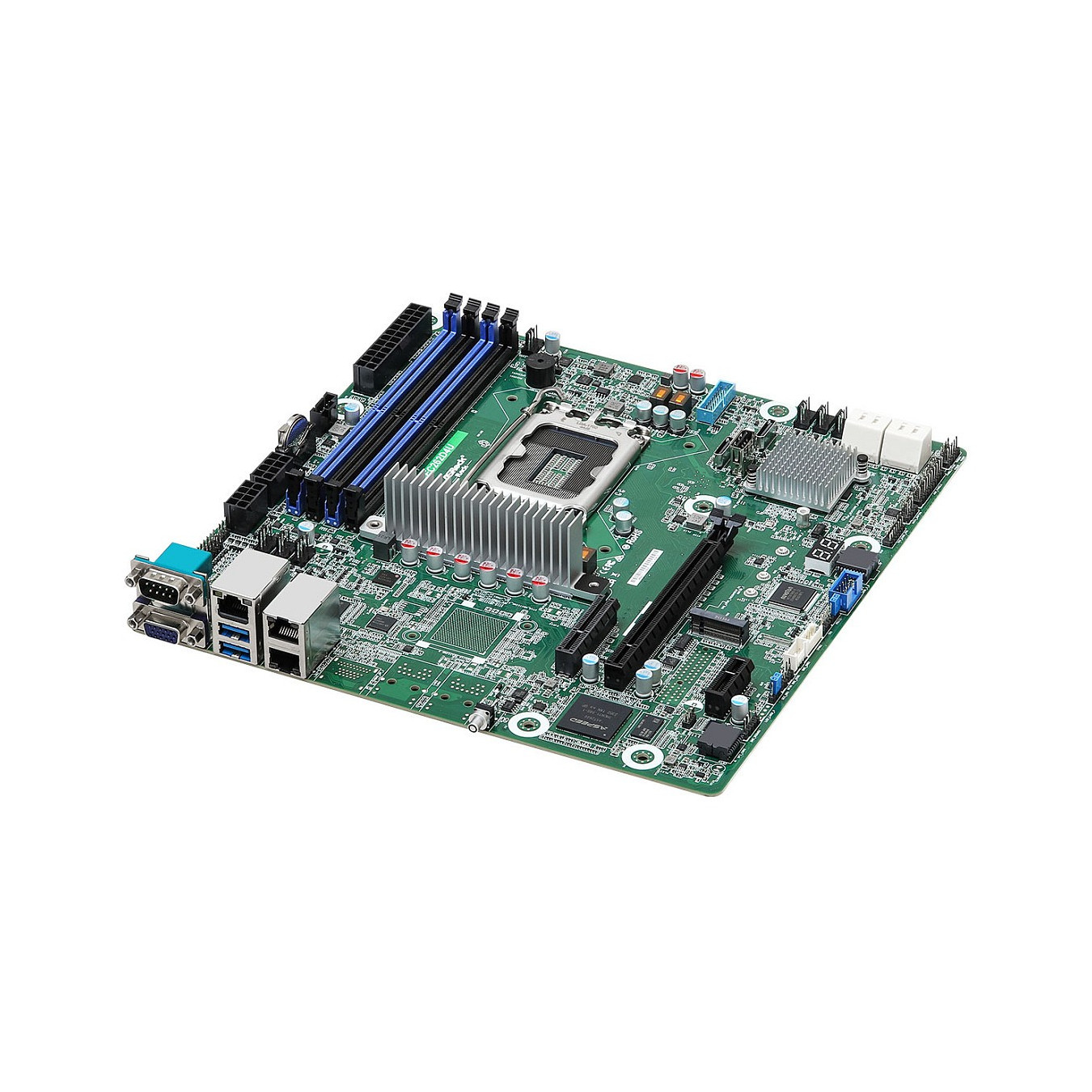

ASRock Mainboard EC262D4U micro-ATX Sockel 1700 DDR5 Single
Asrock EC262D4U. Intel. LGA 1700. Intel® Xeon®. LGA 1700. DDR5-SDRAM. DIMM
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Asrock EC262D4U. Prozessorhersteller: Intel. Prozessorsockel: LGA 1700. Kompatible Prozessoren: Intel® Xeon®. Unterstützte Arbeitsspeicher: DDR5-SDRAM. Arbeitsspeicher Typ: DIMM. Speicherspannung: 1.1 V. Unterstützte Speicherlaufwerk-Schnittstellen: M.2. RAID Level: 0. 1. 5. 10. Motherboardformfaktor: micro ATX. Motherboard Chipsatz Familie: Intel. Motherboard Chipsatz: Intel C262. BIOS-Typ: AMI. BIOS-Speichergröße: 256 Mbit
| Prozessorhersteller | Intel |
| Prozessorsockel | LGA 1700 |
| Kompatible Prozessoren | Intel® Xeon® |
| Unterstützte Prozessorsteckplätze | LGA 1700 |
| Unterstützte Arbeitsspeicher | DDR5-SDRAM |
| Anzahl der Speichersteckplätze | 4 |
| Arbeitsspeicher Typ | DIMM |
| Speicherspannung | 1.1 V |
| ECC-Kompatibilität | ECC |
| Unterstützte Speicherlaufwerk-Schnittstellen | M.2 |
| Feature | Ethernet/LAN |
| RAID Level | 0. 1. 5. 10 |
| Anzahl USB 2.0 Schnittstellen | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anschlüsse | 2 |
| SATA III Anschlüsse | 8 |
| Anzahl Molex Anschlüsse 4pin | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A | 2 |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 2 |
| Anzahl VGA (D-Sub) Anschlüsse | 1 |
| Anzahl COM-Anschlüsse | 1 |
| Motherboard Chipsatz | Intel C262 |
| PC Gesundheitsüberwachung | CPU. Ventilator |
| Motherboardformfaktor | micro ATX |
| Motherboard Chipsatz Familie | Intel |
| PCI Express x1-Steckplätze (Gen 4.x) | 1 |
| PCI Express x4-Steckplätze (Gen 4.x) | 1 |
| PCI Express x16-Steckplätze (Gen 5.x) | 1 |
| Anzahl der M.2 (M)-Steckplätze | 1 |
| BIOS-Typ | AMI |
| BIOS-Speichergröße | 256 Mbit |
| ACPI-Version | 6.4 |
| Systemverwaltung BIOS (SMBIOS) Version | 2.8 |
| Temperaturbereich bei Lagerung | -40 - 70 °C |
| Betriebstemperatur | 10 - 35 °C |
| Luftfeuchtigkeit bei Lagerung | 20 - 90% |
| Breite | 244 mm |
| Tiefe | 244 mm |
