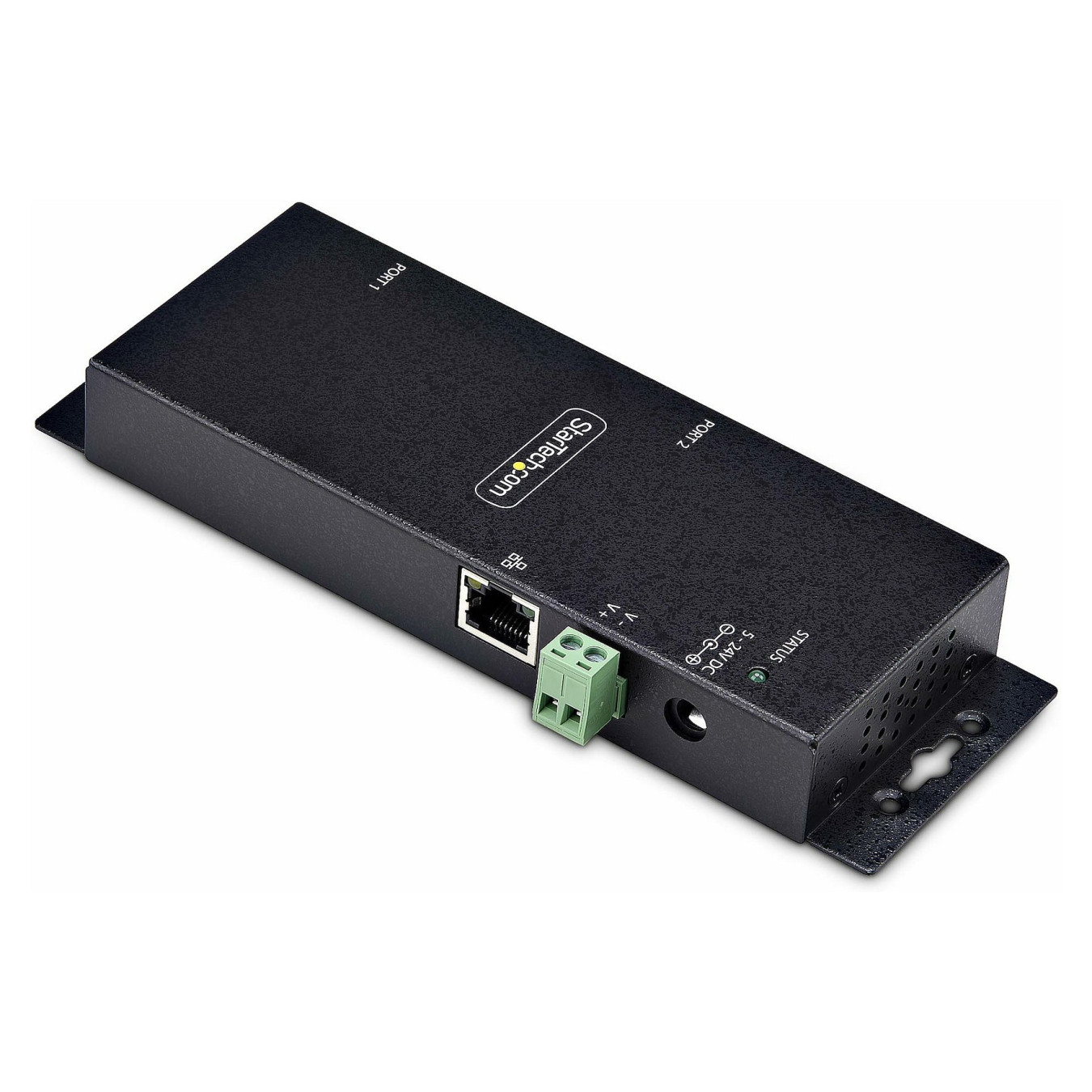

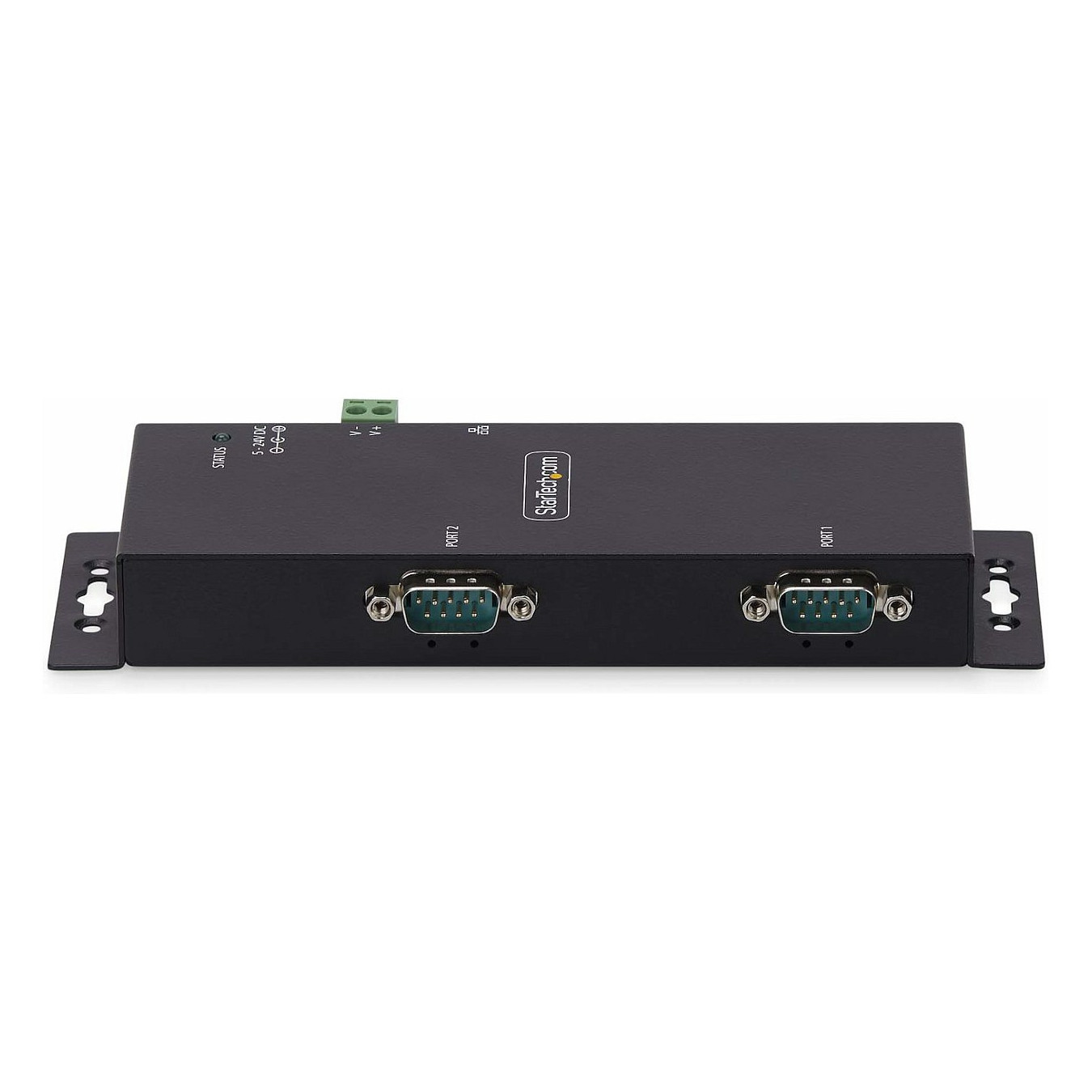

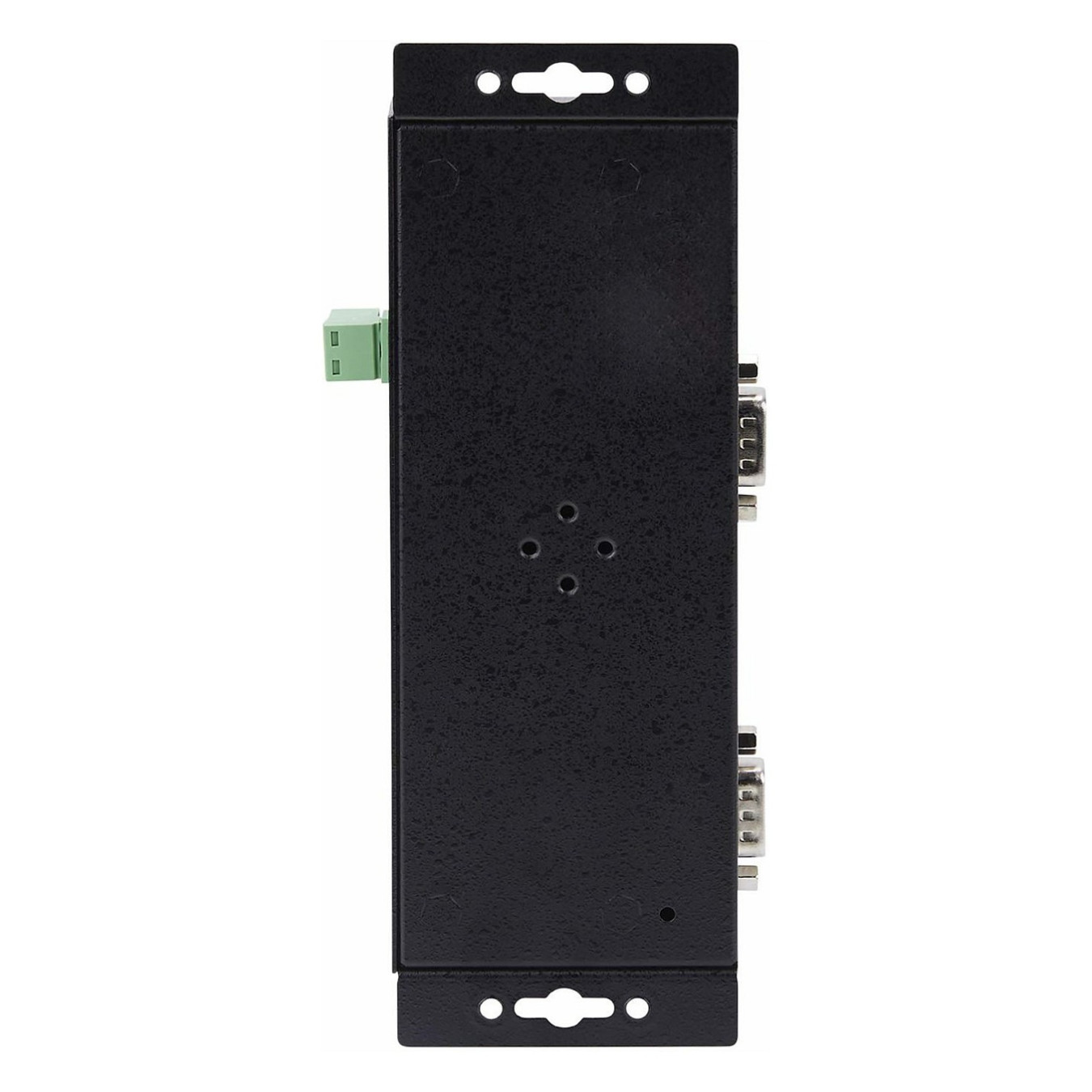

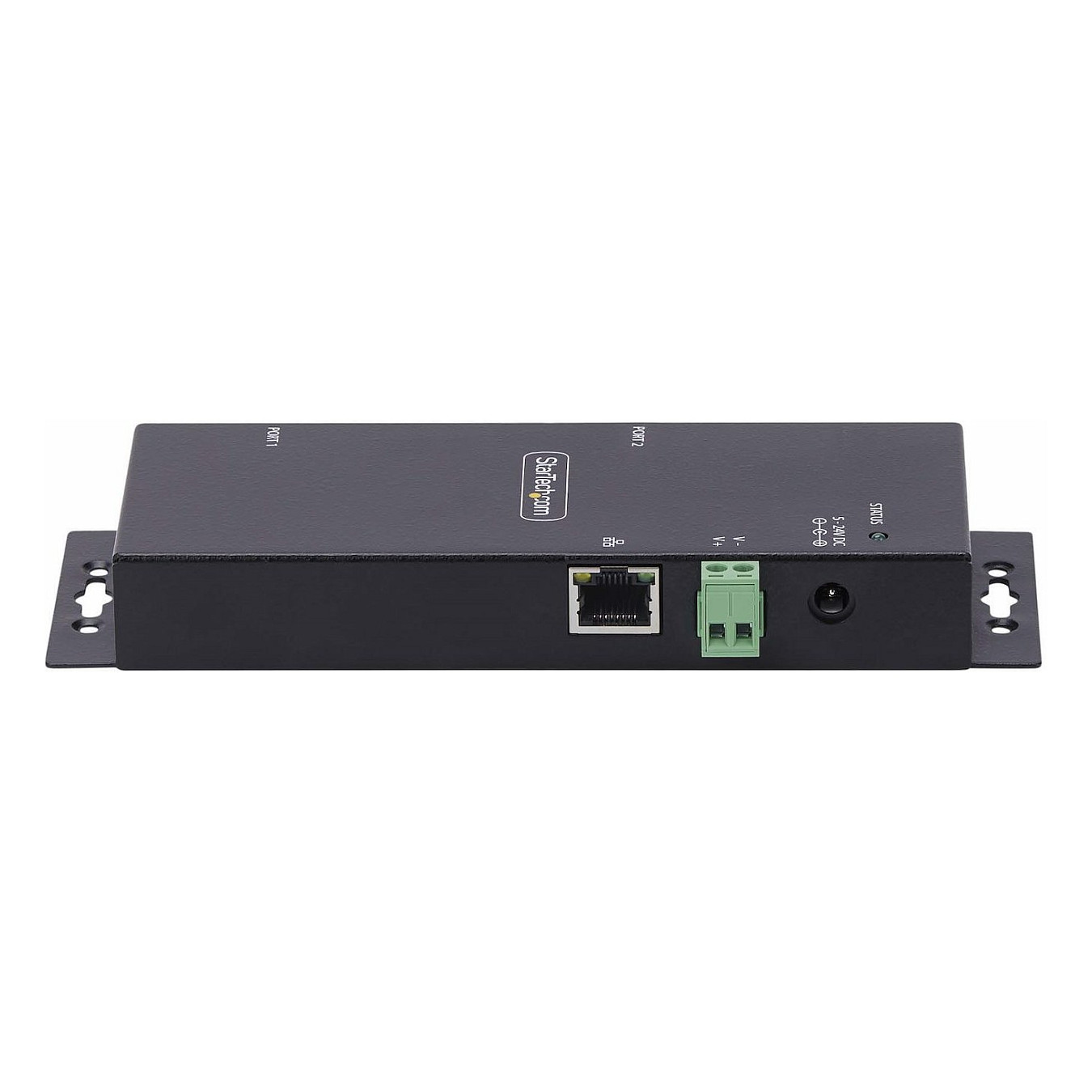

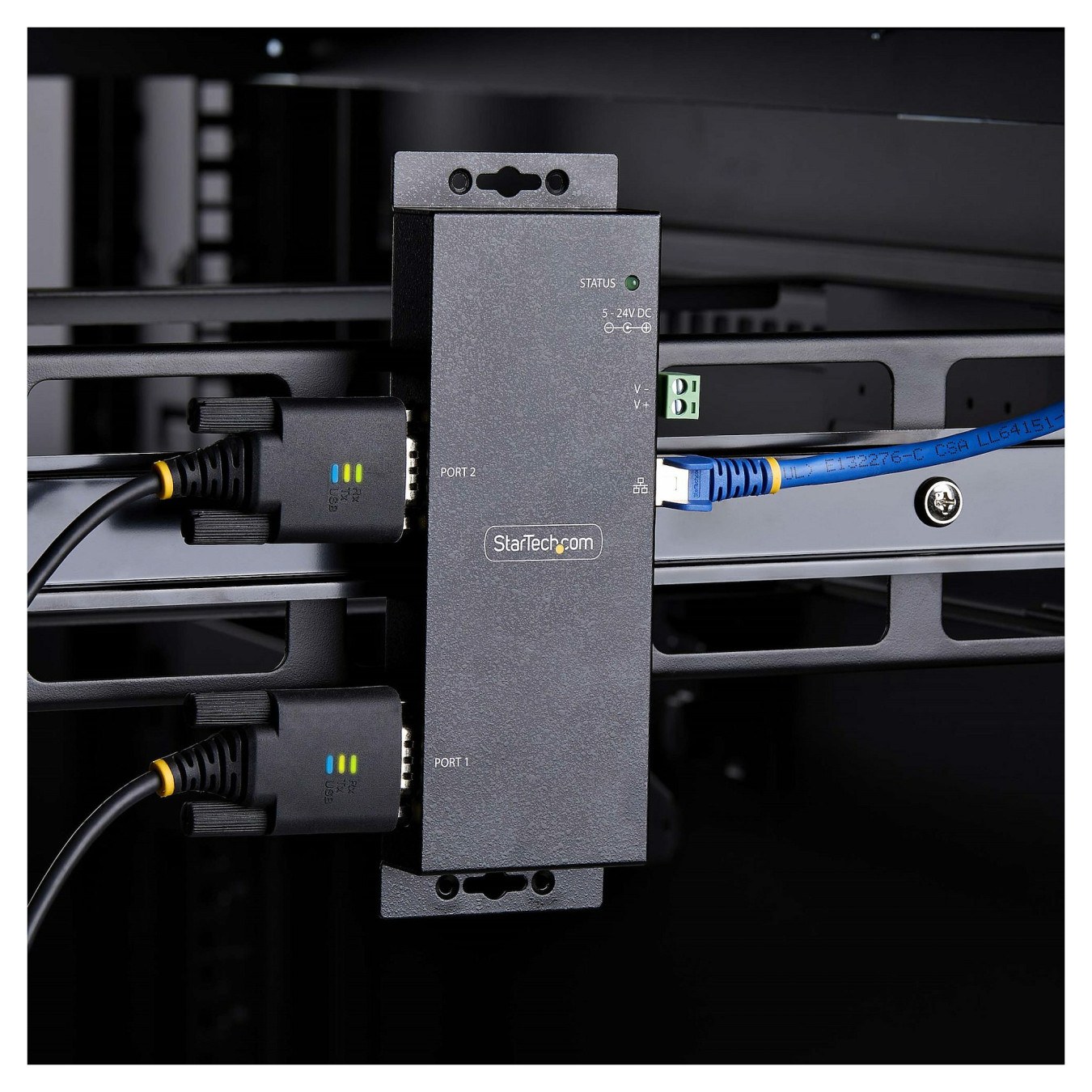

StarTech 2P SERIAL TO ETHERNET ADAPTER
StarTech.com 2-Port Seriell auf Ethernet Adapter. Serial TCP IP Server. Wand/DIN Montage. RS232 Ethernet Adapter/LAN Konverter. RS232 auf RJ45/RS232 über Ethernet Adapter für RS232-Ferngeräte. IEEE 802.3i. IEEE 802.3u. 0 - 60 °C. -20 - 75 °C. 5 - 95%. 179 mm. 60 mm
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
StarTech.com 2-Port Seriell auf Ethernet Adapter. Serial TCP IP Server. Wand/DIN Montage. RS232 Ethernet Adapter/LAN Konverter. RS232 auf RJ45/RS232 über Ethernet Adapter für RS232-Ferngeräte. Netzstandard: IEEE 802.3i. IEEE 802.3u. Breite: 179 mm. Tiefe: 60 mm. Höhe: 23 mm. Eingangsspannung: 100 - 240 V. Eingangsstrom: 0.48 A. Ausgangsspannung: 5 V. Gehäusematerial: Stahl. Anzahl der enthaltenen Schrauben: 2 Stück(e)
| Netzstandard | IEEE 802.3i. IEEE 802.3u |
| Feature | Betriebsanleitung |
| Hostschnittstelle | RS-232 |
| Ausgangsschnittstelle | RJ-45 |
| Anschluss 1 | DB-9 |
| Anschluss 2 | RJ-45 |
| Steckerverbindergeschlecht | Weiblich/Weiblich |

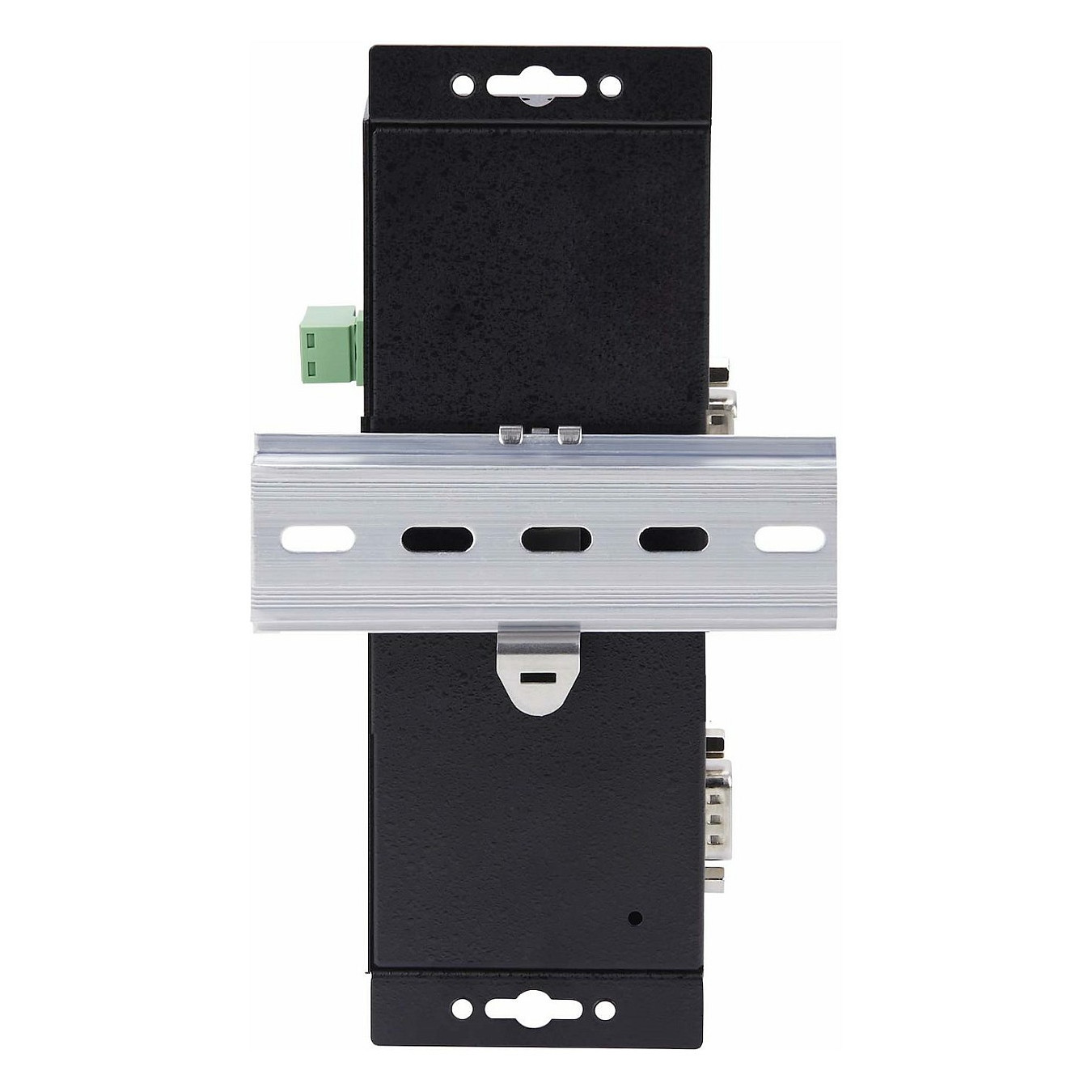

| Montage | Wand- / DIN |
| Baudrate | 921.6 Kbit/s |
| Anzahl serielle Anschlüsse | 2 |
| Produktfarbe | Schwarz |
| Datenbits | 7. 8 |
| Parity bit | Eben. Mark. Nein. Ungerade. Leerzeichen |
| Stop bits | 1. 2 |
| Konformitätsbescheinigungen | Gesetz über Handelsabkommen (TAA) |
| Flusskontrolle Typ | Nein. RTS/CTS. XON/XOFF |
| Schutz gegen elektrostatische Entladung (ESD) (Luft) | 15 kV |
| Elektrostatischer Entladungsschutz (ESD) (Kontakt) | 8 kV |
| Betriebstemperatur | 0 - 60 °C |
| Temperaturbereich bei Lagerung | -20 - 75 °C |
| Relative Luftfeuchtigkeit in Betrieb | 5 - 95% |
| Breite | 179 mm |
| Tiefe | 60 mm |
| Höhe | 23 mm |
| Gewicht | 315 g |
| Verpackungsbreite | 166 mm |
| Verpackungstiefe | 242 mm |
| Verpackungshöhe | 55 mm |
| Paketgewicht | 600 g |
| Eingangsspannung | 100 - 240 V |
| Eingangsstrom | 0.48 A |
| Ausgangsspannung | 5 V |
| Ausgangsstrom | 3 A |
| Stromverbrauch (Standardbetrieb) | 15 W |
| Gehäusematerial | Stahl |
| Anzahl der enthaltenen Schrauben | 2 Stück(e) |
| Anzahl Produkte pro Versandkarton | 15 Stück(e) |
| Länge des Versandkartons | 420 mm |
| Breite des Versandkartons | 410 mm |
| Höhe des Versandkartons | 275 mm |
