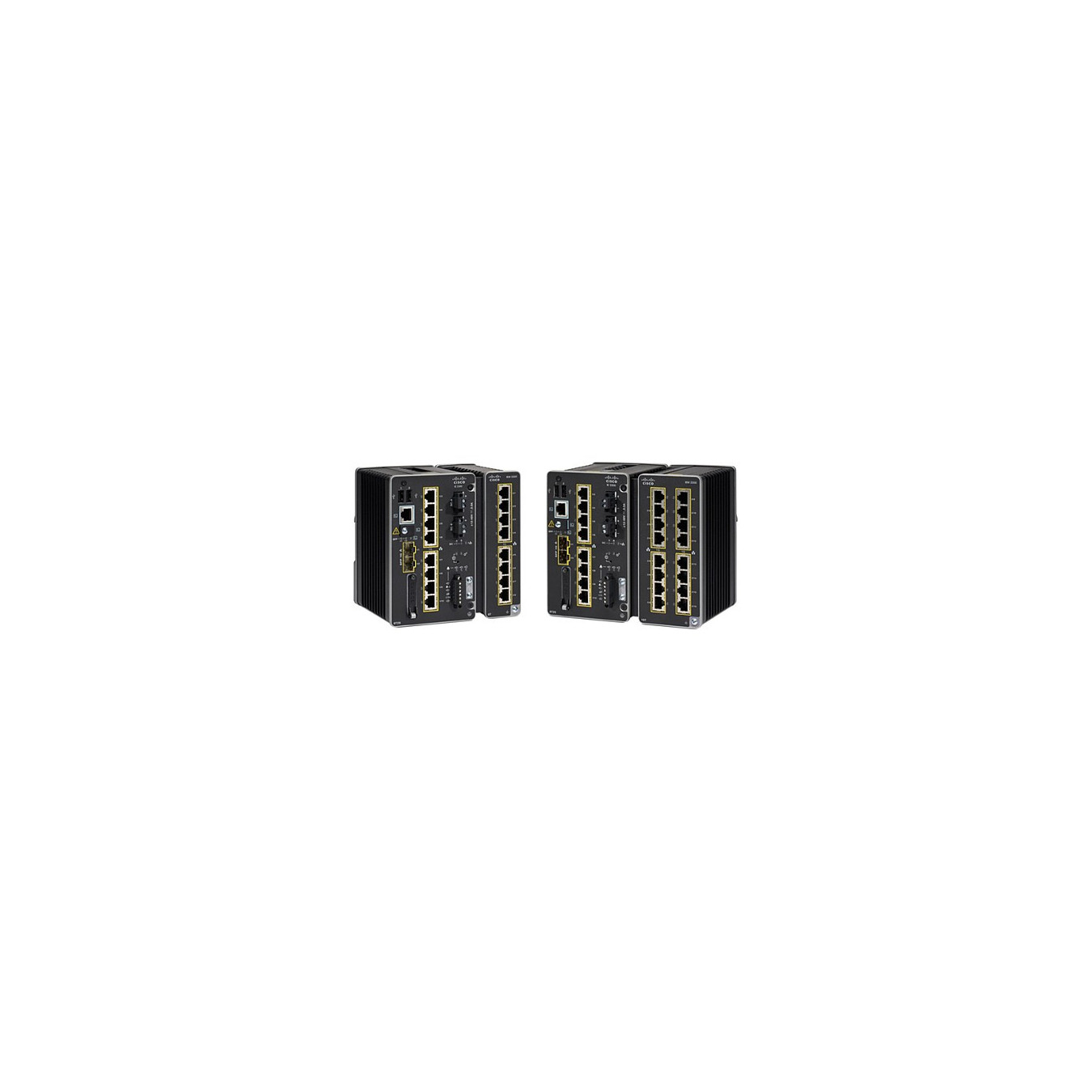

Cisco CATALYST IE3300 RUGGED 8 PORT
Cisco Catalyst IE3300. Managed. L2. Gigabit Ethernet (10/100/1000). Rack-Einbau
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Cisco Catalyst IE3300. Switch-Typ: Managed. Switch-Ebene: L2. Basic Switching RJ-45 Ethernet Ports-Typ: Gigabit Ethernet (10/100/1000). Anzahl der basisschaltenden RJ-45 Ethernet Ports: 8. Konsolen-Port: RJ-45. MAC-Adressentabelle: 8000 Eintragungen. Netzstandard: IEEE 1588. IEEE 802.11ac. IEEE 802.11n. IEEE 802.1D. IEEE 802.1Q. IEEE 802.1ab. IEEE 802.1p. IEEE.... DC input Spannung: 9.6 - 60 V. Netzstecker: AC-Eingangsbuchse. Rack-Einbau
| Switch-Typ | Managed |
| Switch-Ebene | L2 |
| Feature | Betriebsanleitung |
| Anzahl der basisschaltenden RJ-45 Ethernet Ports | 8 |
| Basic Switching RJ-45 Ethernet Ports-Typ | Gigabit Ethernet (10/100/1000) |
| Konsolen-Port | RJ-45 |
| Netzstecker | AC-Eingangsbuchse |
| Kupfer Ethernet Verkabelungstechnologie | 10BASE-T. 100BASE-TX. 1000BASE-T |
| MAC-Adressentabelle | 8000 Eintragungen |
| Anzahl Queues | 8 |
| DHCP-Funktionen | DHCP snooping |
| Zugriffskontrollliste (ACL) IPv4-Einträge | 2000 |
| Zugriffskontrollliste (ACL) IPv6-Einträge | 512 |
| IGMP-Einträge | 1000 |
| Unterstützte Sicherheitsalgorithmen | 802.1x RADIUS. SNMPv3. SSH |
| Authentifizierung | Gast VLAN |
| Management-Protokolle | IEEE 802.1. 802.3 standard. NTP. UDLD. CDP. LLDP. unicast MAC filter. PAgP. LACP VTPv2. VTPv3. EtherChannel. voice VLAN. PVST+. MSTP. and RSTP |
| Switch Protokoll | IGMPv1. v2. v3 snooping. IGMP filtering. IGMP querier |
| Produktfarbe | Schwarz |
| Internationale Schutzart (IP-Code) | IP20 |
| Speicherkapazität | 4000 MB |
| Flash-Speicher | 1500 MB |
| Mittlere Betriebsdauer zwischen Ausfällen (MTBF) | 3041040 h |
| AC Eingangsspannung | 120 - 230 V |
| AC Eingangsfrequenz | 50 - 60 Hz |
| DC input Spannung | 9.6 - 60 V |
| Eingangsstrom | 6.3 A |
| Stromverbrauch (Standardbetrieb) | 6 W |
| Betriebstemperatur | -40 - 70 °C |
| Temperaturbereich bei Lagerung | -40 - 85 °C |
| Relative Luftfeuchtigkeit in Betrieb | 5 - 95% |
| Höhe bei Lagerung | 0 - 4572 m |
| Breite | 152.4 mm |
| Tiefe | 127 mm |
| Höhe | 50.8 mm |
| Mitgelieferte Kabel | AC |
| Zertifizierung | UL. BSMI CNS 13438 Class A. CISPR 24. cUL. EN55022. IEC 61000-4-2. IEC 61000-4-3. IEC 61000-4-4. IEC 61000-4-5. NOM. VCCI Class A ITE. IEC 60950. EN55 |
| Warentarifnummer (HS) | 85176990 |
