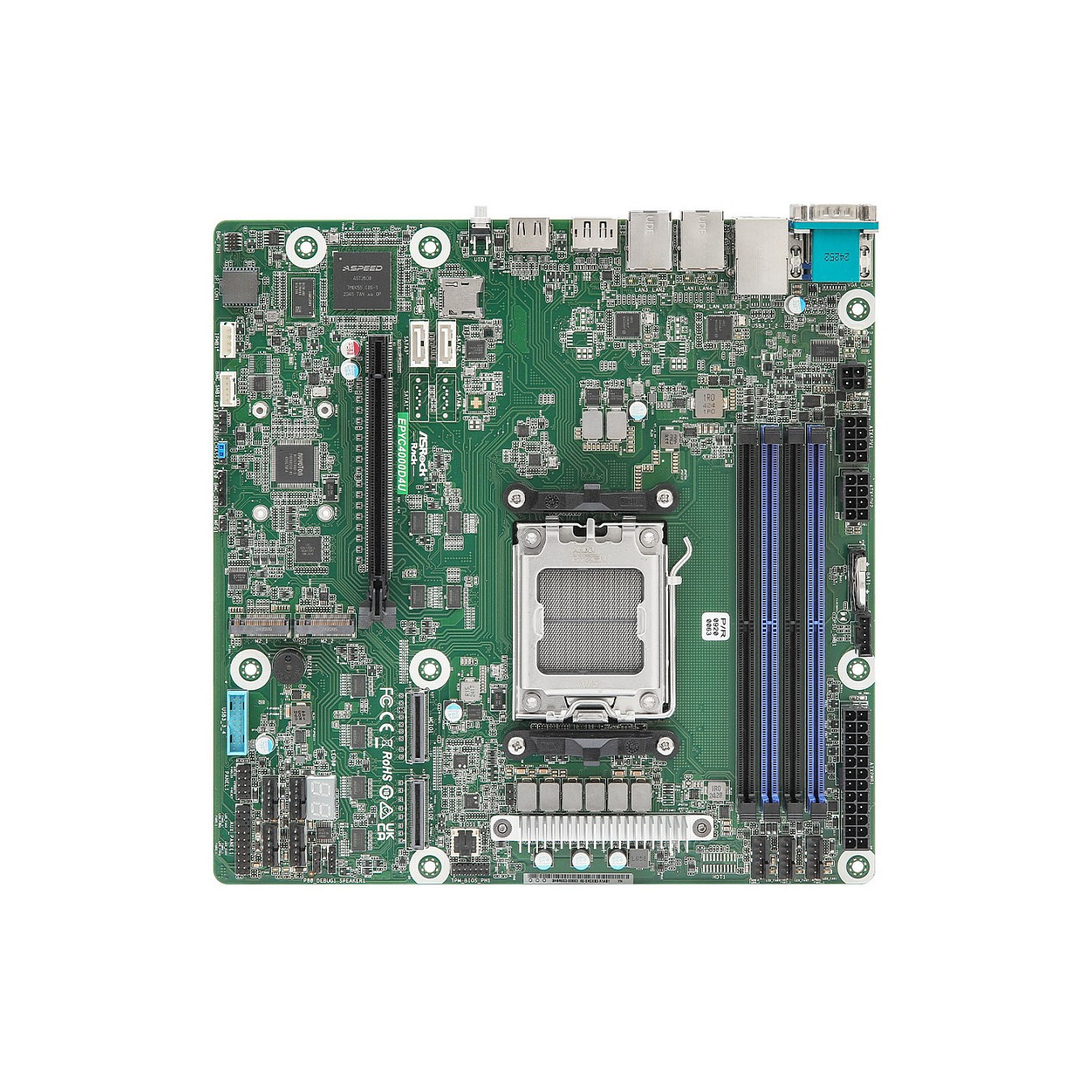

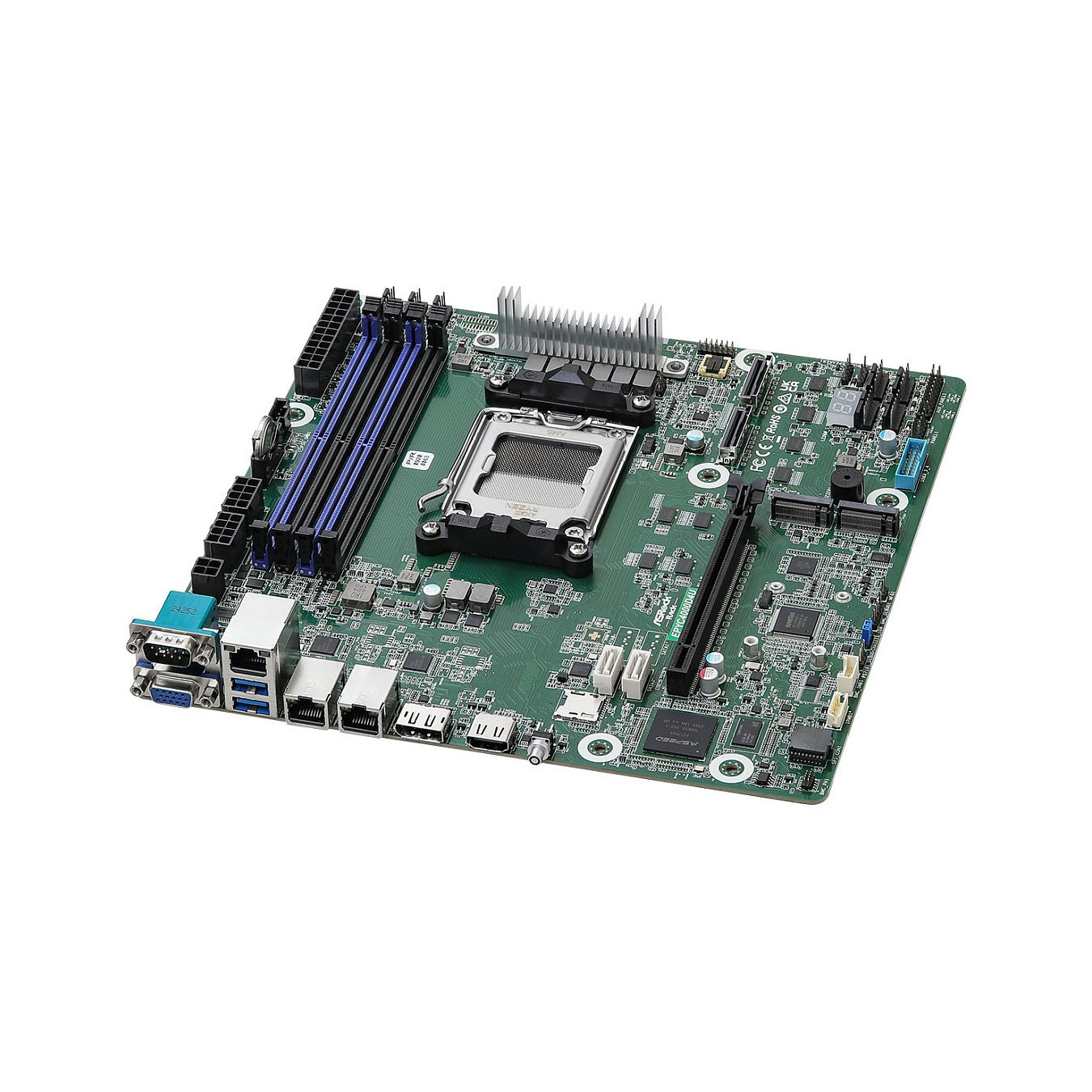

ASRock Mainboard EPYC4000D4U Micro-ATX Single Socket AM5
Asrock EPYC4000D4U. AMD. Sockel AM5. AMD EPYC 4004. AMD Ryzen 7000 Series. AMD Ryzen 8000 Series. AMD Ryzen 9000 Series. DDR5-SDRAM. 48 GB. DIMM
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Asrock EPYC4000D4U. Prozessorhersteller: AMD. Prozessorsockel: Sockel AM5. Kompatible Prozessoren: AMD EPYC 4004. AMD Ryzen 7000 Series. AMD Ryzen 8000 Series. AMD Ryzen 9000 Series. Unterstützte Arbeitsspeicher: DDR5-SDRAM. RAM-Speicher maximal: 48 GB. Arbeitsspeicher Typ: DIMM. Unterstützte Speicherlaufwerk-Schnittstellen: SATA III. Grafikkarte-Familie: ASPEED. Grafikkarte: AST2600. Ethernet Schnittstellen Typ: Gigabit Ethernet. LAN-Controller: Intel I210
| Prozessorhersteller | AMD |
| Prozessorsockel | Sockel AM5 |
| Kompatible Prozessoren | AMD EPYC 4004. AMD Ryzen 7000 Series. AMD Ryzen 8000 Series. AMD Ryzen 9000 Series |
| Maximale Anzahl an SMP-Prozessoren | 1 |
| Unterstützte Arbeitsspeicher | DDR5-SDRAM |
| Anzahl der Speichersteckplätze | 4 |
| Arbeitsspeicher Typ | DIMM |
| Anzahl der Pins des Speichersteckplatzes | 288 |
| Speicherspannung | 1.1 V |
| ECC-Kompatibilität | ECC & Nicht-ECC |
| Unterstützte Arbeitsspeichergeschwindigkeit | 3600.5600 MHz |
| RAM-Speicher maximal | 48 GB |
| Unterstützte Speicherlaufwerk-Schnittstellen | SATA III |
| Feature | Ethernet/LAN |
| Grafikkarte-Familie | ASPEED |
| Grafikkarte | AST2600 |
| SATA III Anschlüsse | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A | 2 |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 2 |
| Anzahl VGA (D-Sub) Anschlüsse | 1 |
| Anzahl HDMI-Anschlüsse | 1 |
| Anzahl DisplayPort Anschlüsse | 1 |
| Anzahl serielle Anschlüsse | 1 |
| Ethernet Schnittstellen Typ | Gigabit Ethernet |
| LAN-Controller | Intel I210 |
| Motherboard Chipsatz | KNOLL3 X300 |
| Komponente für | Server |
| Motherboardformfaktor | micro ATX |
| Motherboard Chipsatz Familie | AMD |
| PCI Express x16-Steckplätze (Gen 5.x) | 1 |
| BIOS-Typ | UEFI AMI |
| BIOS-Speichergröße | 256 Mbit |
| ACPI-Version | 6.4 |
| Systemverwaltung BIOS (SMBIOS) Version | 3.5 |
| Temperaturbereich bei Lagerung | -40 - 70 °C |
| Betriebstemperatur | 10 - 35 °C |
| Relative Luftfeuchtigkeit in Betrieb | 20 - 90% |
| Breite | 244 mm |
| Tiefe | 244 mm |
