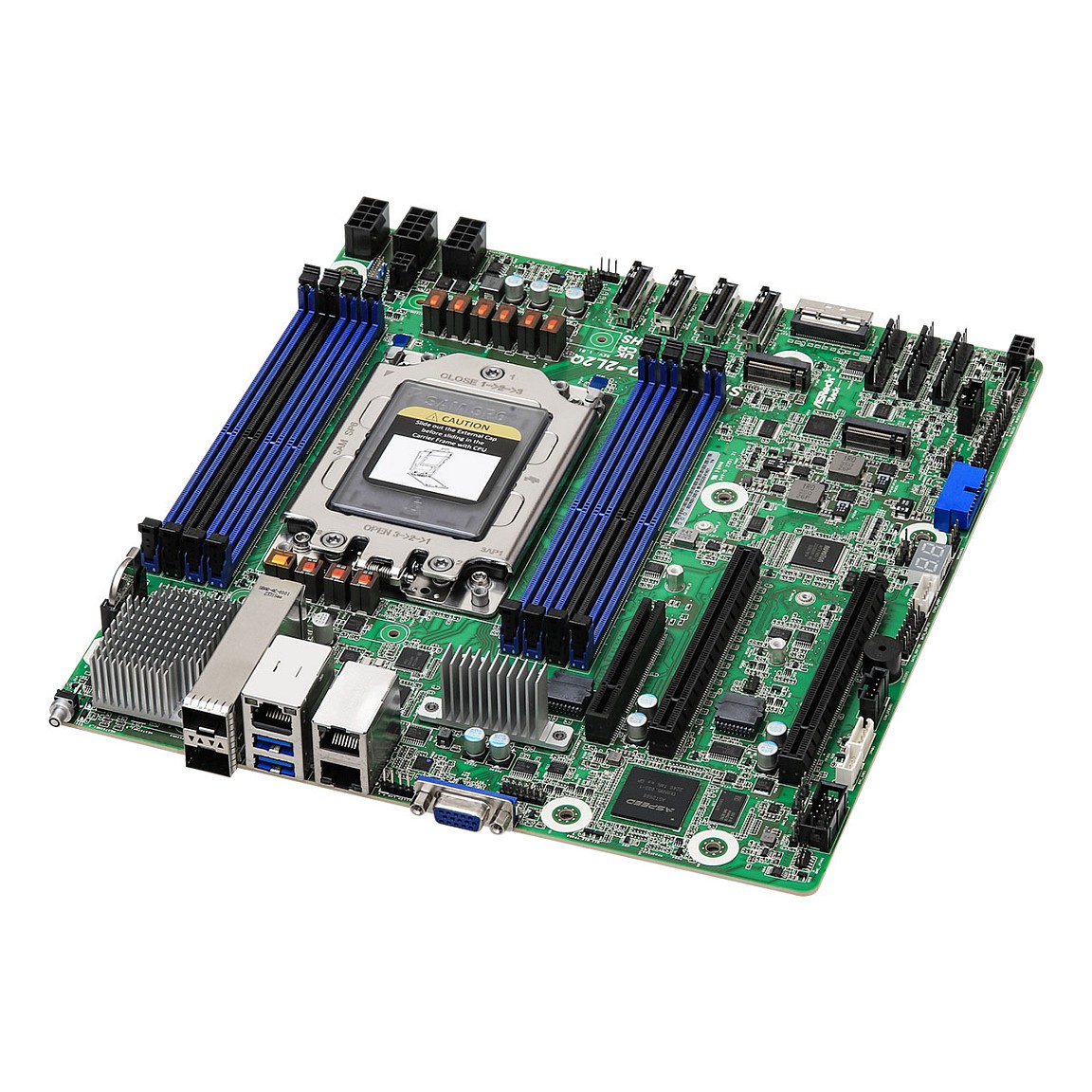

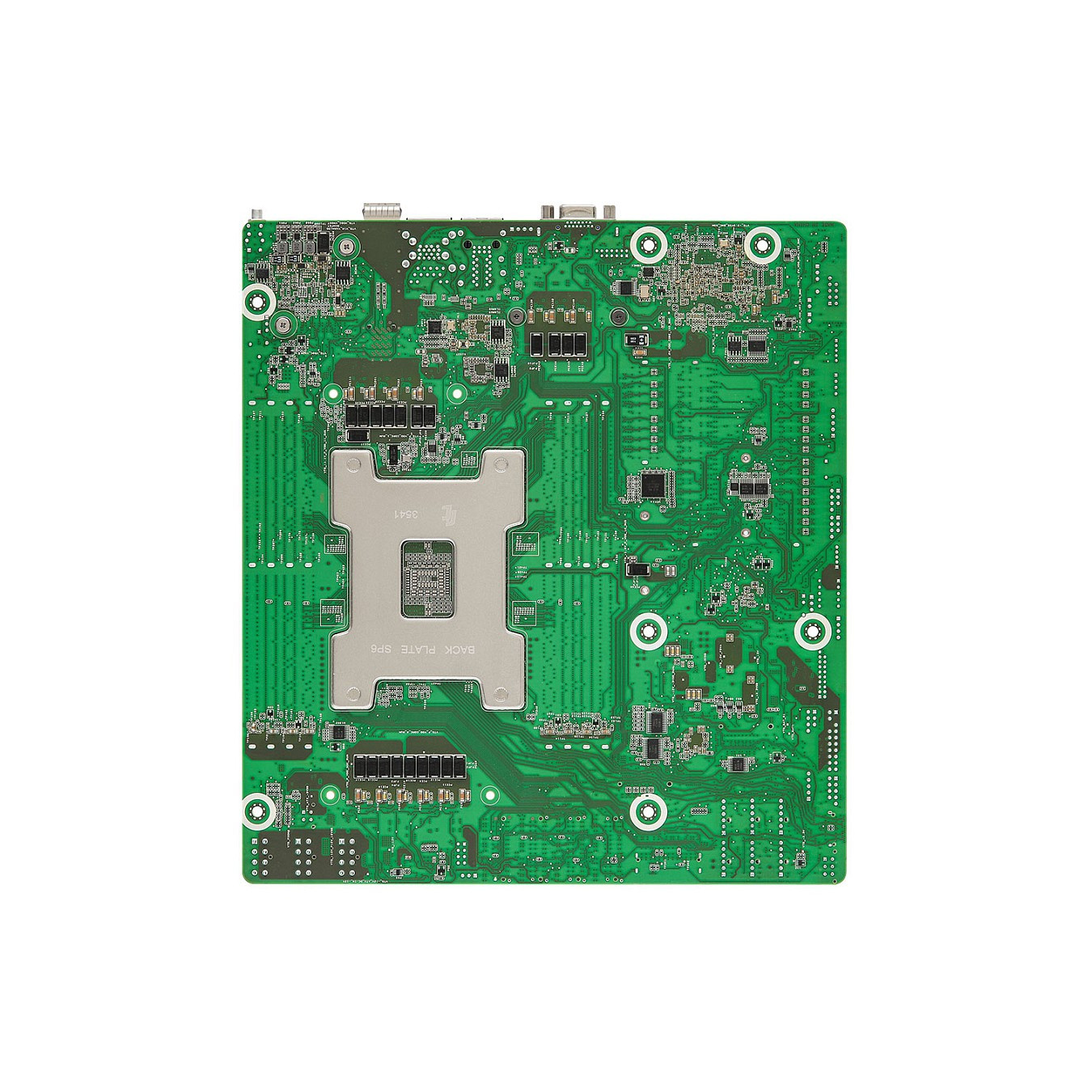

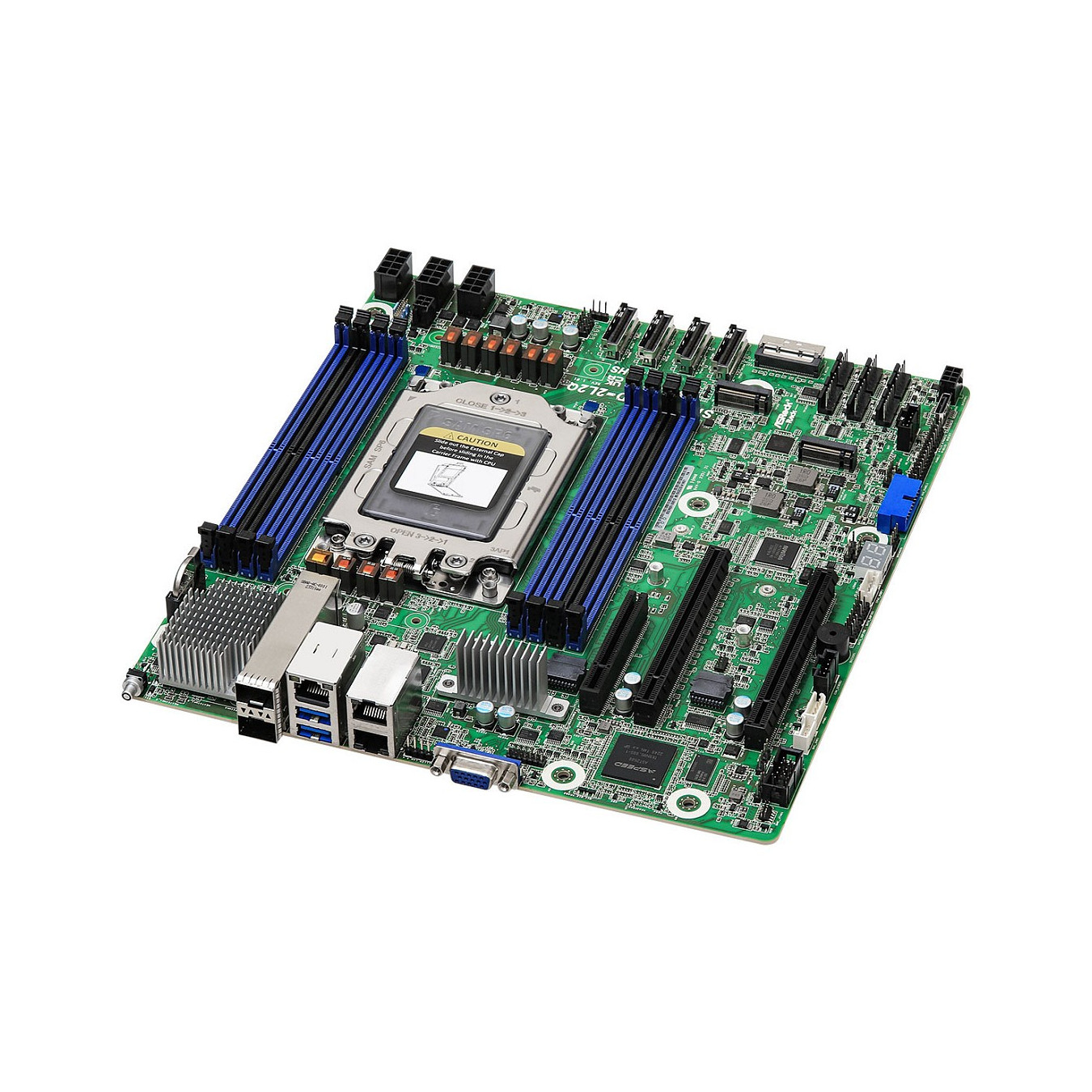

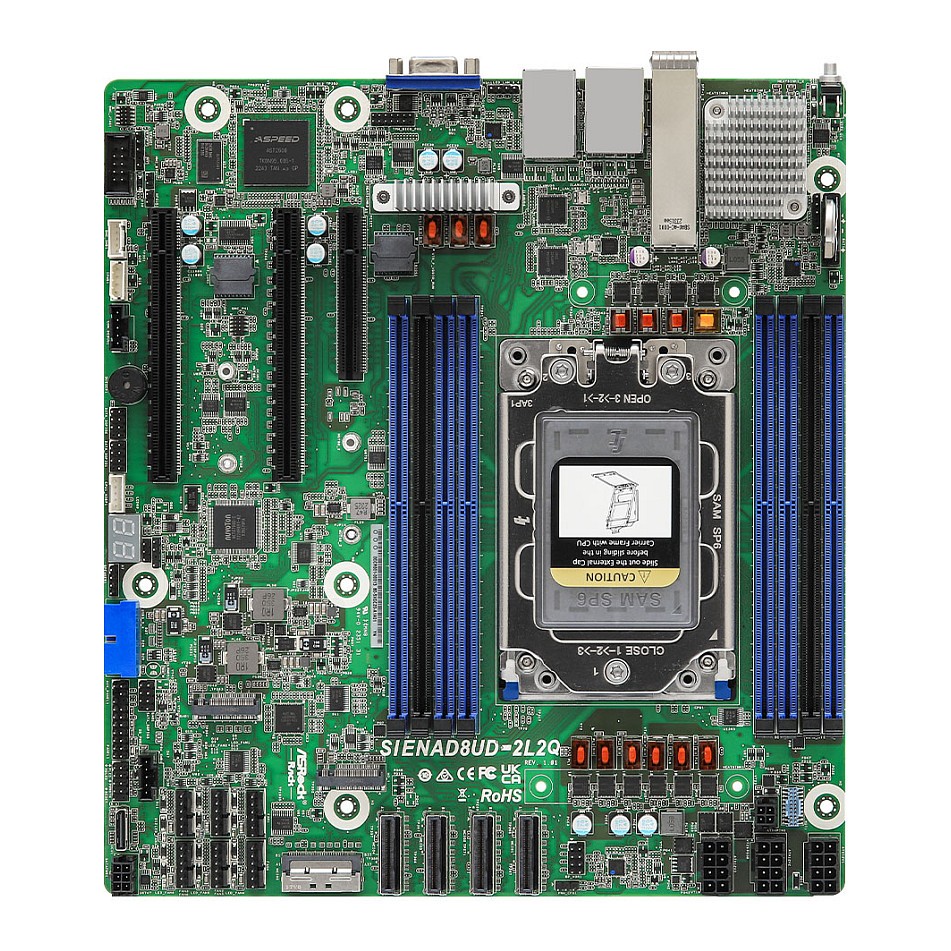

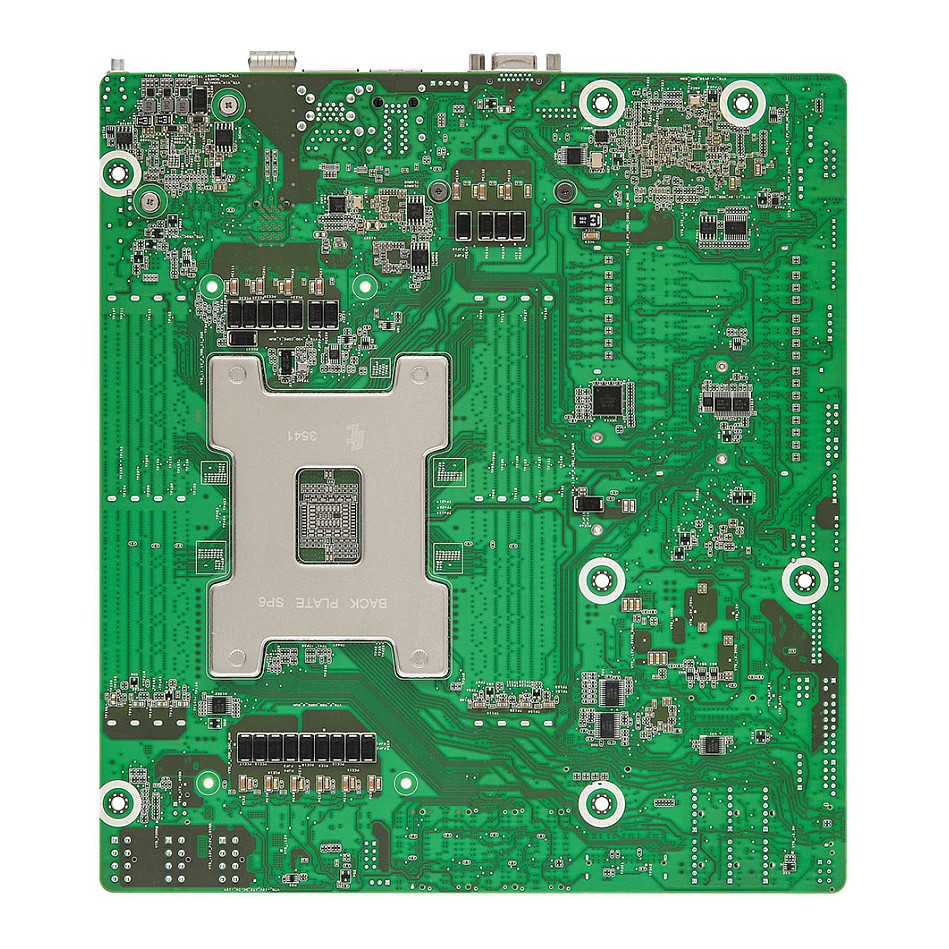

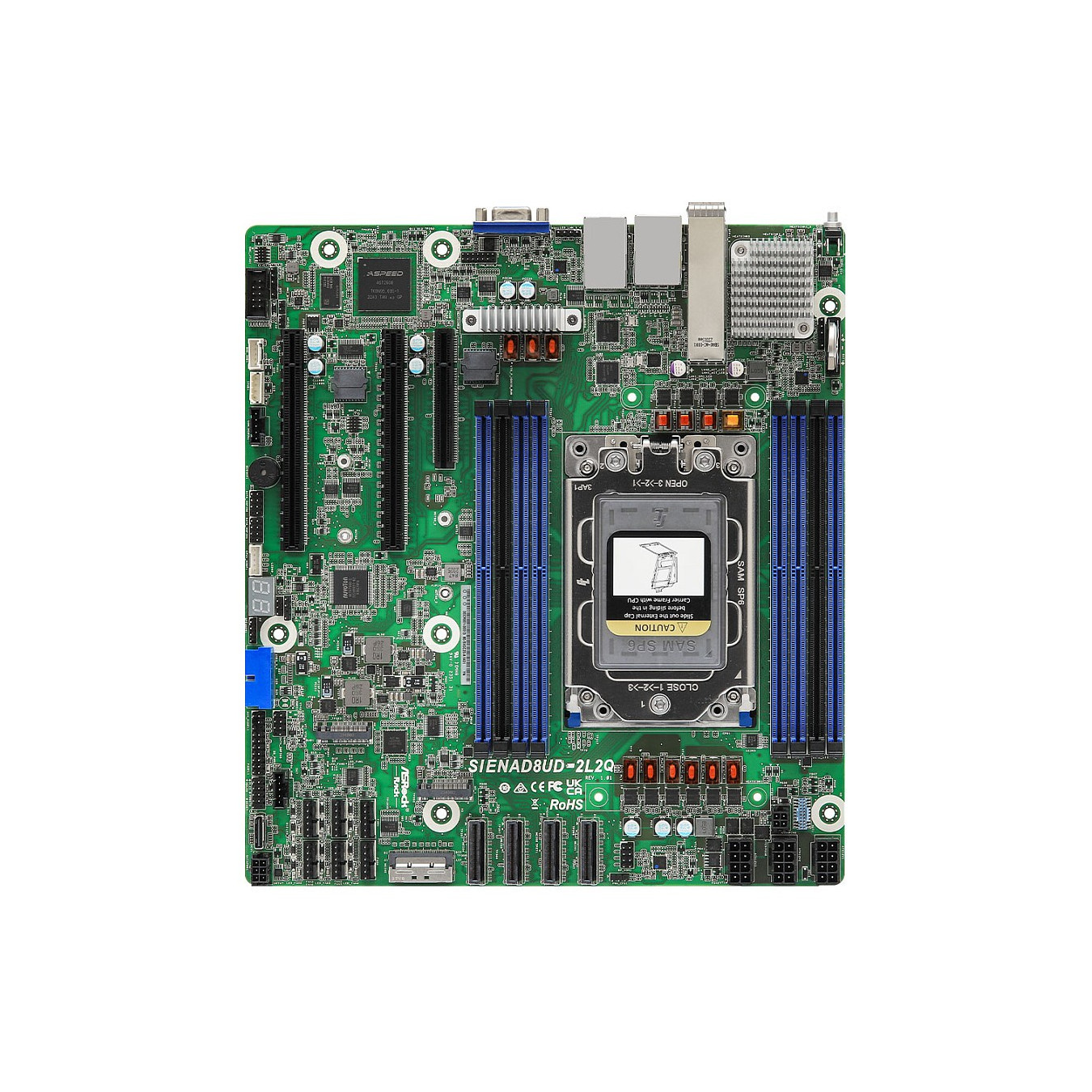

ASRock Mainboard SIENAD8UD-2L2Q micro-ATX Sockel SP6 Single
Asrock SIENAD8UD-2L2Q. AMD. Socket SP6. AMD EPYC. DDR5-SDRAM. DIMM. 1.1 V
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Asrock SIENAD8UD-2L2Q. Prozessorhersteller: AMD. Prozessorsockel: Socket SP6. Kompatible Prozessoren: AMD EPYC. Unterstützte Arbeitsspeicher: DDR5-SDRAM. Arbeitsspeicher Typ: DIMM. Speicherspannung: 1.1 V. Unterstützte Speicherlaufwerk-Schnittstellen: M.2. PCI Express 5.0. SATA III. Unterstützte Speicherlaufwerke: HDD & SSD. Grafikkarte-Familie: ASPEED. Grafikkarte: AST2600. Ethernet Schnittstellen Typ: 25 Gigabit Ethernet. Gigabit Ethernet. LAN-Controller: Broadcom BCM57414. Intel I210
| Prozessorhersteller | AMD |
| Prozessorsockel | Socket SP6 |
| Kompatible Prozessoren | AMD EPYC |
| Unterstützte Arbeitsspeicher | DDR5-SDRAM |
| Anzahl der Speichersteckplätze | 8 |
| Arbeitsspeicher Typ | DIMM |
| Speicherspannung | 1.1 V |
| Unterstützte Arbeitsspeichergeschwindigkeit | 4800 MHz |
| Unterstützte Speichertaktrate (max.) | 4800 MHz |
| Unterstützte Speichermodulkapazitäten | 96GB |
| Unterstützte Speicherlaufwerke | HDD & SSD |
| Unterstützte Speicherlaufwerk-Schnittstellen | M.2. PCI Express 5.0. SATA III |
| Grafikkarte-Familie | ASPEED |
| Grafikkarte | AST2600 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anschlüsse | 2 |
| SATA III Anschlüsse | 16 |
| Feature | Ethernet/LAN |
| Zahl der COM Stecker | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A | 2 |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 2 |
| Anzahl VGA (D-Sub) Anschlüsse | 1 |
| Ethernet Schnittstellen Typ | 25 Gigabit Ethernet. Gigabit Ethernet |
| LAN-Controller | Broadcom BCM57414. Intel I210 |
| Komponente für | Server |
| Motherboardformfaktor | micro ATX |
| Motherboard Chipsatz Familie | AMD |
| PCI Express x8-Steckplätze (Gen 5.x) | 1 |
| PCI Express x16-Steckplätze (Gen 5.x) | 2 |
| Anzahl der M.2 (M)-Steckplätze | 2 |
| BIOS-Typ | UEFI AMI |
| BIOS-Speichergröße | 256 Mbit |
| ACPI-Version | 6.4 |
| Systemverwaltung BIOS (SMBIOS) Version | 3.5 |
| Temperaturbereich bei Lagerung | -40 - 70 °C |
| Betriebstemperatur | 10 - 35 °C |
| Luftfeuchtigkeit bei Lagerung | 20 - 90% |
| Breite | 243.8 mm |
| Tiefe | 266.7 mm |
