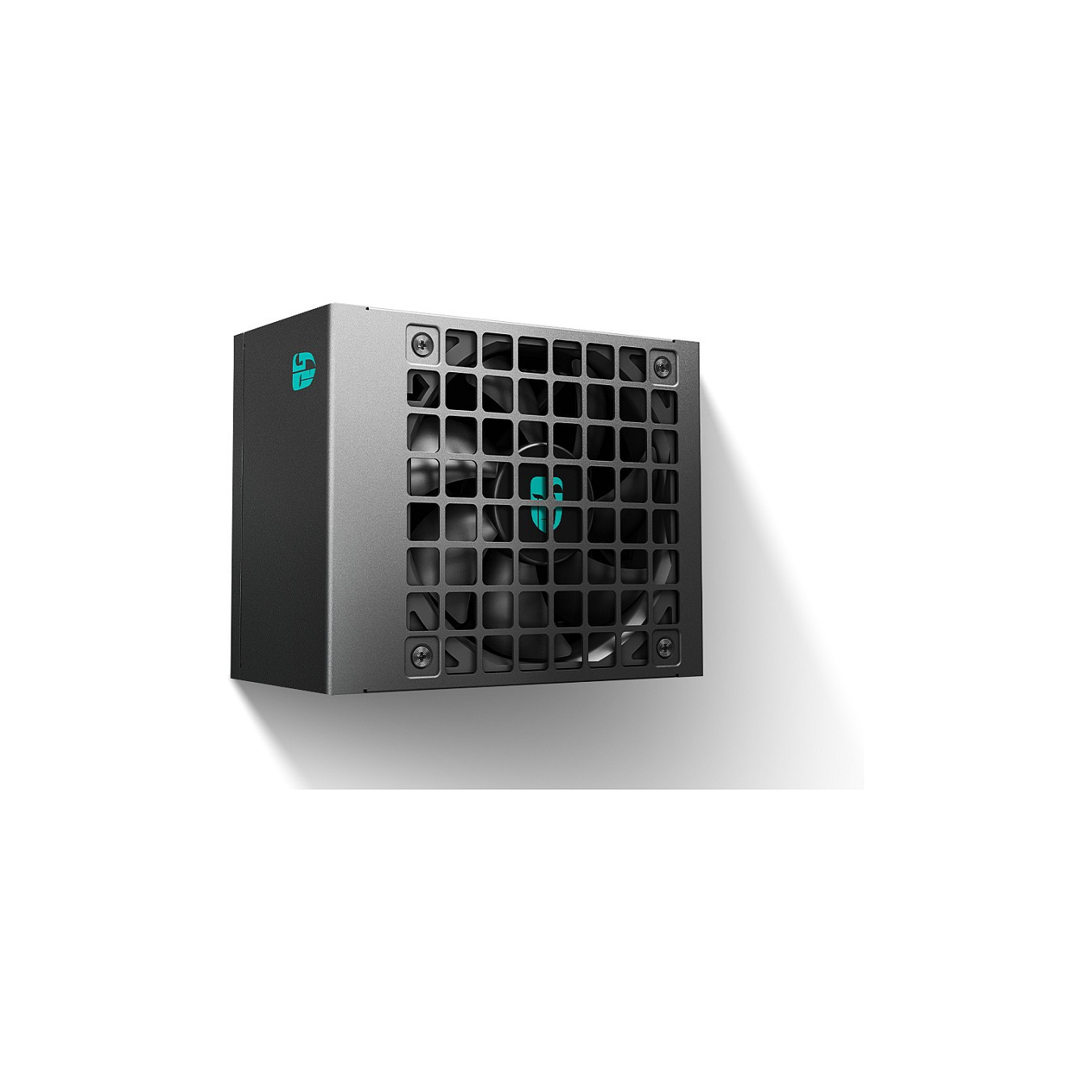

DeepCool PS850G 850W SFX ATX3.1 80+ Gold Fully Modular (Boxed)
DeepCool PS850G 850W SFX PSU meets ATX 3.1 with 80+ Gold efficiency, fully modular design, 1x 12V-2x6 (600W), 3x PCIe 6+2-pin, 2x EPS. Compact 120mm fan, Japanese capacitors, ideal for SFF gaming PCs with native PCIe 5.0 support.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 800 - 899 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Gold |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 1x 12V-2x6 3x 8/6 pins |
| PSU (Power Supplies) - Length | Up to 140 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 2x 4+4pin EPS/ATX12V |
The DeepCool PS850G is a high-performance 850W SFX power supply compliant with the latest ATX 3.1 standard, featuring 80+ Gold certification for excellent efficiency. Fully modular cabling ensures clean builds in small form factor cases, with premium Japanese 105°C capacitors for reliability up to 5000m altitude.
Equipped with a native 12V-2x6 connector (600W) for next-gen GPUs, 3x PCIe 6+2-pin cables, dual EPS 4+4-pin for high-end CPUs, 8x SATA, and 4x Molex. The 120mm FDB fan supports semi-fanless mode for quiet operation under light loads, with protections including OPP, OVP, SCP, OTP, OCP, UVP.
- ATX 3.1 & PCIe 5.0 ready for power excursions
- 80+ Gold / Cybenetics Gold certified
- Fully modular with 18AWG cables
- Compact SFX form factor: 125x100x63.5mm (unit)
- Hold-up time ≥16ms at full load
| Total Power | 850 W |
| Form Factor | SFX |
| ATX Standard | ATX 3.1 |
| Efficiency Certification | 80+ Gold / Cybenetics Gold |
| Modularity | Fully Modular |
| Fan Size | 120 mm FDB |
| Dimensions (Unit) | 125 x 100 x 63.5 mm (W x D x H) |
| Main Capacitors | Japanese 105°C |
| ATX 24-pin | 1x |
| EPS 4+4-pin | 2x |
| PCIe 12V-2x6 | 1x (600W) |
| PCIe 6+2-pin | 3x |
| SATA | 8x |
| 4-pin Molex | 4x |
| Protections | OPP/OVP/SCP/OTP/OCP/UVP |
| Operating Temperature | 0-40°C |
| MTBF | 100,000 hours |
