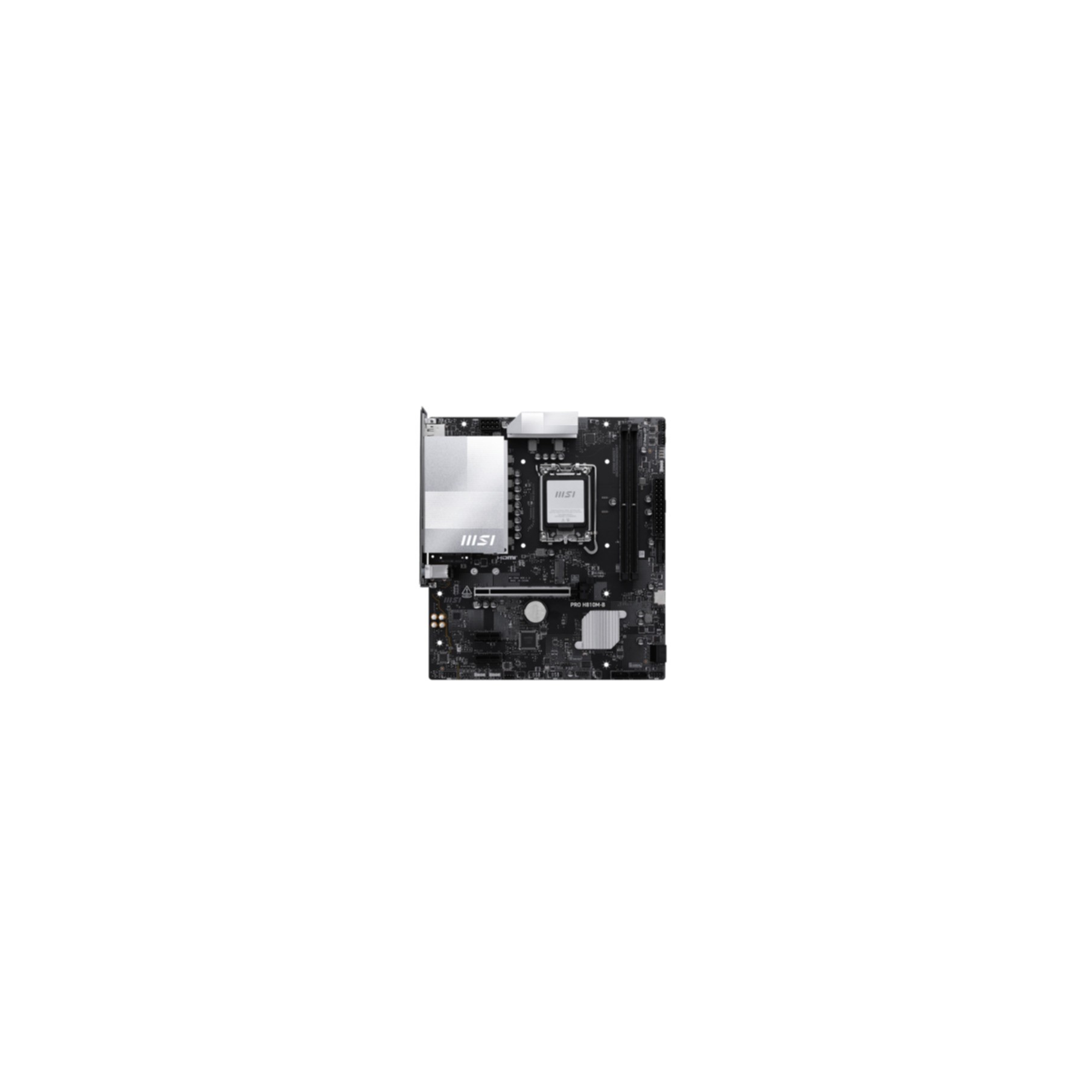

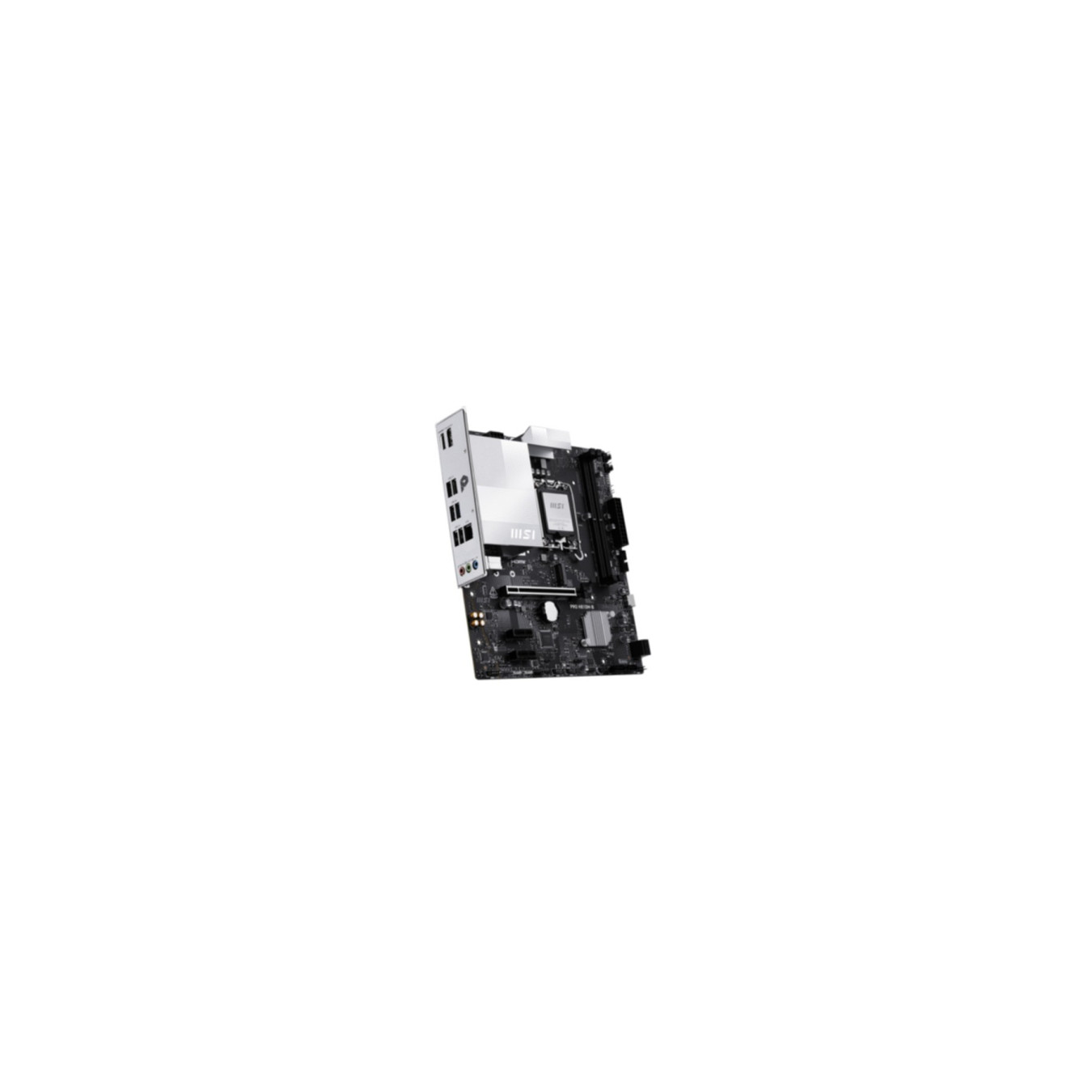

MSI PRO H810M-B - LGA1851 Micro-ATX Motherboard - DDR5 128GB, PCIe 4.0, 2.5Gb Ethernet, RGB, HDMI/DisplayPort
LGA1851 Micro-ATX motherboard for Intel Core Ultra Series 2. Supports DDR5 up to 128GB (2 slots), PCIe 4.0 primary, 2.5Gb LAN, HDMI+DP, rear USB-C.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - Memory Slots | 2 |
|---|---|
| Motherboards - Max Memory Capacity | 128 GB |
| Motherboards - Main Slot PCIe Version | PCIe 4.0 |
| Motherboards - M.2 Slots | 1 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C Support | Rear Type-C |
| unterstützte Prozessormodelle | Intel Core Ultra (Series 2) |
| Sockel | LGA 1851 (Socket V1) |
| Chipsatz | Intel H810 |
| BIOS | UEFI AMI |
| Formfaktor | micro ATX |
| geeignet für freien Multiplikator | ja |
| Speicher max. | 128 GB |
| Memory slots | 2 |
| Speicher je Speicherplatz | 32GB |
| Storage type | DDR5-SDRAM |
| RAM Takt | 4800,6400 MHz |
| Speicher Kanäle | Zweikanalig |
| Speichertyp | non-ECC;un-buffered |
| Controller in CPU | ja |
| LAN (RJ45) | 2.5 Gigabit Ethernet |
| PS/2 (Tastatur/Maus) | 1 |
| USB 3.1 | 2 |
| USB 3.0 | 2 |
| USB 2.0 | 4 |
| USB C | 1 |
| VGA | 0 |
| HDMI | 1 |
| DisplayPort | 1 |
| Mikrofon | 1 |
| Line-Out 3,5 mm Klinke | 4 |
| S/PDIF-Out (optisch) | 1 |
| PCIe 4.0 | 1 |
| PCIe 3.0 | 2 |
| Mainbord Strom | 24pin |
| CPU Strom | 8pin |
| SATA 3 | 4 |
| M.2 | 1 |
| M.2 Länge max. | 110mm |
| M.2 Konnektor | M |
| USB-Header USB 2.0 | 4 |
| USB-Header USB 3.0 | 4 |
| USB-Header USB C | 3 |
| Lüfter 4-polig PWM | 2 |
| Sound-Chip | Realtek ALC897 |
| LAN | Realtek RTL8125B |
| Multi-GPU | ja |
| Multi-GPU Modus | 2-Way AMD CrossFire |
| RAID SATA | 0, 1, 5, 10 |
| RAID M.2 | 0;1 |
| Beleuchtungsfarbe | RGB |
| Farbe | schwarz |
| Gewicht (g) | 1950 |
| Breite (cm) | 30.50 |
| Tiefe (cm) | 24.40 |
| Internal graphic | yes |
| verfügbare Slots | 6 |
